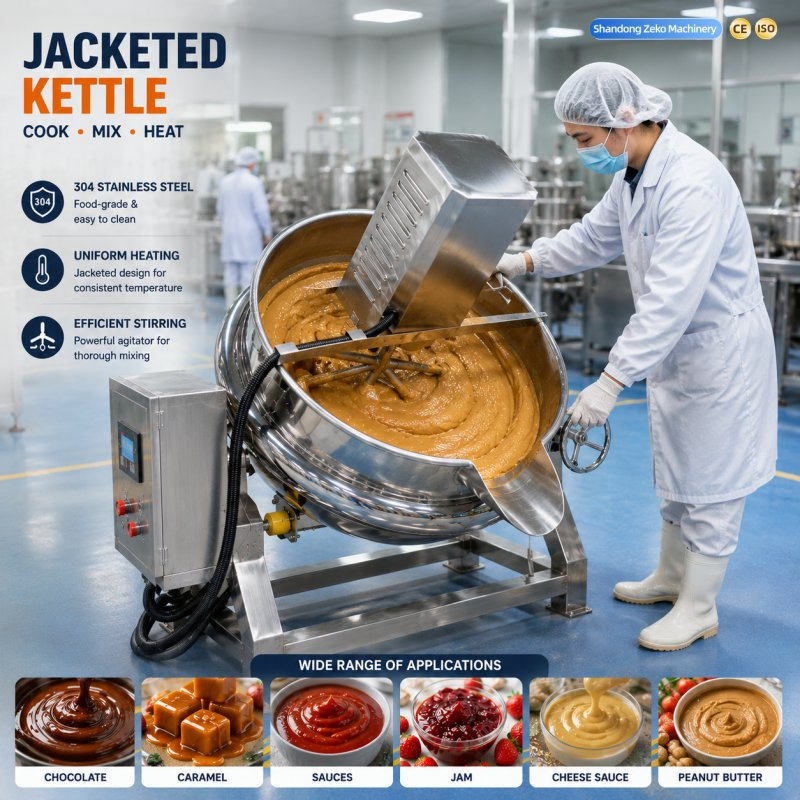

Stainless Steel Tilting Cooking Machine for Sauce Jam Candy Soup Food Processing

Still deciding? Get samples of $ !
Order Sample

Product Description

  • Overview
  • Our Advantages
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • After Sales Service
  • FAQ
📋

Overview

Usage Food Processing Equipment
Power Source Electric
Timing Device Without Timing Device
Type Gas Sandwich Boiler
Voltage 380V
Customized Customized
Selling Units Single Item
Application Scope Food Industry
Color Stainless Steel Silver
Core Components Plcbearinggearboxmotor, Gear
Material Stainless Steel
Application Fields Meat Processing Plants, Snack Food Factory
MOQ 1set
Machinery Test Report Provided
Name Jacketed Kettle/Jacketed Pot with Stirring
Advantage Easy Operation High Efficiency
Video Outgoing-Inspection Provided
Heating Method Steam Gas Electric Heating
Transport Package Wooden Box
Specification 1120*660*1260mm
📦

Packaging & Delivery

Package Size 132.00cm * 86.00cm * 156.00cm
Package Gross Weight 225.000kg
💡

Our Advantages

Our jacketed kettles are designed to meet strict industrial food standards, offering exceptional thermal efficiency, robust safety controls, and clean stainless steel structures. Easy to operate and maintain, they represent the ideal cooking solution for modern food processing enterprises.
🛠️

Product Description

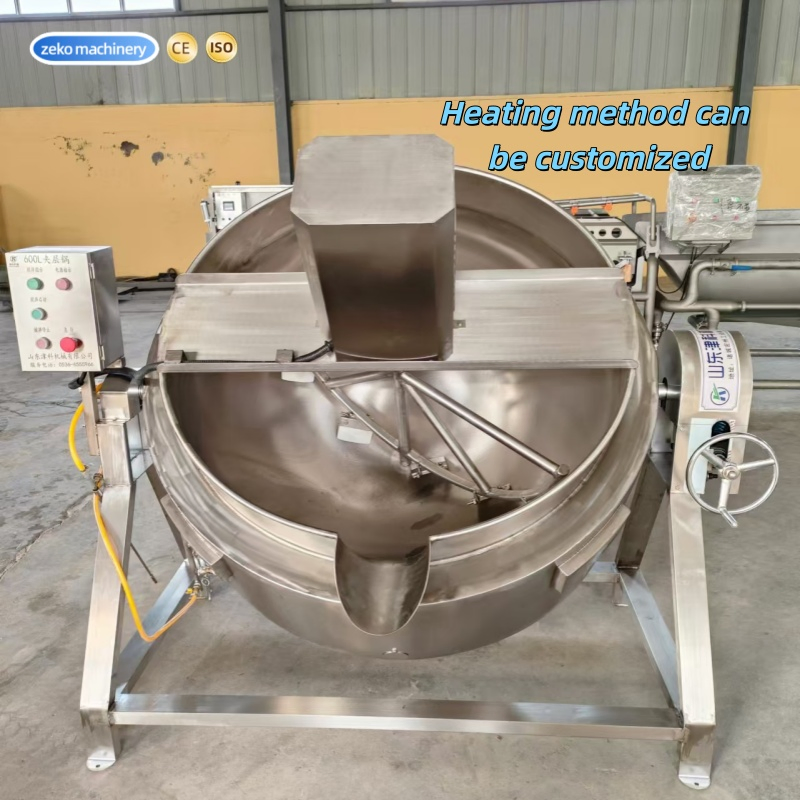

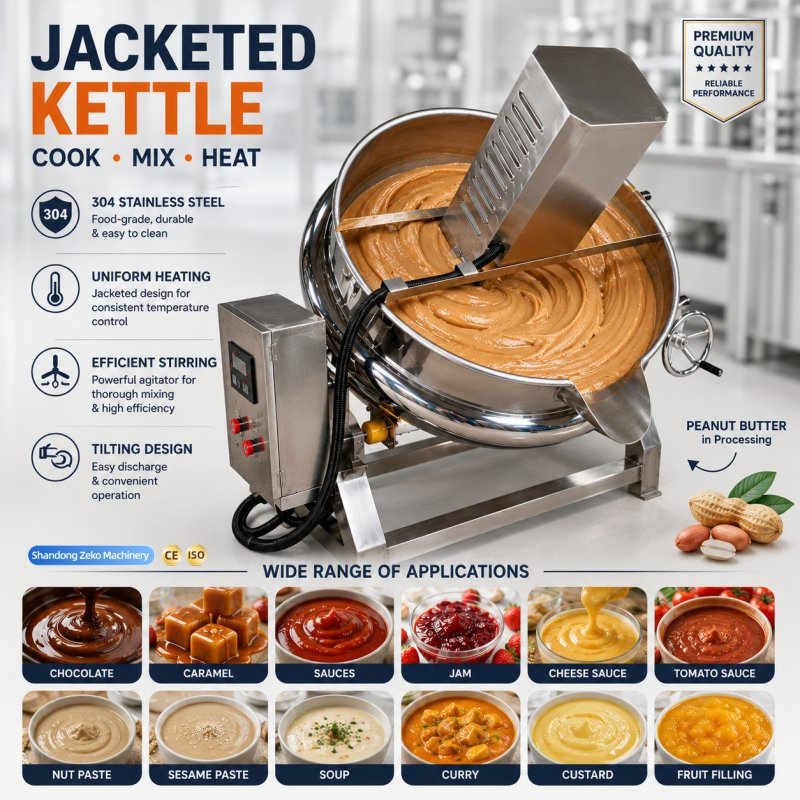

Stainless Steel Tilting Cooking Machine for Sauce Jam Candy Soup Food Processing

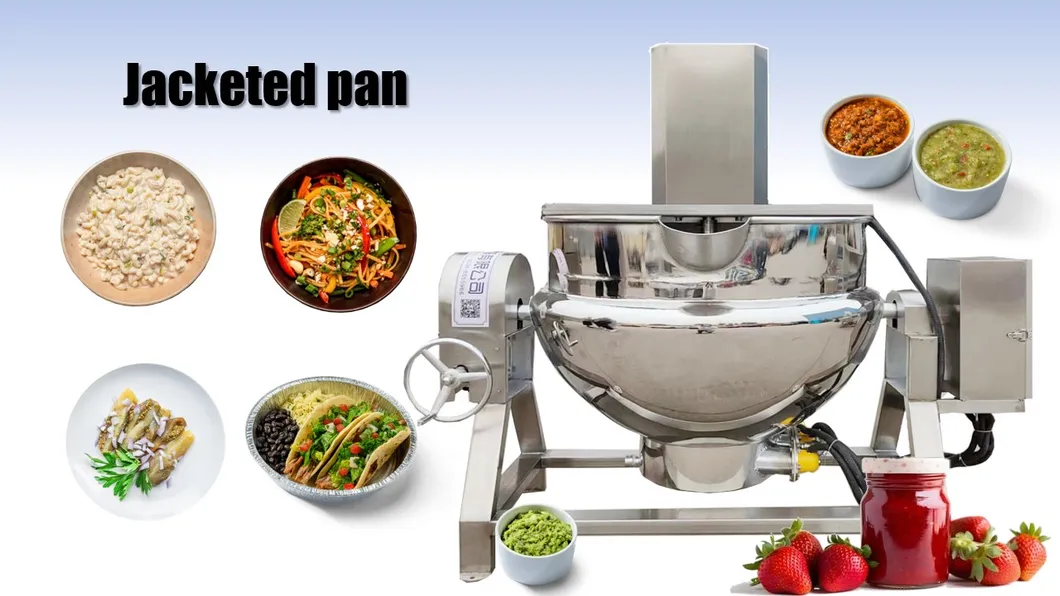

Jacketed pan
Sandwich pot is also known as steam pot, digester, sandwich steam pot. Usually consists of a pot body and supporting feet. The boiler body is a double-layer structure composed of spherical inside and outside the pot body, and the middle interlayer is heated by steam. There are fixed, tilting, stirring and other styles. The sandwich pot has the characteristics of large heating area, high thermal efficiency, uniform heating, short boiling time of liquid and material, easy control of heating temperature, beautiful appearance, easy installation, convenient operation, safe and reliable. Sandwich pot is widely used in the processing of all kinds of food, can also be used in large restaurants or cantons to make soup, stew meat, porridge, etc., is a good equipment for food processing to improve quality, shorten time, and improve working conditions.
📸

Detailed Photos

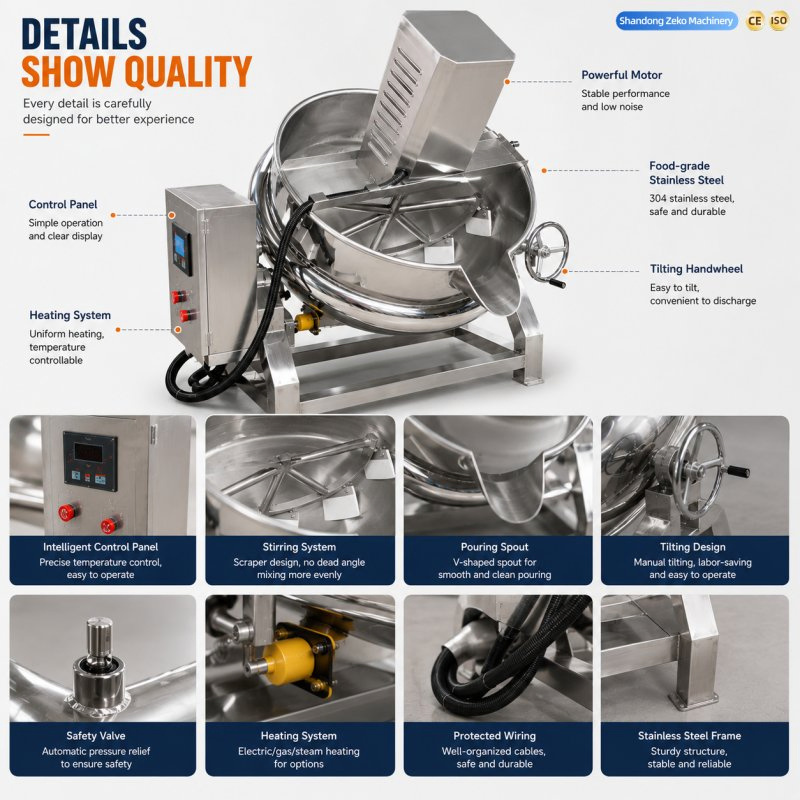

Product details

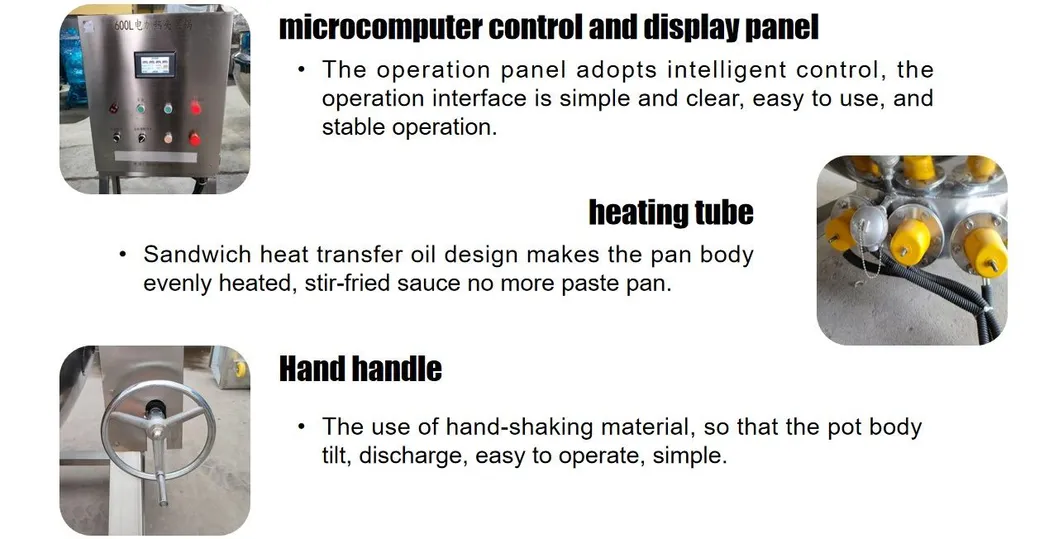

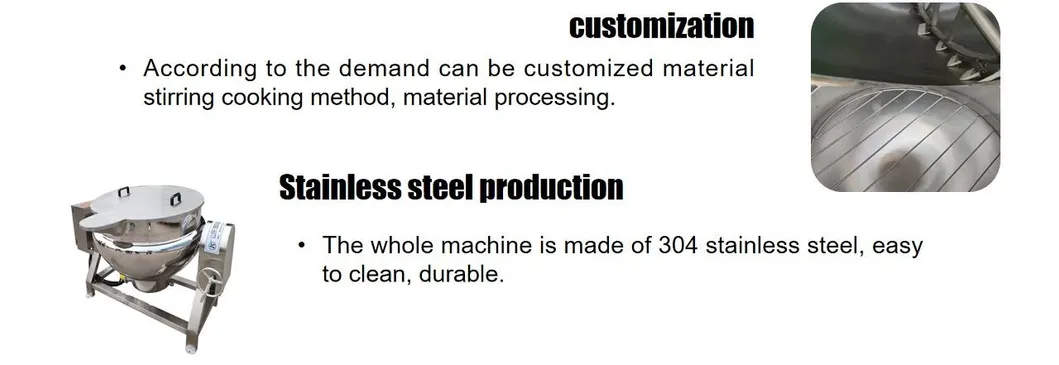

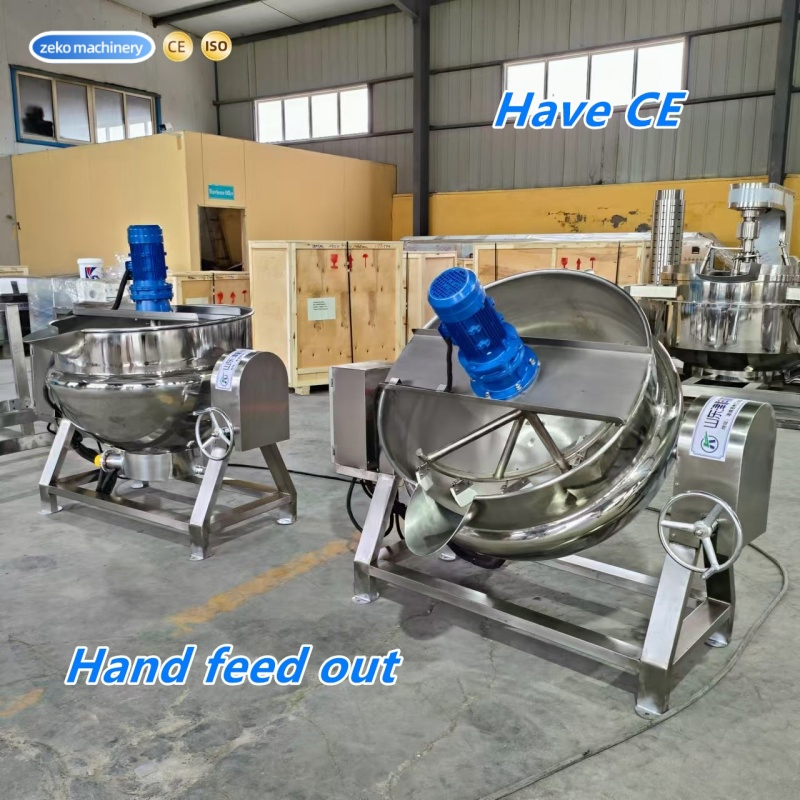

Product Detail View 1 Product Detail View 2
Meet different needs
Meet different needs banner

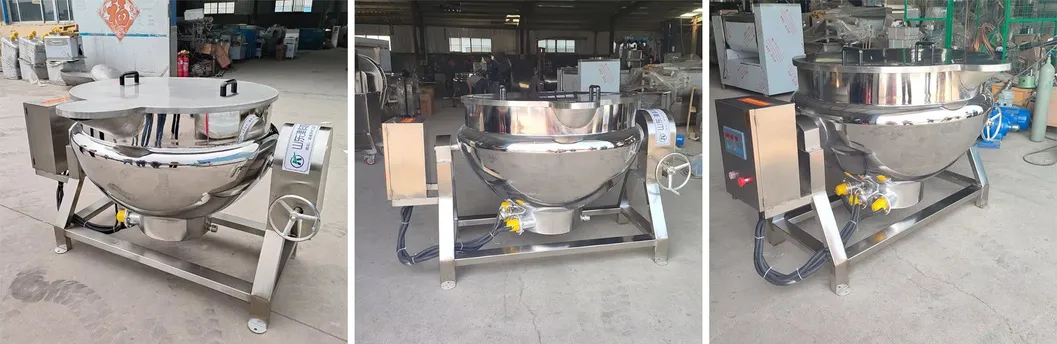

Product display
Product display banner

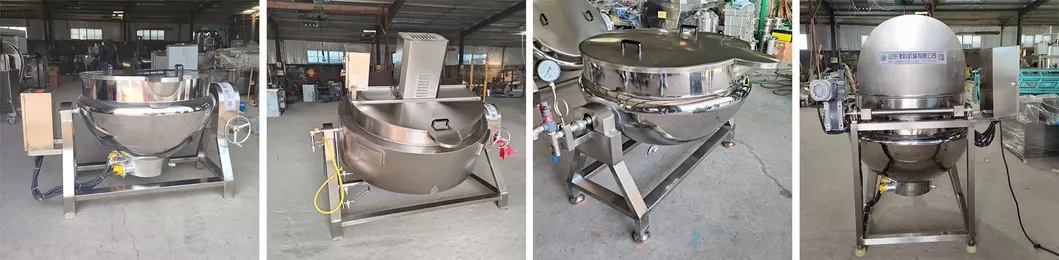

Various designs are available
Various designs banner
📊

Product Parameters

Sandwich pan technical parameters
model Parameters (inside diameter) Heating power/stirring power tactic form mode of heating
100L diameter 700mm 12KW/0.37KW Tilting/stirring/vertical/customizable Electric heating/steam/gas/electromagnetic/customizable
200L diameter 800mm 18KW/0.75KW
300L diameter 900mm 27KW/1.1KW
400L diameter 1000mm 27KW/2.2KW
500L diameter 1100mm 36KW/2.2KW
600L diameter 1200mm 36KW/2.2KW
700L diameter 1300mm 36KW/2.2KW
800L diameter 1400mm 36KW/2.2KW
900L diameter 1500mm 48KW/2.2KW
1000L diameter 1600mm 48KW/2.2KW
Specification diagram
📜

Certifications

Certification document 1 Certification document 2 Certification document 3
🚢

Packaging & Shipping

Packaging method 1 Packaging method 2
🏢

Company Profile

We are a global supplier of meat processing machines and fruit and vegetable equipment. We focus on the research and development, manufacturing, and sales of meat bowl choppers, air bubble washing machines, vacuum packaging machines, frozen meat grinders, meat stuffing mixing machines, sausage machines, fruit and vegetable washing machines, vacuum meat tumbler machines, meat ball machines, and so on. We also provide customers with a full set of solutions.

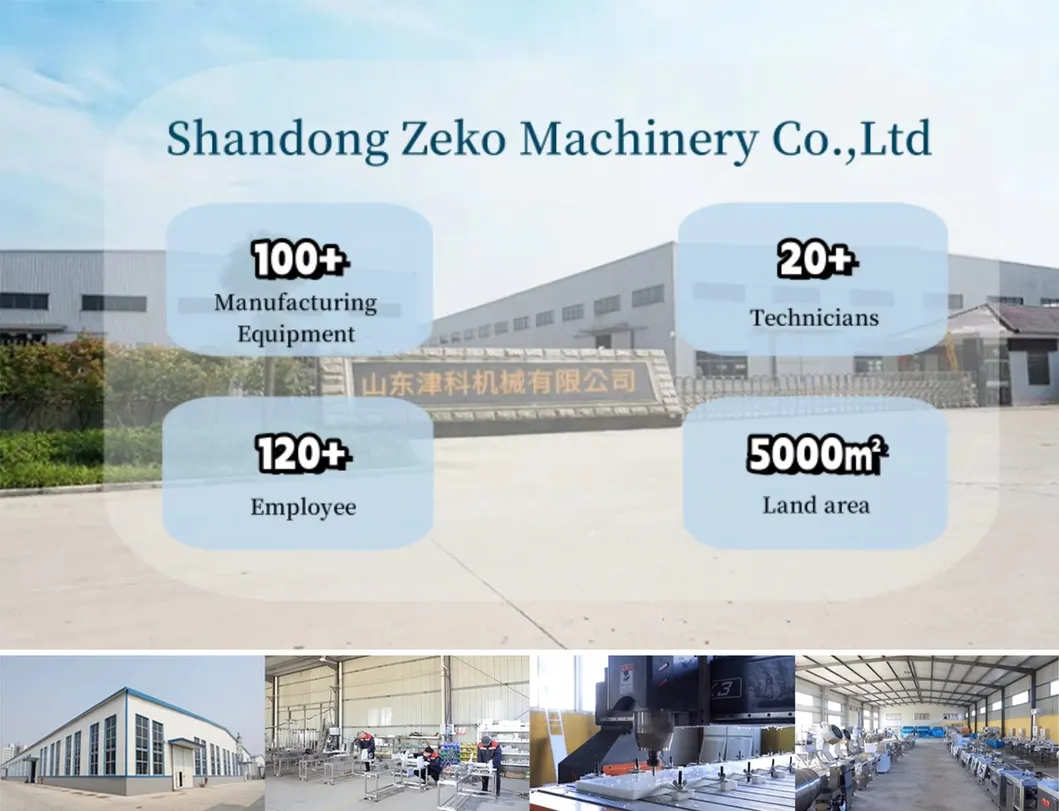

Workshop overview 1 Workshop overview 2
Our customers
Customer visits 1 Customer visits 2
🛠️

After Sales Service

  • 1. One year warranty The products feature a one-year warranty and a lifetime service system.
  • 2. About the equipment If the device fails or encounters difficulties during use, read the product manual as a reference.
  • 3. About service If the device fails and cannot resolve itself, please contact us in time and we will provide you with remote video guidance and professional technical support.

Frequently Asked Questions

What heating methods does the Jacketed Kettle support?
The jacketed kettle supports electric heating, steam heating, gas heating, and electromagnetic heating. Customized options are also available to fit your specific processing setup.
Can the machine's capacity and size be customized?
Yes, we offer capacities ranging from 100L up to 1000L with different inner pot diameters (700mm to 1600mm). The shape can be customized into tilting, stirring, or vertical designs based on your production goals.
What materials are used to construct the Jacketed Kettle?
The machine is constructed from high-quality stainless steel, ensuring hygiene, durability, corrosion resistance, and simple cleaning in busy food processing operations.
What fields of application is this equipment suitable for?
It is highly suitable for meat processing plants, snack food factories, and large institutional kitchens to prepare soup, sauce, jam, candy, and stewed meat efficiently.
What is the warranty period and how is technical support handled?
The equipment comes with a one-year warranty and a lifetime service system. If technical issues occur, we provide remote video guidance and professional technical support.
