CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer

Still deciding? Get samples of $ !
Order Sample

Product Description

  • Overview
  • Our Advantages
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Certifications
  • Packaging & Shipping
  • After Sales Service
Overview
Model NO.50L-1000L
UsageSauce
Power SourceSteam/Electric Heating/Gas
Timing DeviceWithout Timing Device
TypeCooking and Boiling
Voltage380V
CustomizedCustomized
CapacityCustomizable
Heating MethodSteam Heating / Electric Heating / Gas Heating
MaterialSUS304 Stainless Steel (Food Grade)
Liner Thickness3mm-6mm
Interlayer MediumSteam / Thermal Oil / Water
Design Pressure0.090-3 MPa
Maximum Temperature150ºC -180ºC
Control MethodManual / Automatic
Stirring DevicePlanetary Stirring
Discharging MethodManual Tilt
Support MethodTripod Fixed / Movable
Power6kw-36kw
Core ComponentsEngine,Gearbox,Motor,Pump
Video Outgoing-InspectionProvided
Machinery Test ReportProvided
Transport PackageShipping in Wooden Cases
Specification1120*660*1260mm
HS Code8419899090
Production Capacity80-90L /Hour
Packaging & Delivery
Package Size132.00cm * 86.00cm * 146.00cm
Package Gross Weight225.000kg
Our Advantages
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
Product Description
Jacketed kettle
2X Faster: Unique indirect heating + powerful agitator system → heating time reduced by 50% compared to direct-fire kettles
Longer Shelf Life: Precise temperature control (±1°C) + fully sealed cooking process, effectively prevents nutrient loss and contamination
Professional Appearance: Uniform heating + optional tilting/high-speed emulsifying head → smooth texture, bright color, ideal for high-end ready meals and sauces
High Efficiency & Less Labor: Automatic tilting + programmable temperature/time control + one-button CIP cleaning → one operator can manage multiple units
Heavy-Duty & Hygienic: Full SUS304/SUS316L stainless steel construction + world-class branded steam valves and agitator motors (ABB), built to last 15+ years
Versatile: Suitable for cooking, concentrating, sterilizing, mixing, and emulsifying soups, sauces, jams, curry, meat fillings, bean paste, dairy products, candy, pharmaceuticals, etc.
User-Friendly: PLC touch-screen control (Siemens/Delta), 99 recipe memory, steam/electric/thermal oil heating options, gas flushing and vacuum functions optional
Ideal for: medium to large food factories, central kitchens, hotels, restaurants, and ready-meal producers that demand high volume, consistent quality, and labor-saving automation.
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer

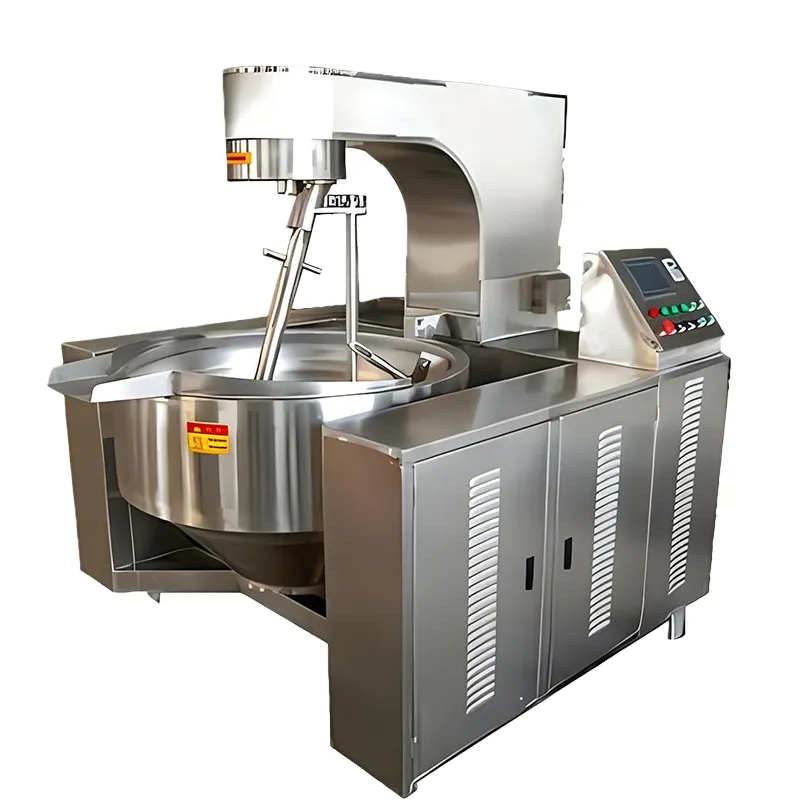

Fully Automatic Planetary Fryer
The fully automatic planetary stir-fry wok perfectly replicates a chef's hand-tossed technique through its 360° planetary stirring system, delivering authentic "wok hei" with uniform heating in just 3-8 minutes per batch (5-200 kg). Equipped with one-touch intelligent operation, over 1,000 built-in recipes, automatic feeding, seasoning, and discharging, it enables one operator to manage multiple units while achieving ±1ºC precise temperature control and consistent restaurant-quality taste. Constructed from food-grade 304/316L stainless steel with non-stick coating and automatic CIP cleaning, the machine supports electromagnetic or gas heating with over 95% thermal efficiency. It can process a wide range of dishes including stir-fries, braised meats, sauces, curries, fillings, seafood, vegetables, rice, and noodles - making it ideal for central kitchens, restaurants, food factories, and ready-meal production lines.
Advantages of Jacketed kettle
Advantages of Fully Automatic Planetary Stir-fry Wok
  • 2X Faster Cooking Speed: Unique indirect heating combined with powerful planetary agitator system cuts heating and cooking time by more than 50% compared to traditional direct-fire kettles; a full pot (up to 200 kg) is ready in just 3-8 minutes.
  • Authentic Wok Hei & Professional Finish: 360° planetary stirring perfectly mimics a chef's hand-tossed motion, delivering genuine "wok hei", uniform heat distribution, vibrant color, and silky-smooth texture - ideal for high-end ready meals, sauces, curries, and restaurant-quality dishes.
  • Longer Shelf Life & Maximum Nutrient Retention: ±1°C ultra-precise temperature control and fully sealed cooking process minimize oxidation, nutrient loss, and bacterial contamination, significantly extending product shelf life.
  • Extreme Efficiency & Labor Saving: One-button fully automatic operation (feeding → stirring → seasoning → discharging), programmable recipes (1000+ built-in), automatic tilting, and one-button CIP cleaning - one operator can easily run 3-6 units simultaneously.
  • Heavy-Duty & Food-Grade Hygienic Design: Entire machine built with SUS304/SUS316L stainless steel, non-stick coating and full CIP/SIP compatibility ensure easy cleaning and 15+ years of continuous heavy-duty service.
  • Highly Versatile Applications: Perfect for stir-frying, braising, boiling, concentrating, sterilizing, emulsifying, and mixing: meat & seafood dishes, vegetable stir-fries, fried rice/noodles, all kinds of sauces, curries, jams, bean paste, meat fillings, dairy products, candy, soups, and even pharmaceutical products.
  • User-Friendly Intelligent Control: Siemens/Delta PLC + full-color touchscreen, 99-1000 recipe storage, multiple heating options (electromagnetic, steam, gas, thermal oil), optional vacuum, gas flushing, and high-speed emulsifying head.

Ideal for: central kitchens, large restaurants, food processing factories, hotel chains, and ready-meal producers who require high-volume output, consistent top-tier taste, minimum labor, and full regulatory compliance.

CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
Detailed Photos
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer

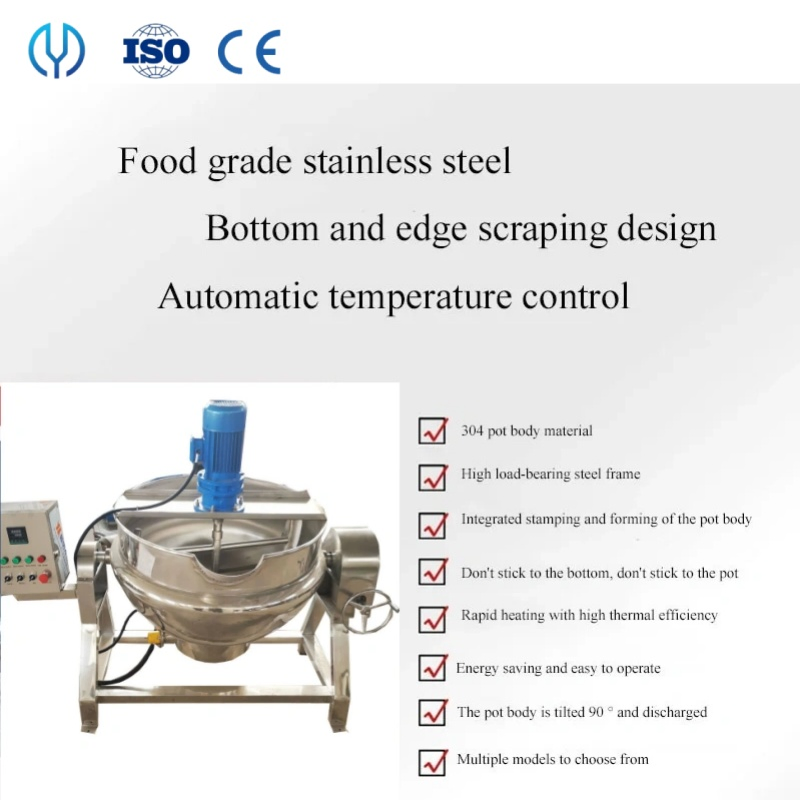

Jacketed kettle
Common Configurations:
Capacity: 50L-1000L (customizable)
Heating Method: Steam, Electric, Gas, Thermal Oil, Electromagnetic
Discharge Method: Hand-cranked 90° tilting, Fixed + bottom valve discharge
Optional Functions: Manual/Electric stirring, Insulation layer, Digital temperature display, Pressure gauge, Safety valve

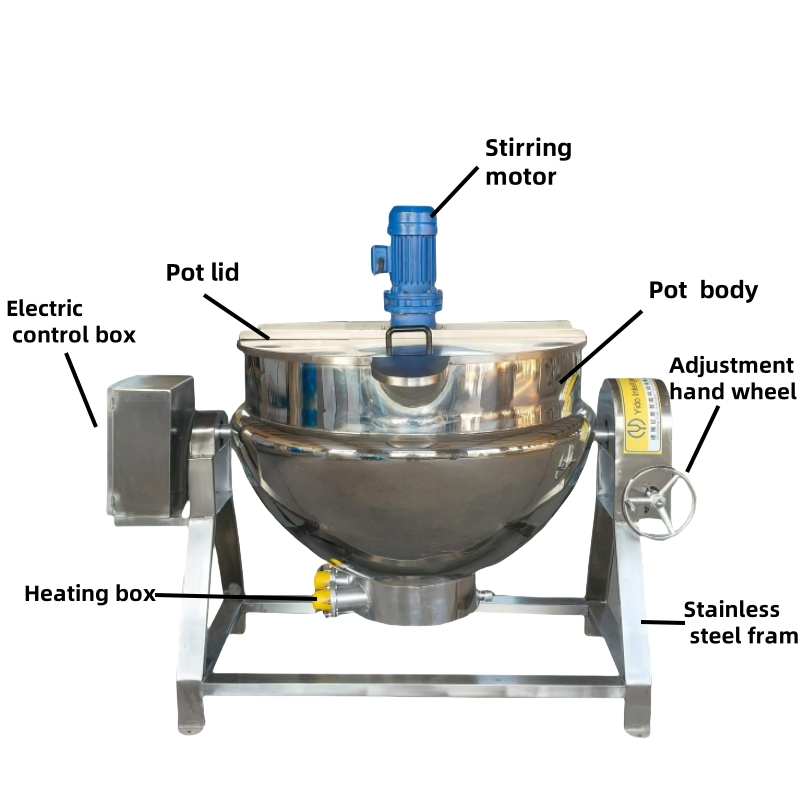

The jacketed kettle is constructed with a double-layer (jacketed) structure, typically made of high-quality 304/316L food-grade stainless steel for the inner pot and 304 stainless steel for the outer jacket, offering excellent pressure resistance, corrosion resistance, and long-lasting durability. The jacketed design allows heating media (steam, thermal oil, or electric heating) to circulate in the interlayer, achieving rapid, uniform heating while precisely controlling temperature within ±1°C. This structure supports multiple functions including boiling, concentrating, stewing, emulsifying, and sterilizing under normal or high pressure. With options for tilting discharge, fixed type, or vacuum operation, it significantly enhances cooking efficiency and product quality, making it ideal for large-scale food factories, central kitchens, and ready-meal production lines.

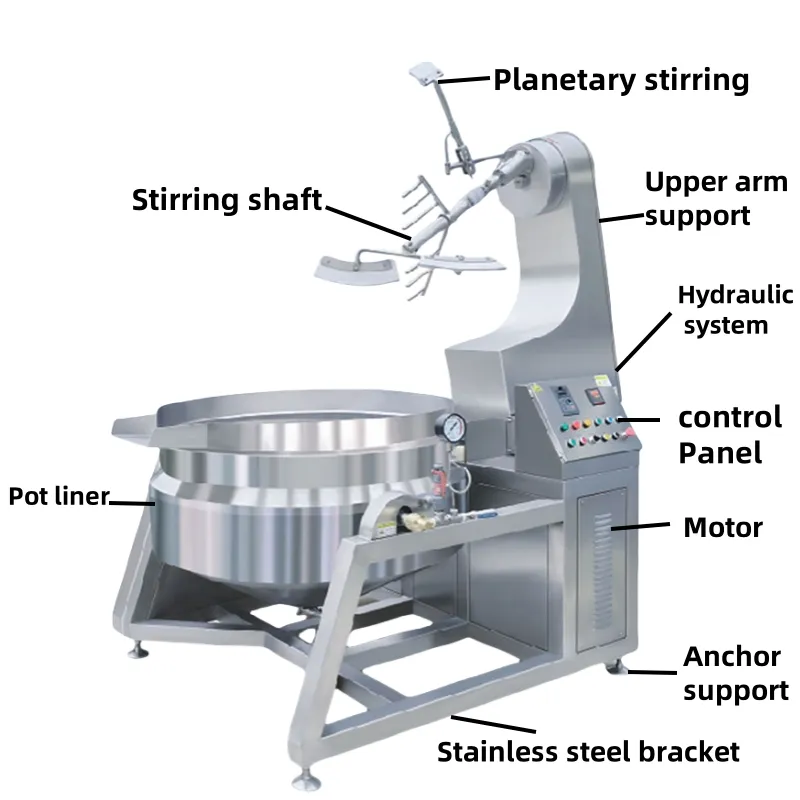

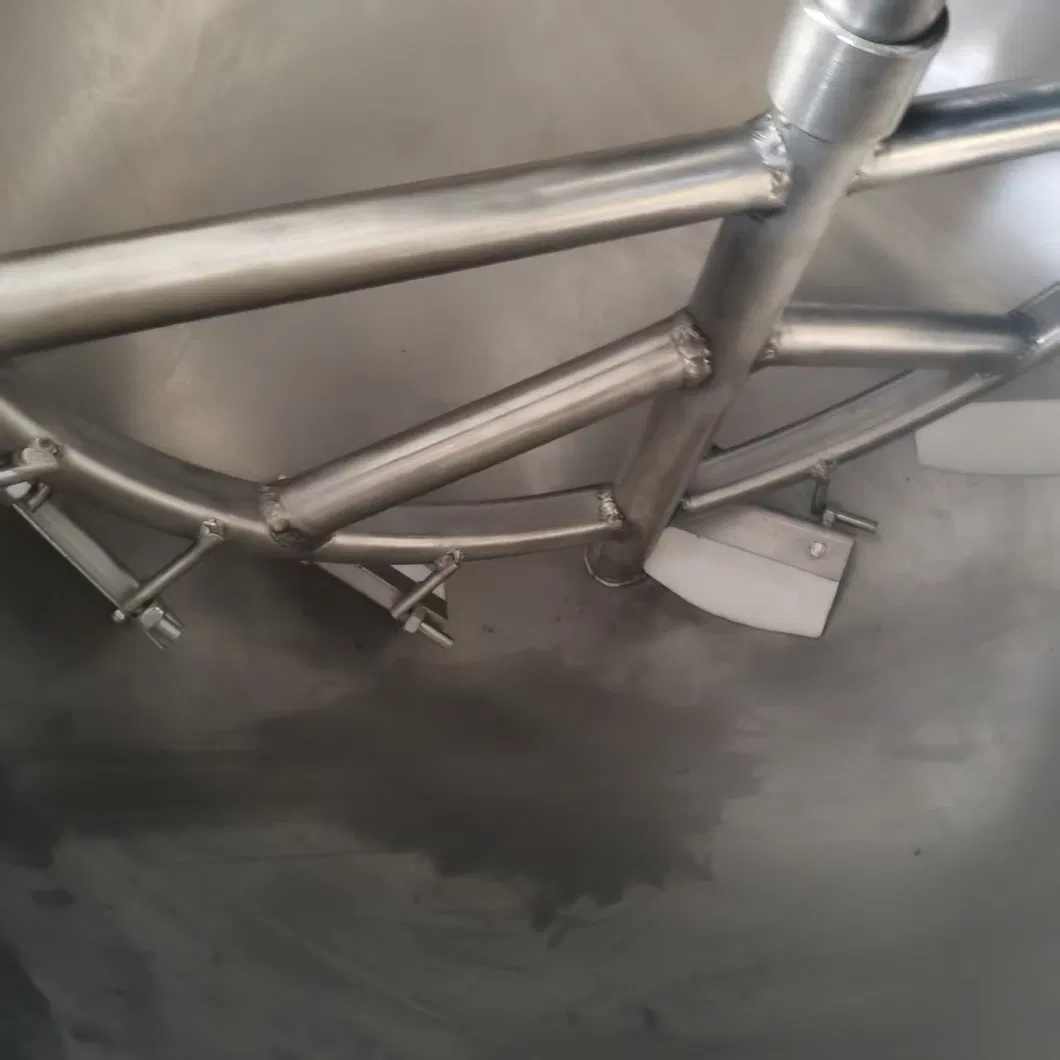

Stirring System
The jacketed kettle with stirring function is constructed with a double-layer (jacketed) structure, using high-quality 304/316L food-grade stainless steel for the inner pot and 304 stainless steel for the outer jacket, providing outstanding pressure resistance, corrosion resistance, rust prevention, and exceptional durability. The jacketed design circulates heating media (steam, thermal oil, electric heating rods, or electromagnetic induction) through the interlayer to achieve rapid, uniform heating with precise temperature control within ±1°C.
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
Double chamber vacuum packaging machine

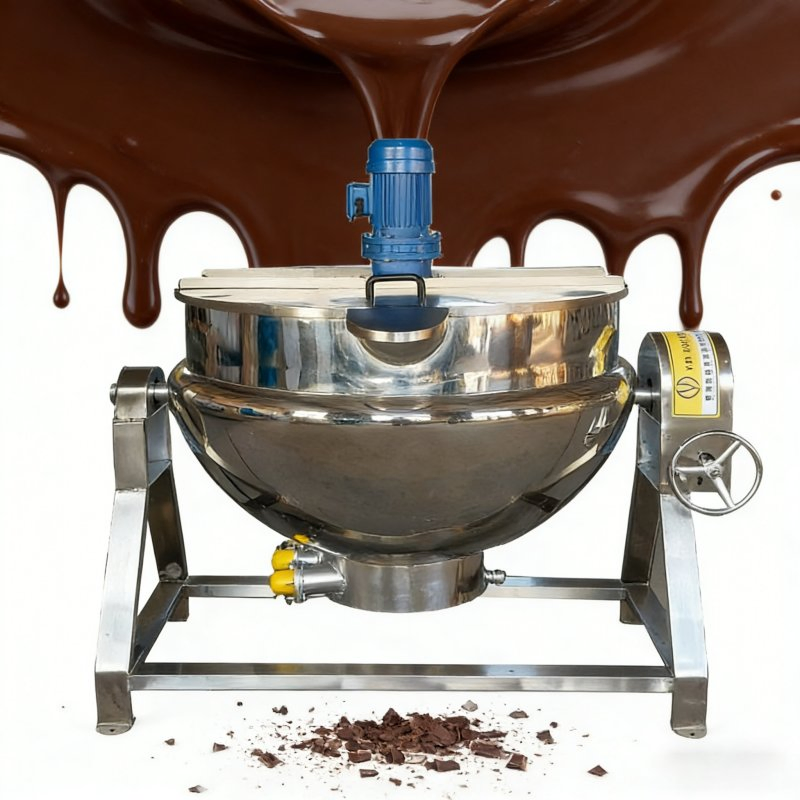

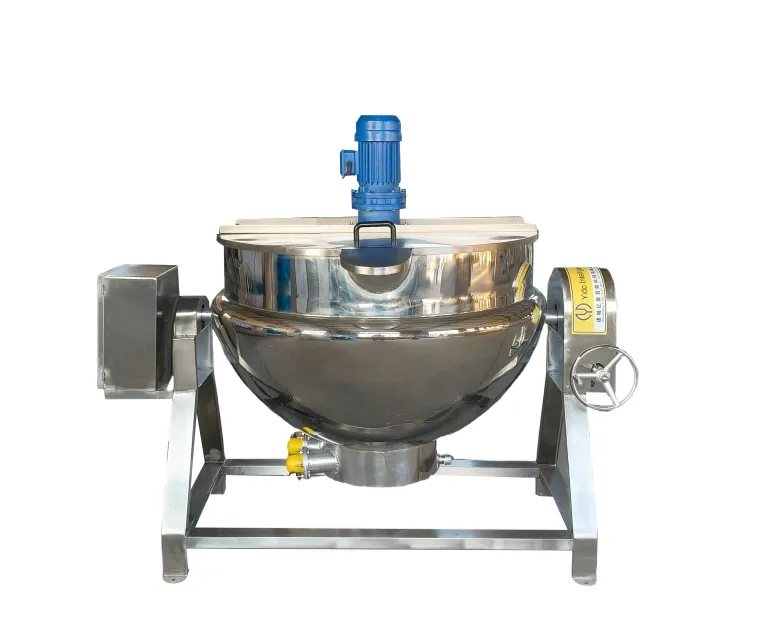

The jacketed kettle (with hand-cranked discharge device) is a classic, cost-effective heating and cooking appliance. The kettle body features a double-layer structure; the inner liner is made of food-grade 304/316L stainless steel, while the outer shell and jacket are also made of 304 stainless steel, offering excellent pressure resistance, corrosion resistance, rust prevention, and deformation resistance. Various heating media, such as steam, heat transfer oil, electric heating rods, or electromagnetic induction, can be introduced into the jacket to achieve rapid, uniform, flameless heating. Temperature control accuracy reaches ±1ºC, making it widely applicable to boiling, simmering, concentration, sterilization, and stir-frying processes.

The hand-cranked discharge device is one of its core highlights: a worm gear hand-crank mechanism on the side of the kettle allows for a smooth tilt of the kettle from 0-90° with a simple turn of the handwheel, achieving rapid, safe, and thorough discharge without the need for additional electricity or pneumatic assistance. It can be easily operated even during power outages or in environments without power, ensuring a clean and residue-free discharge process, significantly reducing labor intensity. It is ideal for small to medium-sized kitchens, restaurant kitchens, food workshops, and laboratories.

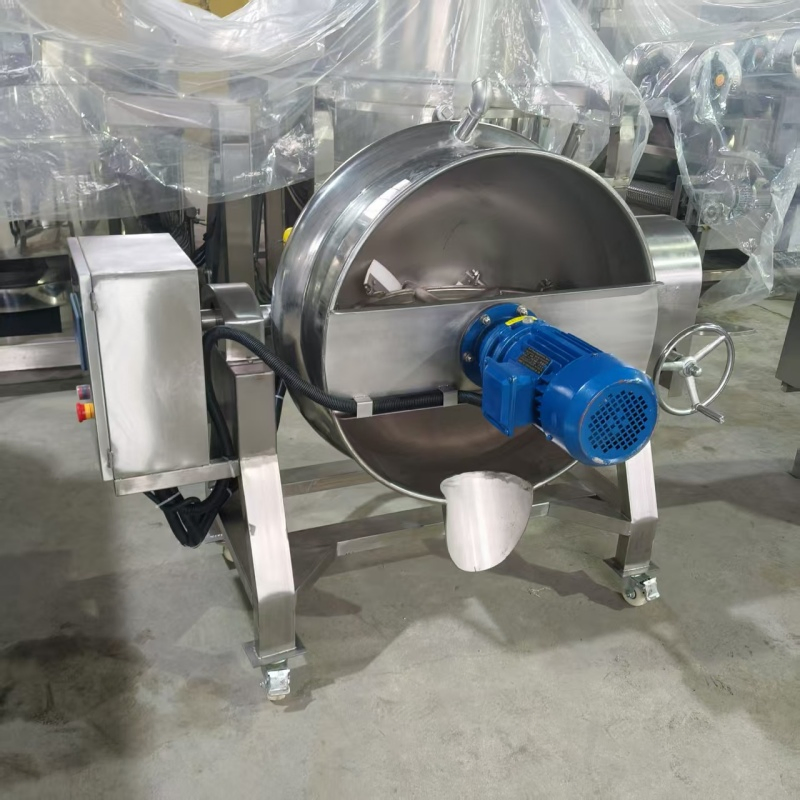

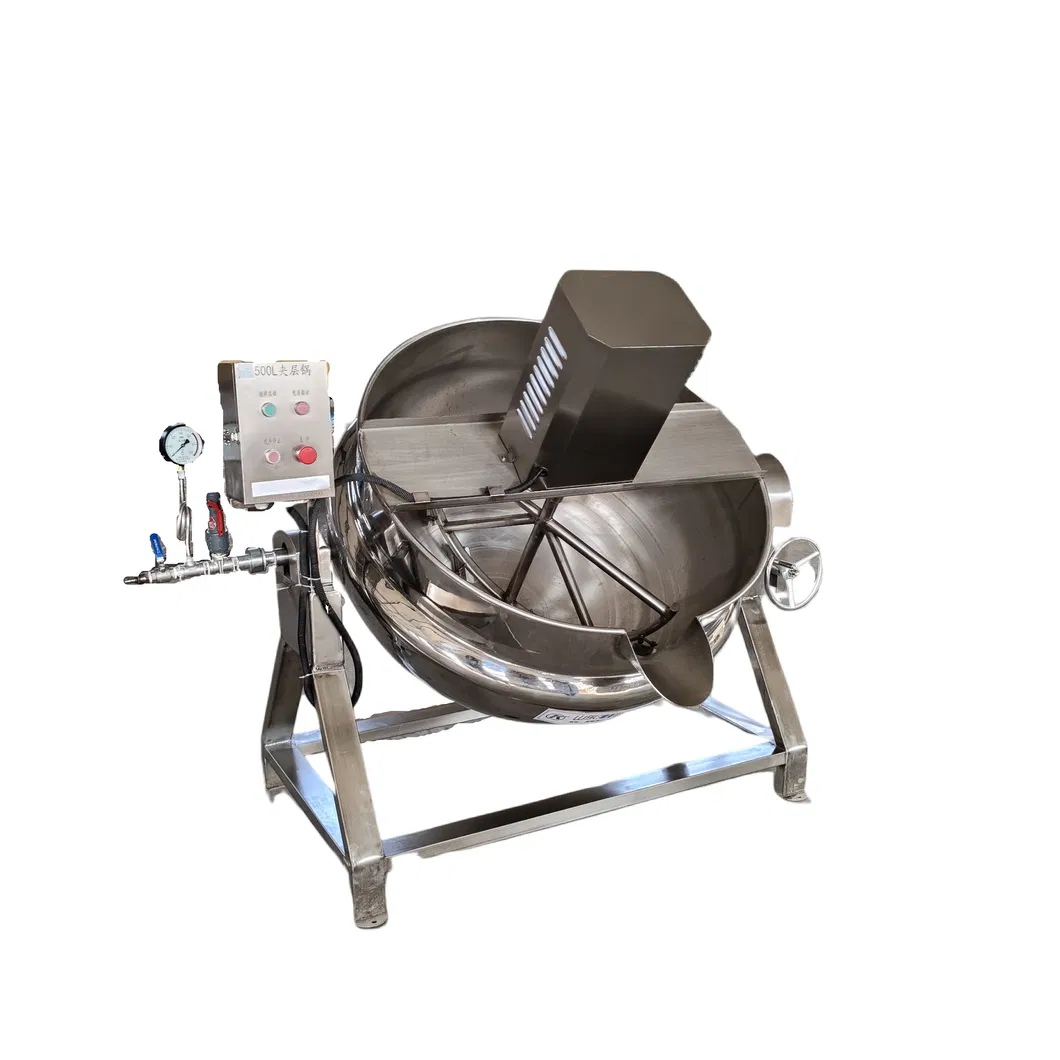

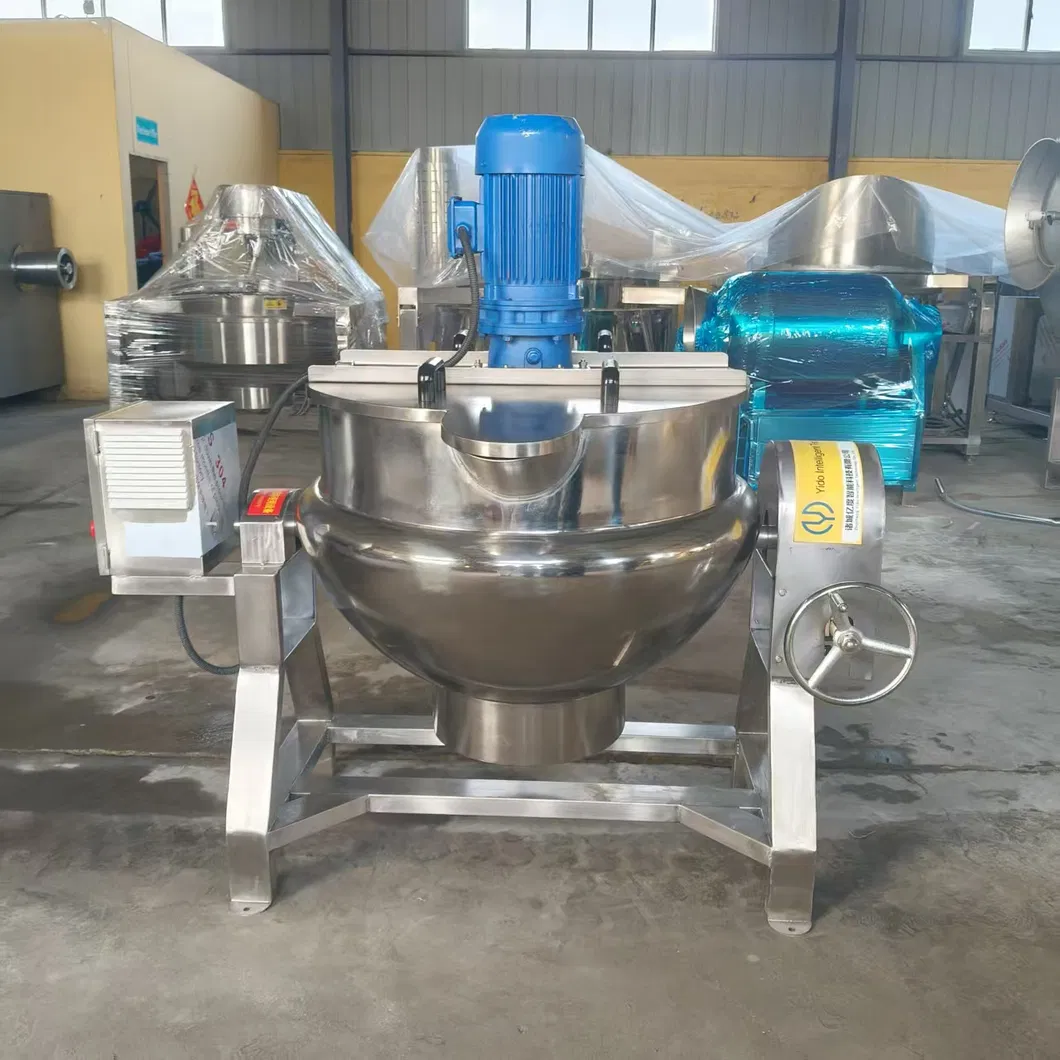

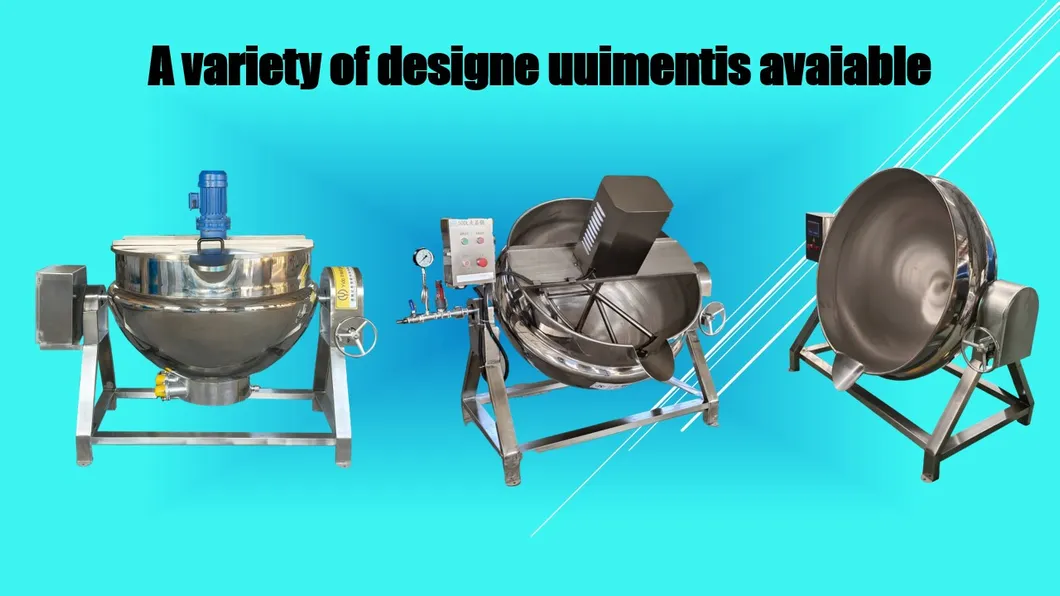

Equipment Display
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer

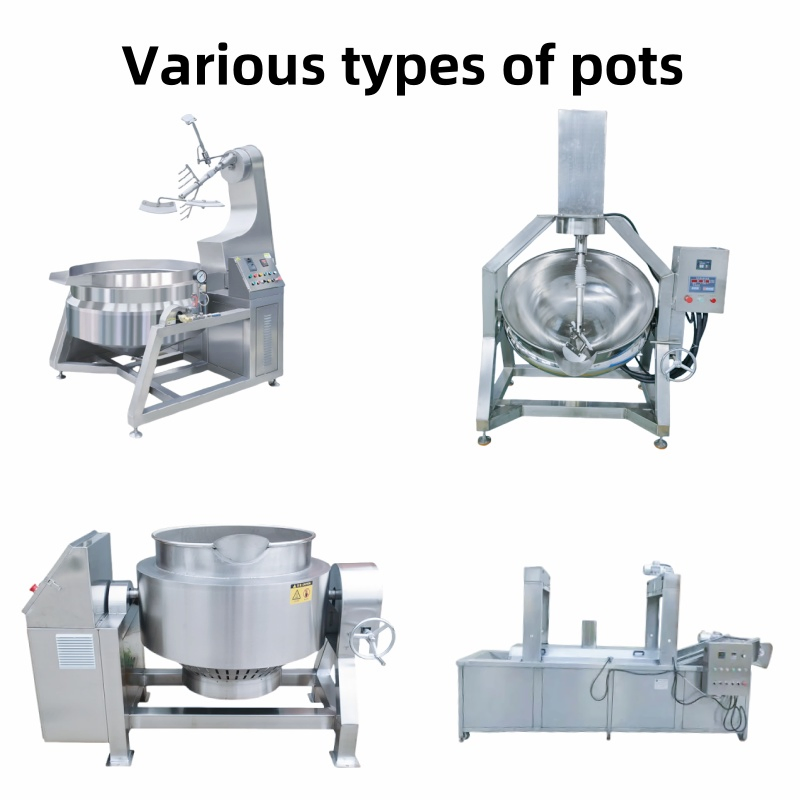

Meet Different Needs
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
Product Parameters
Sandwich pan technical parameters
Model Parameters (Inside Diameter) Heating Power / Stirring Power Tactic Form Mode of Heating
100L diameter 700mm 12KW/0.37KW Tilting/stirring/vertical/customizable Electric heating/steam/gas/electromagnetic/customizable
200L diameter 800mm 18KW/0.75KW
300L diameter 900mm 27KW/1.1KW
400L diameter 1000mm 27KW/2.2KW
500L diameter 1100mm 36KW/2.2KW
600L diameter 1200mm 36KW/2.2KW
700L diameter 1300mm 36KW/2.2KW
800L diameter 1400mm 36KW/2.2KW
900L diameter 1500mm 48KW/2.2KW
1000L diameter 1600mm 48KW/2.2KW
Certifications
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
Packaging & Shipping
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer

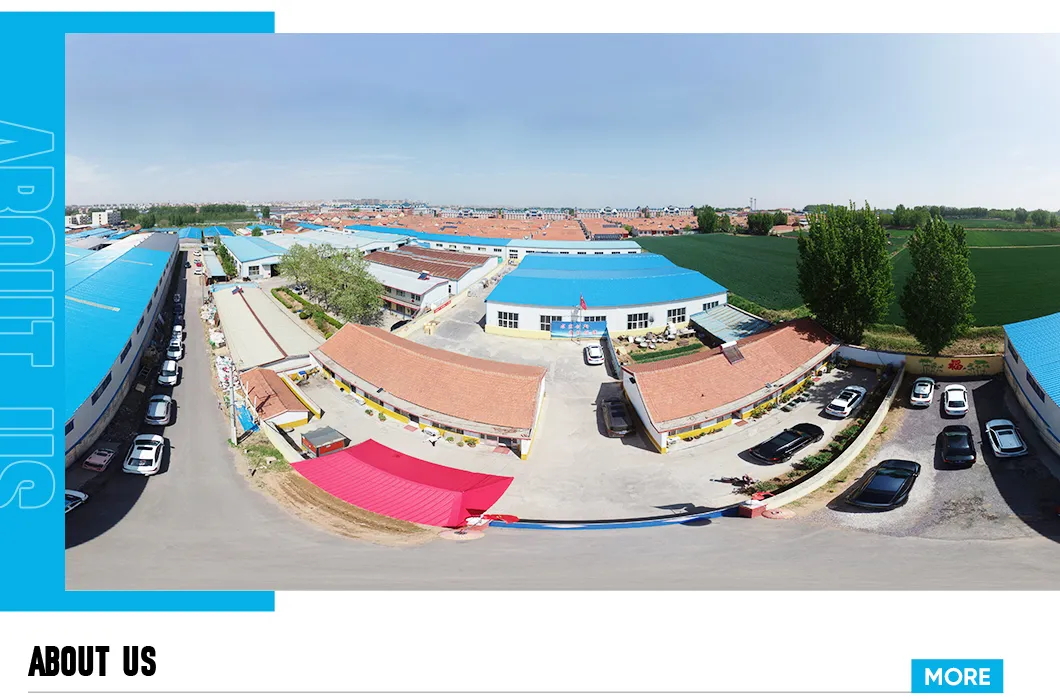

We are a global supplier of meat processing machinery and fruit and vegetable equipment. The focus is on the research and development, manufacturing and sales of meat mincers, bubble washers, vacuum packaging machines, frozen meat grinders, stuffing mixers, sausage stuffers, fruit and vegetable cleaning machines, vacuum tumbling machines, meatball machines and other equipment. According to the specific needs of customers, we can provide customized equipment solutions to help customers solve specific production problems and meet the production requirements of specific products. We have a complete quality management system, such as ISO 9001 and other certifications, and strictly control every link in the production process to ensure the stability and high quality of the products. Provide professional technical training to help customers' operators master equipment operation and troubleshooting to ensure the efficient operation of the equipment.
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
Our Customers
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
Our Advantages
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
CE Electric Heating Soup Cooking Pot Gas Milk Boiler Fruit Jam Chili Sauces Tiltable Jacketed Kettle Steam Cooking Machine with Mixer
After Sales Service
After-sales service
1.One year warranty
We have a one-year warranty and lifetime service system for the products.

2.About the equipment
If the device fails or encounters difficulties during use, read the product manual as reference.

3.About service
If the device fails and cannot resolve itself, please contact us in time and we will provide you with remote video guidance and professional technical support.
FAQ
Are you a trading company or a factory?
We are a factory with more than 10 years of experience in food machinery technology.
How do you guarantee the quality of the machine?
We have 6 years of export experience, and customers who buy our machines have tested the machines before they are shipped.
Can the voltage of the machine be adapted?
We can adapt the machine to your needs to match your local voltage.
Can you ship the machine to my address?
Yes, we support shipping and air transportation, as well as door to door service.
Is there an operation manual for the machine?
Yes, of course, it is in English.
What is the warranty period of the equipment?
One year after you receive the goods.
