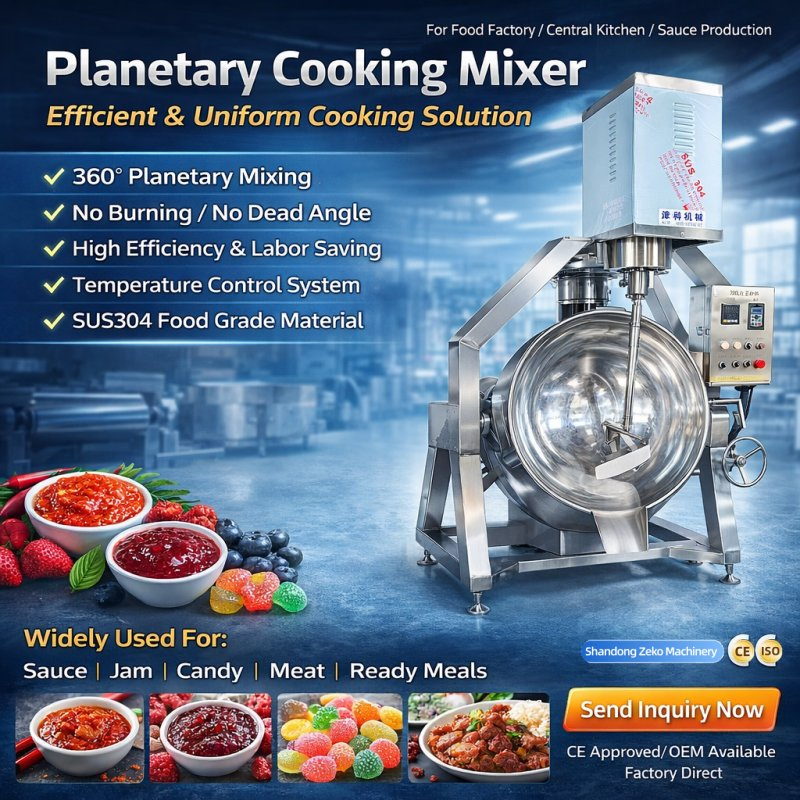

Automatic Planetary Cooking Mixer Sauce Mixing Machine for Central Kitchen Jam Candy

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO. 100~2000L
Usage Food Processing Equipment
Power Source Electric
Timing Device Without Timing Device
Type Gas Sandwich Boiler
Voltage 380V
Customized Customized
Selling Units Single Item
Application Scope Food Industry
Color Stainless Steel Silver
Core Components Plcbearinggearboxmotor, Gear
Material Stainless Steel
Application Fields Meat Processing Plants, Snack Food Factory
MOQ 1 Set
Machinery Test Report Provided
Name Jacketed Kettle/Jacketed Pot with Stirring
Advantage Easy Operation High Efficiency
Video Outgoing-Inspection Provided
Heating Method Steam Gas Electric Heating
Transport Package Wooden Box
Specification 1120*660*1260mm
Origin China
Production Capacity 1000/PCS
Packaging & Delivery
Package Size 132.00cm * 86.00cm * 156.00cm
Package Gross Weight 225.000kg
Product Description
Automatic Planetary Cooking Mixer Sauce Mixing Machine for Central Kitchen Jam Candy
Jacketed Pan / Cooking Kettle
Sandwich pot is also known as steam pot, digester, sandwich steam pot. Usually consists of a pot body and supporting feet. The boiler body is a double-layer structure composed of spherical inside and outside the pot body, and the middle interlayer is heated by steam. There are fixed, tilting, stirring and other styles. The sandwich pot has the characteristics of large heating area, high thermal efficiency, uniform heating, short boiling time of liquid and material, easy control of heating temperature, beautiful appearance, easy installation, convenient operation, safe and reliable. Sandwich pot is widely used in the processing of all kinds of food, can also be used in large restaurants or cantons to make soup, stew meat, porridge, etc., is a good equipment for food processing to improve quality, shorten time, and improve working conditions.
Product Details

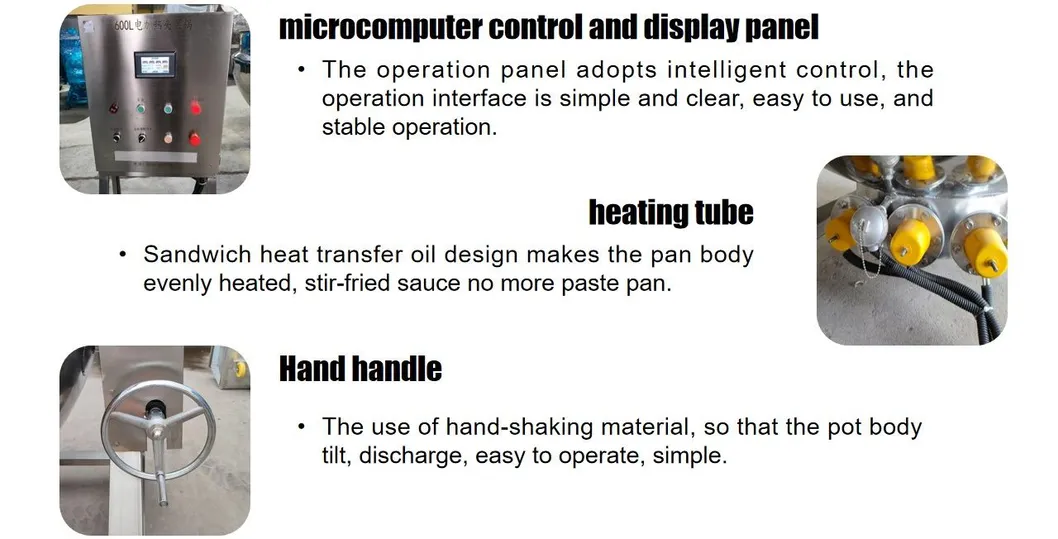

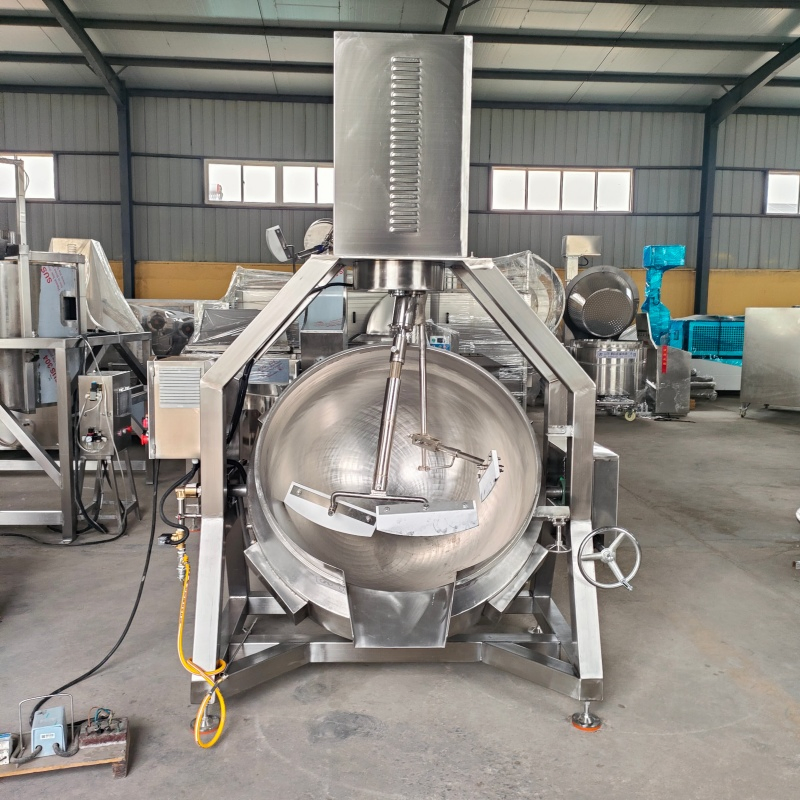

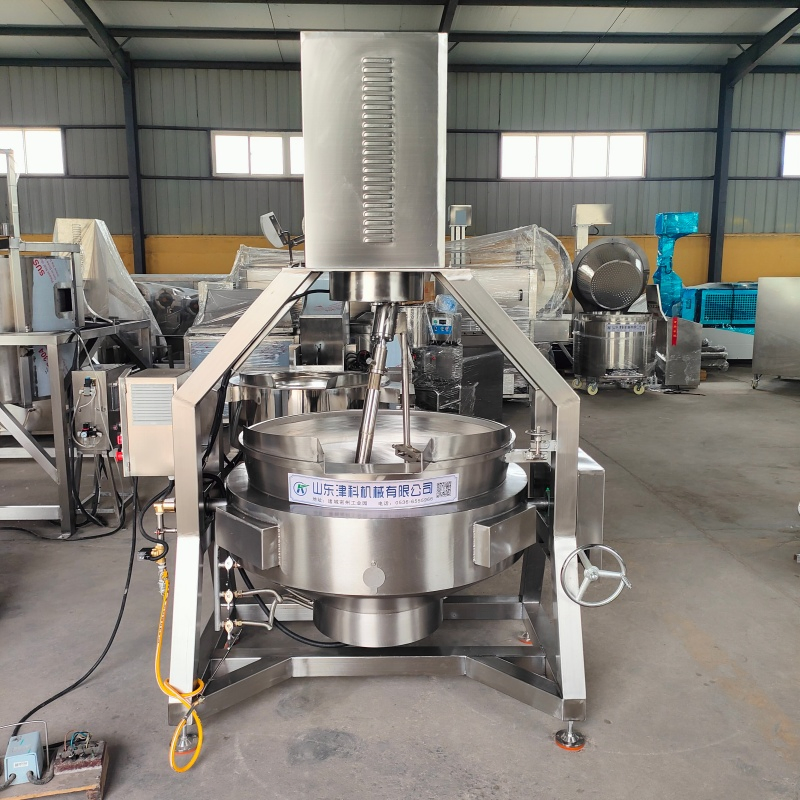

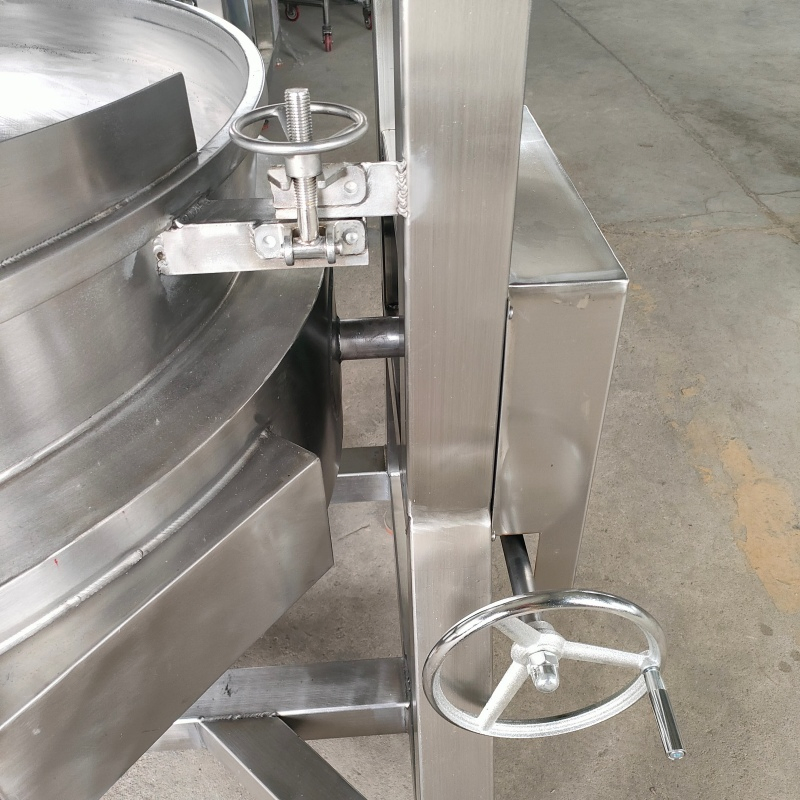

Automatic Planetary Cooking Mixer Detail View 1

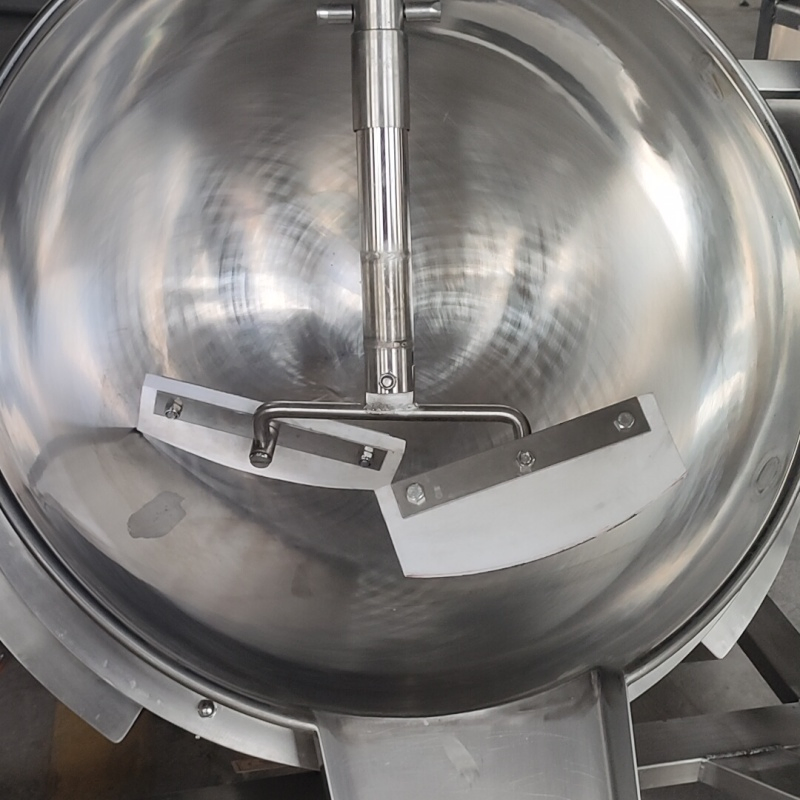

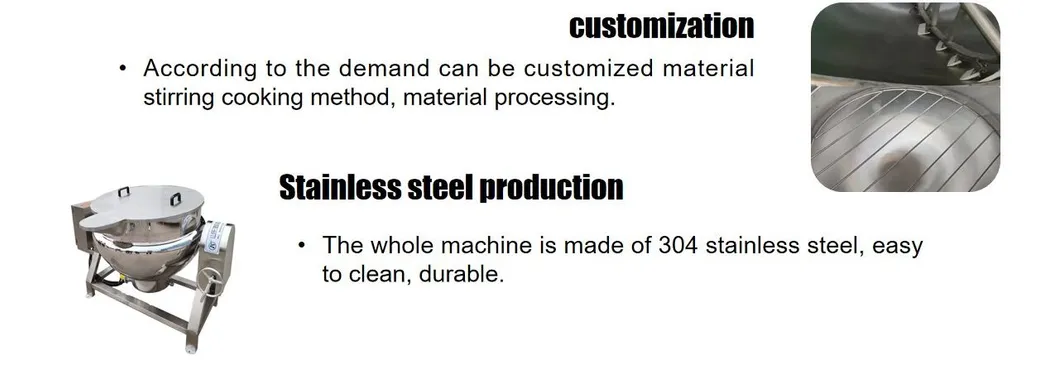

Automatic Planetary Cooking Mixer Detail View 2
Meet Different Needs Configuration View
Product Display

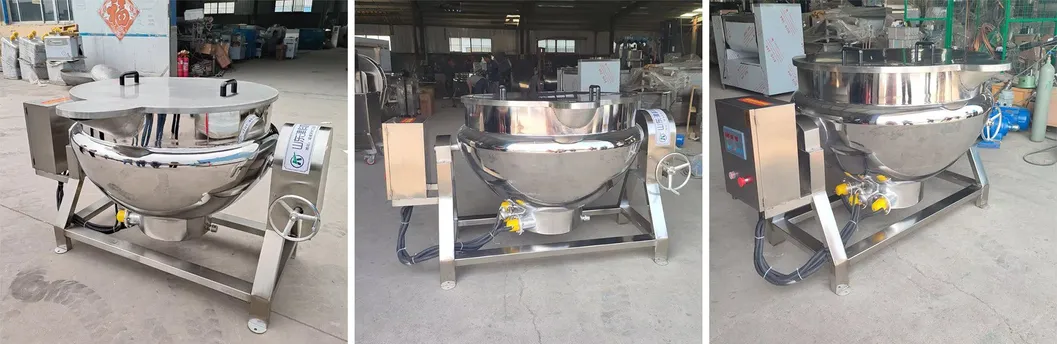

Various Jacketed Kettle Designs Display
Various Designs Available

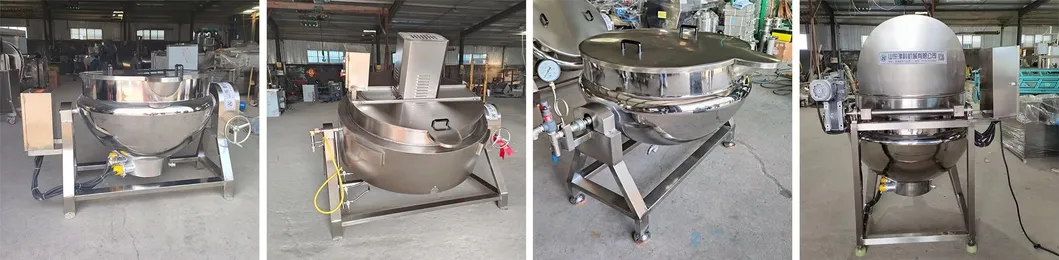

Different Jacket Boiler Options
Product Parameters
Model Parameters (Inside Diameter) Heating Power / Stirring Power Structure Form Mode of Heating
100L Diameter 700mm 12KW / 0.37KW Tilting / Stirring / Vertical / Customizable Electric Heating / Steam / Gas / Electromagnetic / Customizable
200L Diameter 800mm 18KW / 0.75KW
300L Diameter 900mm 27KW / 1.1KW
400L Diameter 1000mm 27KW / 2.2KW
500L Diameter 1100mm 36KW / 2.2KW
600L Diameter 1200mm 36KW / 2.2KW
700L Diameter 1300mm 36KW / 2.2KW
800L Diameter 1400mm 36KW / 2.2KW
900L Diameter 1500mm 48KW / 2.2KW
1000L Diameter 1600mm 48KW / 2.2KW
Structure Dimension Drawing
Certifications
Product Quality Certificate 1
Product Quality Certificate 2
Product Quality Certificate 3
Packaging & Shipping
Wooden Box Packaging
Loading and Shipping Process
Our Customers
Global Customer Visit 1
Global Customer Visit 2
After-Sales Service
01
One-Year Warranty

We provide a one-year warranty and a lifetime service system for all of our machinery products.

02
Equipment Support

If the device encounters difficulties or failures during use, please refer to the detailed product instruction manual.

03
Technical Assistance

If issues persist, contact us for remote video guidance and professional, direct technical support.

Frequently Asked Questions
What heating options are available for the Jacketed Kettle?
We offer multiple heating modes including electric, steam, gas, and electromagnetic heating. You can choose the most suitable energy source based on your processing facility's requirements.
Can the jacketed cooking kettle with stirring handle high-viscosity food materials?
Yes. The planetary and vertical mixing systems are highly suited for mixing and cooking high-viscosity foods such as thick sauces, central kitchen jams, confectionery, meat mixtures, and stews.
What materials are used in manufacturing this food processing equipment?
The entire jacketed pot structure, including all core components and surfaces contacting the food products, is constructed from high-grade stainless steel for maximum hygiene, easy cleaning, and long operational life.
Can the capacity and design of the kettle be customized?
Yes, we support extensive customization options. We can adjust the capacities from 100L up to 2000L and offer diverse design forms including tilting, vertical, and stirred structures.
How is the equipment packaged for international delivery?
All products are packed securely in standard export-grade wooden cases to prevent damage during long-distance land and ocean shipping.
What after-sales technical support do you provide?
We provide a one-year warranty, a lifetime service system, and remote video guidance/professional technical support to help resolve any operational issues.
