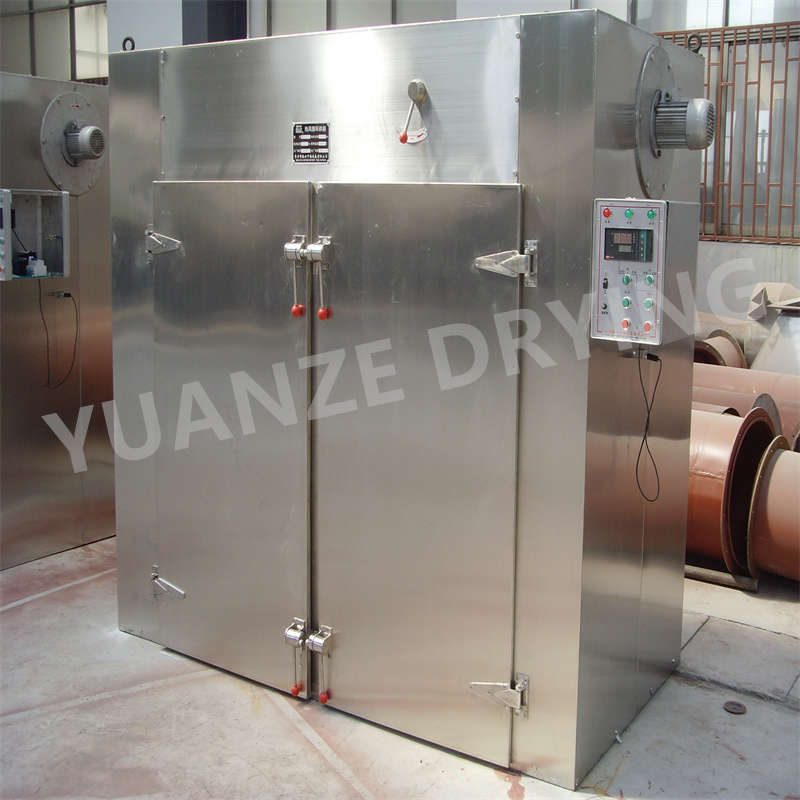

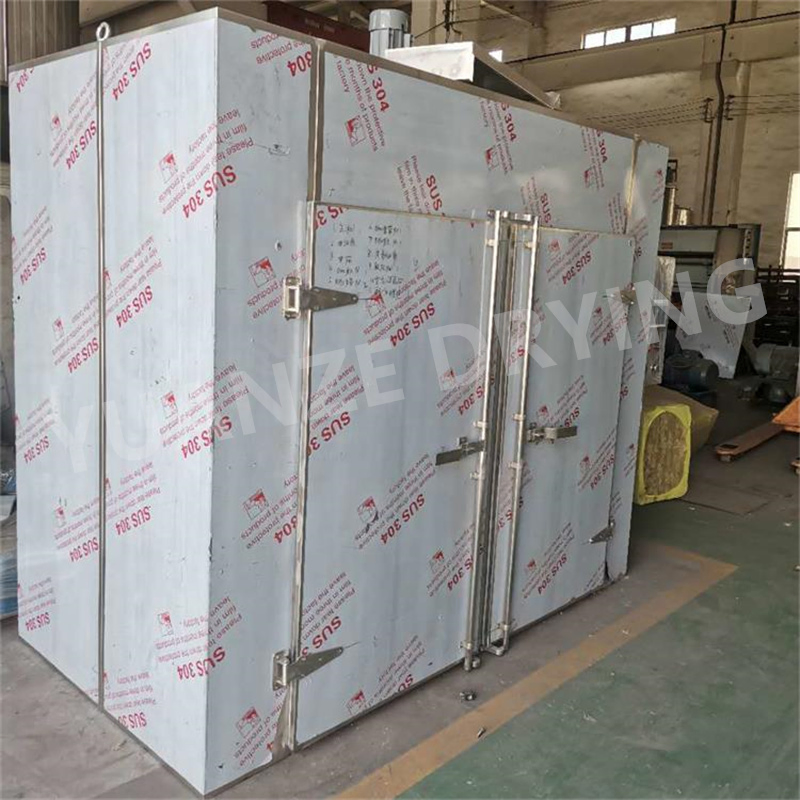

Versatile Hot Air Oven for Fast and Efficient Drying

Customization: Available
Movement Way: Fixed
Atomization: Atomization of Gases

Product Description

Basic Specifications

Model NO. CT-C
Flow Cross Flow
Heating Mode Dielectric
Material Status Powder, Solution, Strap, Bulk
Drying Medium Superheated Steam, Air
Operation Pressure Atmospheric Pressure
Operational Method Intermittent
Net Weight According to The Design Requirements
Purpose Chemical Industry, Food, Medicine
Material Stainless Steel
Transport Package Artificial
Specification 2000X2000X2000
Origin China
HS Code 3901100090
Production Capacity 200

Product Description

The Series Hot Air Circulation Oven boasts a sophisticated design with a low-noise axial flow fan and an automatic temperature control system to ensure efficiency. The fully sealed circulation system propels the hot efficiency to an impressive 70%. This advanced design positions the oven at the forefront of international and domestic markets, promising significant energy savings and increased enterprise profitability.

Operational Principle

Our hot air circulation oven employs a fan circulation air supply method, guaranteeing uniform and high-efficiency air distribution for optimal operational standards.

Through a seamless process, the air supply motor, equipped with a contactless switch, drives the wind wheel through the heater, discharging hot air. This air is then efficiently recirculated through the air ducts into the oven's interior, ensuring consistent temperature uniformity.

The air supply circulation system is designed to swiftly stabilize the temperature when fluctuations occur due to door operations, quickly reestablishing the set temperature value for seamless function.

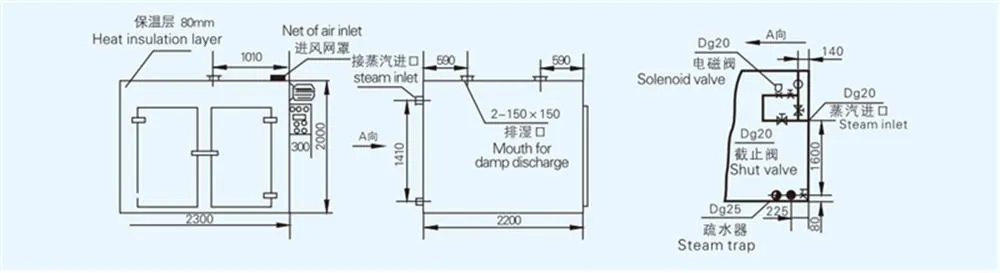

Structural Diagram

Versatile Hot Air Oven for Fast and Efficient Drying

Product Features

  • Customers can choose between steam and electrical or far infrared steam as a heating source. Customization options are available to cater to specific client requirements.
  • Steam heating can be used at temperatures ranging from 50~140ºC, peaking at 150ºC.
  • For electric heating, the temperature range is 50~350ºC.
  • We offer both automatic control systems and computer control systems for customers' selection.
  • Standard steam pressure ranges from 0.02~0.8Mpa (0.2~8kg/cm²).
  • For the electrical heating variant, the calculation is 15kw, with an actual usage of 5~8kw/h.
  • Any special requirements should be clearly specified at the time of order placement.
  • For pricing details on non-standard ovens, please consult with us directly.
  • For optimal performance, it is essential to specify when the operating temperatures exceed 140ºC or fall below 60ºC at the time of placing your order; this ensures precise customization and safety.
  • Our expertly crafted ovens and baking plates boast uniform dimensions, allowing seamless interchangeability for enhanced versatility and convenience.
  • The baking plate dimensions are meticulously designed to be 460x640x45(mm), ensuring maximum efficiency and uniformity.

Application Materials

Our versatile oven is adept for heating, solidification, drying, and dehydration across various industries, including pharmaceuticals, chemicals, foodstuffs, agriculture, aquatic products, light and heavy industries. It efficiently processes a multitude of raw materials, such as medicinal compounds, traditional Chinese medicine, beverage ingredients, electuary, powders, granules, packaged bottles, pigments, dyestuff, dehydrated vegetables, dried fruits and melons, sausage, plastic resin, electric elements, and drying varnish.

Application Materials 1 Application Materials 2

Technical Parameters

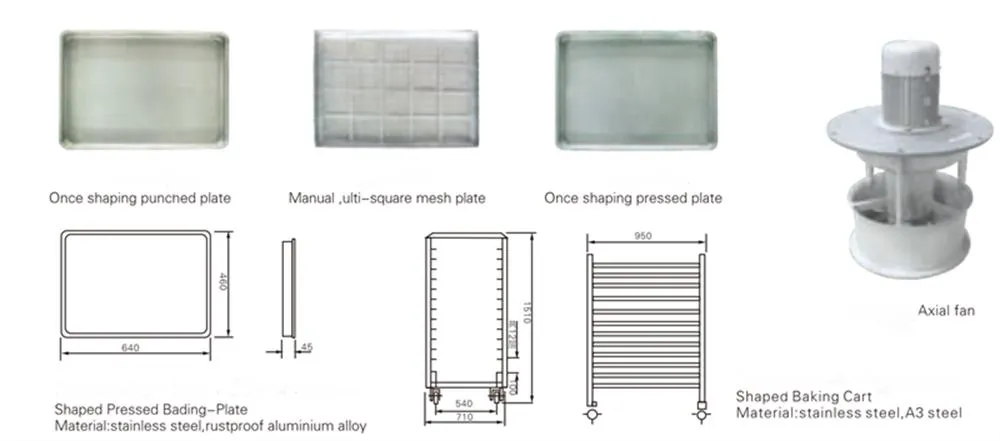

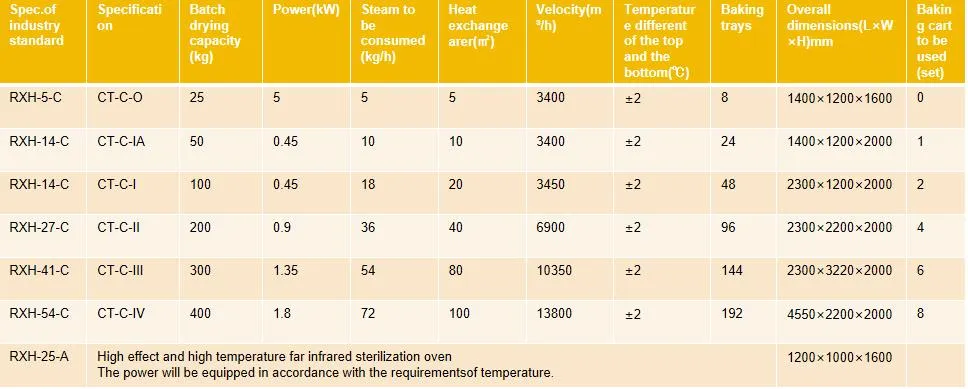

Technical Parameters Table Part 1 Technical Parameters Table Part 2

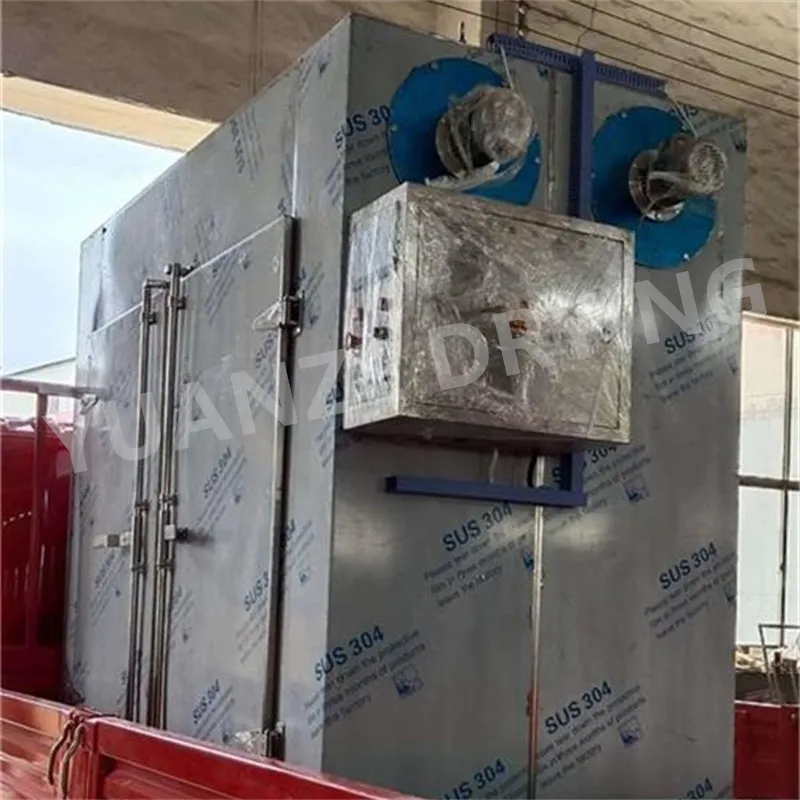

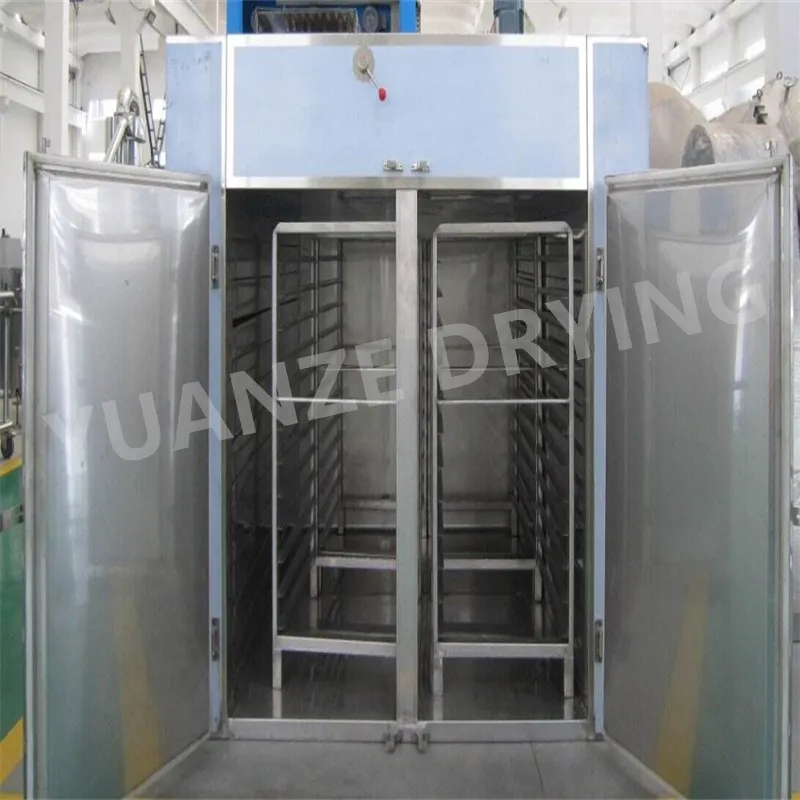

Product Gallery

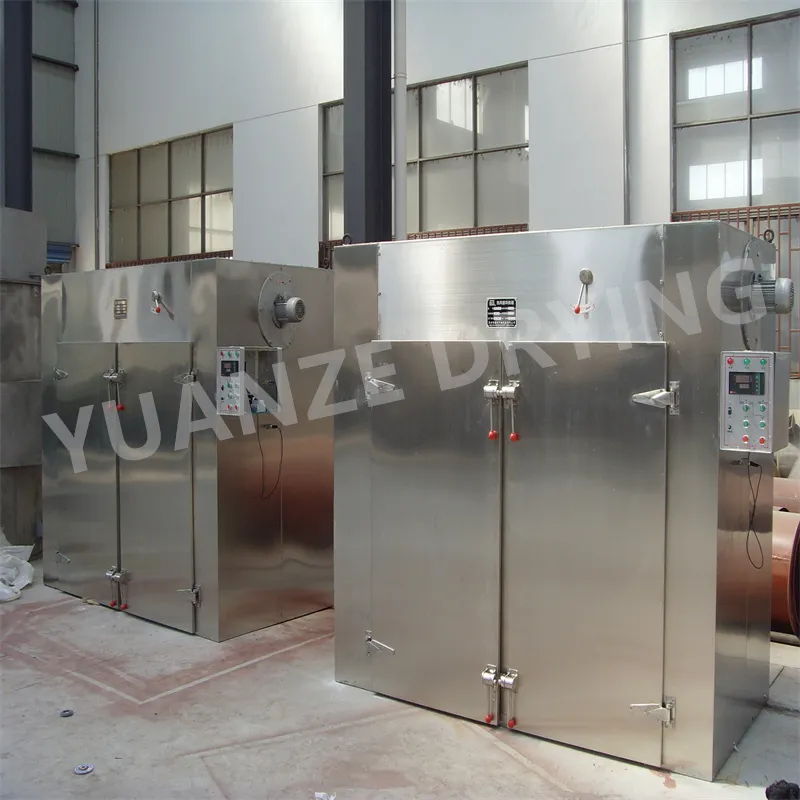

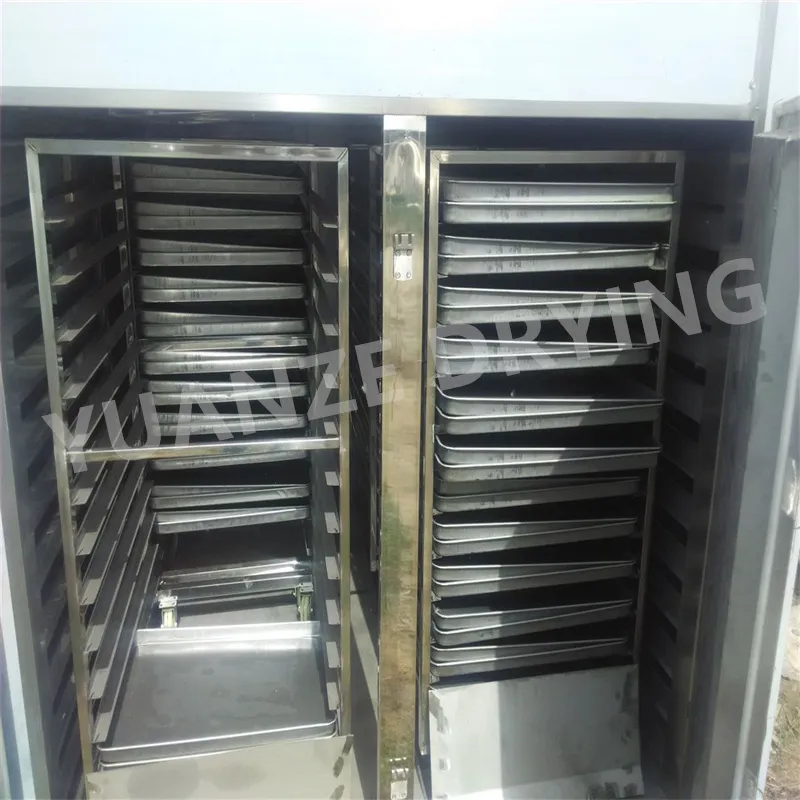

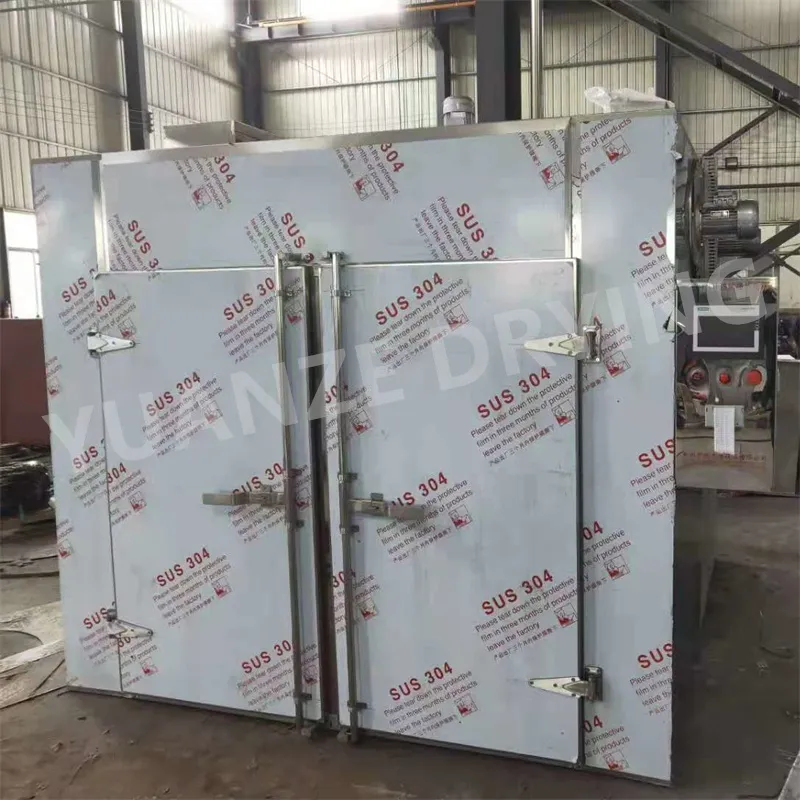

Product Angle 1 Product Angle 2 Product Angle 3 Product Angle 4 Product Angle 5

Product Presentation

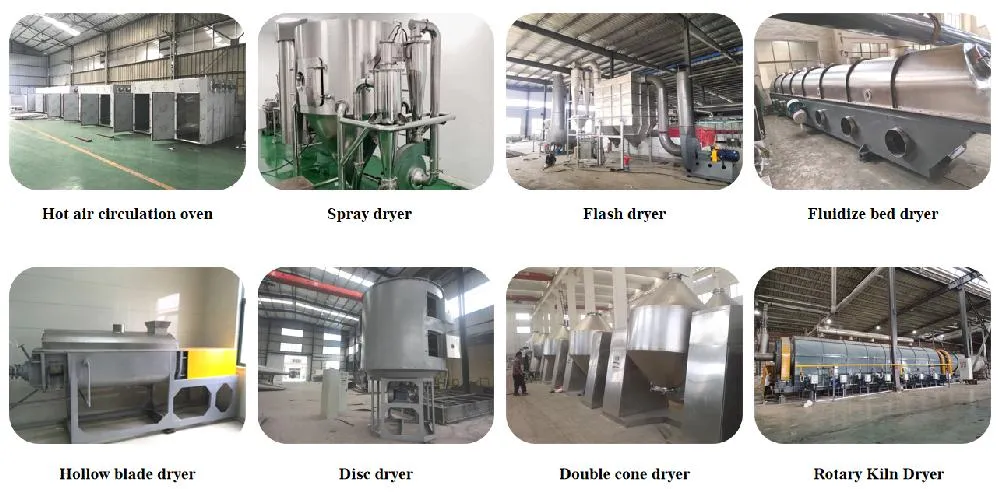

Product Presentation Showcase 1 Product Presentation Showcase 2

Services & Support

Pre-sale Service

We extend a cordial invitation for customers to visit our premises and engage in direct, enriching discussions about any technical requirements they may have.

Sales Service

We diligently ensure that equipment is calibrated according to customer-specific technical data. Our expert engineers provide thorough training on equipment features and operational protocols to guarantee optimal performance.

Installation & Adjusting

We offer comprehensive services including installation, commissioning, maintenance, and training. Additionally, we supply pertinent technical documentation, equipment, software, and GMP certification materials.

Quality Assurance

We are committed to adhering to rigorous quality system certification standards. Our equipment is safe, affordable, and easy to maintain, fulfilling our promise of quality and technology.

Our equipment comes with a comprehensive one-year warranty. During this period, any quality issues will be addressed through free repair or replacement.

Production Standards

Manufacturing Workflow and Standard Operations

Qualification Certificates

Qualification Certificate 1 Qualification Certificate 2

Frequently Asked Questions

Q What is the delivery time for the products?
Our delivery timeline ranges from 10 to 60 days, contingent upon the specific machine type, selected transportation mode, and availability of necessary parts, ensuring timely and reliable delivery.
Q What assurances do you provide regarding product quality?
We proudly guarantee that each machine is brand new or unused for a full 12-month period. During this time, we offer complimentary maintenance and spare parts should any quality issues arise, underscoring our commitment to excellence.
Q How do you support customers post-warranty if a machine breaks down?
In the rare event of a machine malfunction, we swiftly provide technical guidance and effective solutions. Additionally, we guarantee a long-term supply of premium quality parts for those components prone to wear.
Q What heating sources can be used with this oven?
Customers can select from steam, electrical, or far infrared steam heating sources. Steam operates optimally between 50~140ºC (up to 150ºC), while electric heating supports a range of 50~350ºC. Custom variants can be built upon request.
Q What materials are typical applications for this hot air oven?
It is designed for drying, heating, solidification, and dehydration of raw materials, medicinal compounds, electuary, powders, granules, dehydrated vegetables, sausages, plastic resins, and various electric elements.
Q Are the baking plates and oven dimensions standardized?
Yes, our baking plates are meticulously designed to be 460x640x45(mm). The baking plates and ovens boast uniform dimensions, allowing seamless interchangeability for enhanced versatility.
