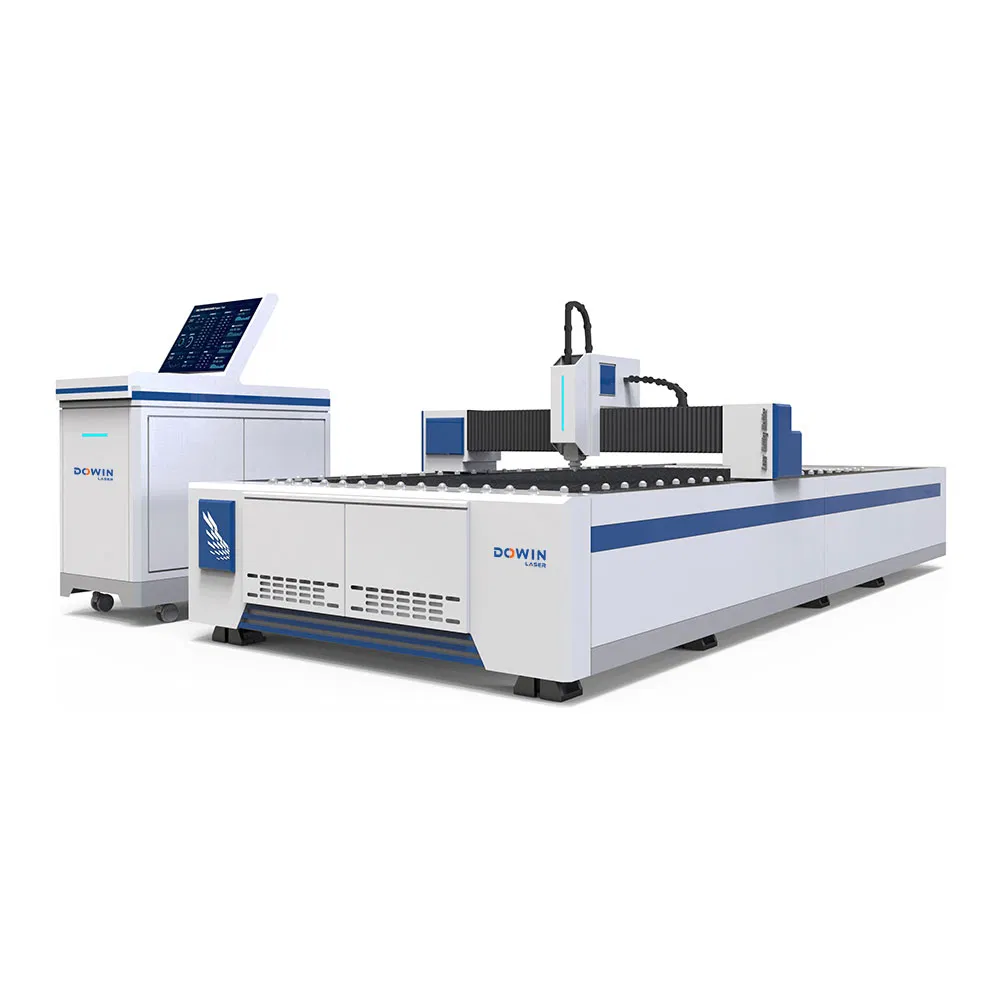

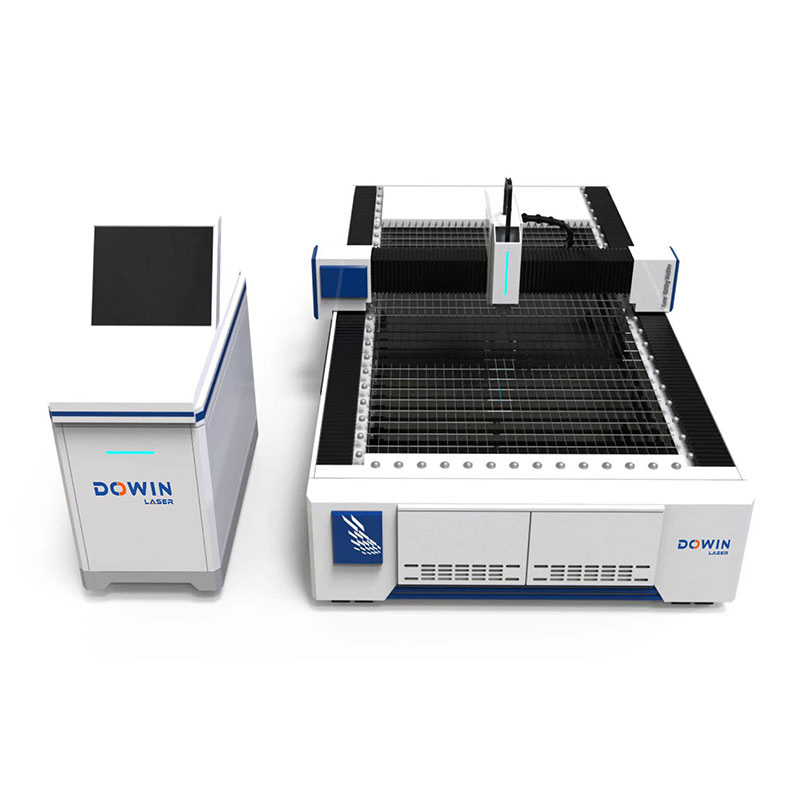

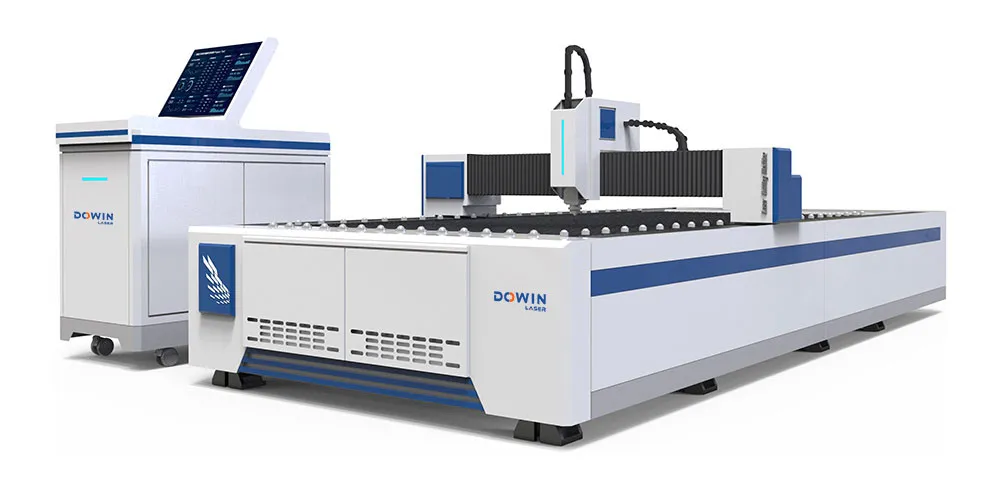

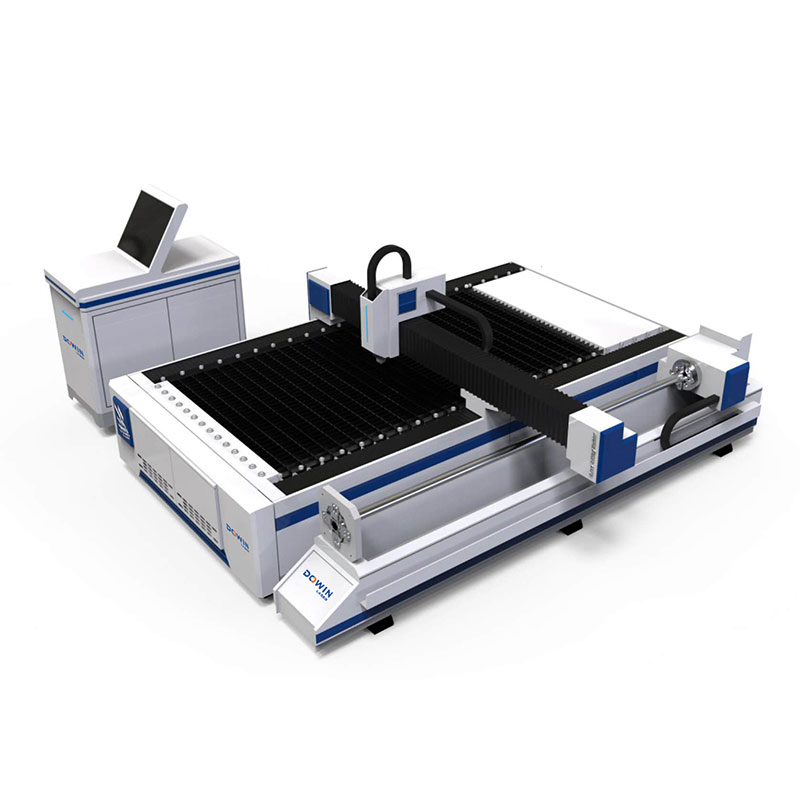

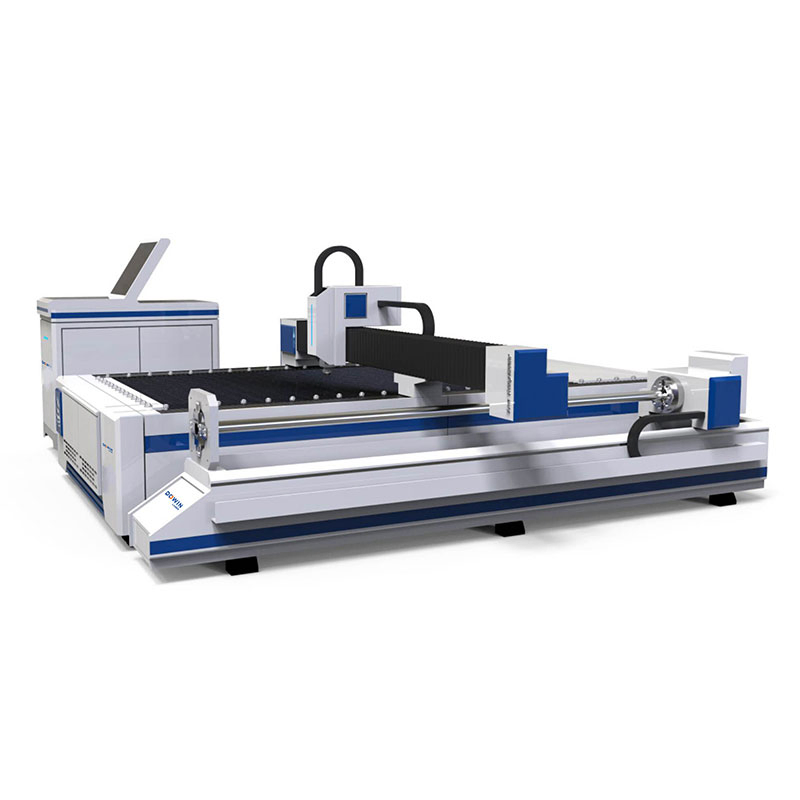

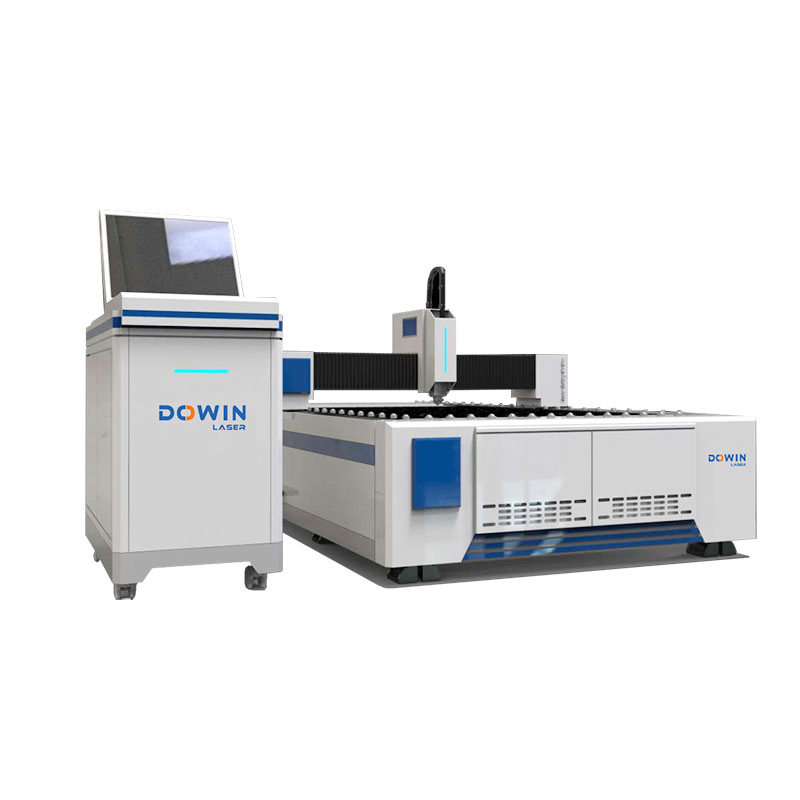

Europe Quality Standard Sheet Metal Fiber Laser Cutting CNC 2000W Laser Cutter Stainless Steel Machine
Specialized fast speed cutting of a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials.
Technical Parameters
| Model |
DW-F1530 CNC metal fiber laser cutting machine |
| Working Area |
1500*3000mm |
| Laser Power |
500W/750W/1000W/2000W Raycus |
| Laser Wave Length |
1064nm |
| Working Table |
Saw tooth |
| Maximum Idle Running Speed |
1200mm/s |
| Position Accuracy |
±0.05mm/m |
| Position Speed |
60m/min |
| Minimum Line Width |
± 0.02mm |
| Cutting Thickness |
≤6mm |
| Software and Control System |
NC Editor (Optional Cypcut) |
| Position Type |
Red DOT |
| Power Consumption |
≤12KW |
| Working Voltage |
110-220V, 380V/50-60Hz |
| Auxiliary Gas |
Oxygen, nitrogen, air |
| Air Proportional Valves |
For power 1000W and higher |
| Working life of fiber module |
More than 100000 hours |
| Fiber laser cutting head |
WEIHONG or Raytools |
| Software |
Compatible with various formats |
| Computer |
Yes |
| Water cooling system |
S&A industry chiller |
| Motor |
Japan Yasakawa two 850W Y motors + 850W X motor |
| Driver |
Yasakawa 1000W |
| Reducer |
Shimpo/ ASG From Japan |
| Liner guider system |
Taiwan HIWIN |
| Rack gear transmission |
YYC Precision double rack drive |
| Electric component |
Schneider made in France |
| Weight |
3700Kgs |
| Big safety cover |
Optional |
| Add Tube cutter |
Optional |

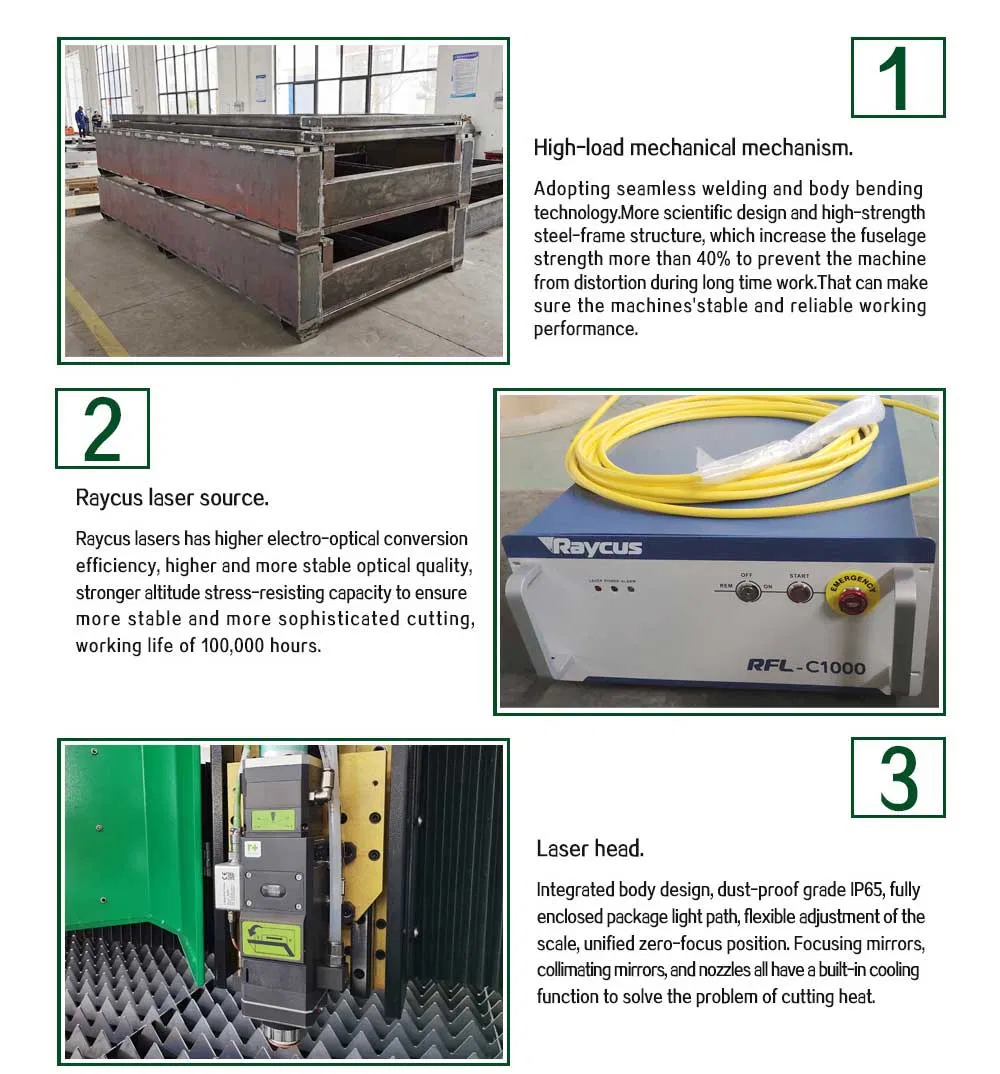

Product Features
1

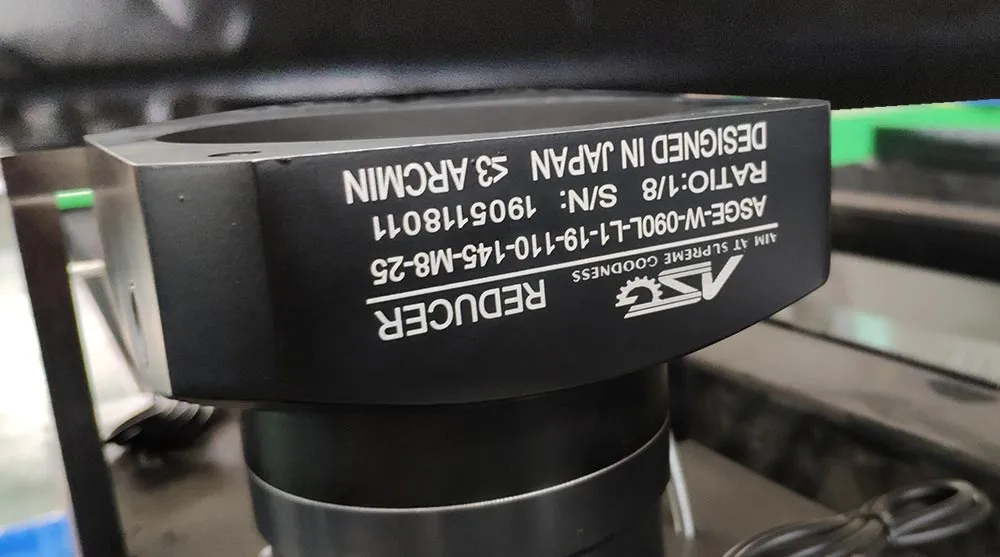

High Precision Drive Motor
The X / Y / Z axis uses a high-precision Yaskawa servo motor and drive. Improve response speed and cutting accuracy. Features high-precision ASG geared motor imported from Japan.
2

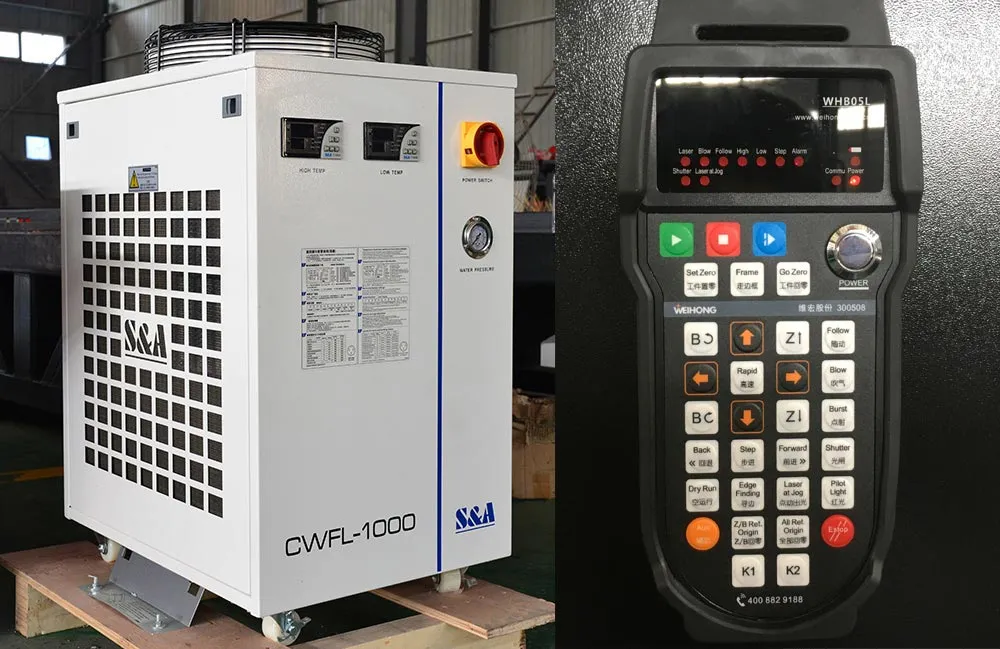

Industrial Chiller System
The fiber laser and laser head, even working at high temperature, can be cooled quickly to ensure that the laser machine has stable power, high efficiency, and fast operation. Exclusive no water warning and automatic protection system: if there's no water or the water flows in the opposite direction, there'll be an alarm prompt and stop working to protect the working life of the fiber laser effectively.
3

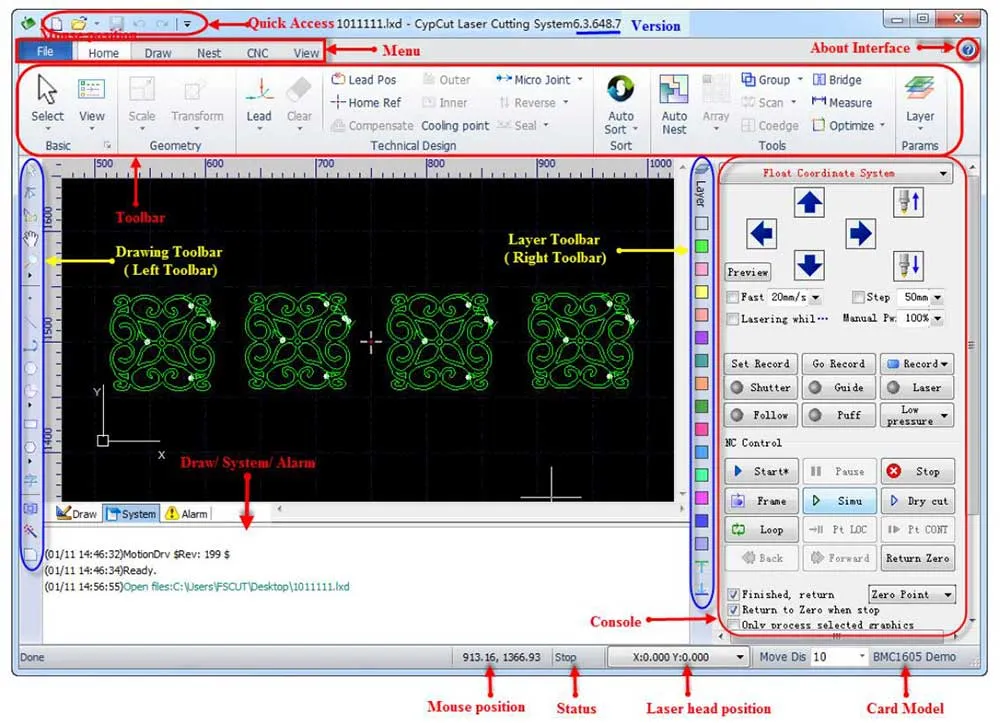

Professional Cutting System
The operating system realizes intelligent layout of graphics cutting and supports the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly, and automatic positioning. The control system adopts optimized logic programming and software interaction, providing an exceptional operation experience, effectively enhancing the utilization of sheet metal, and reducing waste. Simple and fast operation system with efficient and accurate cutting instructions.
Related Products
Applications & Materials

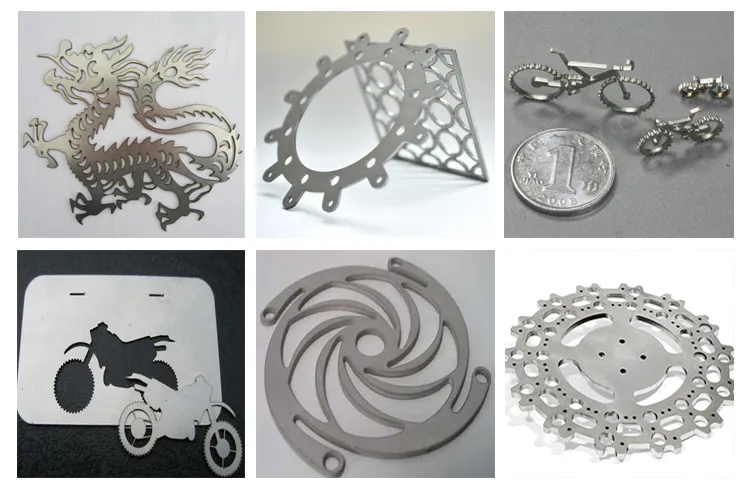

Application Materials:
Fiber laser cutting equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

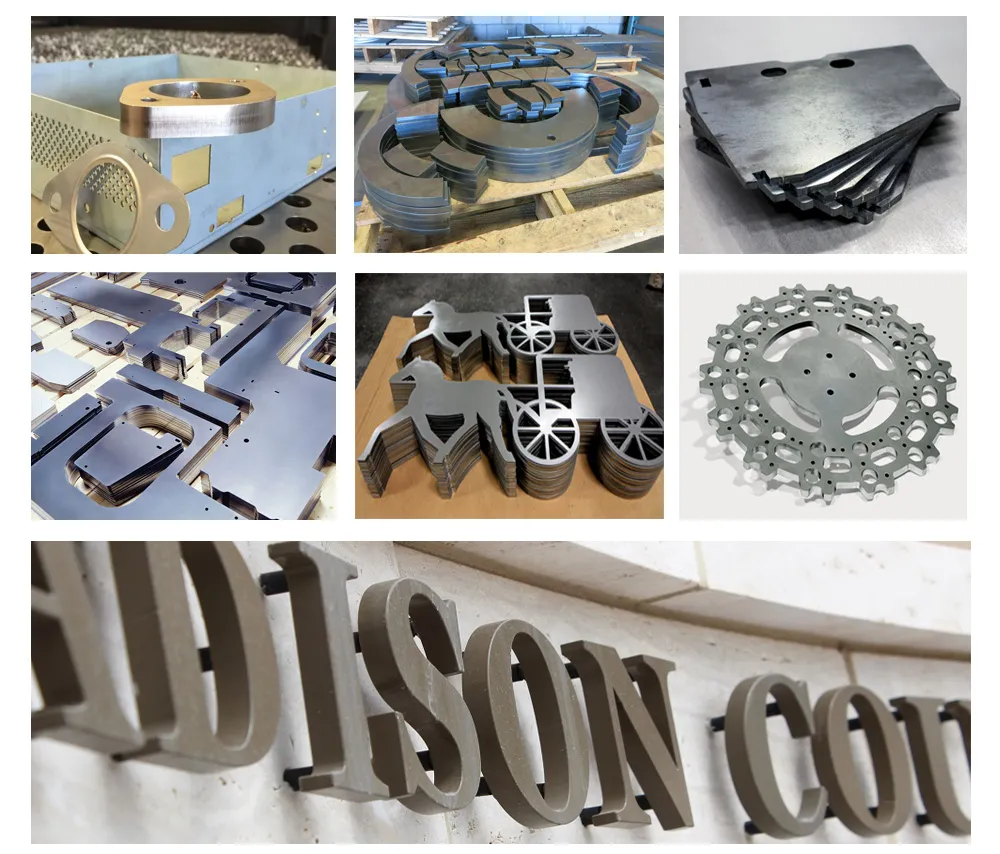

Application Industries:
Fiber laser cutting machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

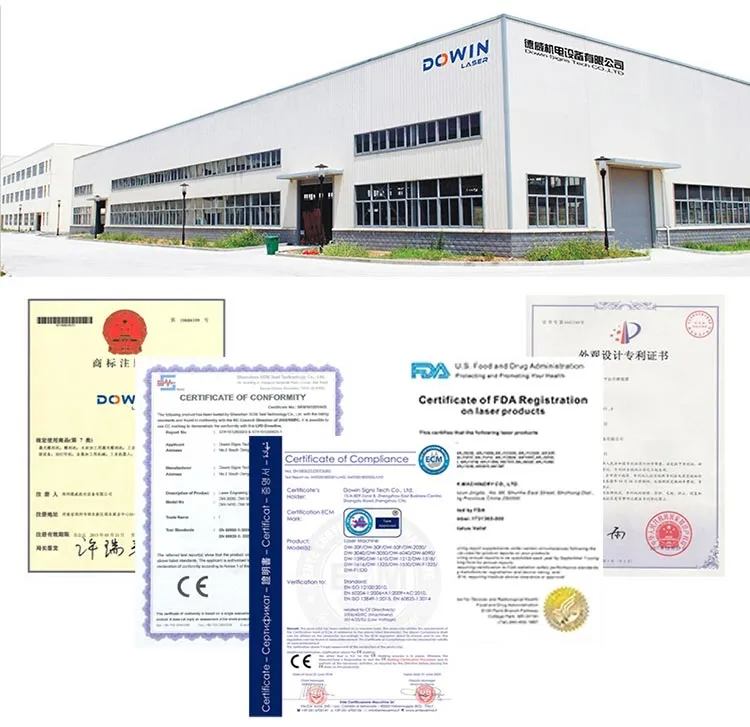

Production Strength & R&D
Focus on researching and manufacturing of laser machine over 11 years.
We specialize in R&D and production of various laser equipment, such as laser cutting machine, laser engraving machine, laser marking machine, and laser welding machine. All series machines are with a one to three years' warranty. Also, our service supports various languages, like English, Spanish, Russian, and so on. Meanwhile, customized equipment is available according to different requirements. Within the laser engraving and cutting field, our products have passed CE and FDA qualifications, which assures high-efficient production and products' reliability. After years of hard work, our products have been presented in more than 100 countries such as North America, Western Europe, South Asia, South America, and Mid East, etc.

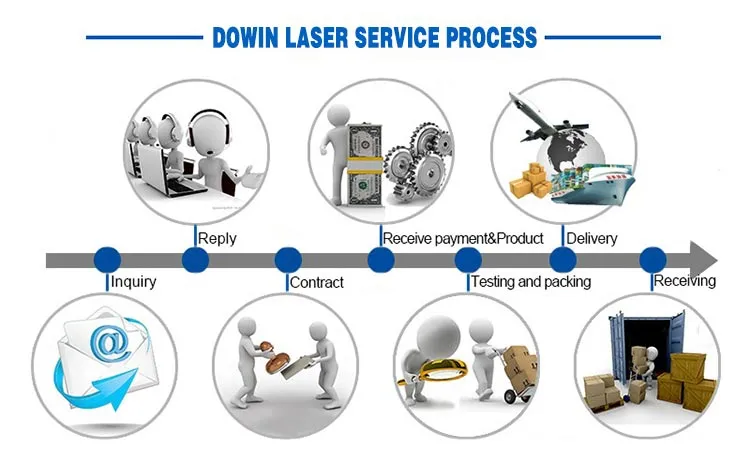

Services Support
Pre-Sales Service
- Inquiry and consulting support.
- Sample testing support.
- View our Factory.
After-Sales Service
- Three-years warranty on the whole machine accessories. If the machine parts have any problems, we can change the old machine parts to new ones free of charge.
- Exceeding the three-year warranty period, if the machine parts have any problems, we can offer new machine parts at cost price, and the customer handles the shipping costs.
- We offer 24 hours technical support by call and email.
- Our technician can give you remote guidance online if you have any questions.
- Machine has been adjusted before delivery, and the operation disk is included in the delivery.
- We have manual instructions and CD (Guiding Videos) for software installation, operation, and machine usage and maintenance.
Technical Training
We supply free technical training for all customers all over the world until the workers from the buyer can operate the machine normally and individually. Main training topics include:
- Training for Control software operation.
- Training for normatively turning on/off operation of the machine.
- Instruction of technical parameters, as well as their setting ranges.
- Basic daily cleaning and maintenance for the machine.
- Solutions for common hardware problems.
- Training for other questions and technical suggestions during daily production.
Training Methods
- Workers of customers can come to our factory to get the most professional hands-on training.
- We can send engineers to the customer's country and do training for workers in the target factory. However, travel and daily expenses like food and accommodation should be afforded by the customer.
- Remote training through Internet tools and instant communication software.
Frequently Asked Questions
Q1: How can I get the best machine for me?
You can tell us your working material and detailed work requirements via pictures or videos so we can verify if our machine meets your needs. We will recommend the best model based on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We provide an English manual and guide video to teach you how to operate the machine. If you need further assistance, we can support you online via remote assistance tools, phone, or email.
Q3: If this model is not suitable for me, do you have more models available?
Yes, we supply many models (such as 130*250cm, 150*300cm, 150*400cm, 200*300cm, etc.) and various laser wattages ranging from 500 watts to 5000 watts. We can assist you in determining the right configuration for your applications.
Q4: What is the guarantee in case the machine breaks down?
The machine has a warranty guarantee. If it breaks down, our technicians will diagnose the issue based on your feedback. Non-consumable parts will be replaced for free if the issues are caused by quality faults.
Q5: How about the documents after shipment? And how long is the delivery time?
After shipment, we will send all original documents to you by email or DHL, including the Packing List, Commercial Invoice, B/L, and other required certificates. Standard machines take 5-10 days; non-standard and customized machines take 15 to 30 days.
Q6: Do you arrange shipment for the machines?
Yes. For EXW terms, we can deliver the machine to any Chinese seaport warehouse for you (with domestic shipping cost added). For FOB or CIF terms, we will arrange the sea shipment directly.
