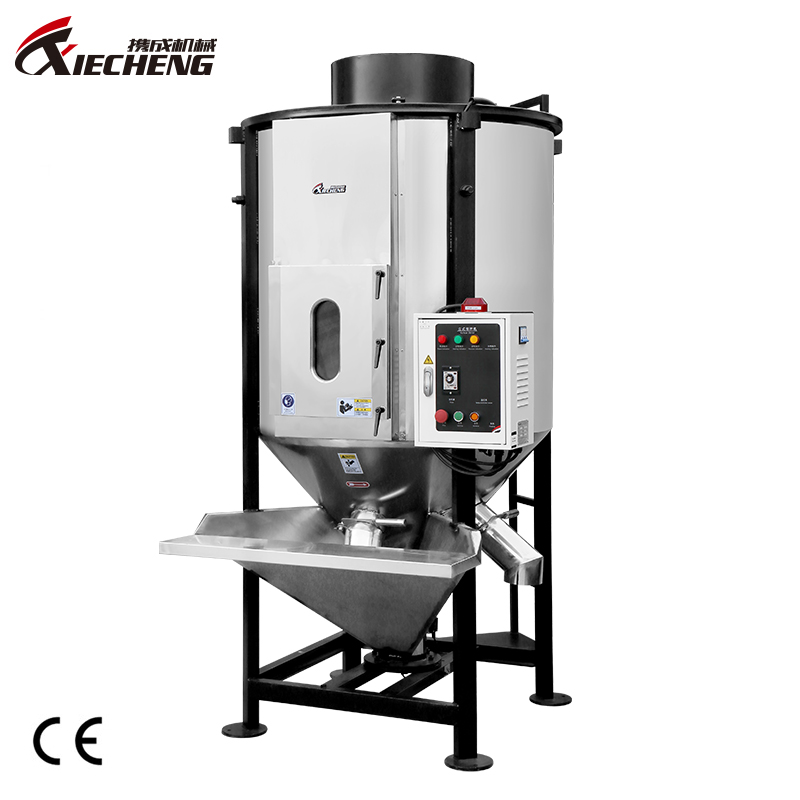

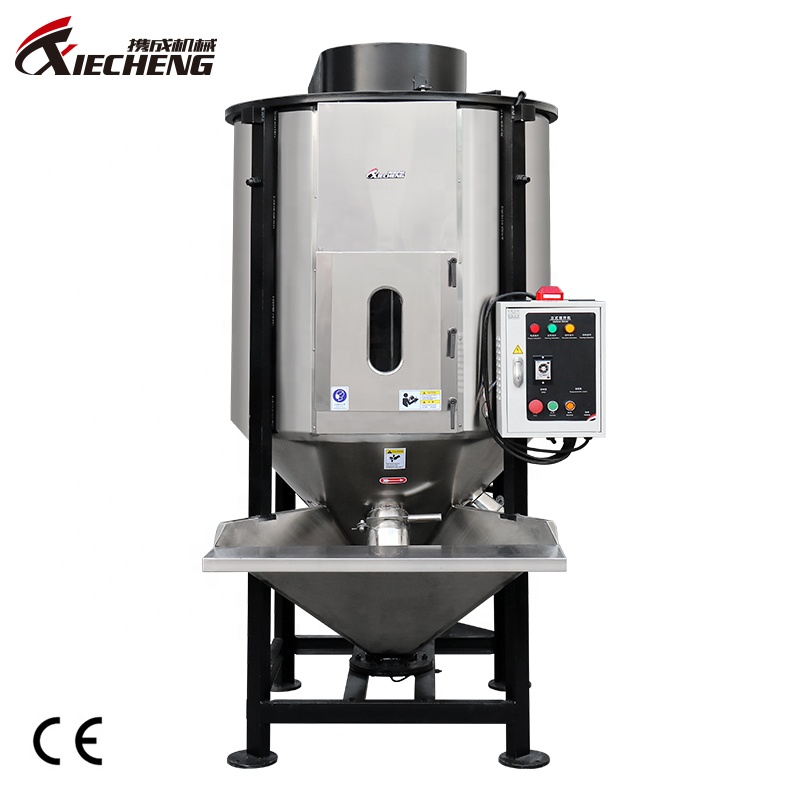

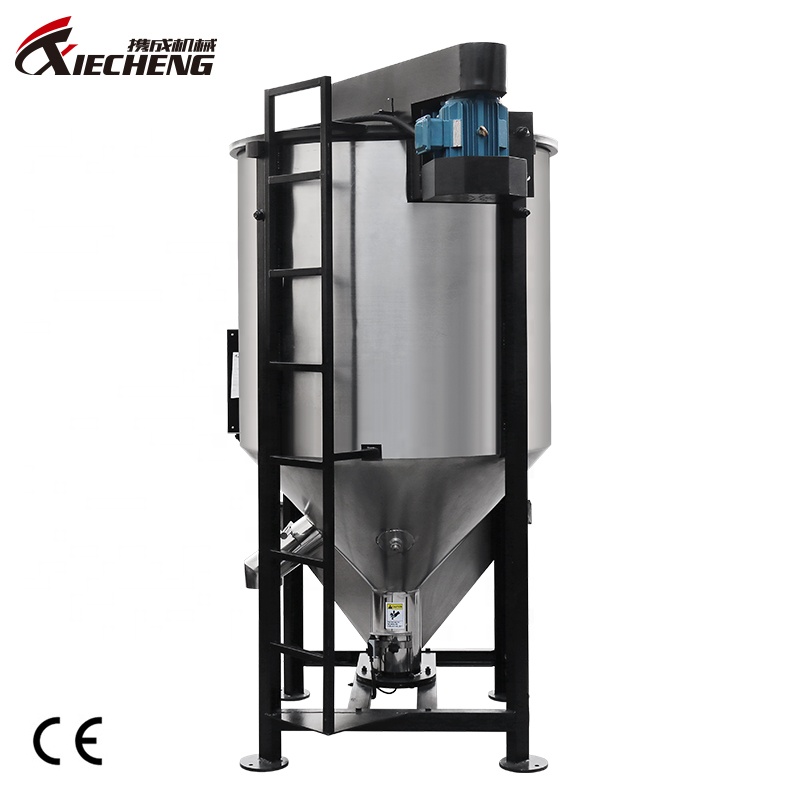

Vertical Color Batch Blending Machine Mixer
Vertical Color Batch Blending Machine Mixer
Vertical Color Batch Blending Machine Mixer
Vertical Color Batch Blending Machine Mixer
Vertical Color Batch Blending Machine Mixer
1 / 5
Vertical Color Batch Blending Machine Mixer
Vertical Color Batch Blending Machine Mixer
Vertical Color Batch Blending Machine Mixer
Vertical Color Batch Blending Machine Mixer
Vertical Color Batch Blending Machine Mixer

Vertical Color Batch Blending Machine Mixer

Send Inquiry

Product Description

Product Description

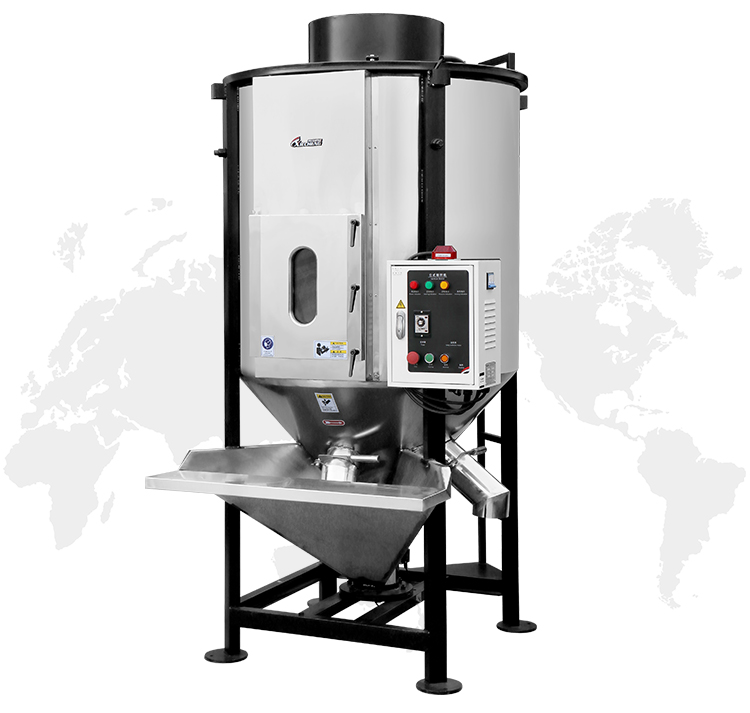

Vertical Blender Banner Vertical Blender Machine
Vertical Blender
Vertical Blender adopt helical circular mixture, fast and evenly stirring. It is suitable for mixing masterbatch with all kinds of plastic raw materials and even better with new and grinded materials.
Product Specifications
Model XC-JB500L XC-JB1000L XC-JB2000L XC-JB3000L XC-JB5000L
Power KW 2.2 3 4 5.5 7.5
HP 3 4 5 7.5 10
Capacity(KG) 500 1000 2000 3000 5000
Voltage(V) 380/3φ 380/3φ 380/3φ 380/3φ 380/3φ
Dimension(L*W*H mm) 1210*1280*2425 1636*1800*3070 1930*2035*3650 2375*2420*3670 2375*2420*4560
Height of Hopper(H1 mm) 520 705 680 700 700
Height of Hopper(H2 mm) 660 810 825 845 845
Rotating Speed(R/min) 300 300 300 300 300
Heating Power(KW) 12 18 30 38 38
Blower(KW) 0.32 1 1.5 2.2 2.2
Approx. Net Weight(kg) 450 630 1050 1250 1500
If you want more sizes, please contact us for details
Specification Details Graphic
Working Principle
Vertical blender are able to perform even mixture for large volume of materials in short mixing time by utilizing the paddles rotation to gather the materials from the bottom of dump center to the top, shed the material flow back to the bottom and complete the mixing function in short period of time.

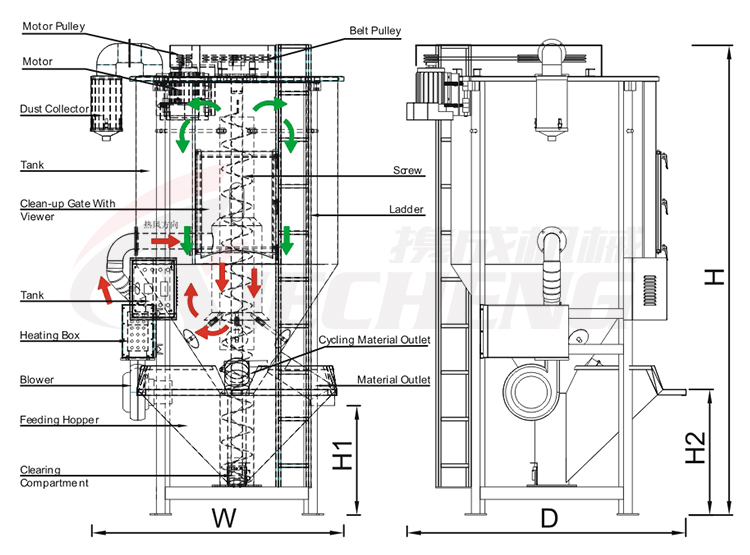

Working Principle Schema
Product Actual Shooting

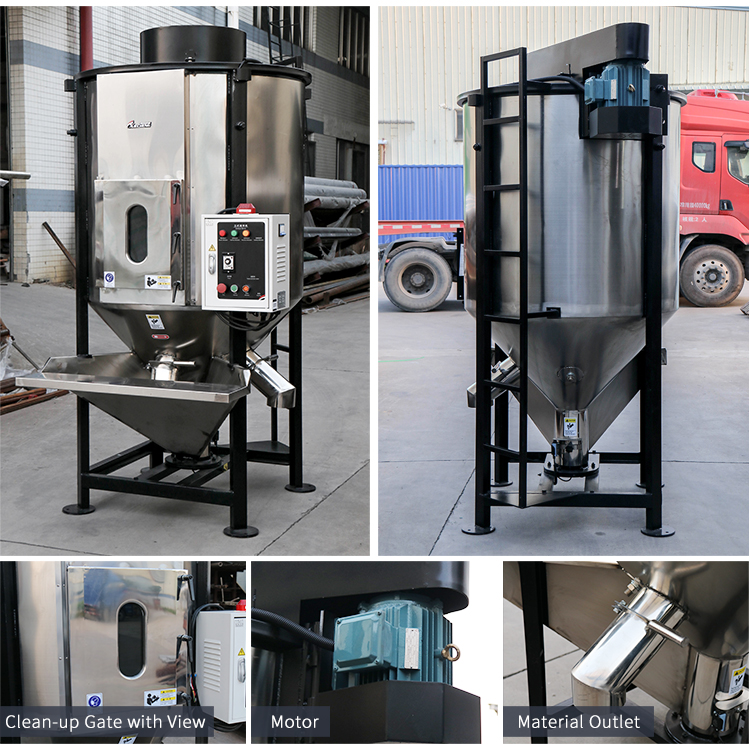

Product Physical Display
Product Details

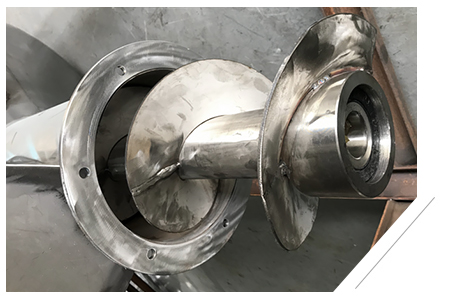

Screw Component Details
01
Screw
• The main screw rod is made of stainless steel 304, the paddle is made of stainless steel 201, the thickness is 4.0mm.
• Helical circular mixture, fast and evenly stirring.

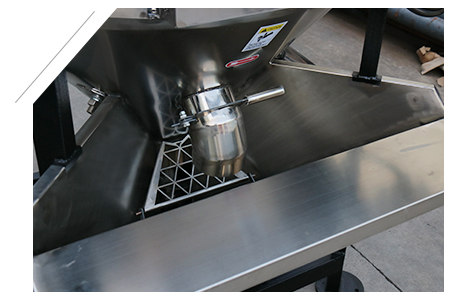

Stainless Steel Details
02
Stainless Steel Material
Fully stainless steel contacting parts, rust free and easy to clean.

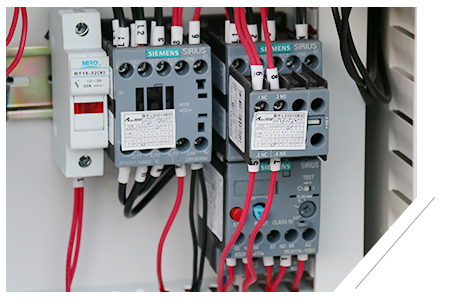

Siemens Electric Parts
03
Siemens Electric
SIEMENS electrical parts ensures stable running and liability of the machine.

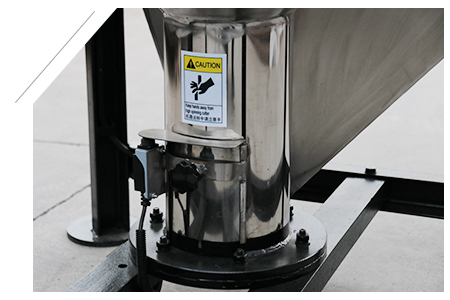

Power Control Safety Device
04
Power Control Device
Installed with power control device to ensure safety.

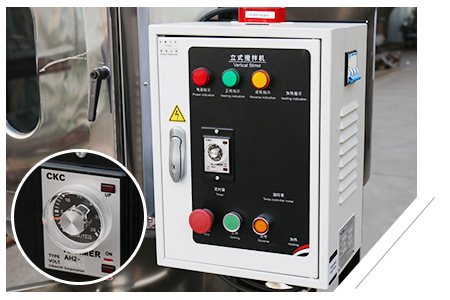

Integrated Timer system
05
Timer
Mixing time able to set within 0~30 minutes.
Best Selling

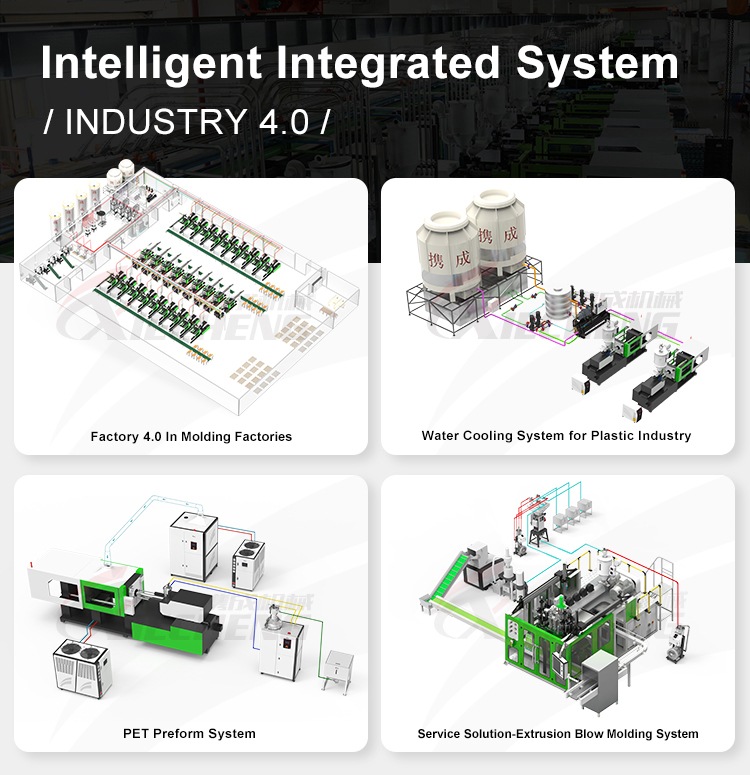

Best Selling Models Overview
About Us
Enterprise display 1
Enterprise display 2
Enterprise display 3
Enterprise display 4
Enterprise display 5
Enterprise display 6
Factory Overview Display
Frequently Asked Questions (FAQ)
Q: What materials are suitable for mixing with the Vertical Blender?
A: The Vertical Blender is highly suitable for mixing masterbatch with all types of plastic raw materials. It works exceptionally well when mixing new materials with grinded/recycled materials.
Q: How long does the mixing process take and can it be adjusted?
A: The mixing process is fast and efficient. Mixing times can be easily configured using the built-in timer system, allowing settings anywhere within a 0 to 30-minute range.
Q: What are the stainless steel specifications of the contact parts?
A: To ensure a rust-free operation and easy cleaning, all material-contacting parts are made of high-quality stainless steel. Specifically, the main screw rod is made of stainless steel 304, and the mixing paddle is made of stainless steel 201 with a thickness of 4.0mm.
Q: What safety and reliability systems are integrated into the machine?
A: The machine features premium Siemens electrical components for stable, reliable operation. Additionally, a dedicated power control safety device is installed to protect operators during run time.
Q: What capacities do you offer for your Vertical Blenders?
A: We offer standard models with handling capacities ranging from 500KG up to 5000KG (such as the XC-JB500L, XC-JB1000L, XC-JB2000L, XC-JB3000L, and XC-JB5000L). Customized sizing is also available upon request.
