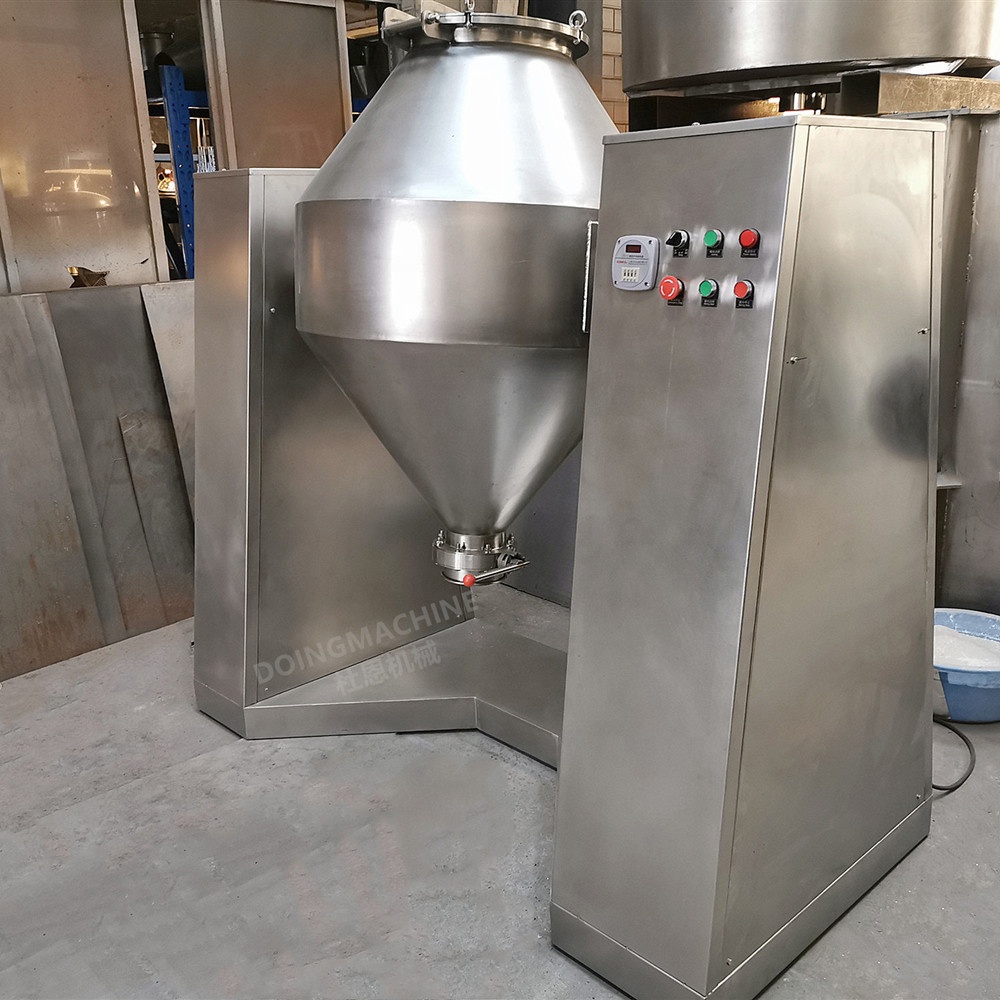

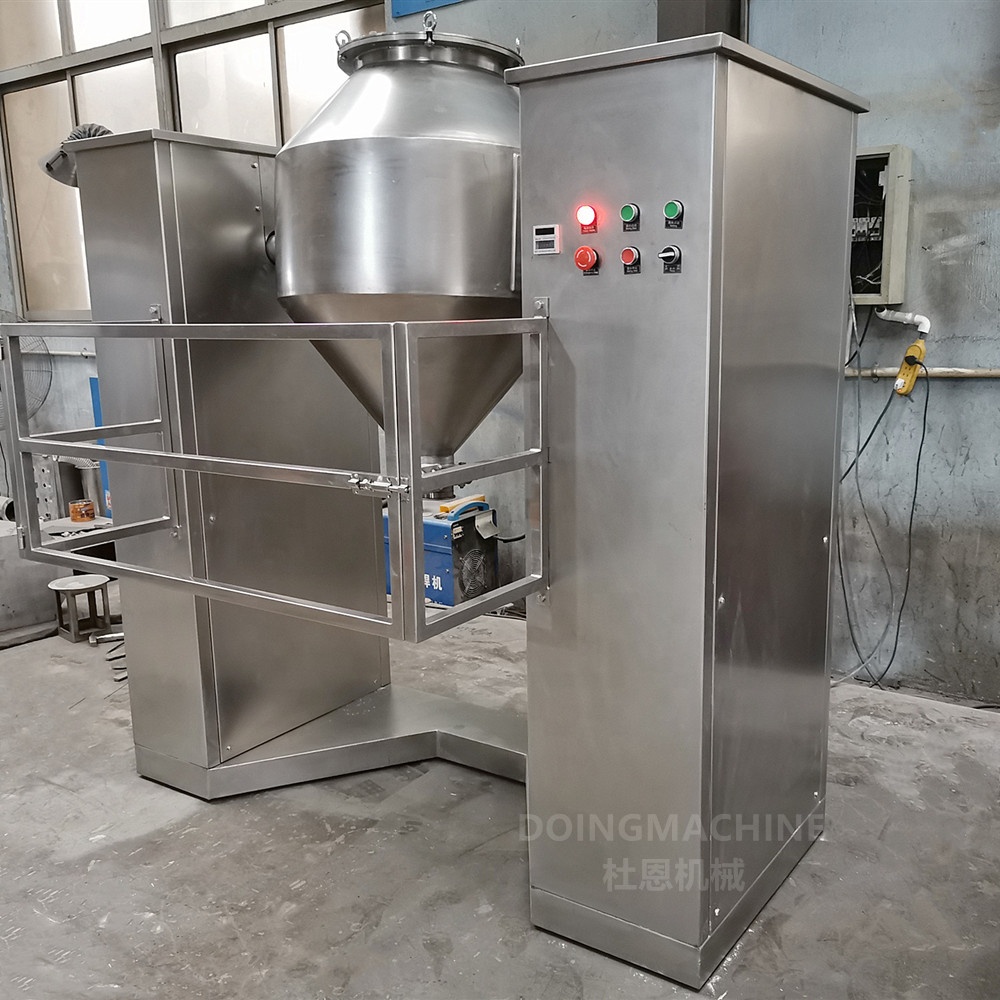

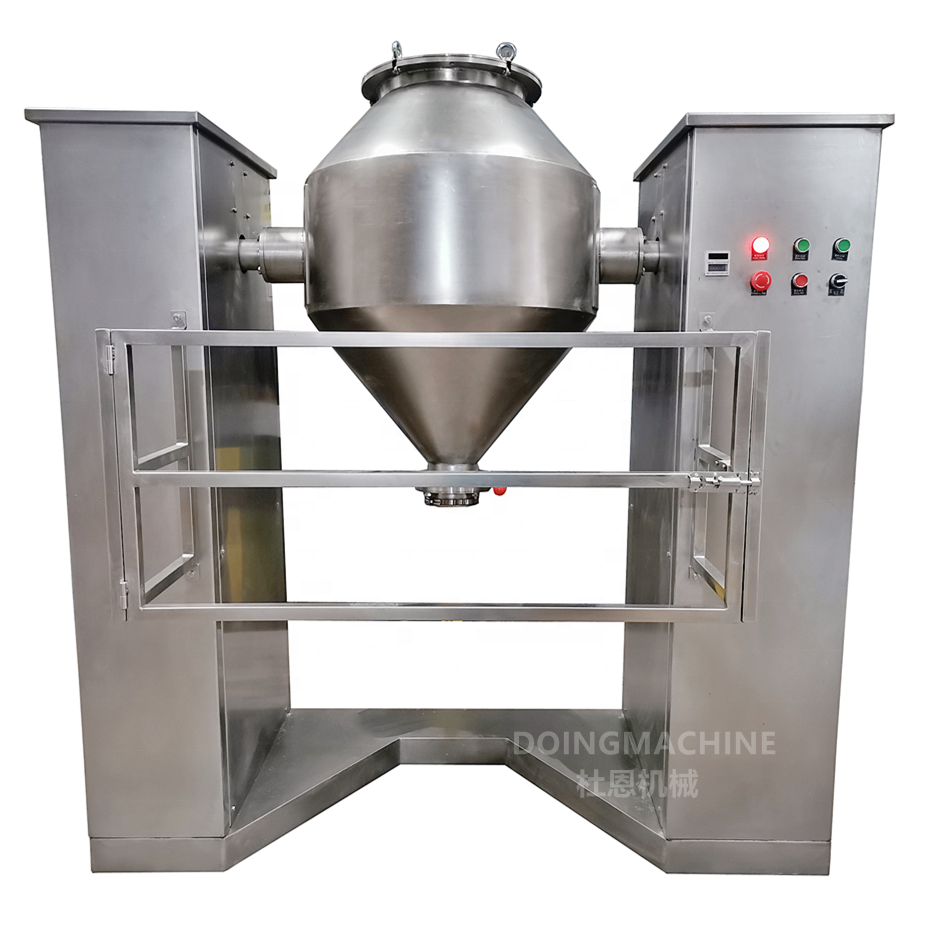

100 kg Food Dry Powder Mixer Mixing Machine

Product Description

Main Features

Intimately mix dry powder or small granules with good flowability in food and chemical industry.
Mixing chamber volume capability ranges from 180L to 2000L.
Sanitary and safe food-grade design.
Agitator / intensifier bar can be equipped to strengthen the overall mixing effect.
Can work in combination with a vacuum conveyor to achieve automatic and dust-free feeding.

Working Principle

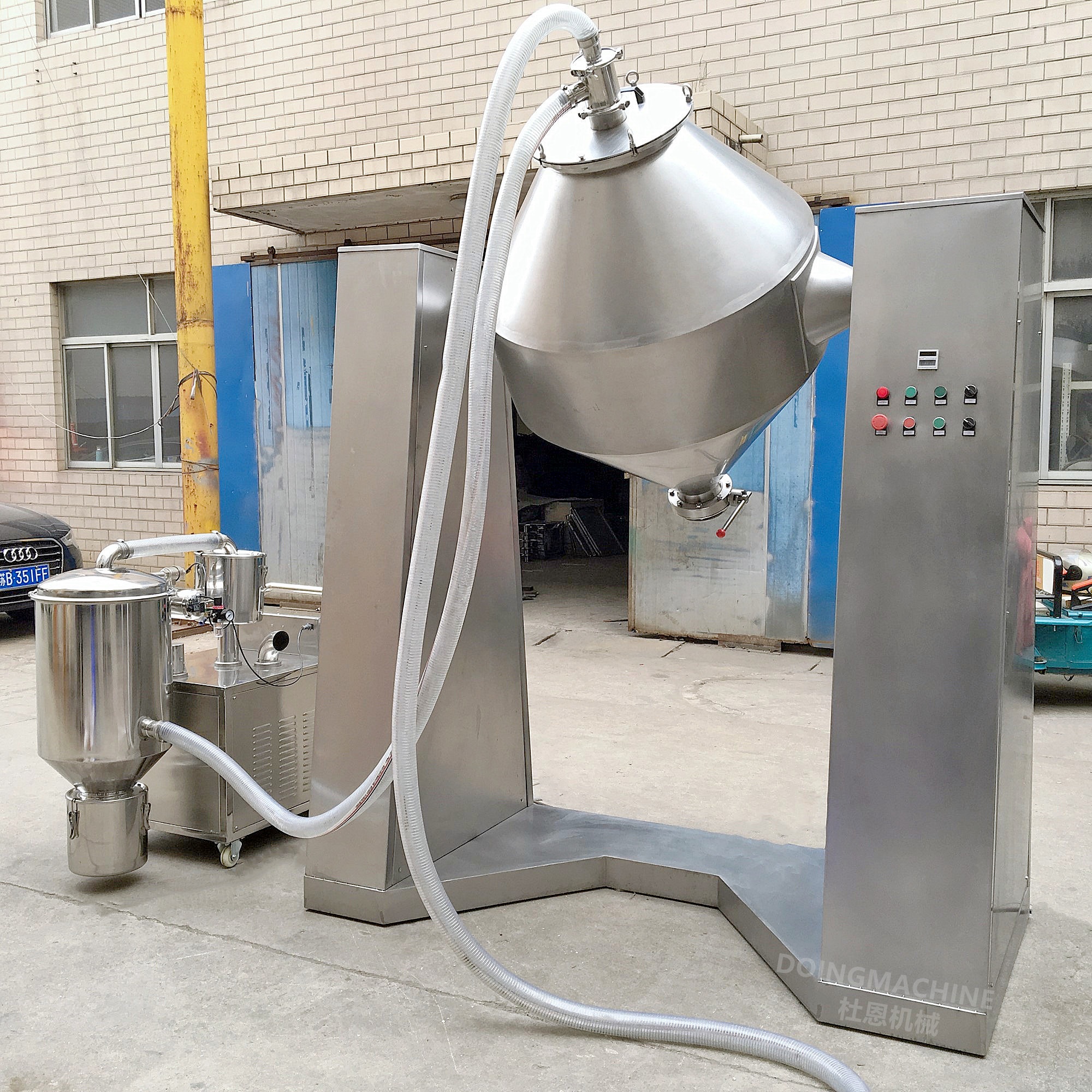

SZH series double cone mixer/blender is most often used for the intimate dry mixing of free flowing solids. The materials are fed into the mixing chamber via quick-open feed port manually or by vacuum conveyor. With the rotation of mixing chamber, materials is completely mixed with high degree of homogeneity. Normal cycle times are typically in the range of 10 minutes, however they can be less depending on the difficulty of mixing.

SZH series double cone mixer/blender is widely used in nutriceutical, chemical and food industries for mixing dry powder or small granules with good flowability. The solids being mixed can vary in bulk density and in percentage of the total mixture.

Technical Advantages

Mirror polished inner and outer shell to meet food-grade standards.
No blind angle in the mixing chamber, preventing material accumulation. High-speed I-bar ensures efficient and short mixing times.
Excellent mixing uniformity that can reach up to 99%.
Equipped with a reliable plate valve for discharging.
Fully integrated motors and control systems.
Compatible with vacuum feeding systems to achieve dust-free working conditions.

Main Technical Parameters

Model	SZH-180	SZH-300	SZH-500	SZH-1000	SZH-1500	VHJ-2000
Volume L	180	300	500	1000	1500	2000
Capacity kg/batch	40	60	100	200	300	400
Mixing time Min	4-8	6-10	6-10	6-10	6-10	6-10
Rotation speed RPM	12	12	12	12	10	10
Motor power KW	1.1	1.1	2.2	4	4	7.5
Dimension LxWxH M	1.4X0.8X1.8	1.7X0.8X1.9	1.9X0.8X2	2.8x1.5x2.4	2.9x1.5x2.5	3.4x1.9x3.5
Rotation height mm	1850	1850	1950	2460	2540	3650
Weight kg	280	310	550	810	980	2150

Detailed Images

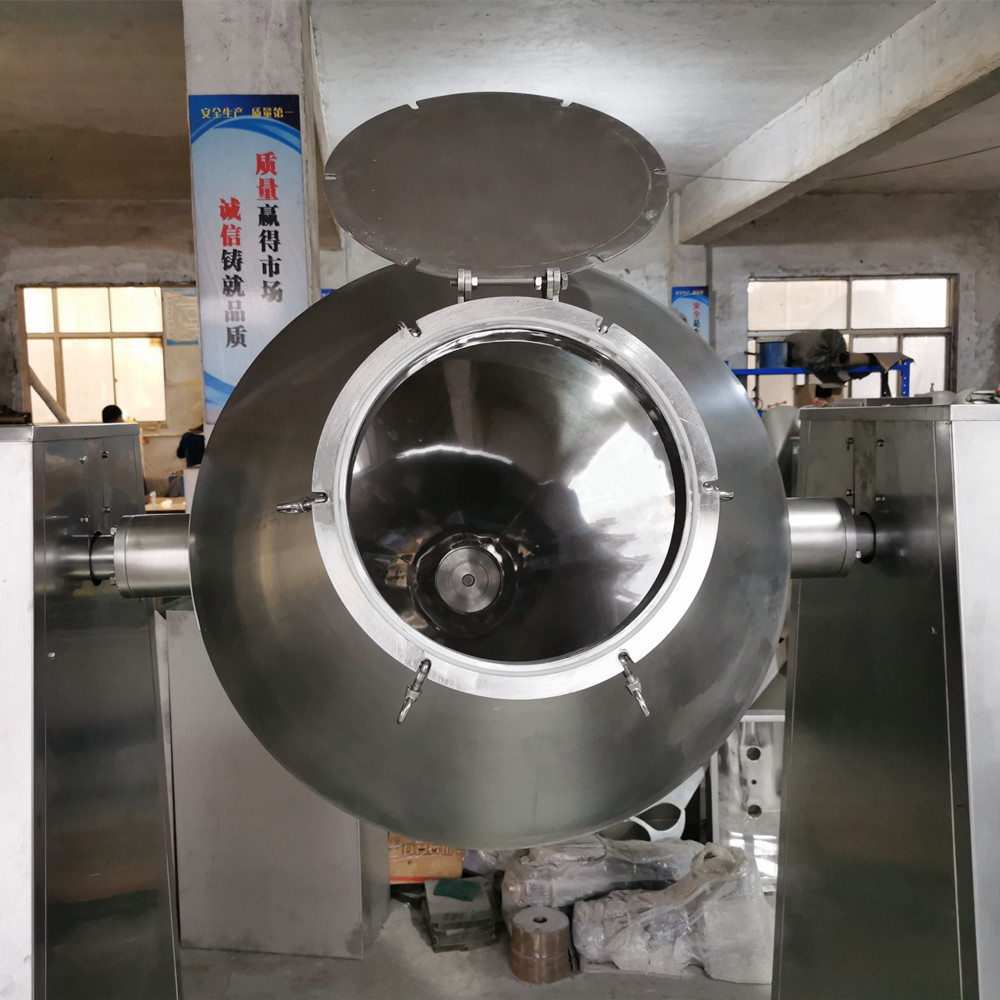

Feed Port

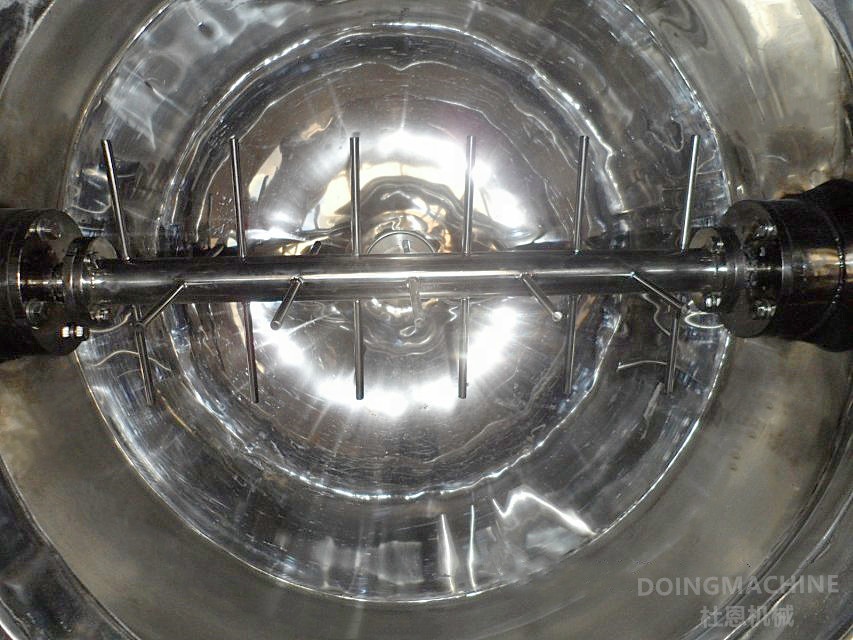

Intensifier Bar

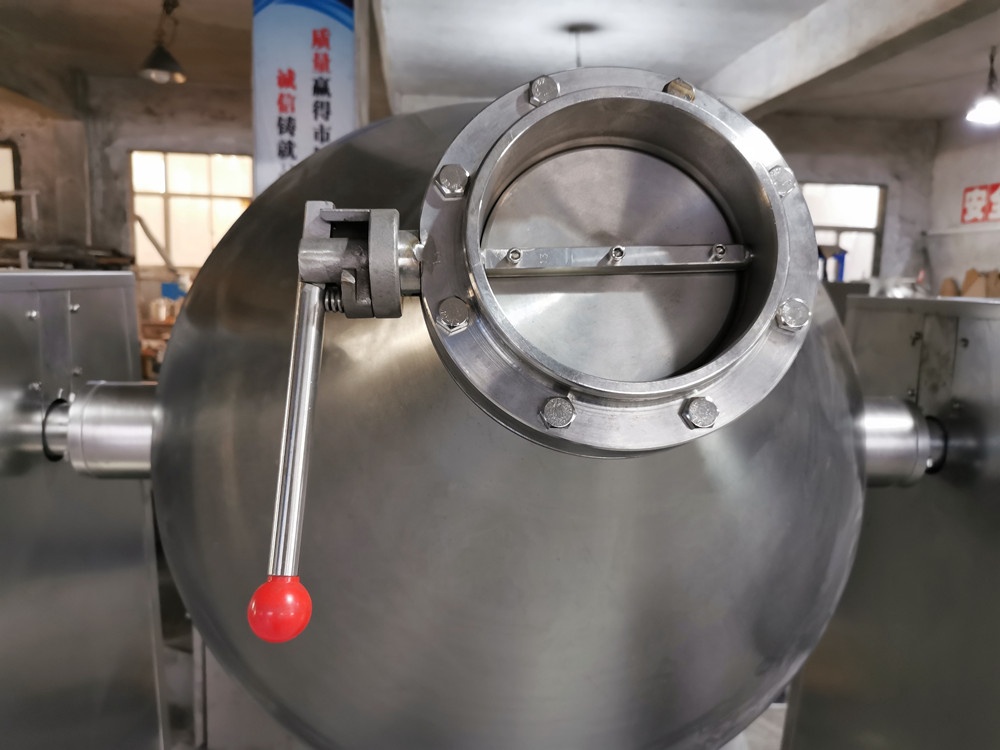

Discharge Valve

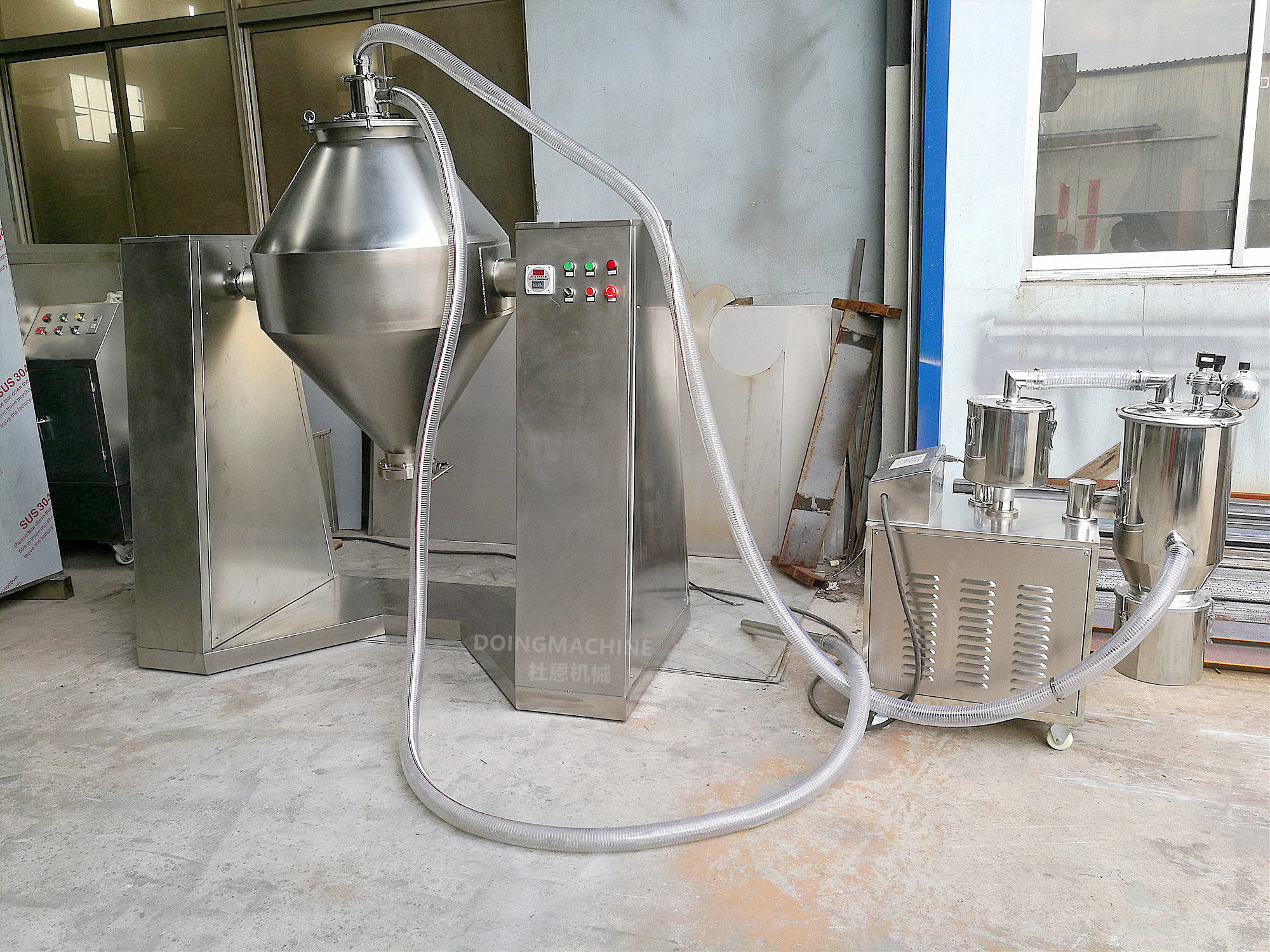

Working with Vacuum Conveyor

Typical Applications

Protein Powder

Seasoning Powder

Chemical Powder

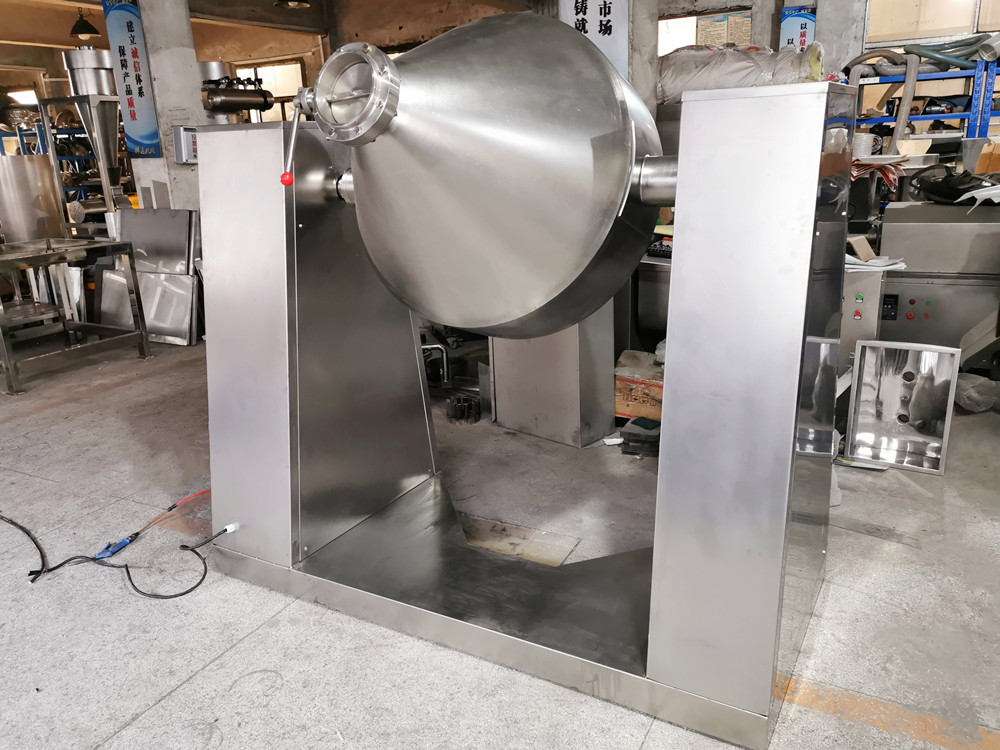

Packing & Delivery

Frequently Asked Questions

Q: What information should be provided in order to get a proposal or quotation?

A: Our double cone mixer can be customized. To work out a detailed proposal or quotation, we have to know the following information:
1) Particle size of products to be mixed
2) Bulk density of products to be mixed
3) Mixing capacity
4) Construction material: SUS304 or SUS316L

Q: How is the machine packaged and delivered?

A: The mixer is carefully packed and secured inside a durable plywood box for safe shipping.

Q: What is the typical mixing uniformity of this double cone blender?

A: The mixing uniformity of the SZH series double cone mixer can reach up to 99% due to its design which leaves no blind angles in the mixing chamber.

Q: What is the standard mixing cycle time?

A: Normal mixing cycle times are typically in the range of 10 minutes. However, depending on the difficulty of mixing, the cycle can be shorter. As shown in our technical specifications, mixing times commonly range from 4 to 10 minutes.

Q: Can the mixer work with automated feeding setups?

A: Yes, it is fully compatible with a vacuum feeding system/conveyor, enabling automated and completely dust-free loading during operation.

Q: Is the system suitable for food applications?

A: Yes. The double cone mixer is designed to food-grade standards with mirror-polished inner and outer shells, making it ideal for processing protein powder, seasoning powder, and other food products.
