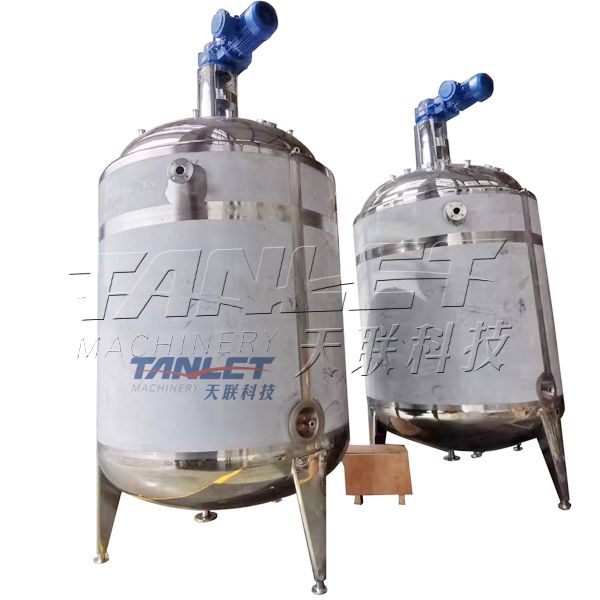

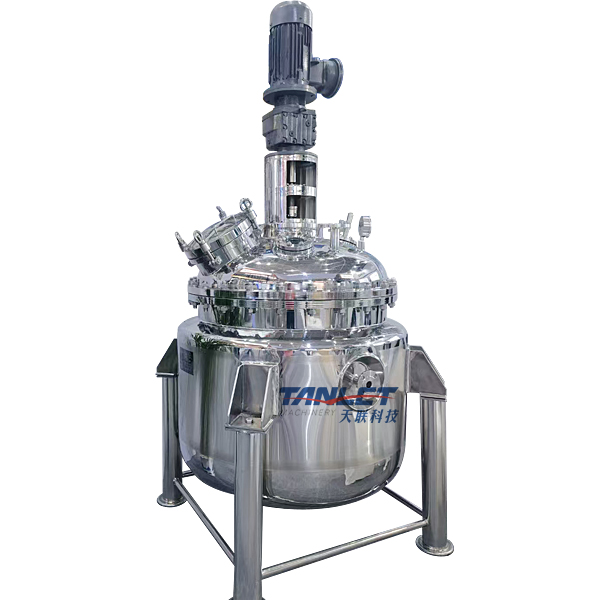

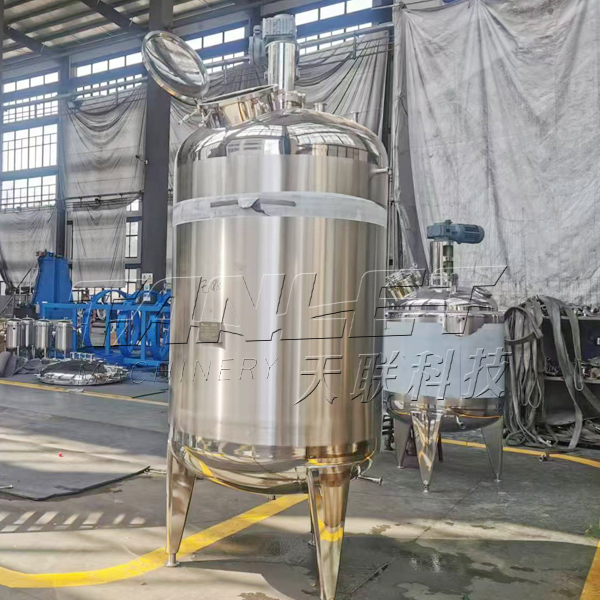

Sterile Liquid Preparation System with Stainless Steel Mixing Tank with Factory Price

Product Description

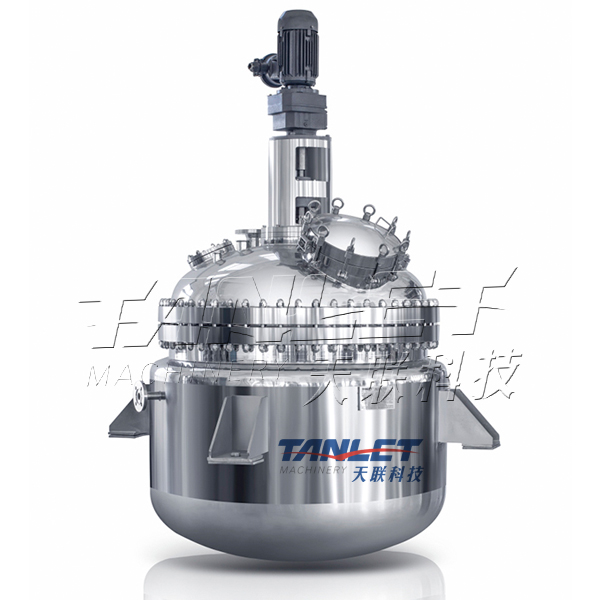

Sterile Liquid Preparation System with Stainless Steel Mixing Tank with Factory Price
The mixing tank is widely used in beverage, food, daily, pharmaceutical, chemical and processing industries. It is used for mixing and storage stainless steel tank. A mixing tank, also known as water-phase tank, is widely used in paint, building materials, chemical, pigment, resin, food, scientific research and other industries.
The device can be made of carbon steel, stainless steel and other material as well as be equipped with heating and cooling devices according to different process requirements and production needs of users. A mixing tank is a kind of vessel that can perform stirring, mixing, blending, homogenizing and other operations for material. According to different requirements of production processes, different structures and configurations can be designed, and standardized and humanized production can be satisfied as well.
The heating modes concludes electric heating of jacket and coil heating. Featuring reasonable structure, advanced technology, durability, simple operation and convenient use, it is regarded as an ideal chemical device that can invest little, put into production quickly and gain high interest. It can realize the charging control, discharging control, stirring control and manual and automatic control during the mixing.

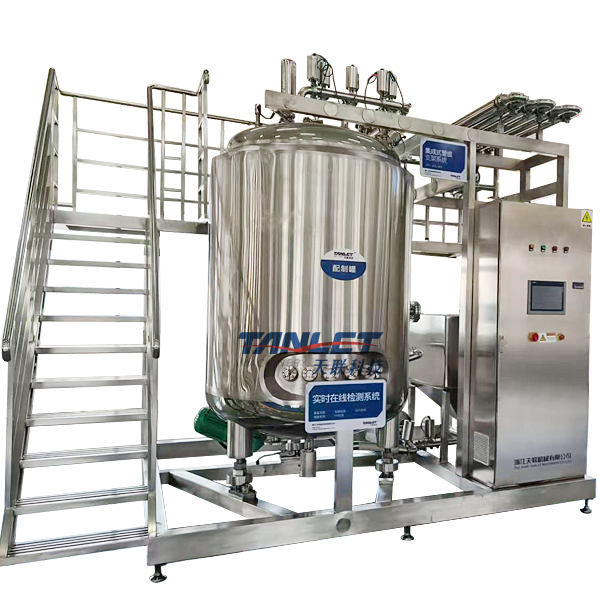

Sterile Liquid Preparation System Stainless Steel Mixing Tank
Product Structure
Stainless steel mixing tanks can generally fall into three categories in terms of the structure:
  • Single-layer structure: Without jacket, it can realize internal coil heating or cooling, or the electric heating tube can be directly inserted into the mixing tank for heating.
  • Dual-layer structure: With jacket, it can carry out the heat conducting oil circulating heating, water circulating heating, steam heating and other heating modes. According to the heating temperature, the electric heating can be chosen if there is no steam boiler, and the water bath heating can be selected if the temperature is required to be no more than 100℃. This structure doesn’t have the insulation layer, so the thermal is volatile.
  • Three-layer structure: With the rock wool or polyurethane (PU) insulation layer and 2mm stainless steel coating, a mixing tank is elegant.

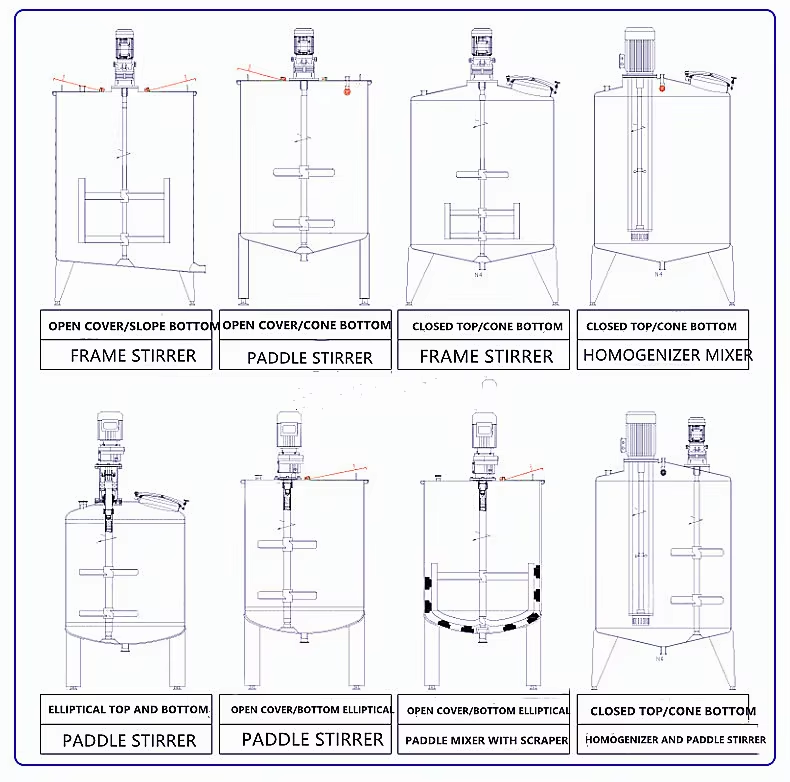

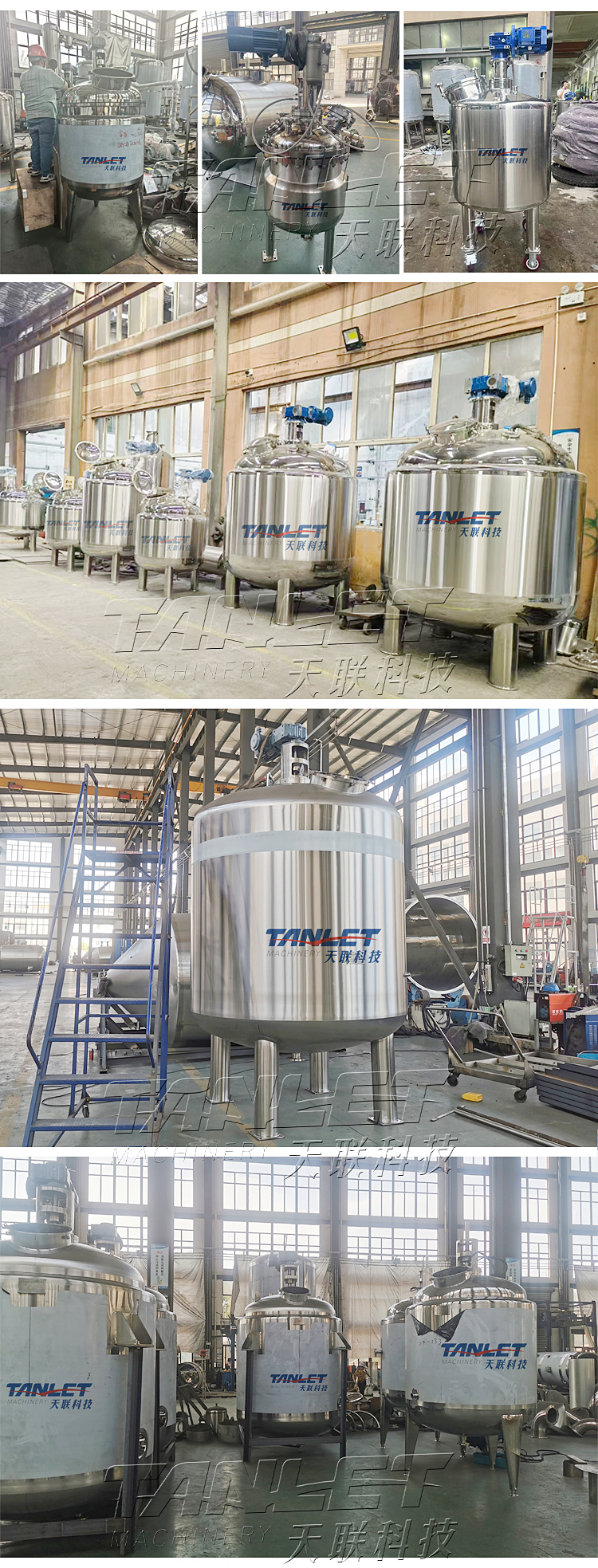

Stainless Steel Mixing Tank Structure
PRODUCT SPECIFICATIONS
Model JBG-300 JBG-400 JBG-500 JBG-600 JBG-1000 JBG-2000 JBG-3000 JBG-5000
Volume (L) 300 400 500 600 1000 2000 3000 5000
Vessel Op. Pre. (MPa) ≤0.2
Jacket Op. Pre. (MPa) ≤0.3
Motor Power (Kw) 0.55 0.55 0.75 0.75 1.1 1.5 1.5 2.5
Stirring Speed (r/m) 36~53
Diameter (mm) 900 1000 1150 1150 1400 1500 1700 2000
Height (mm) 1800 1900 2200 2300 2600 2900 3200 3700
Heat Exchanging Area (m²) 2 2.4 2.7 3.1 4.5 7.5 8.6 10.4

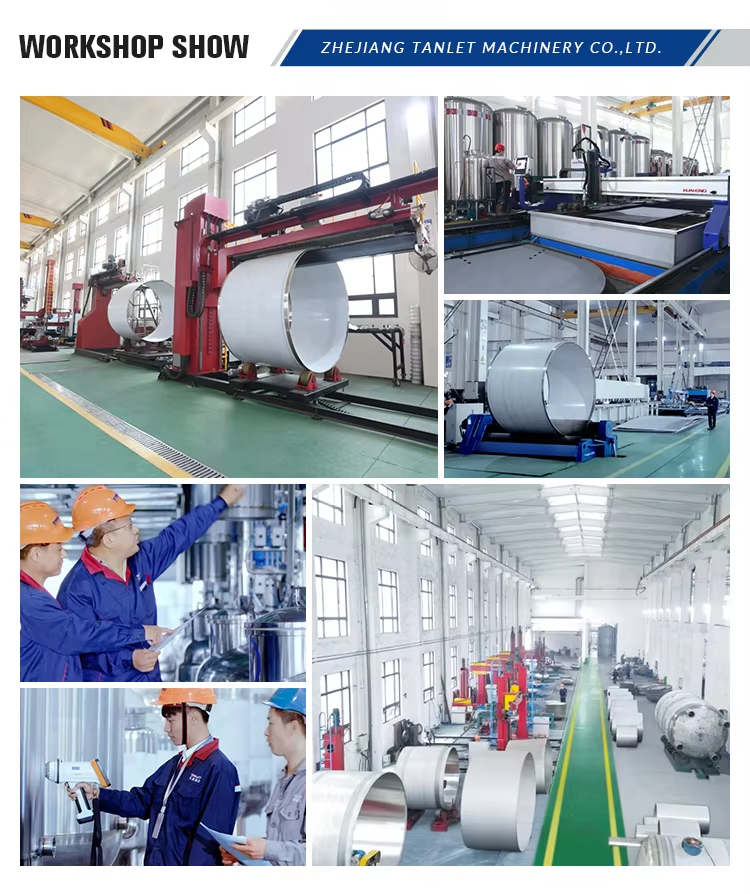

PRODUCTION & AUXILIARY EQUIPMENT
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine. PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Blowing Machine
PET Bottle Production Moulding
CERTIFICATIONS
International Quality Certifications
Frequently Asked Questions
How can we guarantee quality?
We can provide the whole production process to you by video or live stream, and we also have international certifications like ASME, CE, ISO9001, etc.
What kind of products can the mixing tank process?
The mixing tank is designed to handle all kinds of liquid material.
How to ship the mixing tank?
We ship using flat rack combined with container solutions.
What is the standard delivery time?
The standard delivery time is 35 days.
What is the after-sales service type?
We provide engineers onsite to guide installation, commissioning, and training.
What can you buy from us?
You can purchase extractors, concentrators, evaporators, and other high-quality stainless steel products. We can customize this equipment to meet your required specifications.
