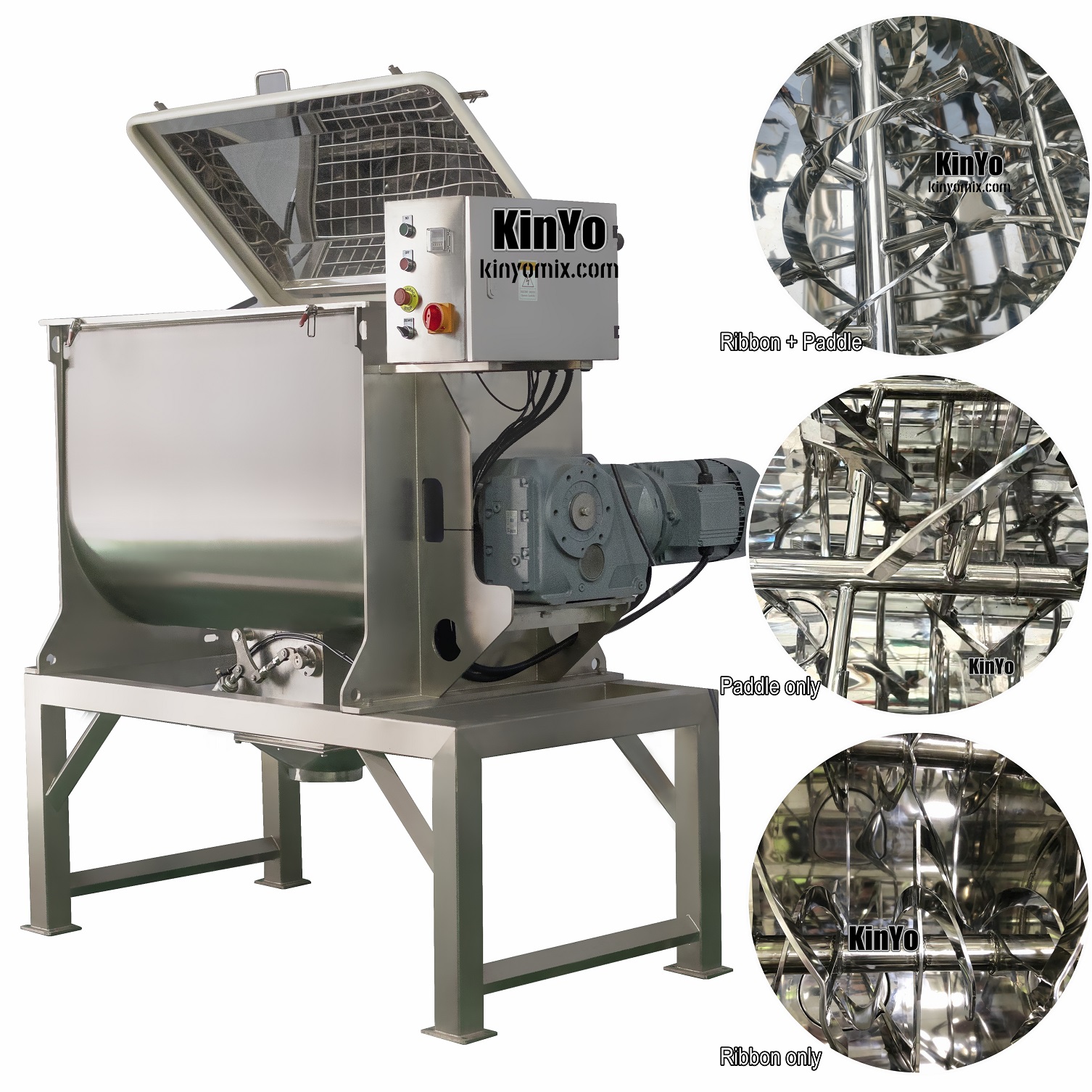

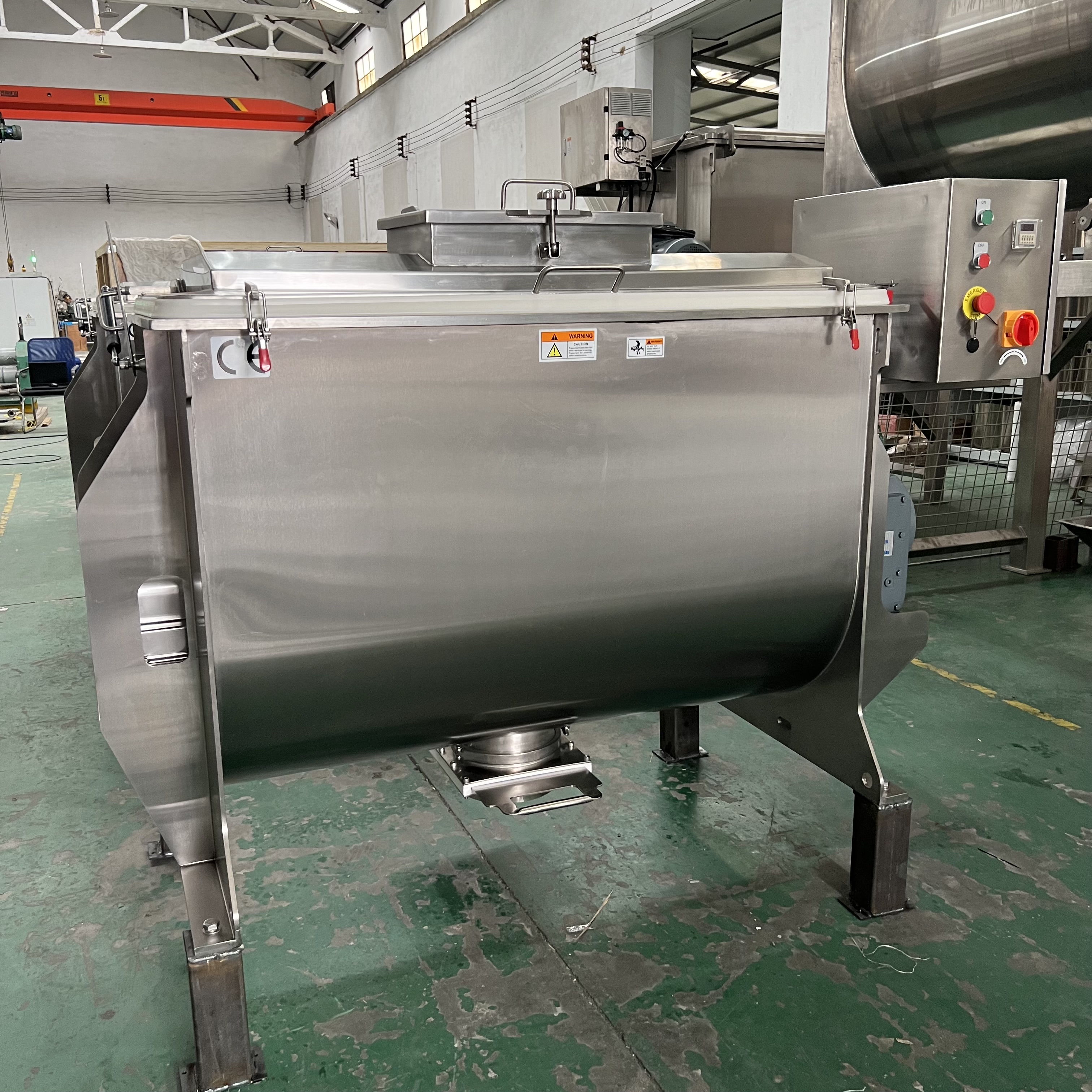

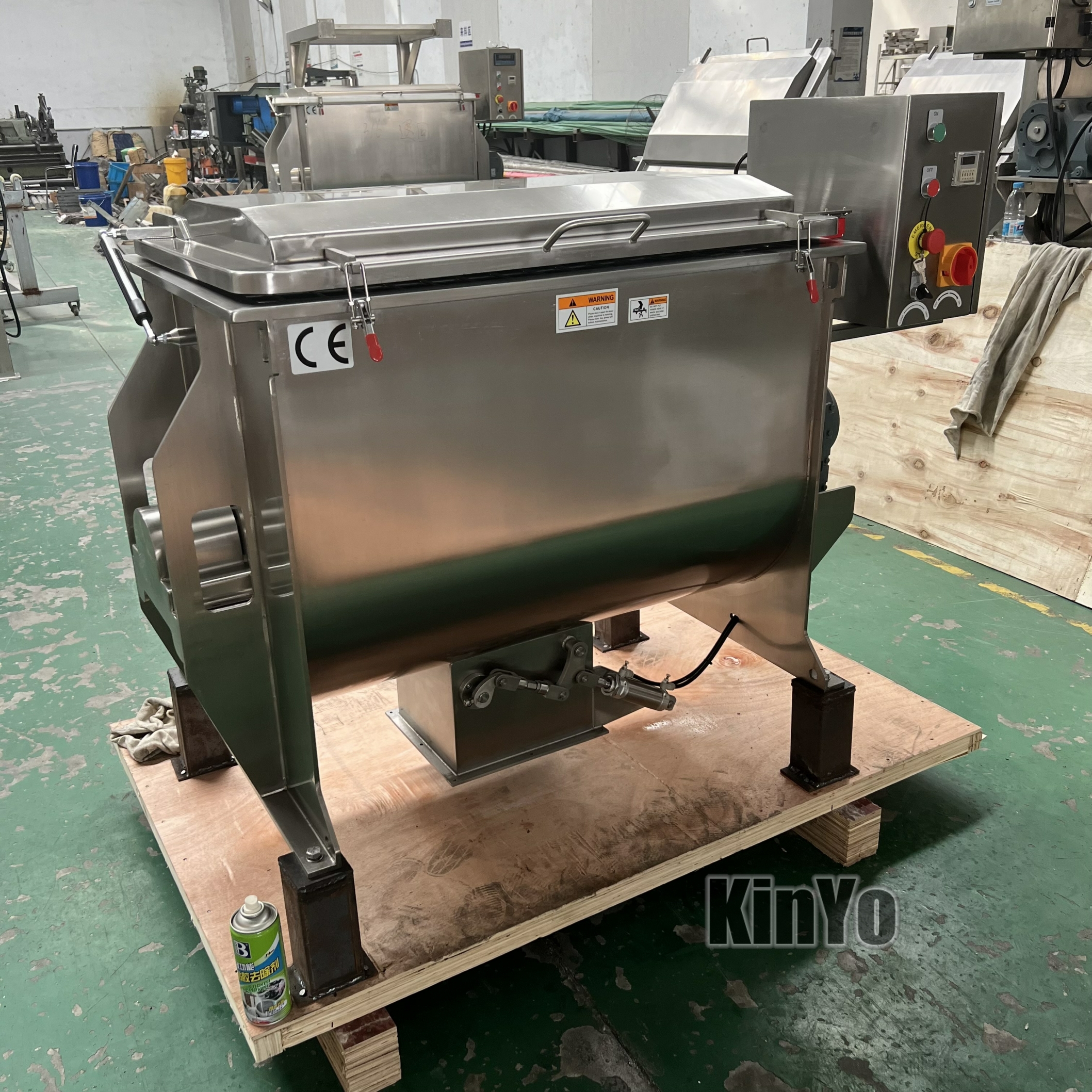

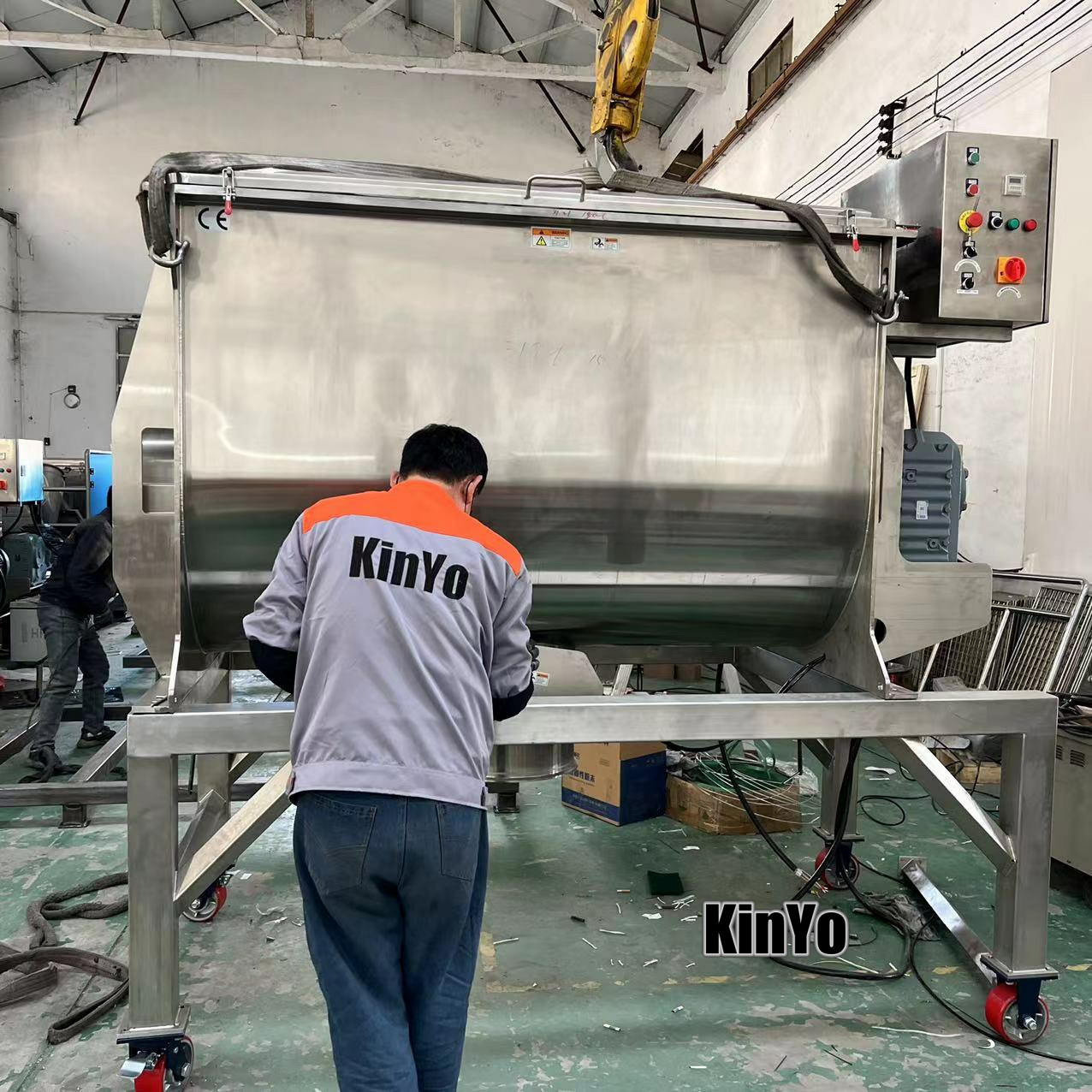

KYRB200 No-Reside Waterproof Stainless Steel Chemical Powder Food Industry Mixing Machine
KYRB200 No-Reside Waterproof Stainless Steel Chemical Powder Food Industry Mixing Machine
KYRB200 No-Reside Waterproof Stainless Steel Chemical Powder Food Industry Mixing Machine
KYRB200 No-Reside Waterproof Stainless Steel Chemical Powder Food Industry Mixing Machine
KYRB200 No-Reside Waterproof Stainless Steel Chemical Powder Food Industry Mixing Machine
1 / 5
KYRB200 No-Reside Waterproof Stainless Steel Chemical Powder Food Industry Mixing Machine
KYRB200 No-Reside Waterproof Stainless Steel Chemical Powder Food Industry Mixing Machine
KYRB200 No-Reside Waterproof Stainless Steel Chemical Powder Food Industry Mixing Machine
KYRB200 No-Reside Waterproof Stainless Steel Chemical Powder Food Industry Mixing Machine
KYRB200 No-Reside Waterproof Stainless Steel Chemical Powder Food Industry Mixing Machine

KYRB200 No-Reside Waterproof Stainless Steel Chemical Powder Food Industry Mixing Machine

Send Inquiry

Product Description

Blender and filling machine banner

Devoted to blending and filling machines for powdered materials, our factory features a manufacturing area of over 3000 sqm.

We have succeeded in delivering over 500 sets of ribbon blenders and auger filling machines all over the world. North America and Europe are our main markets on account of our exquisite workmanship.

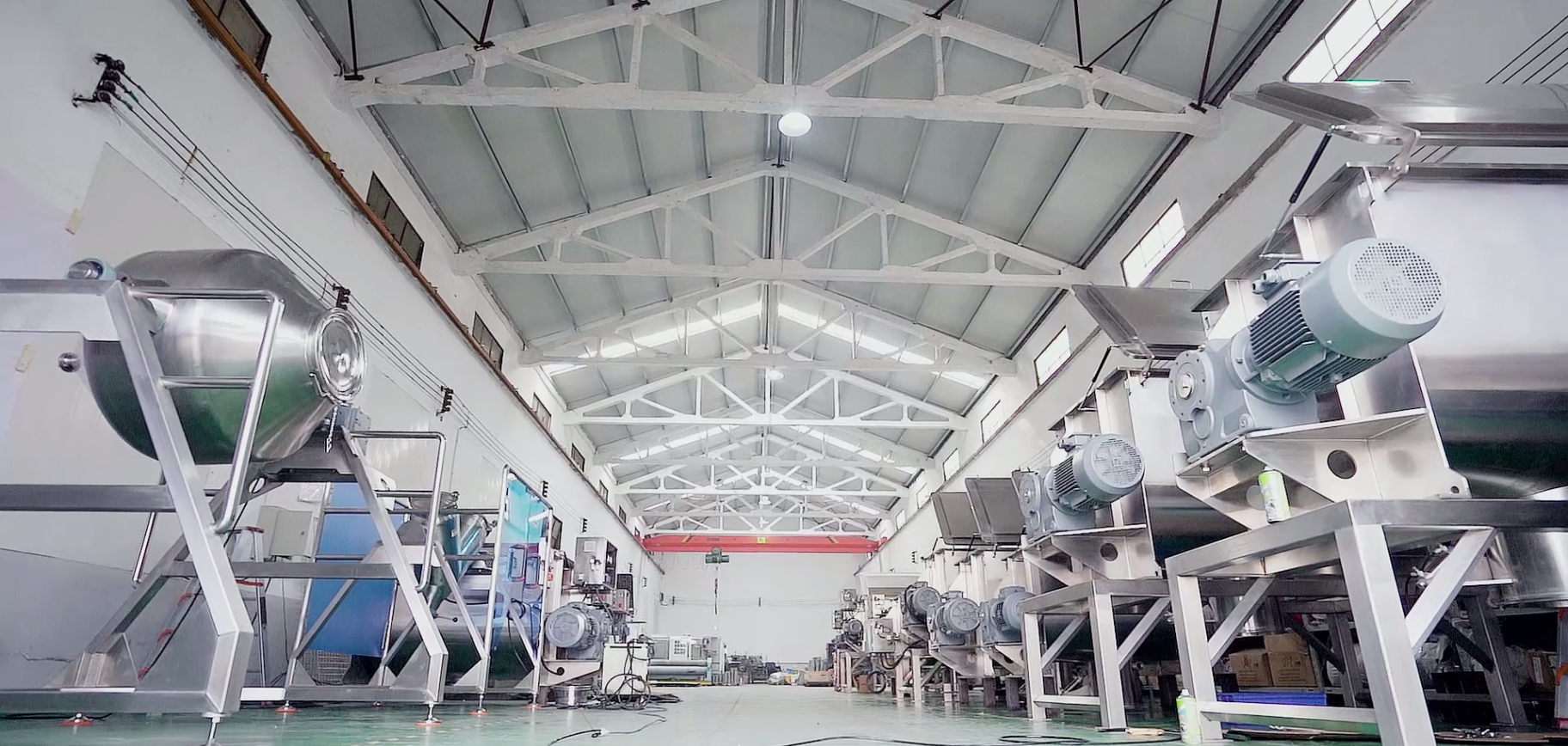

Industrial Blender Schematic
Factory Machine 1

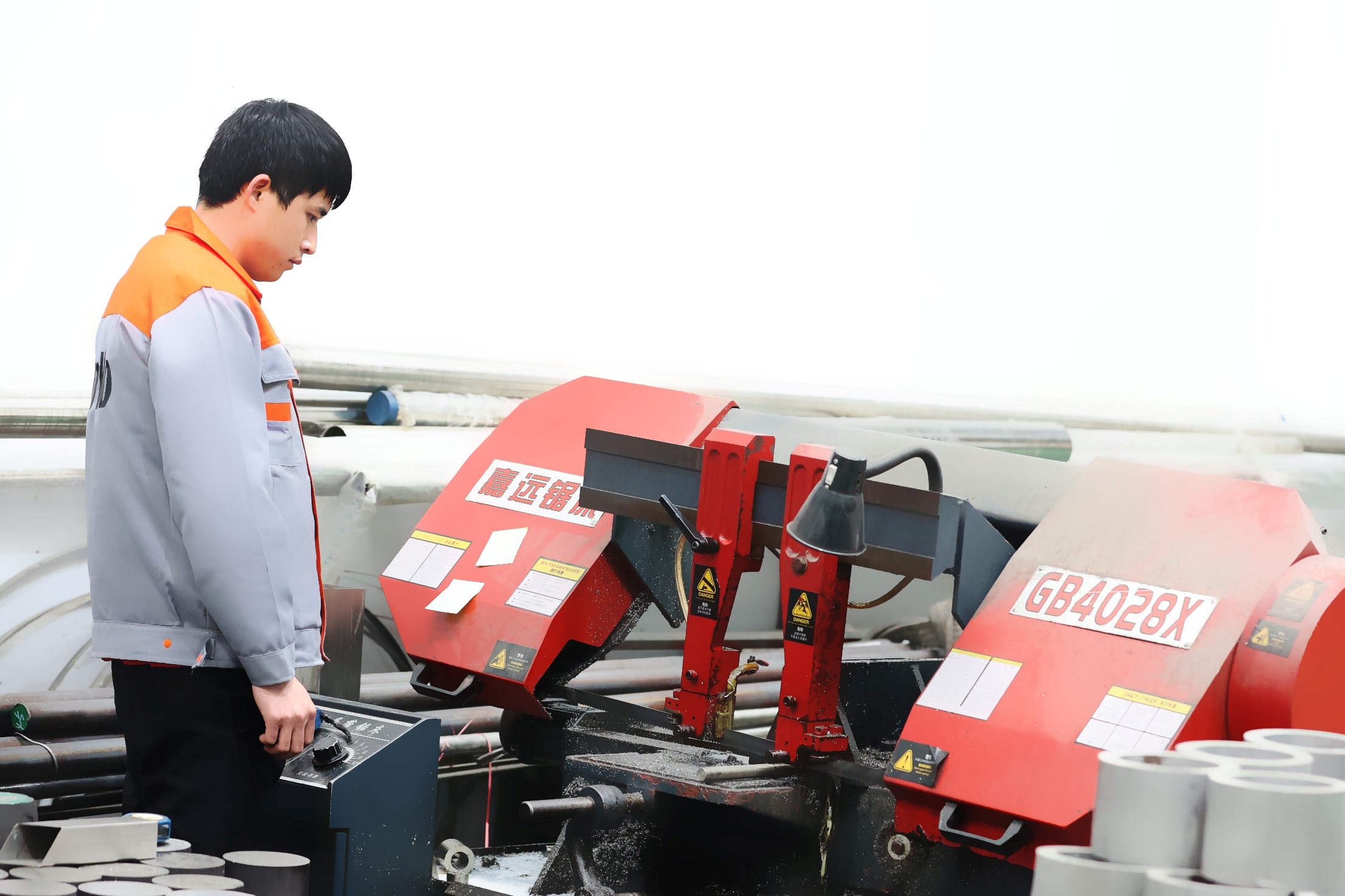

Factory Machine 2

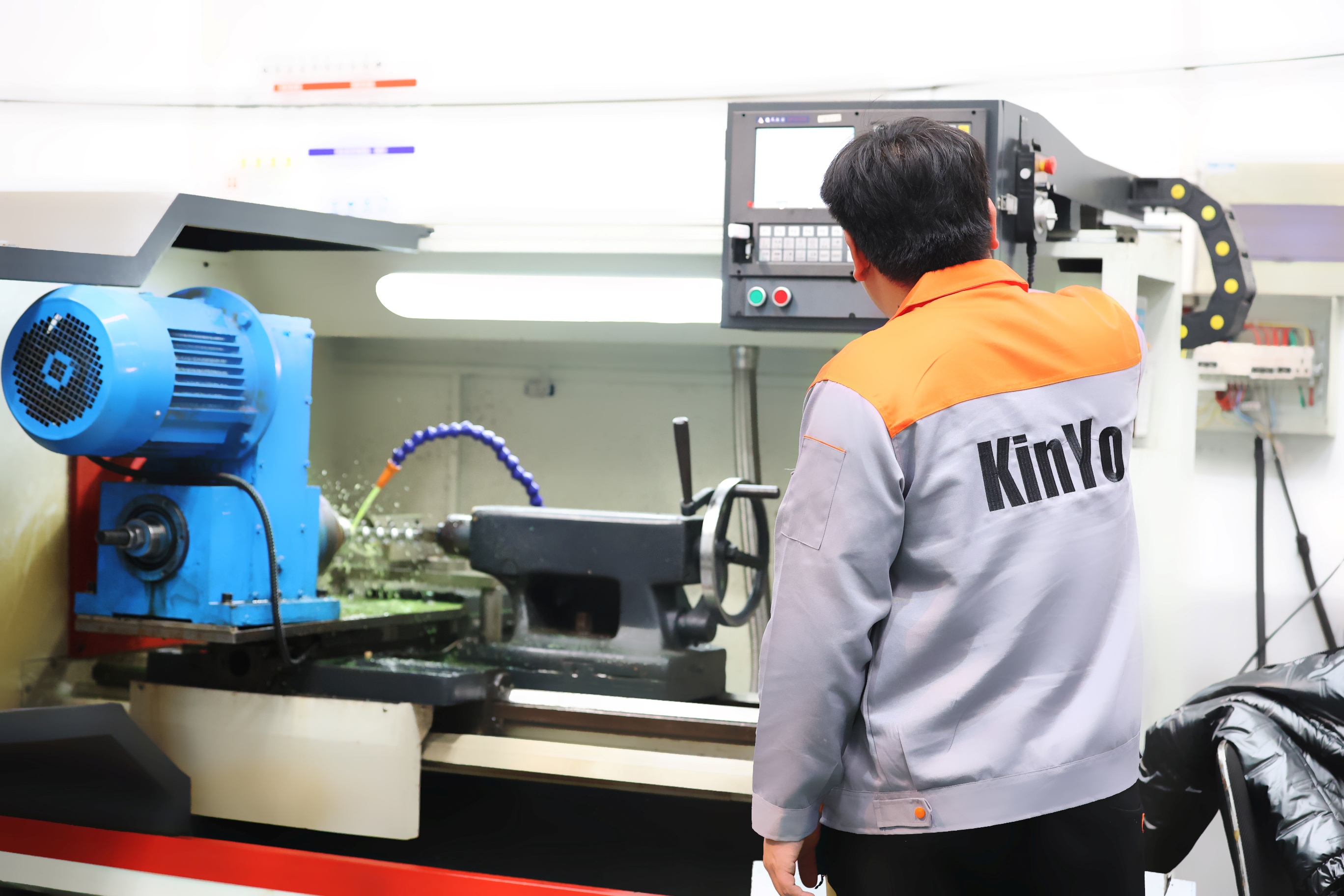

Factory Machine 3

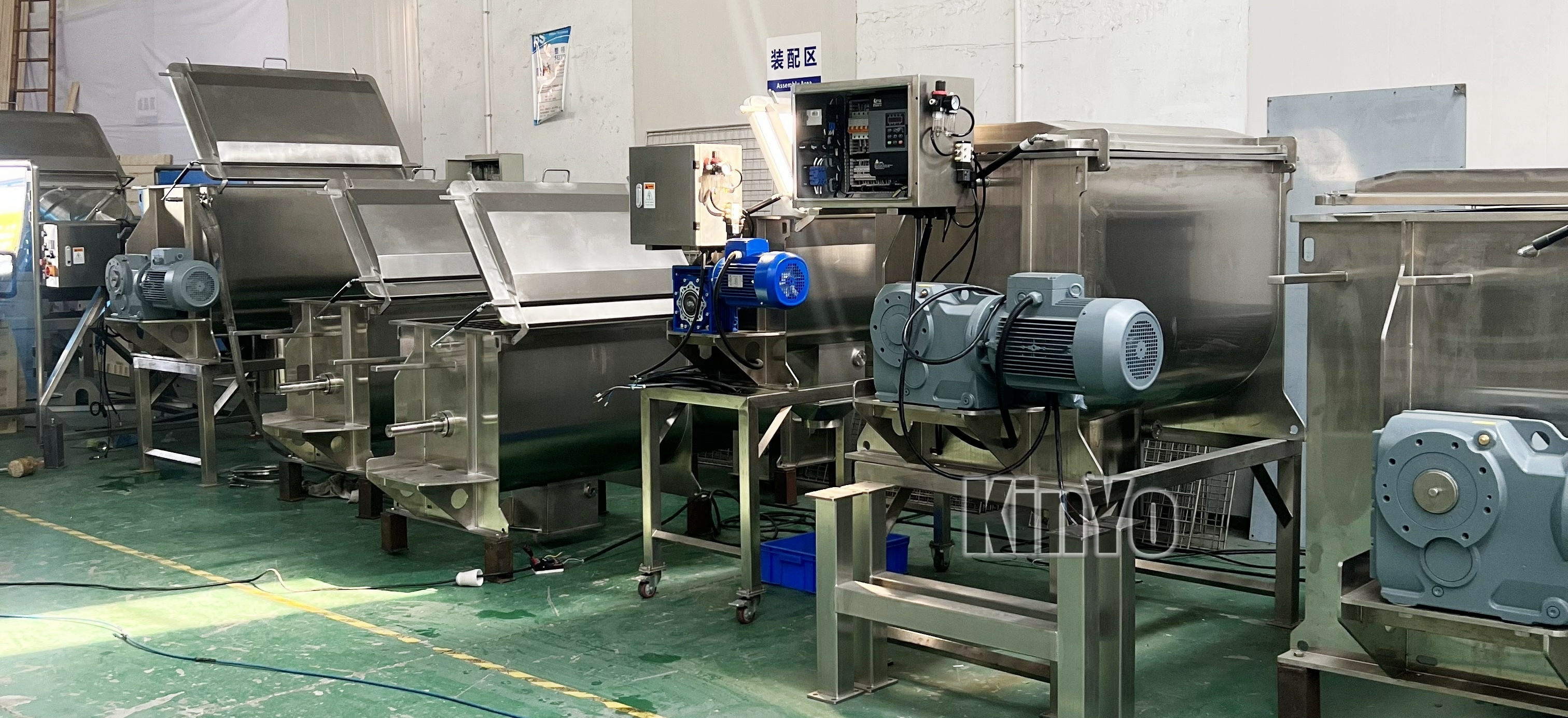

Ribbon Blender Close-up
Blender View A
Blender View B
Blender View C
Mixing Machine View 1
Mixing Machine View 2
Mixing Machine View 3
Industrial Powder Blender Design
Technical Parameters (KYRB 100 - KYRB 500)
Item KYRB 100 KYRB 200 KYRB 300 KYRB 500
Max. volume(V1) 140L 280L 420L 710L
Working volume(V2) 100L 200L 300L 500L
Weight 180kg 250kg 350kg 500kg
Total Power 3kW 4kW 5.5kW 7.5kW
Speed 46rpm 46rpm 46rpm 46rpm
Size (L*W*H) 1275*480*1670mm 1365*600*1766mm 1612*660*1828mm 1807*740*2000mm
Technical Parameters (KYRB 1000 - KYRB 3000)
Item KYRB 1000 KYRB 1500 KYRB 2000 KYRB 3000
Max. volume(V1) 1420L 1800L 2600L 3800L
Working volume(V2) 1000L 1500L 2000L 3000L
Weight 700kg 1000kg 1300kg 1600kg
Total Power 11kW 15kW 18.5kW 22kW
Speed 39rpm 28rpm Custom made Custom made
Size (L*W*H) 2159*1030*2215mm 2519*1050*2635mm 3361*1040*2680mm 4067*1092*2728mm

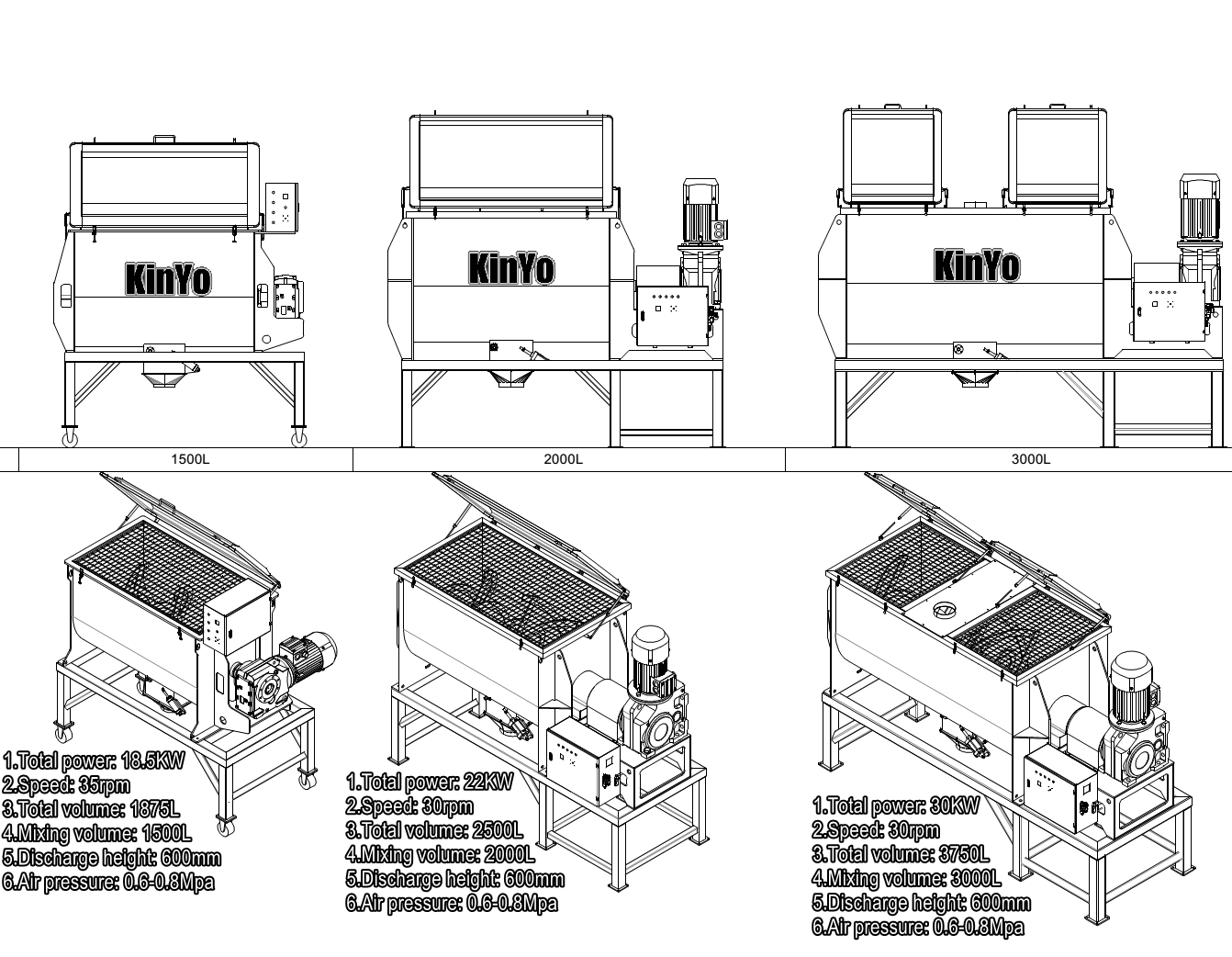

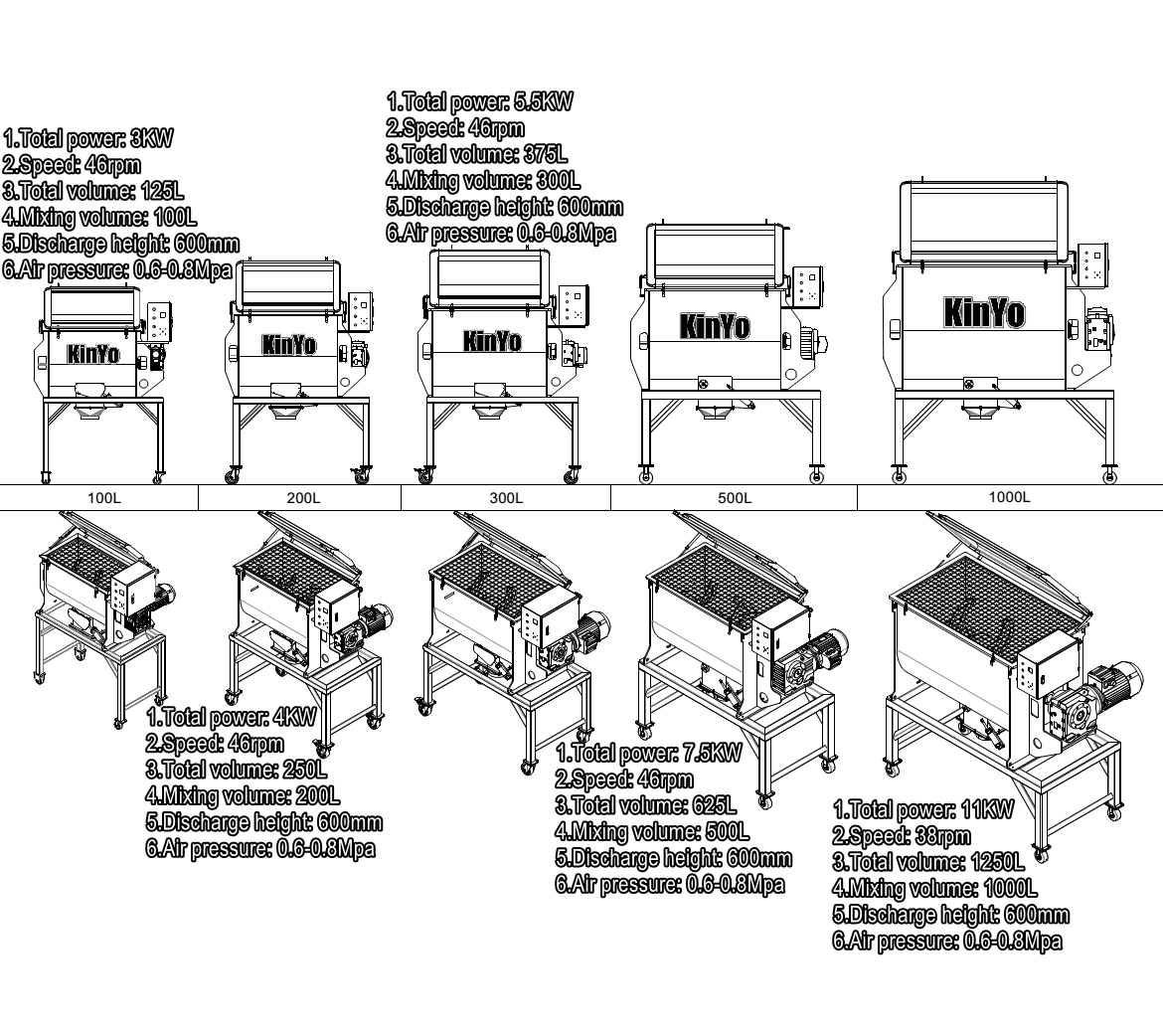

Engineering drawing of machine
Ribbon Blender dimensions

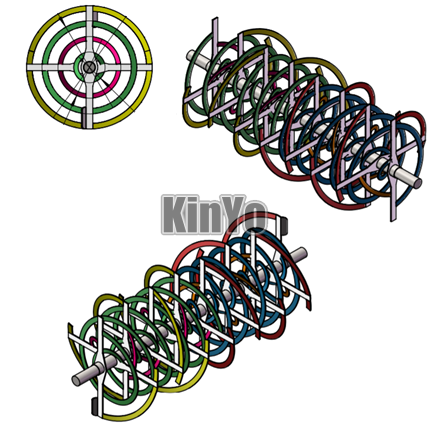

Custom-made ribbons
Ribbon structure and quantities are custom-made for higher efficiency and capacity.

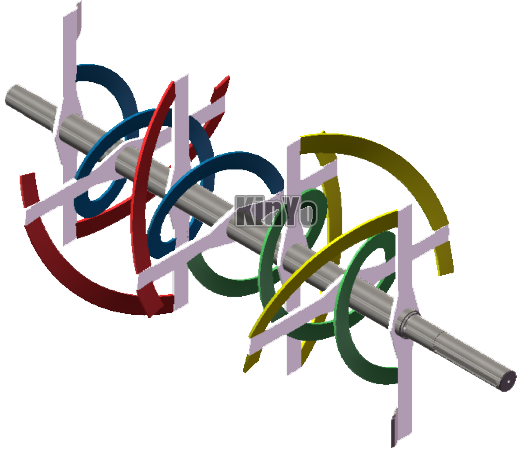

Custom ribbon layout A
Custom ribbon layout B

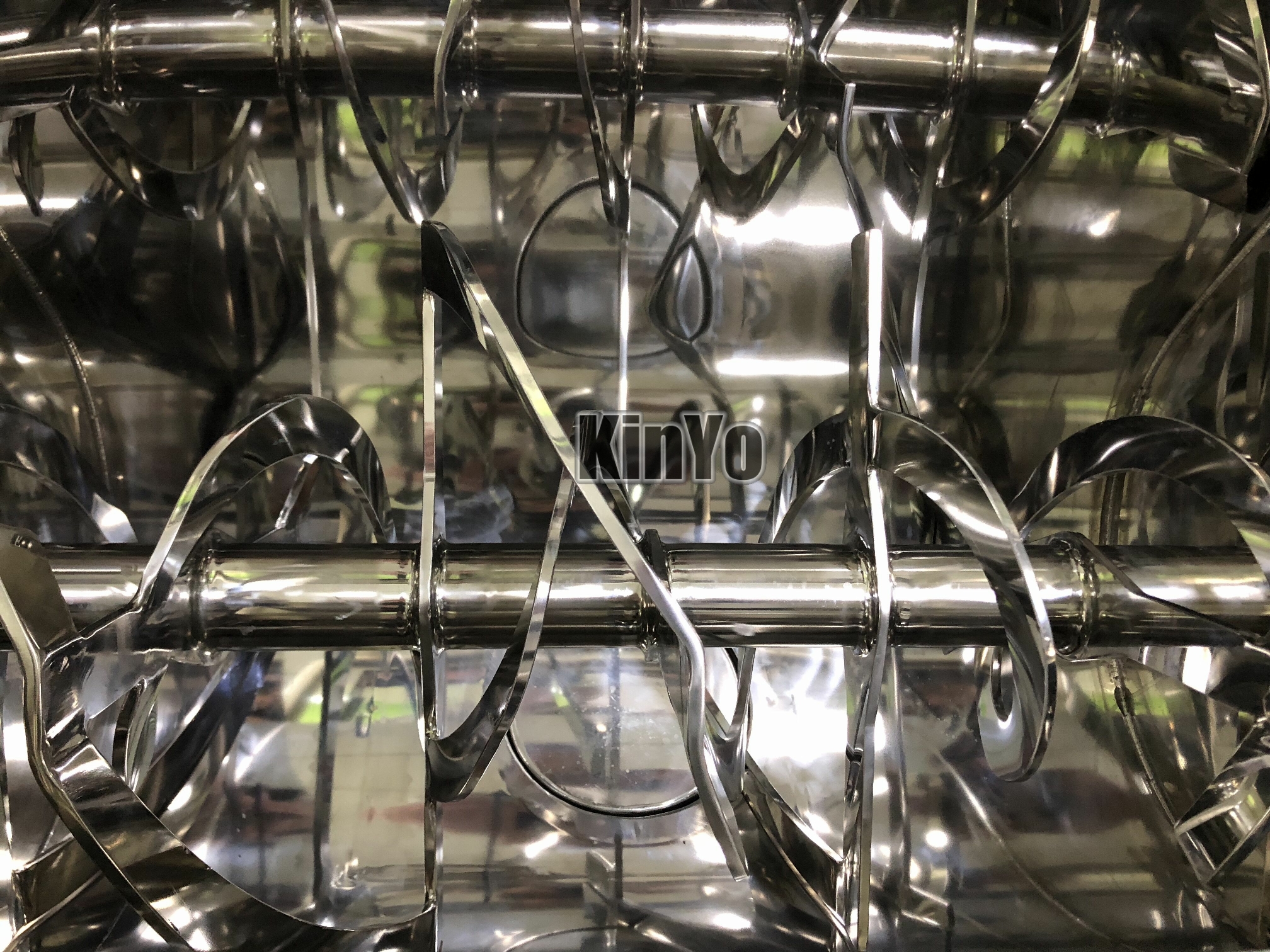

Ribbons overview

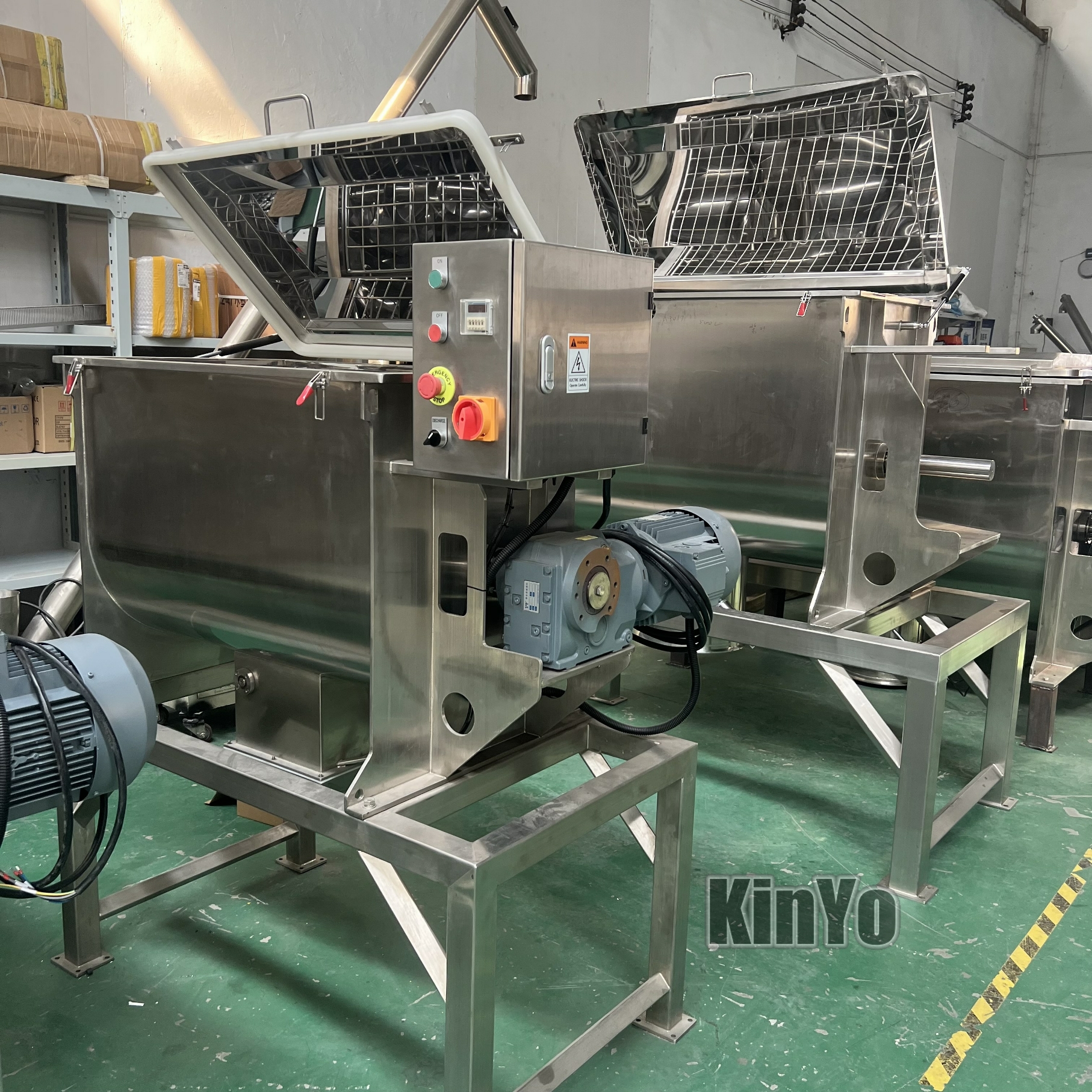

Blender interior detail

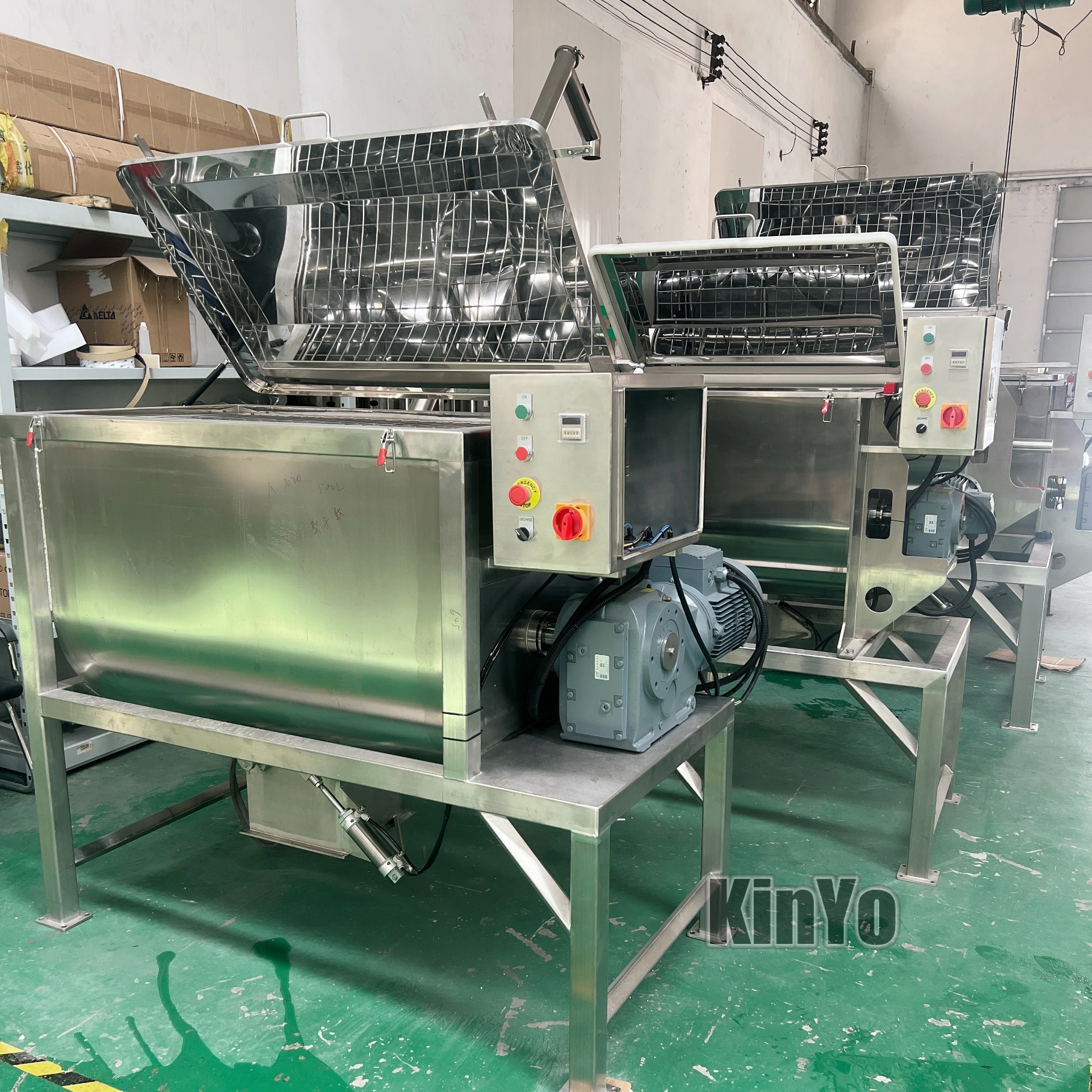

Blender shaft alignment

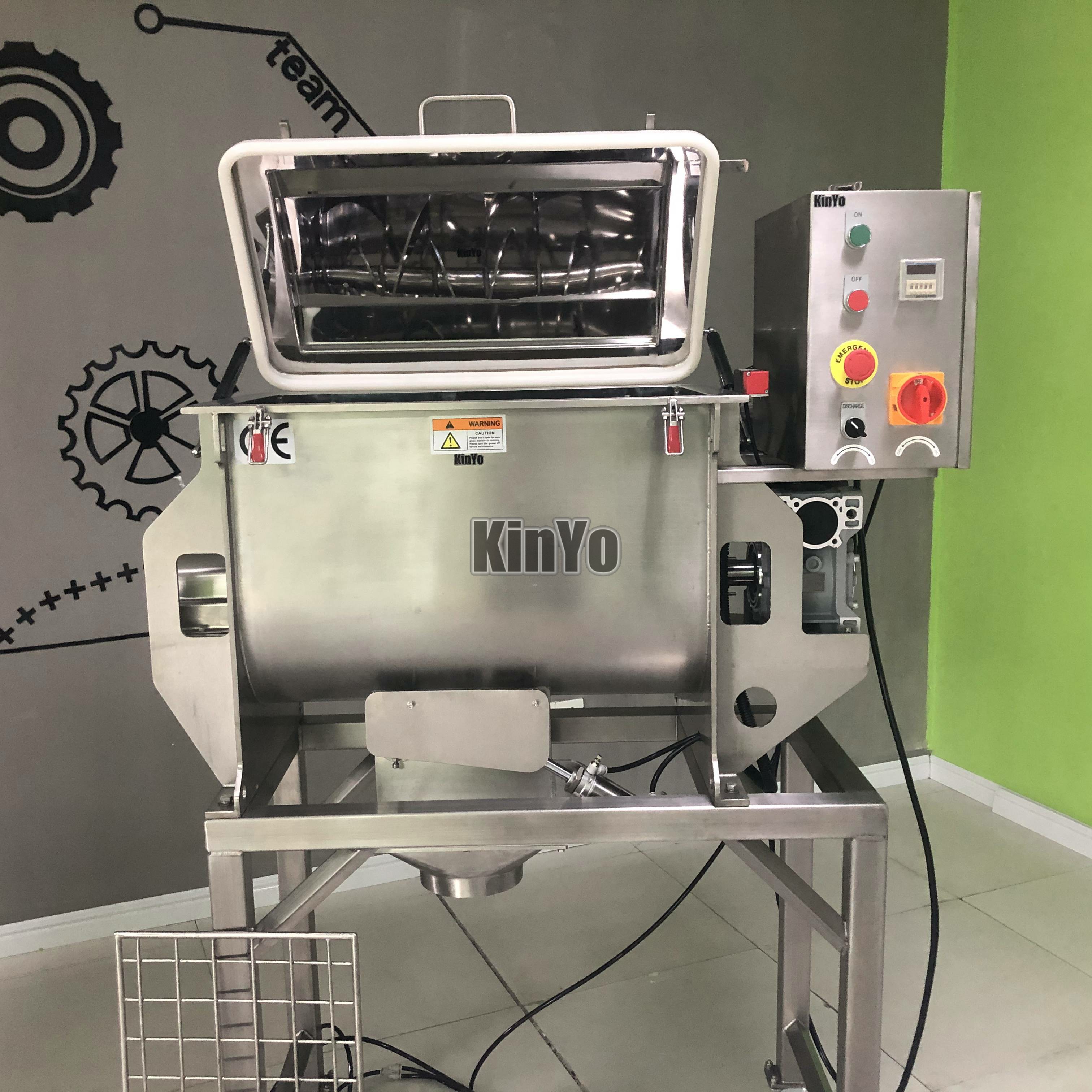

Welding quality 1

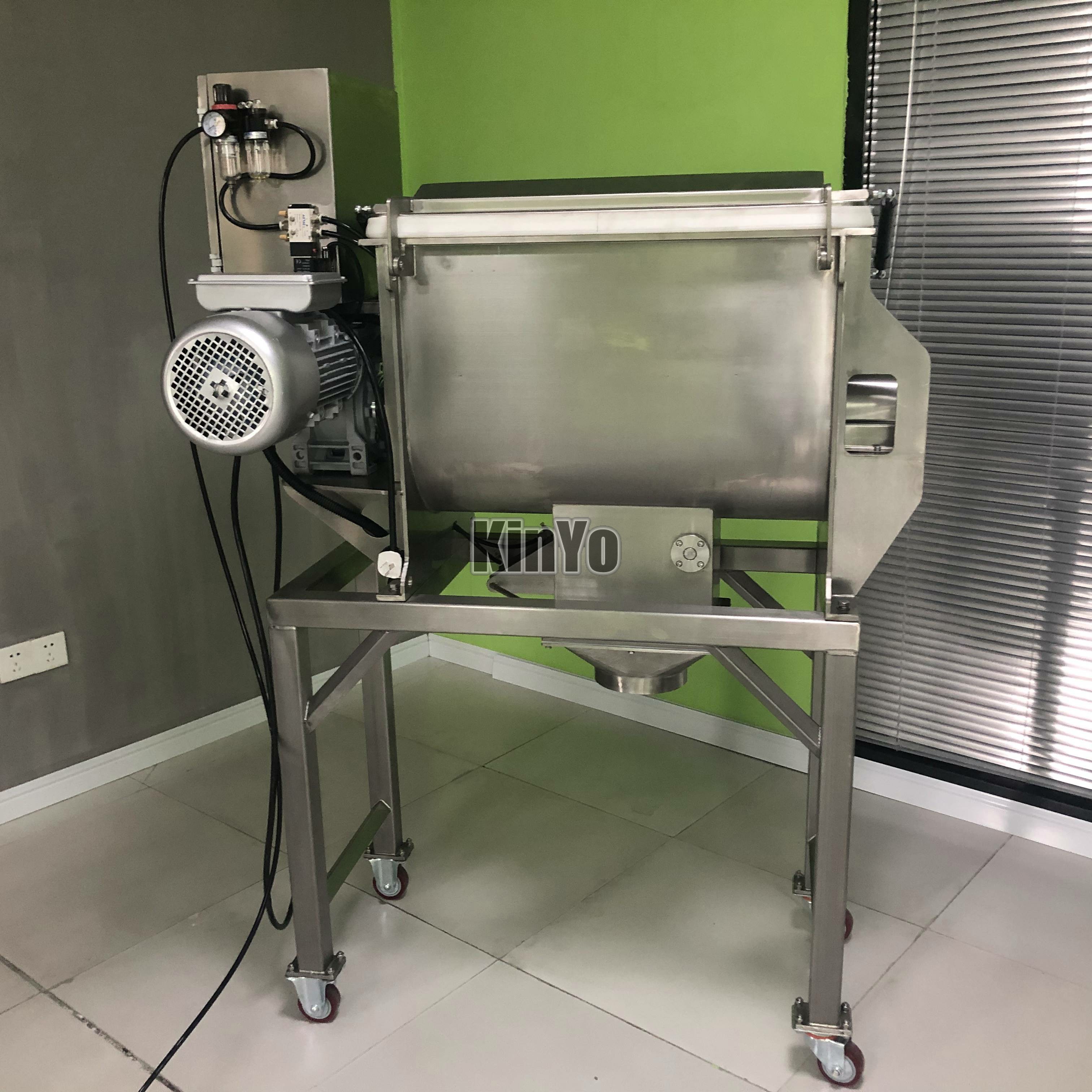

Welding quality 2

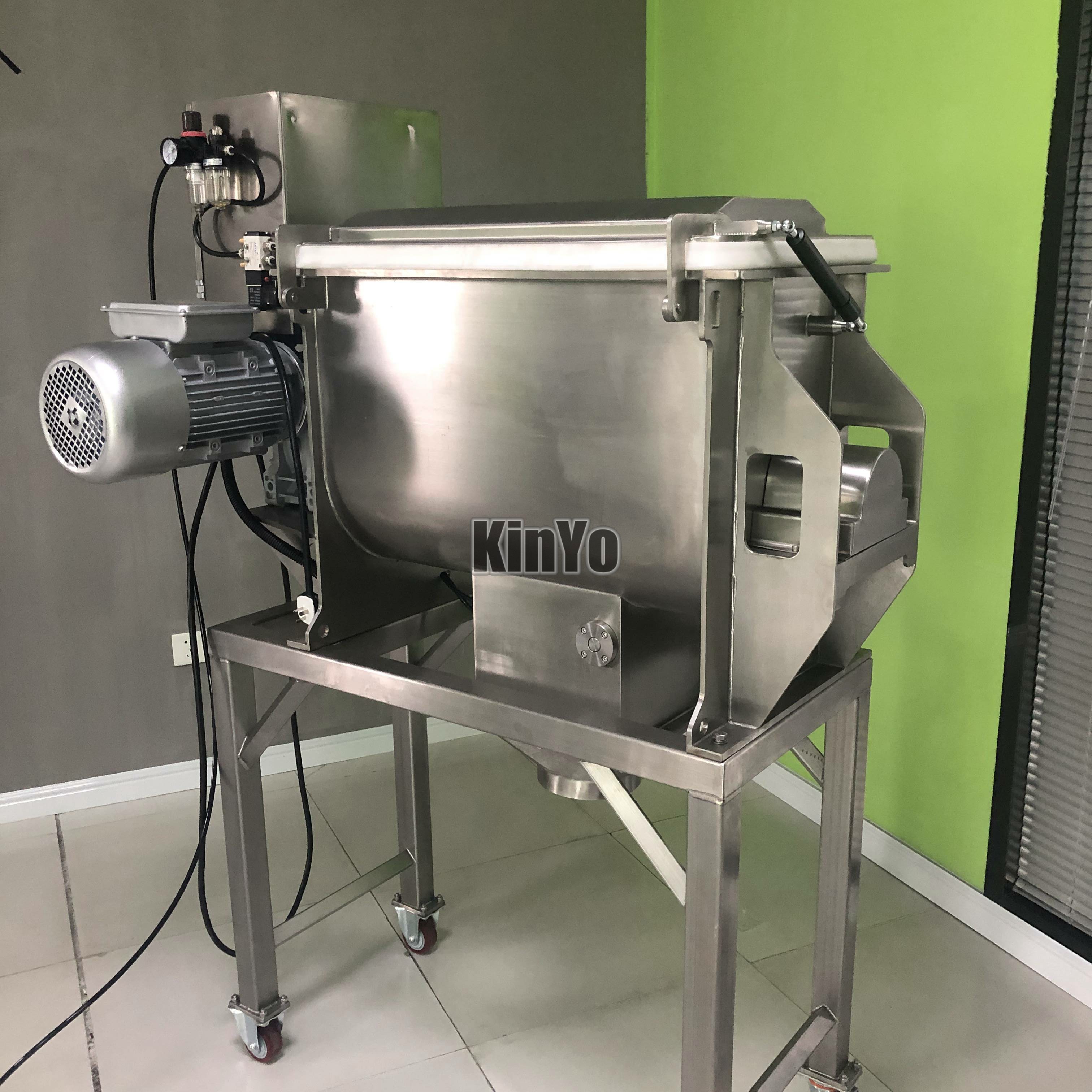

Welding quality 3

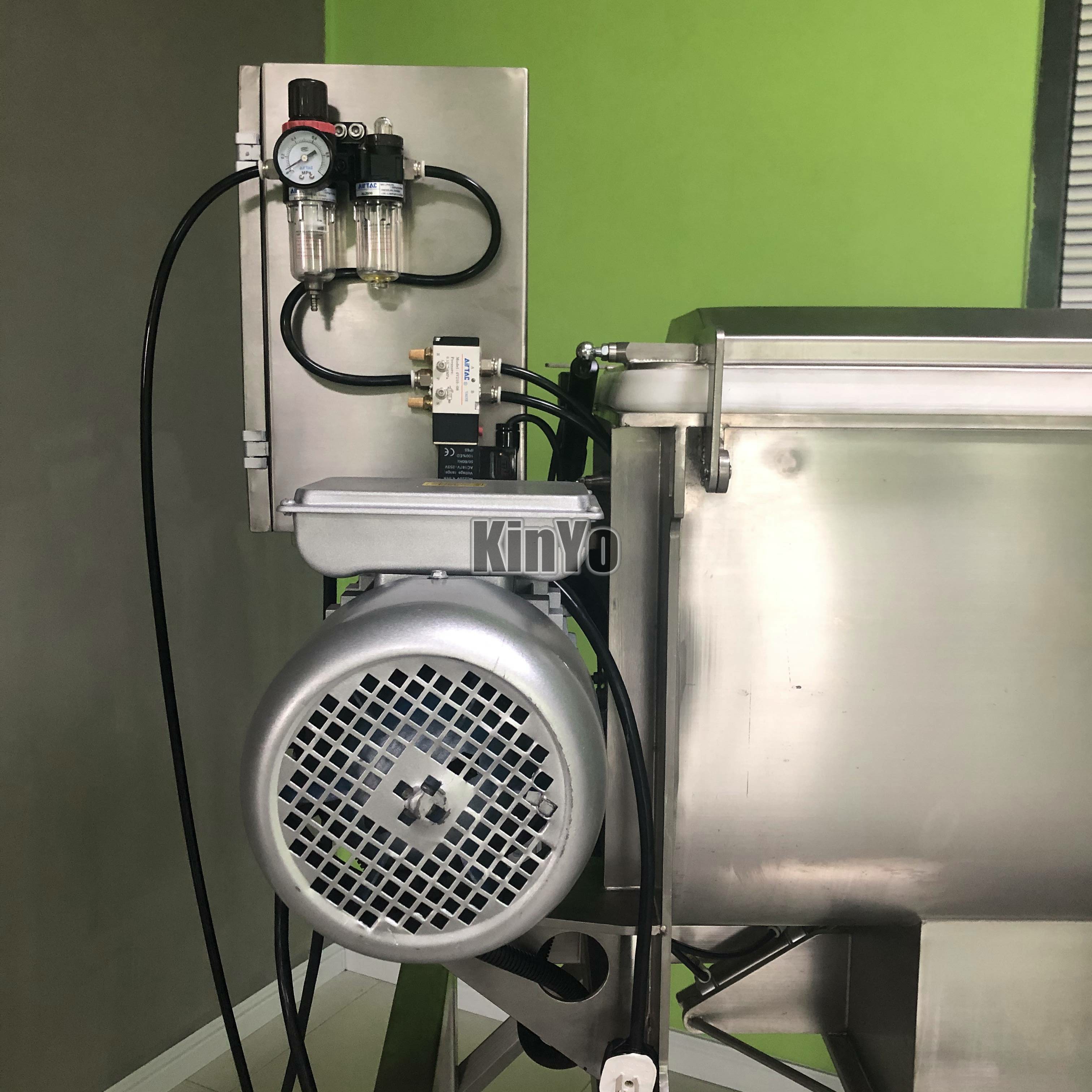

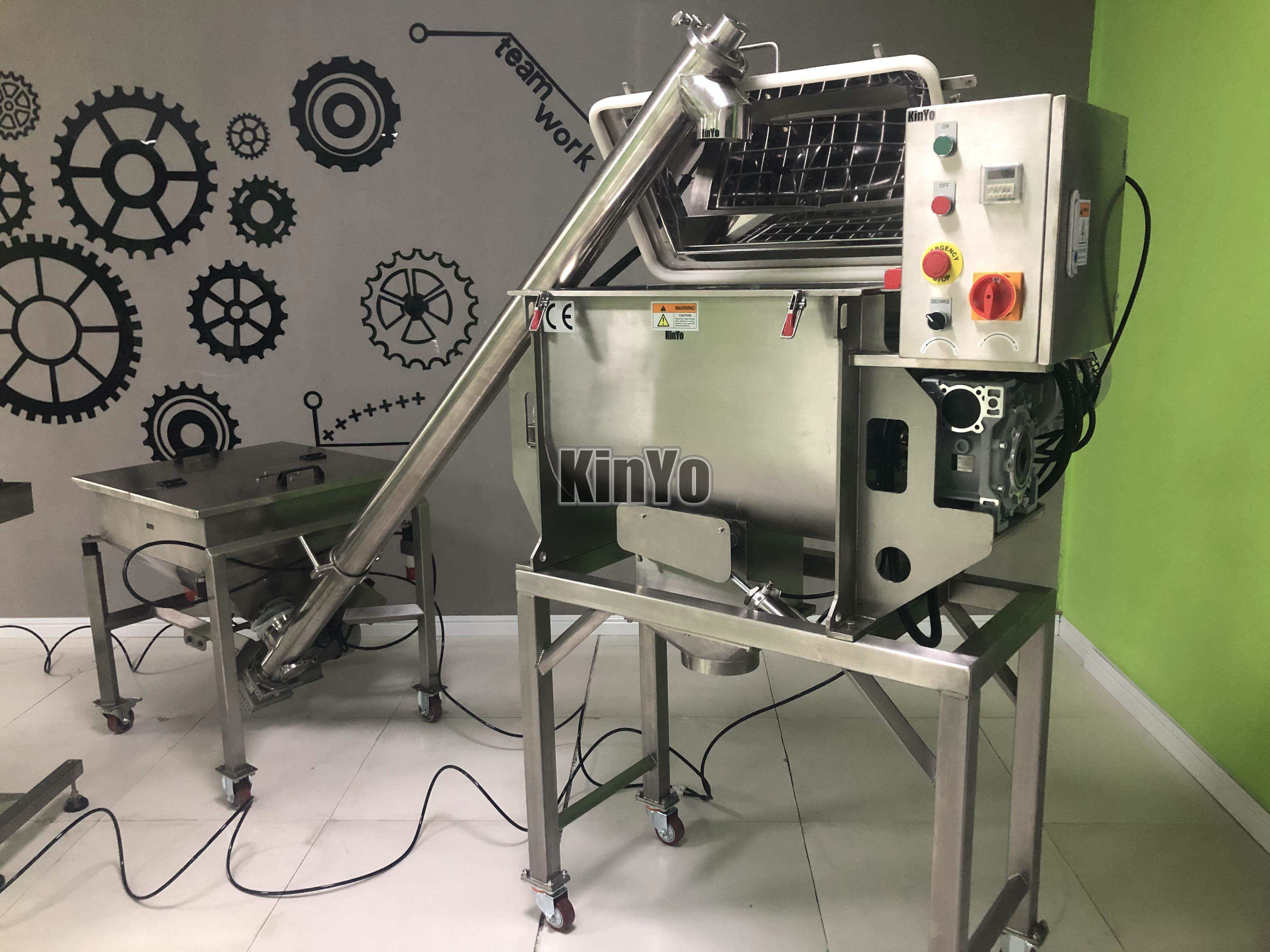

Double Ribbon mechanism 1
Double Ribbon mechanism 2
Double Ribbon mechanism 3

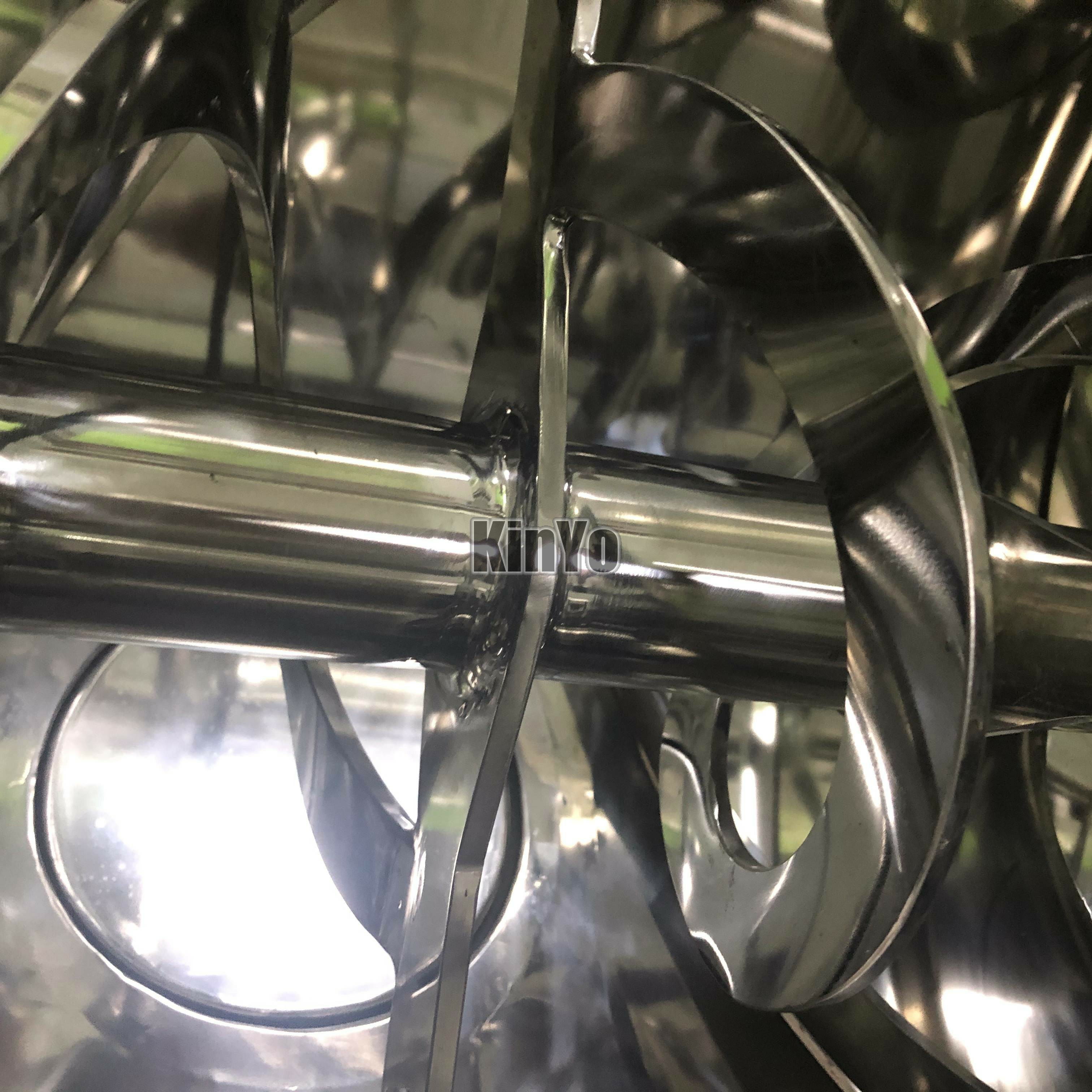

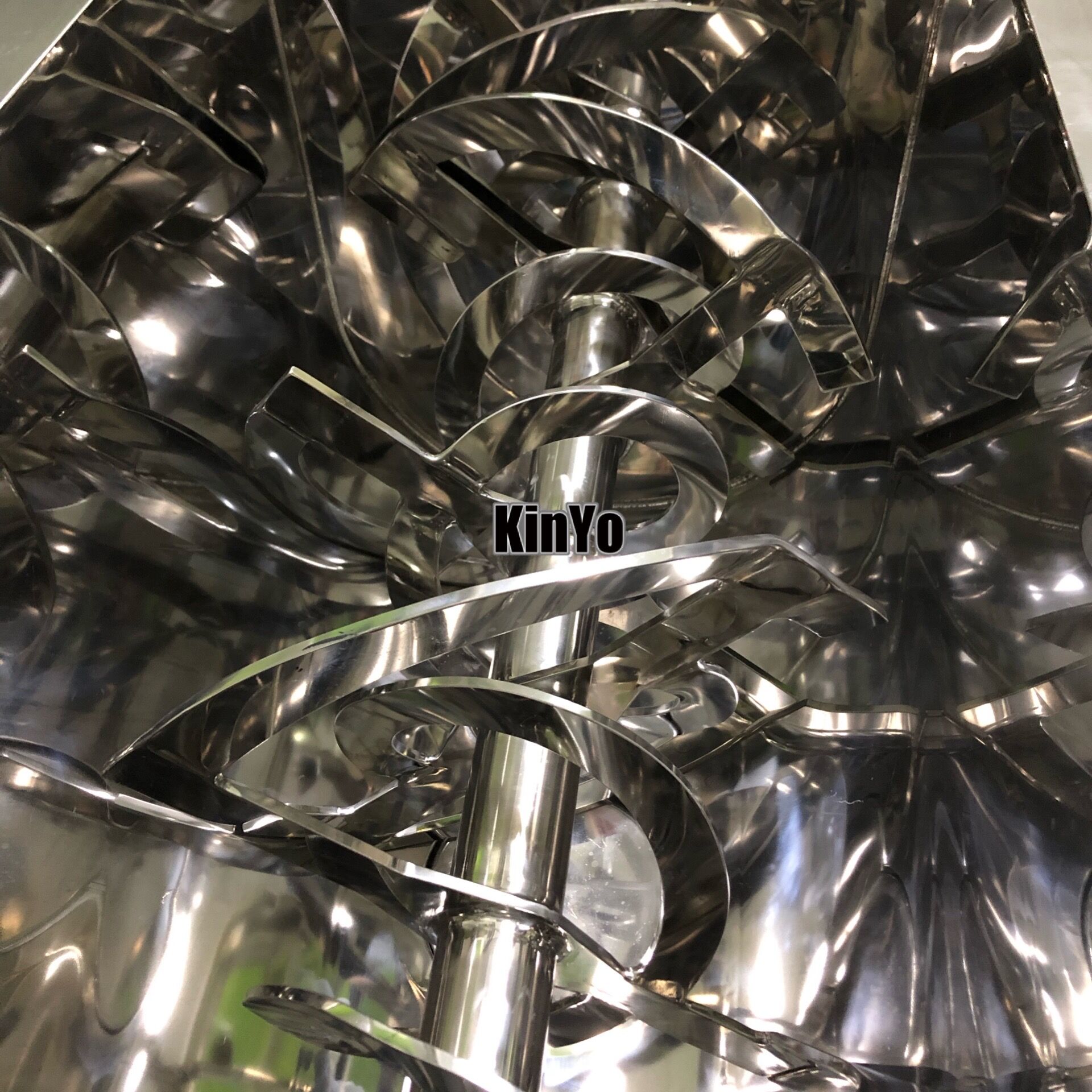

Inner components A

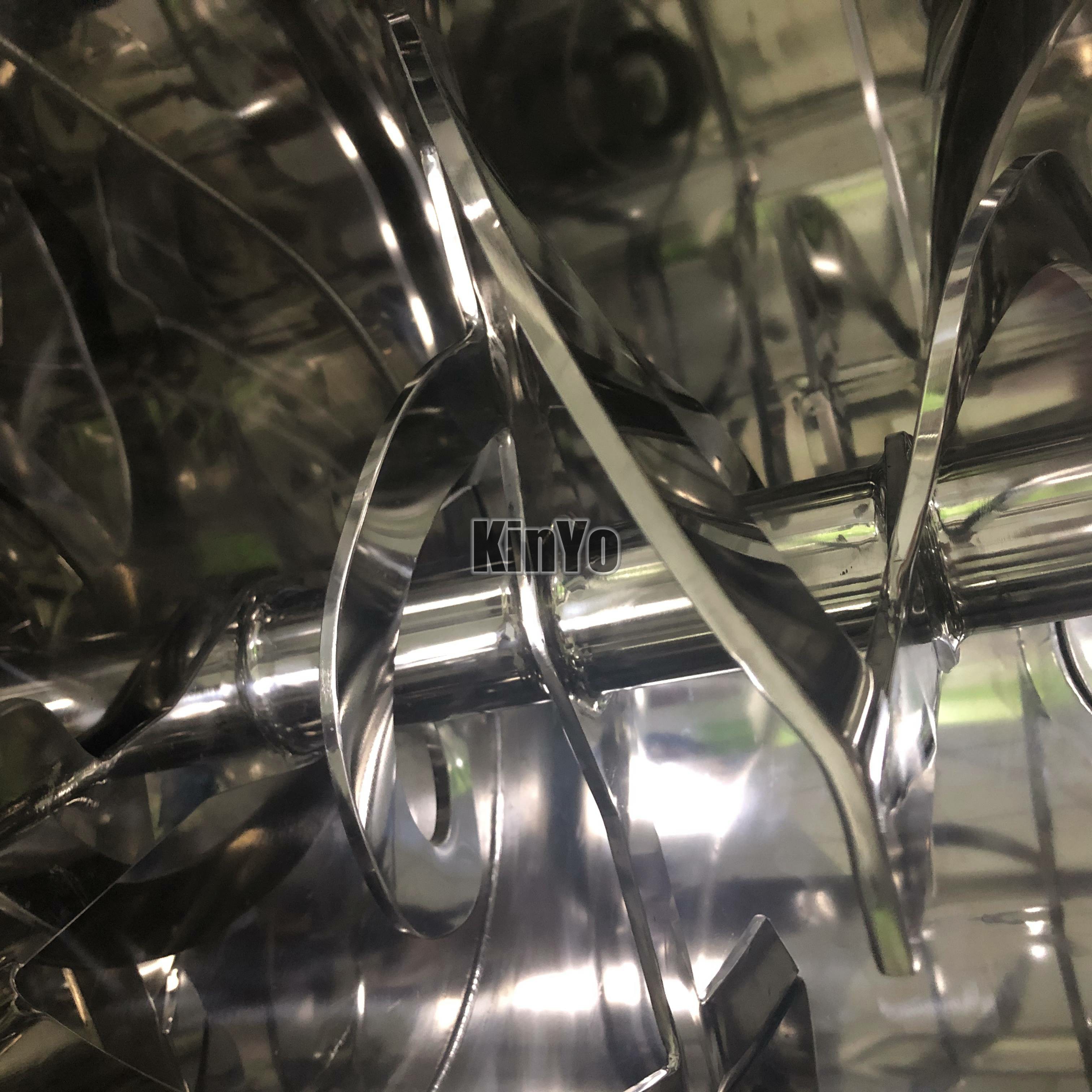

Inner components B
Inner components C
Premium Components & Details
Ribbons inside
Ribbons inside (single shaft)

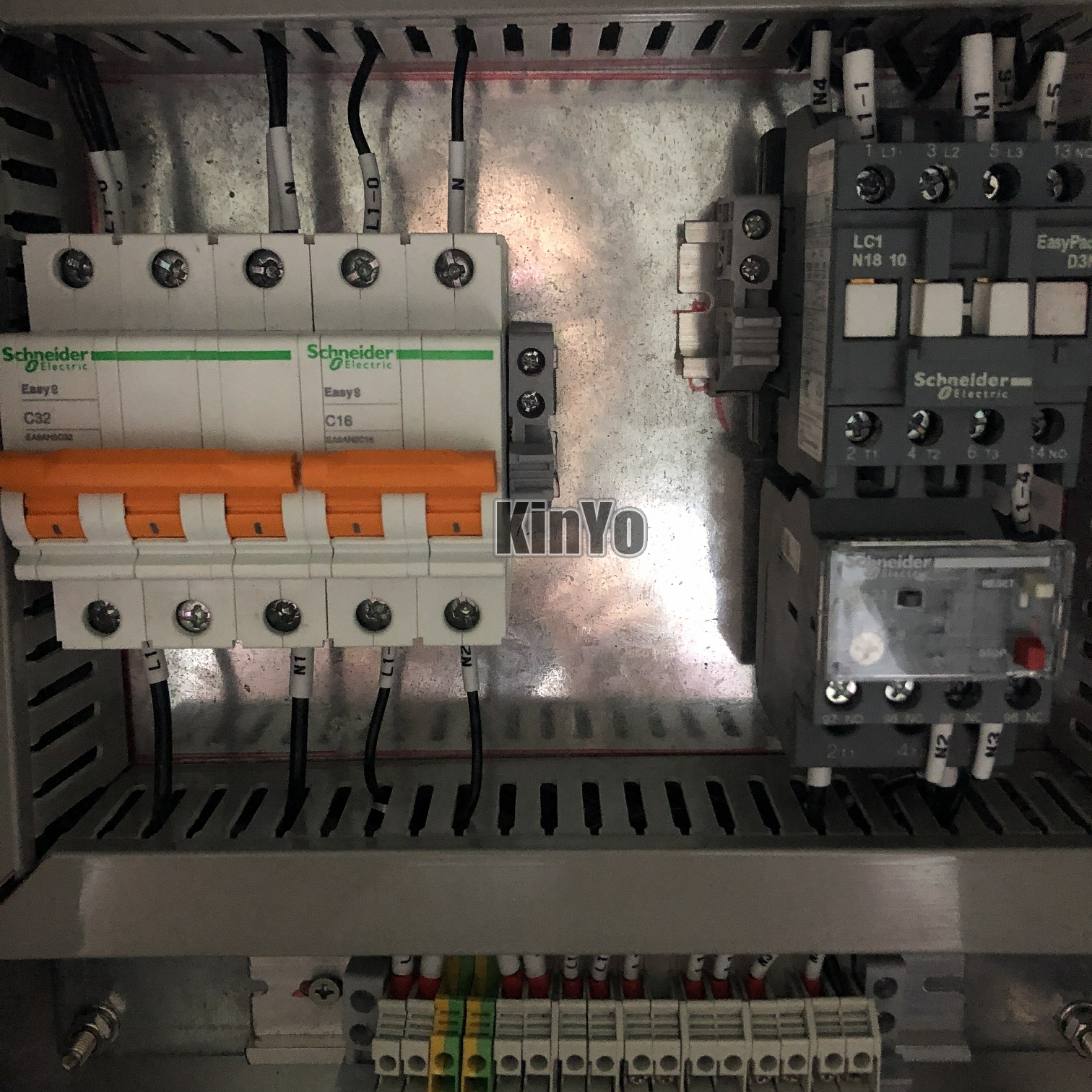

Schneider components
Schneider

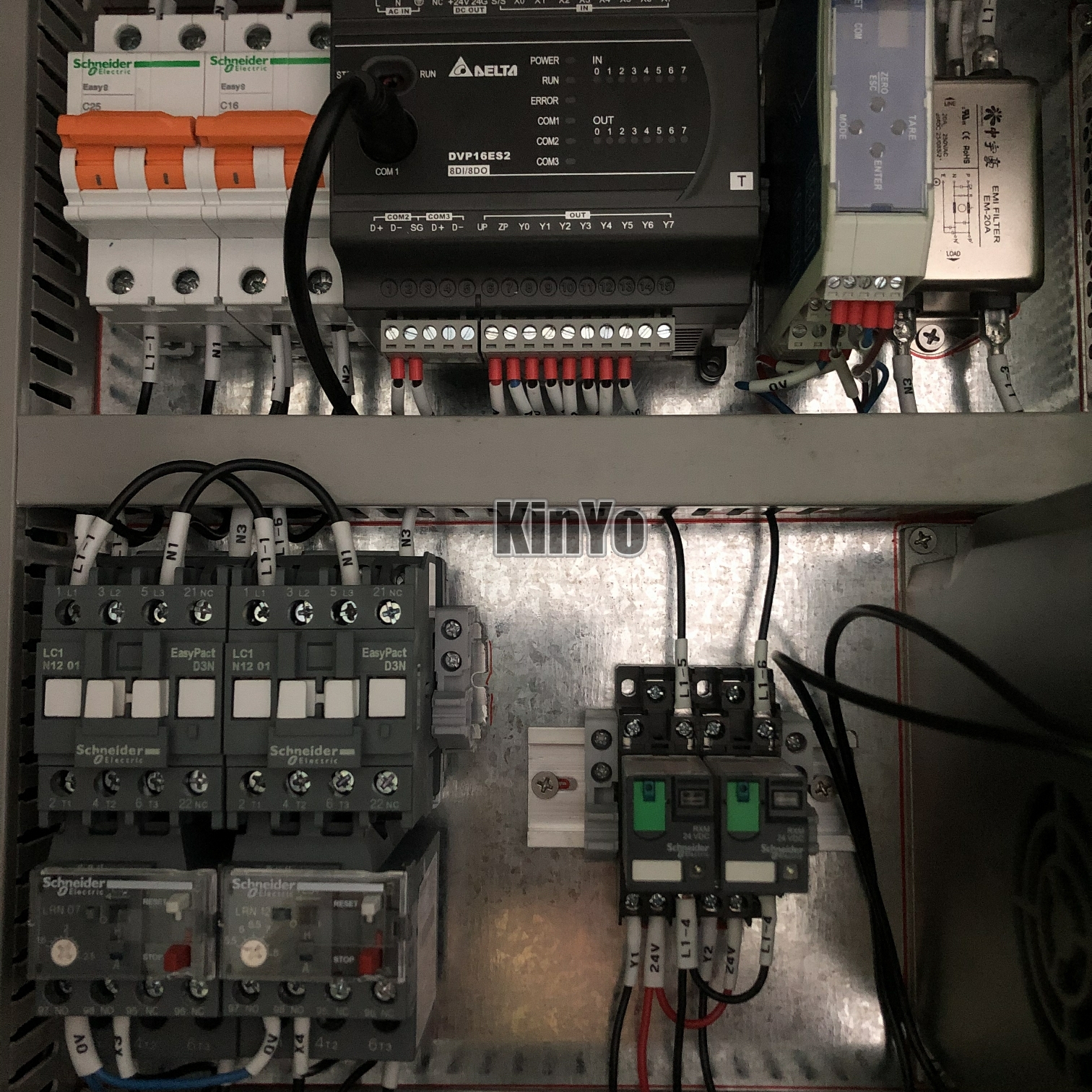

Electrical elements
Electrical elements

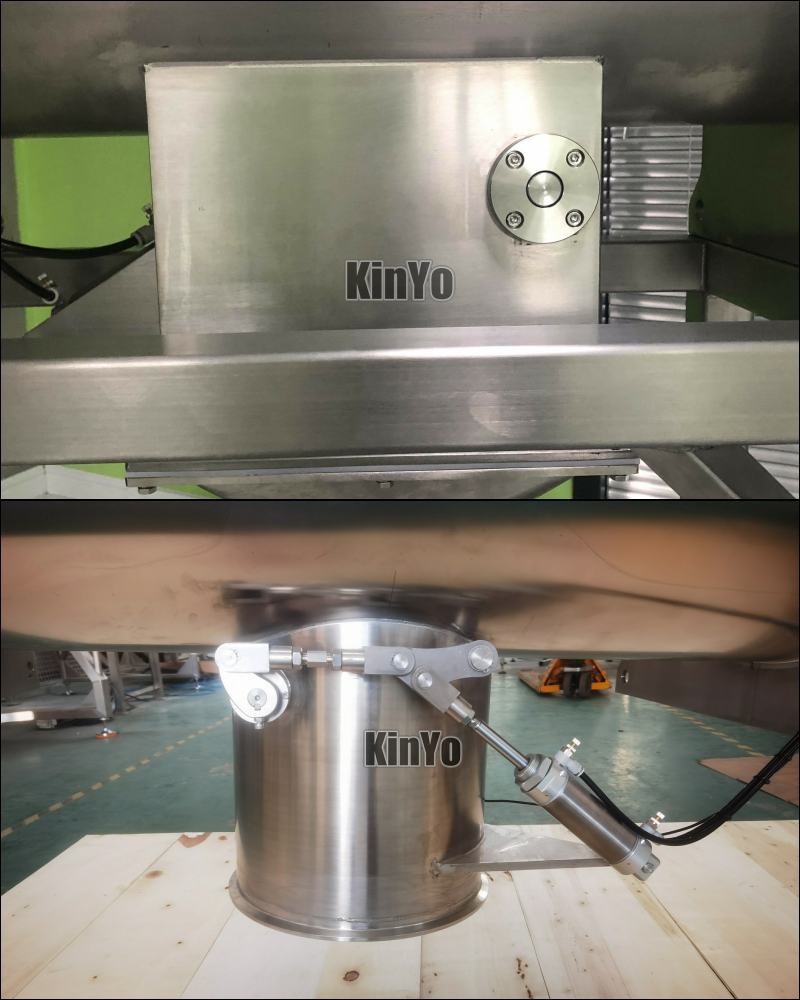

Clean-up design
Round for easier clean-up

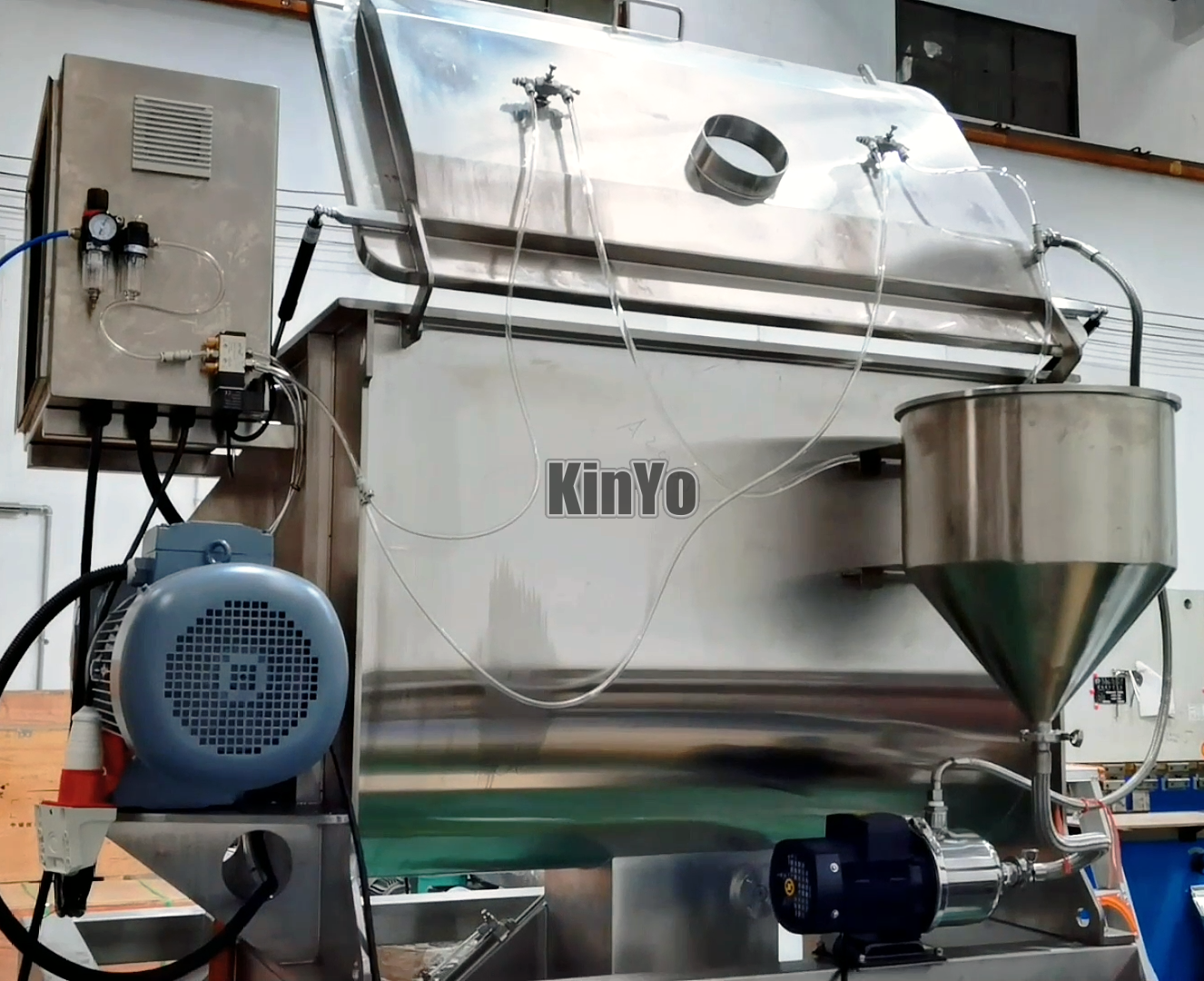

Liquid hopper
Liquid hopper for spraying

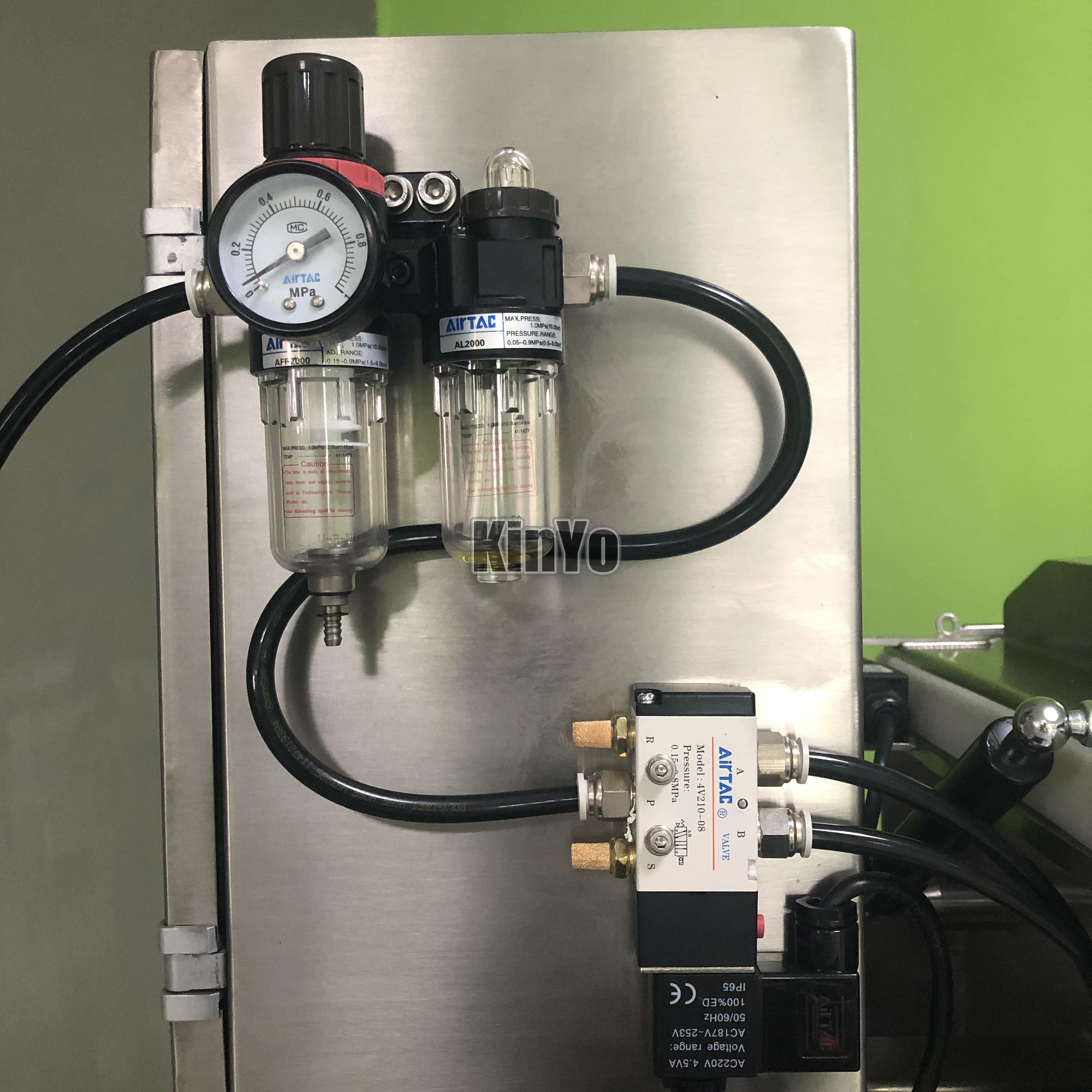

Water-oil filter
Made in Korea water-oil filter

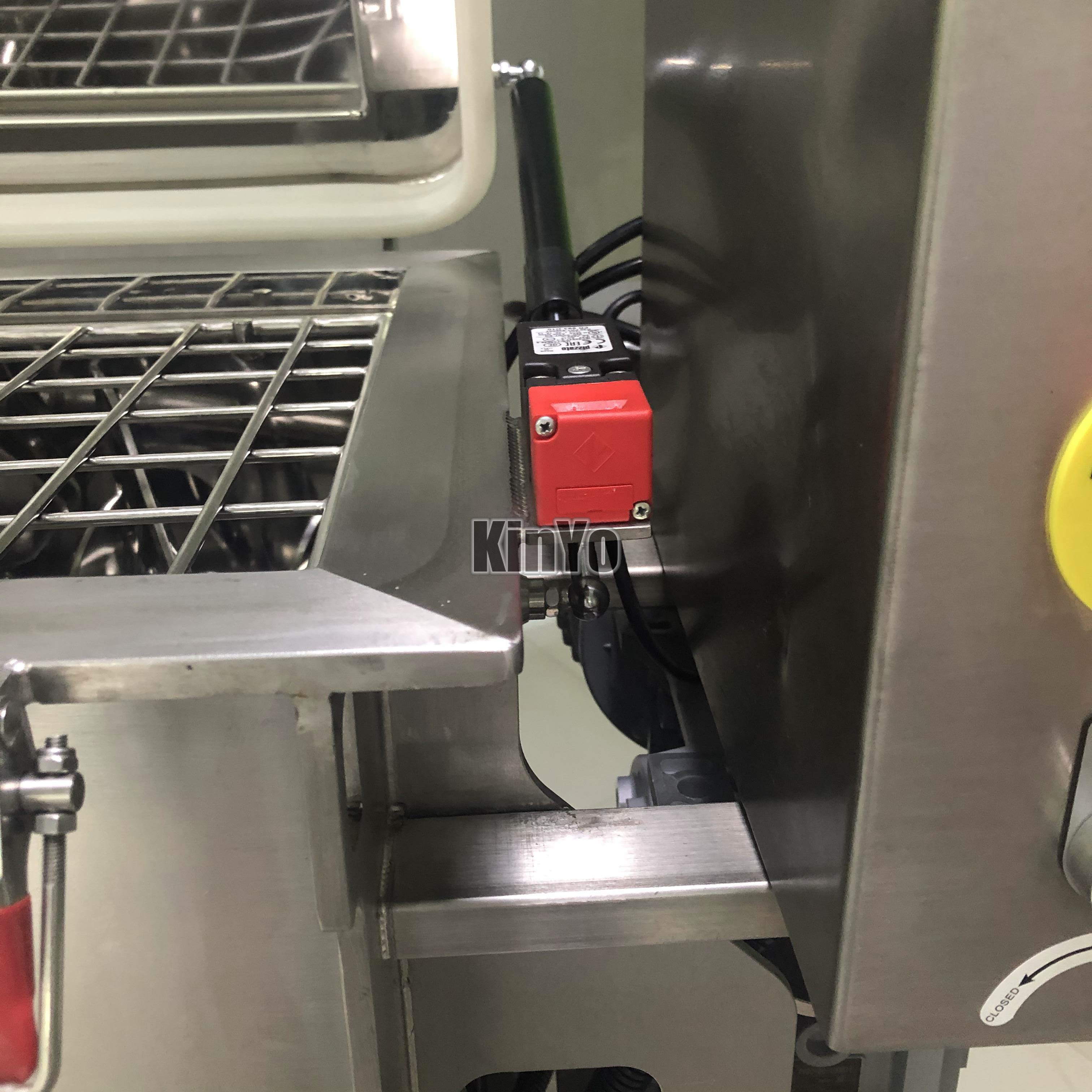

Limit switch
Limit switch for safety

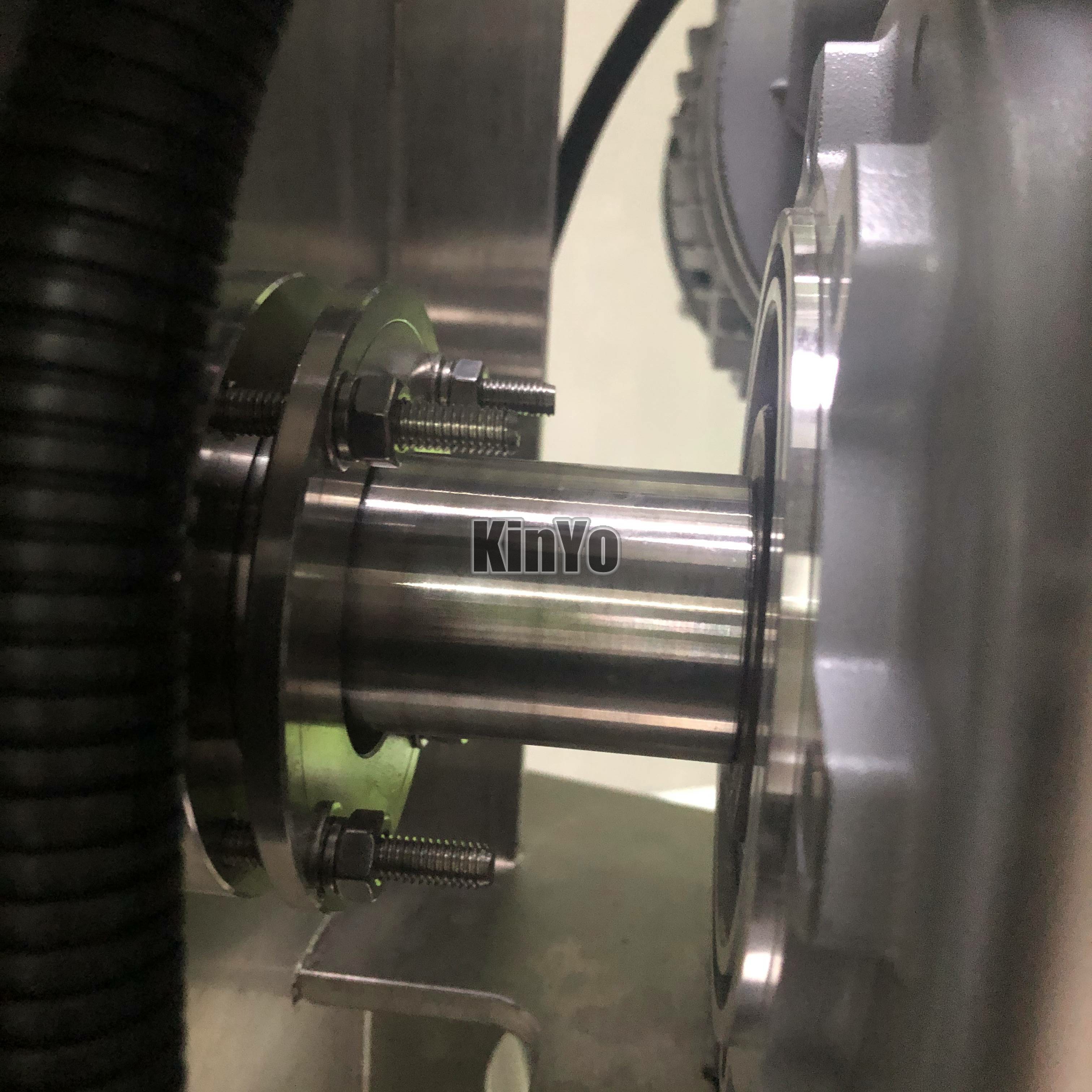

Shaft detail
Shaft

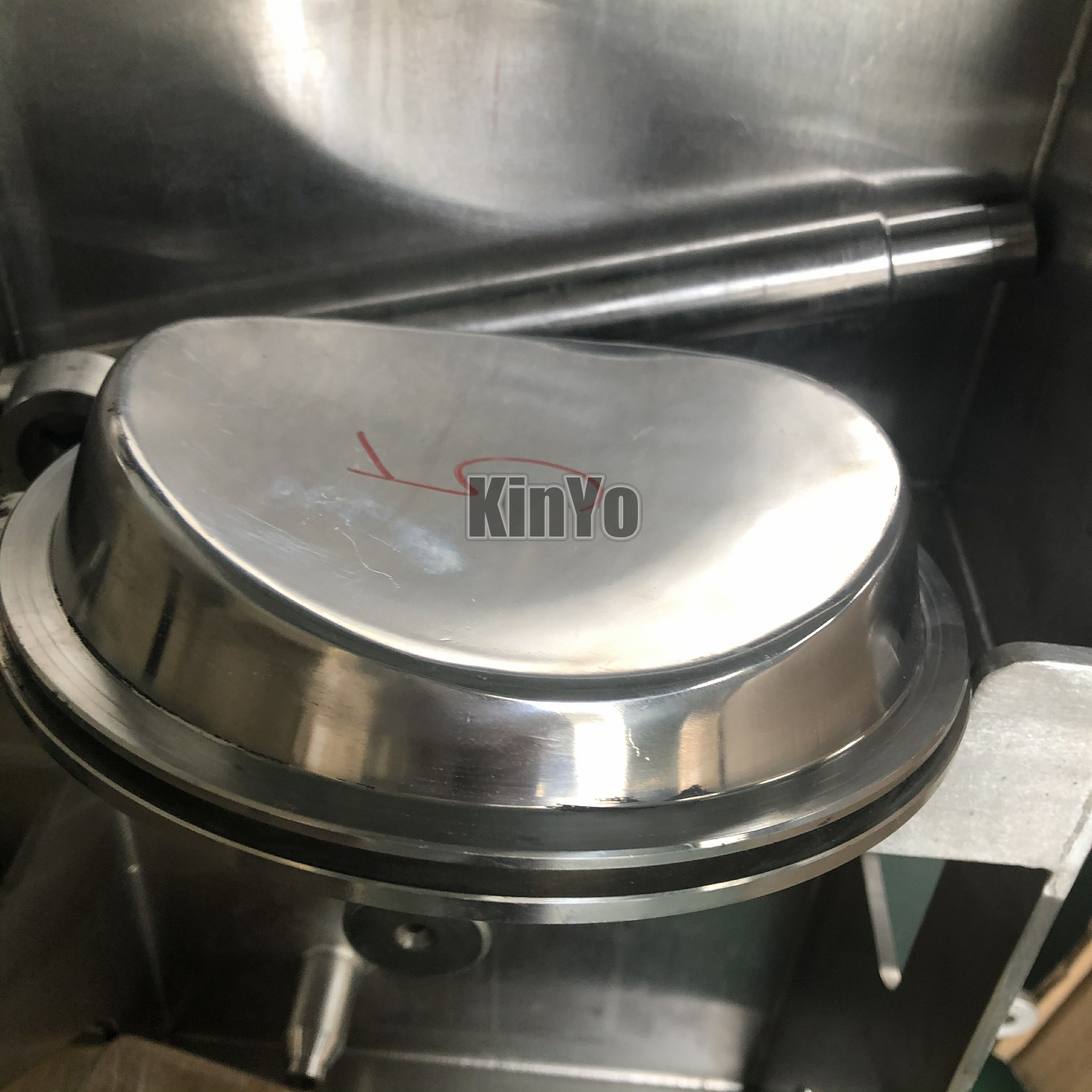

Outlet valve
Concaved outlet valve for less leftover

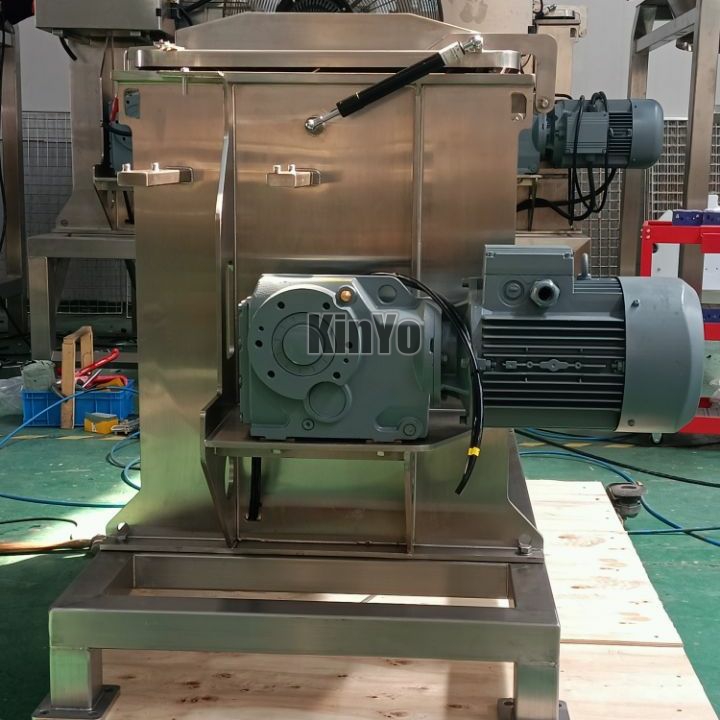

Gearbox
Hardened gearbox

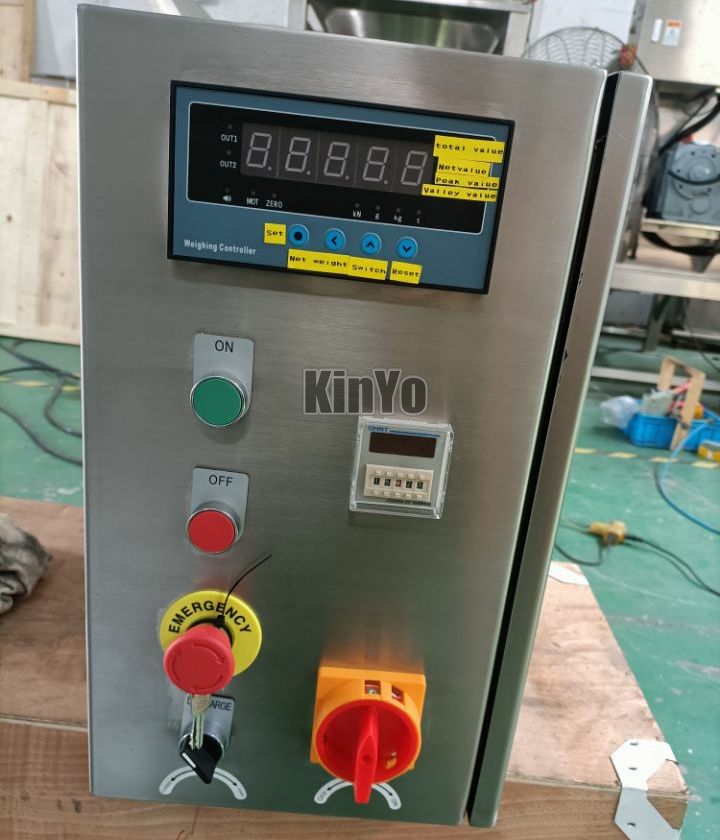

Speed control VFD
Optional VFD for speed control

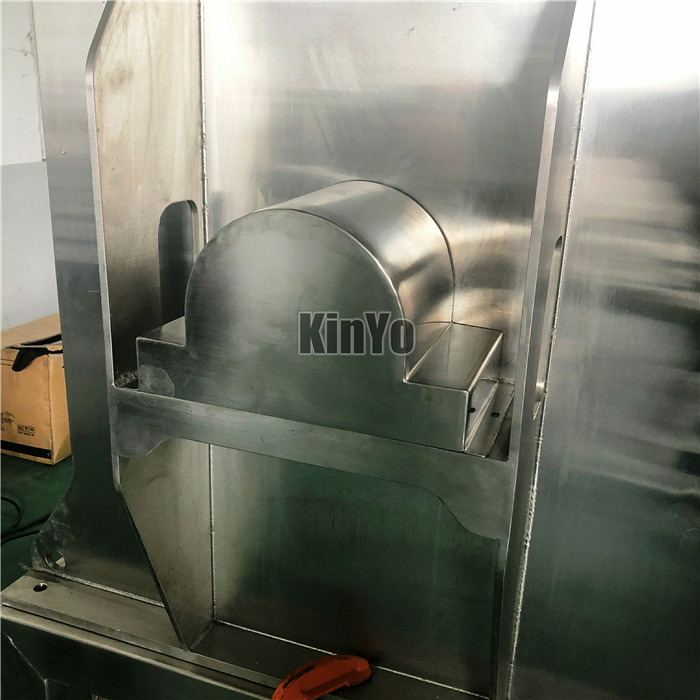

Bearing protection
Dust-proof for bearing

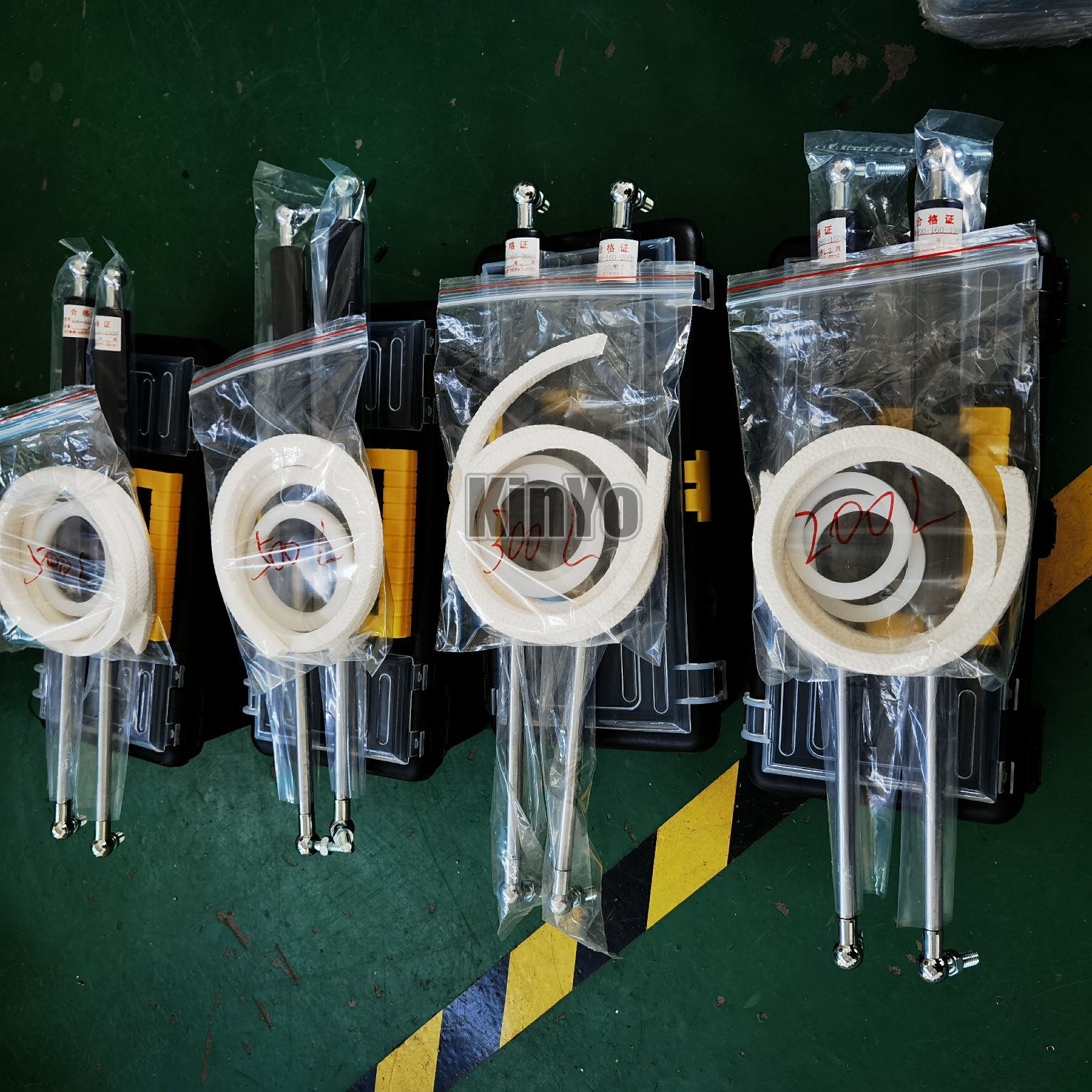

Spare parts
Spare parts in delivery

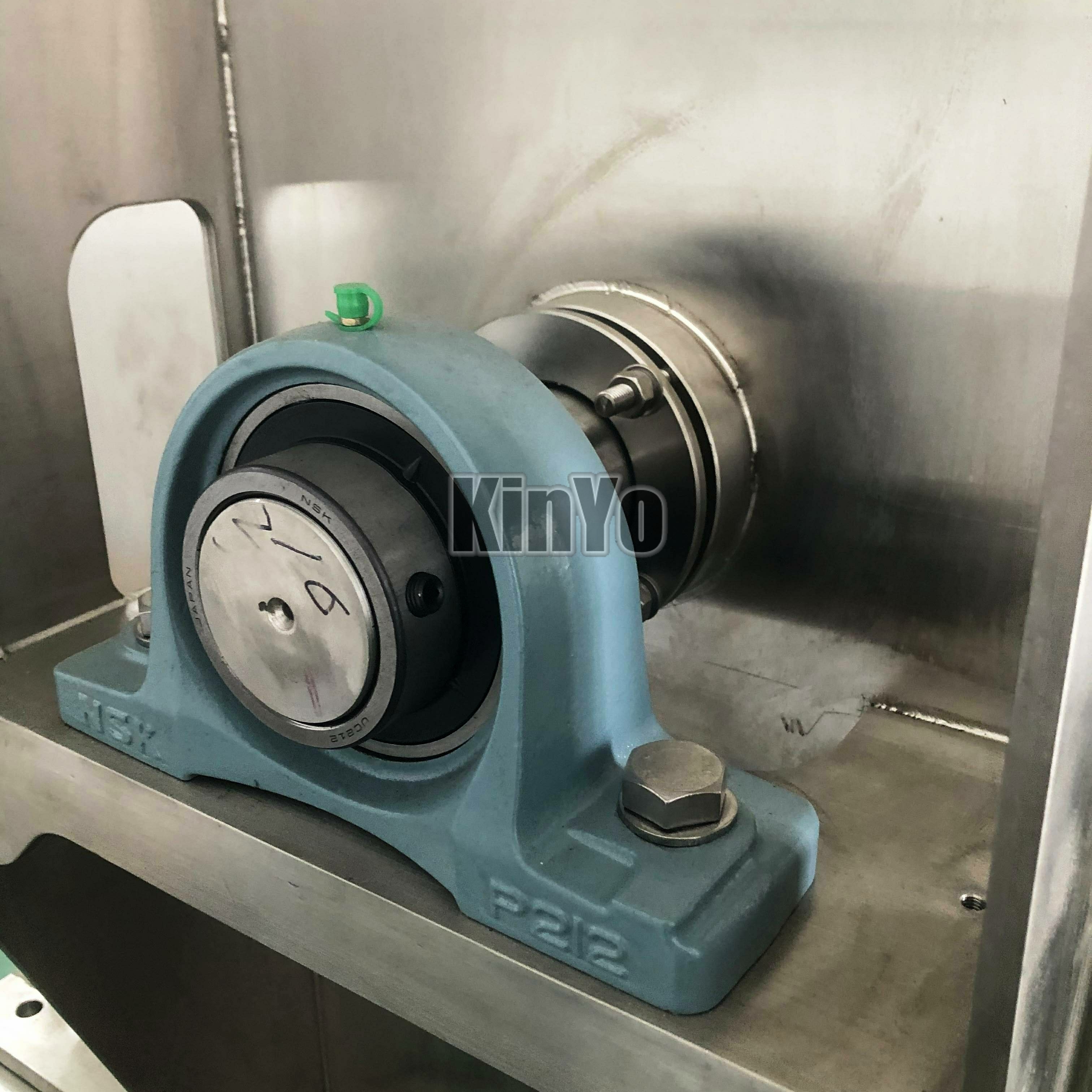

Uncovered bearing
Bearing before covered

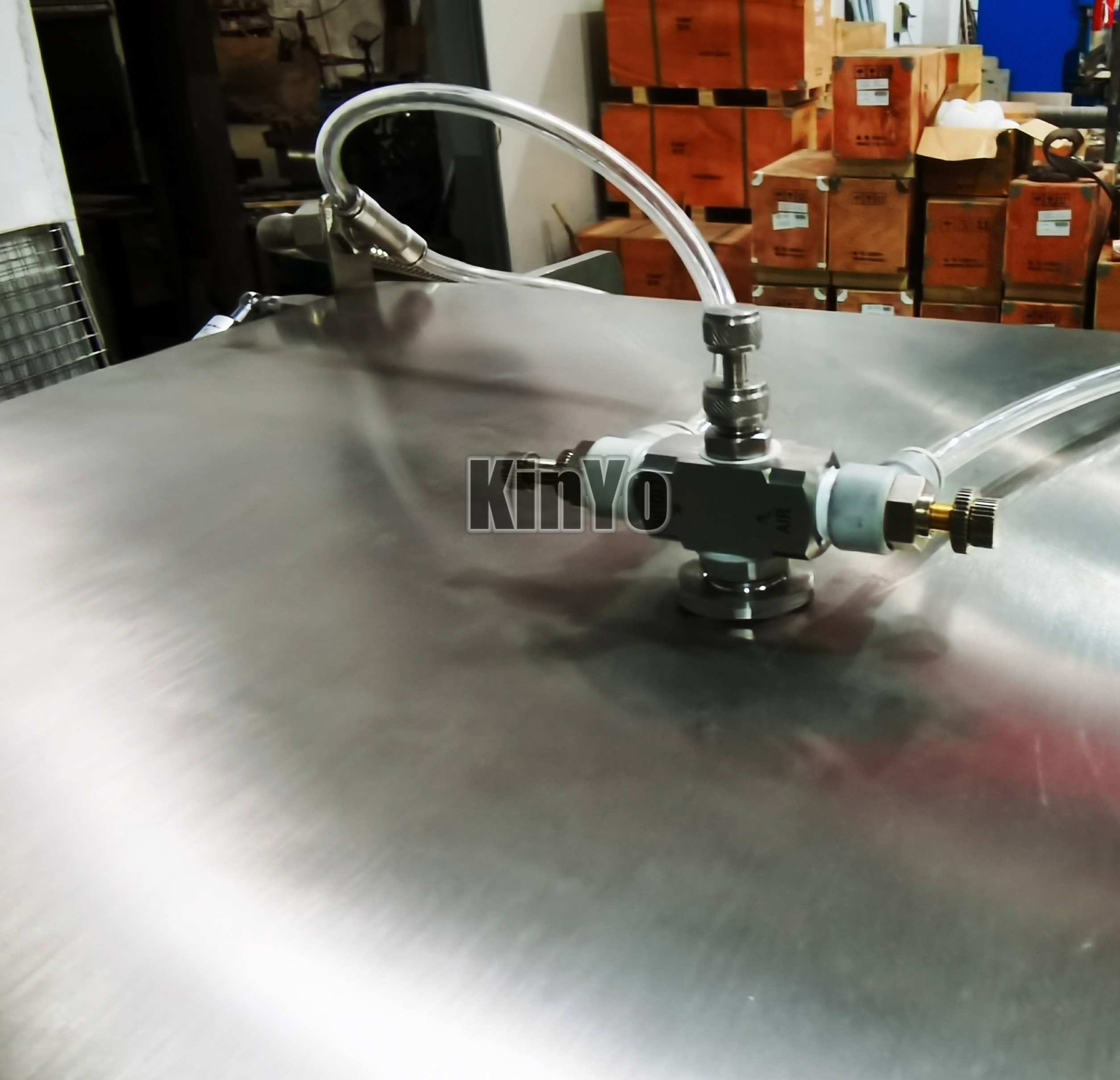

Spraying nozzle
Nozzle for spraying

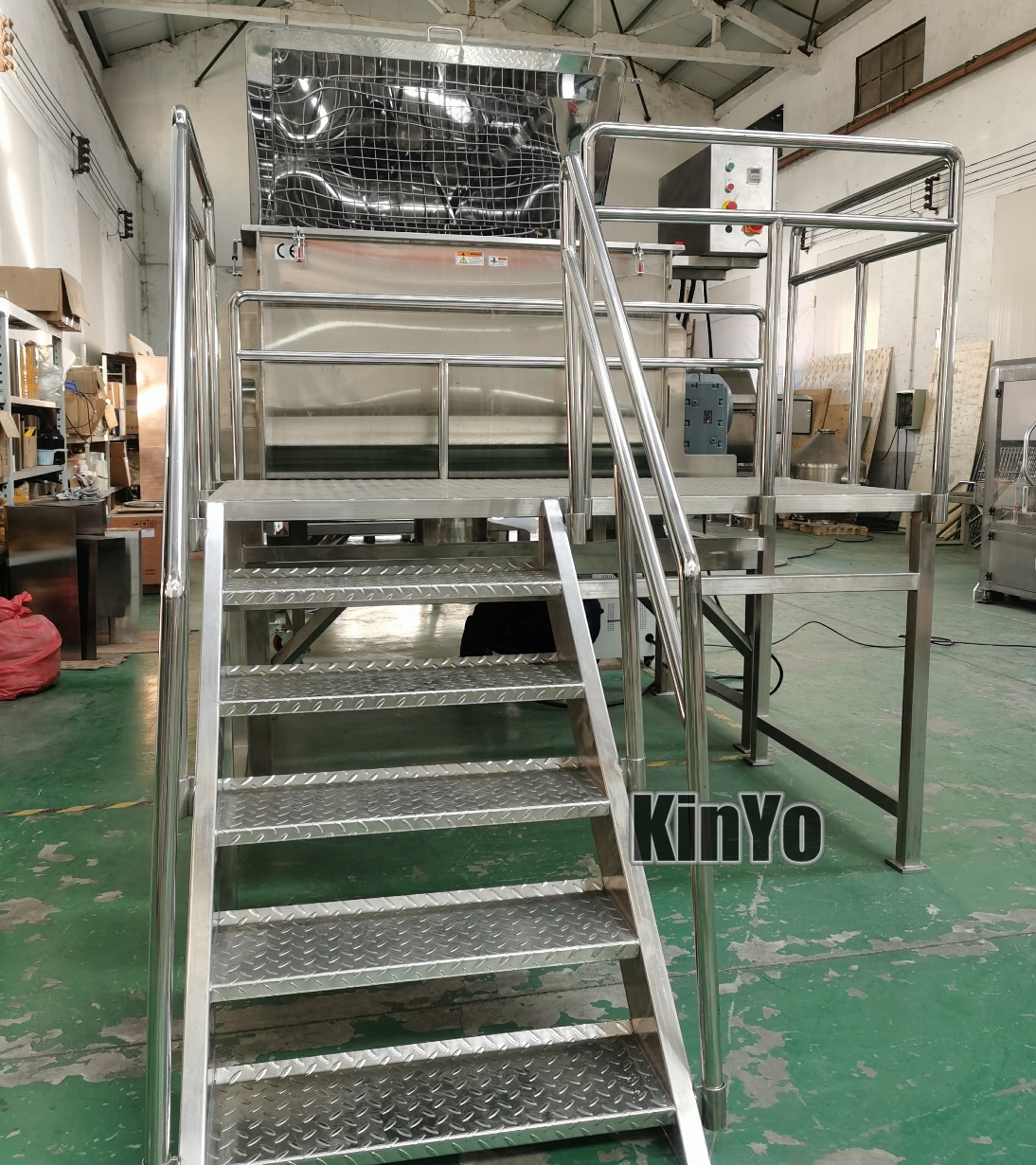

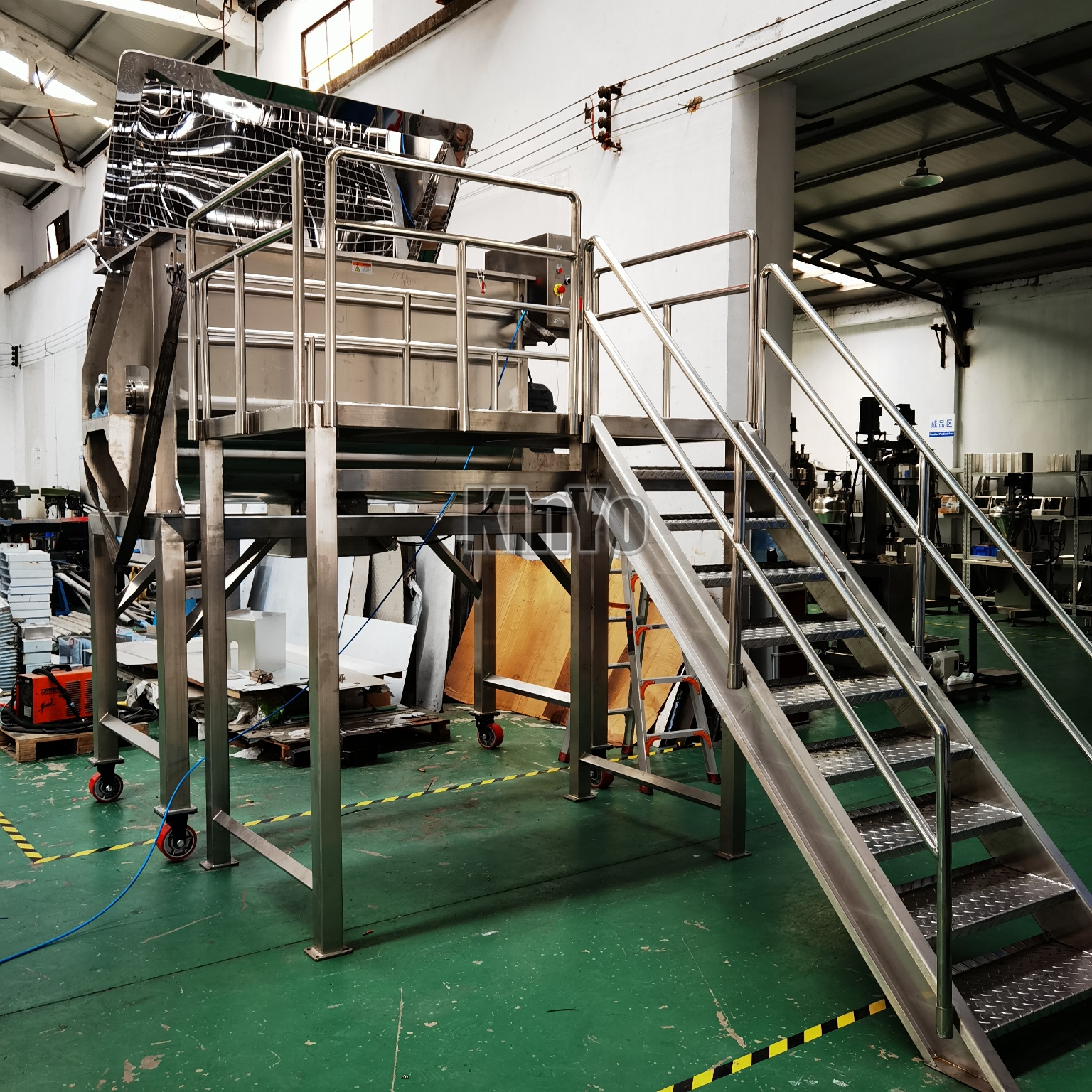

Optional platform
Optional stair and platform

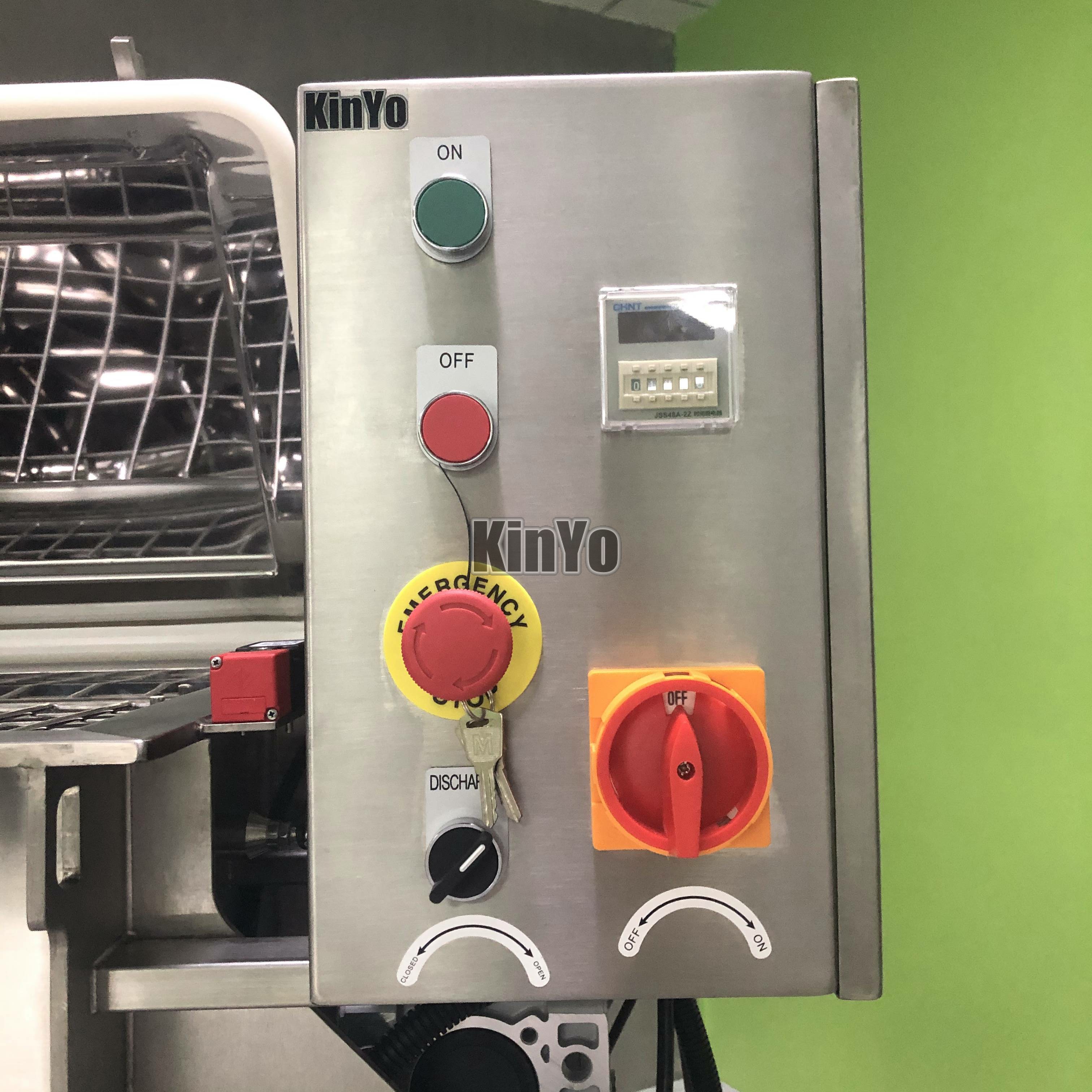

Mixing time relay control
Relay control for mixing time

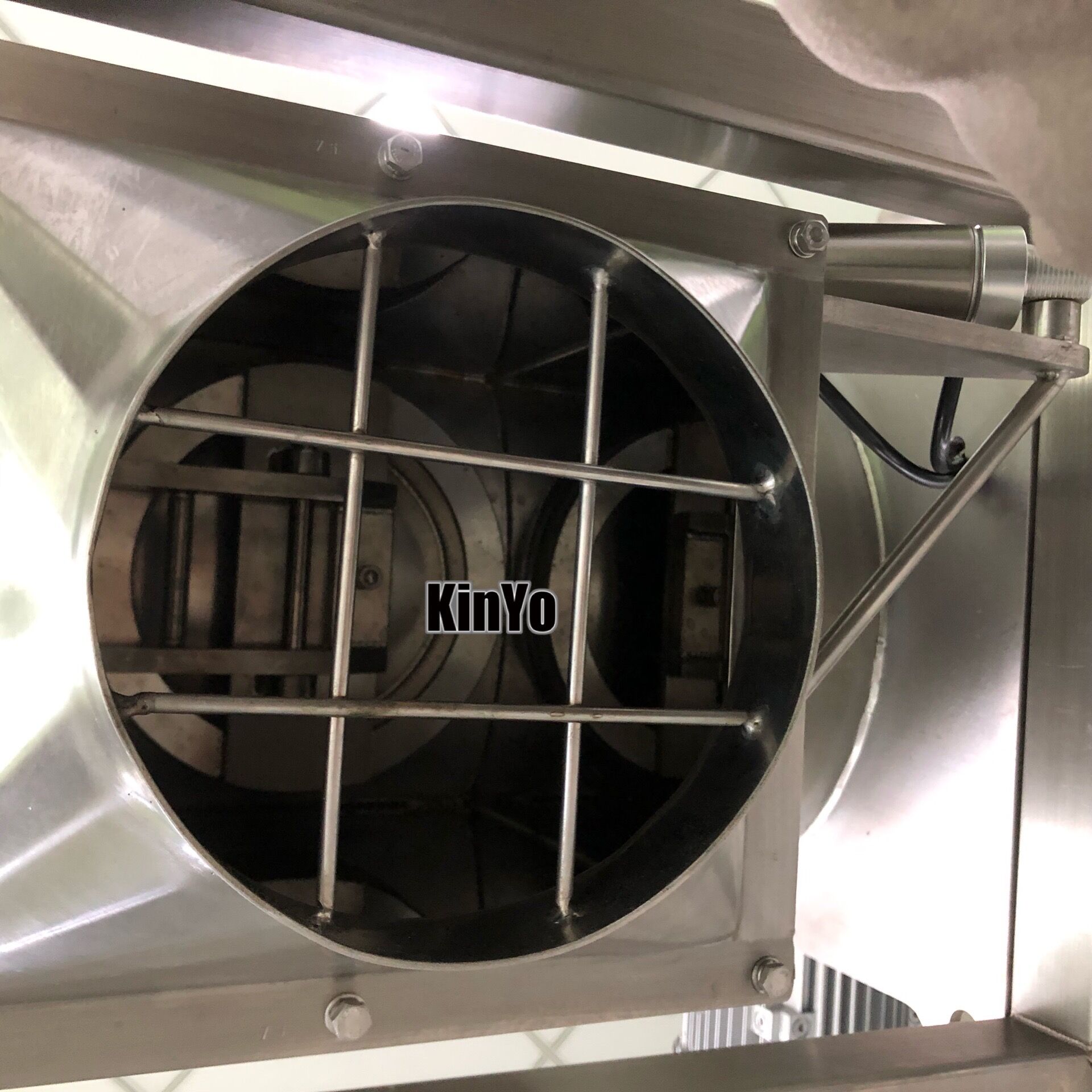

Outlet bottom view
Bottom view of outlet

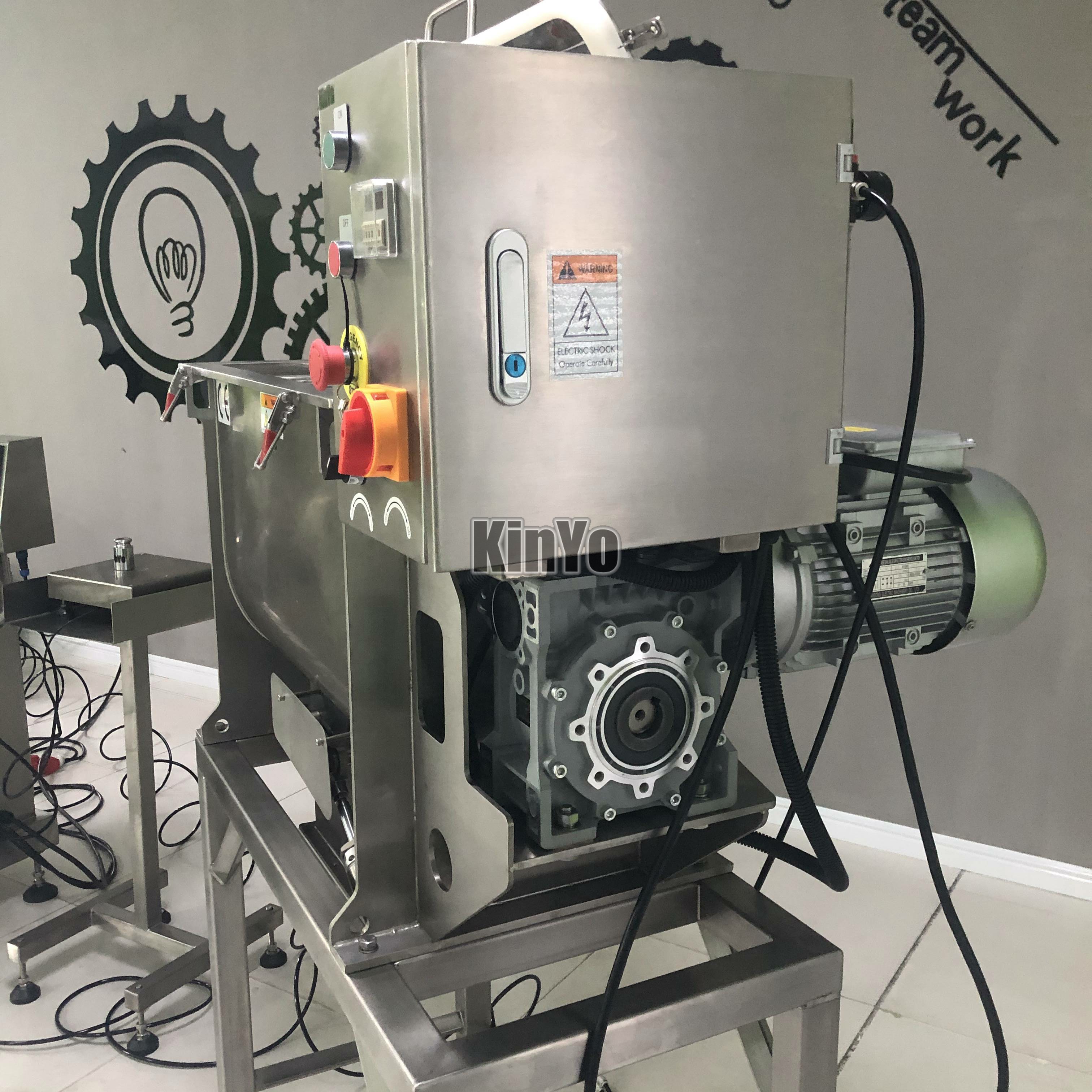

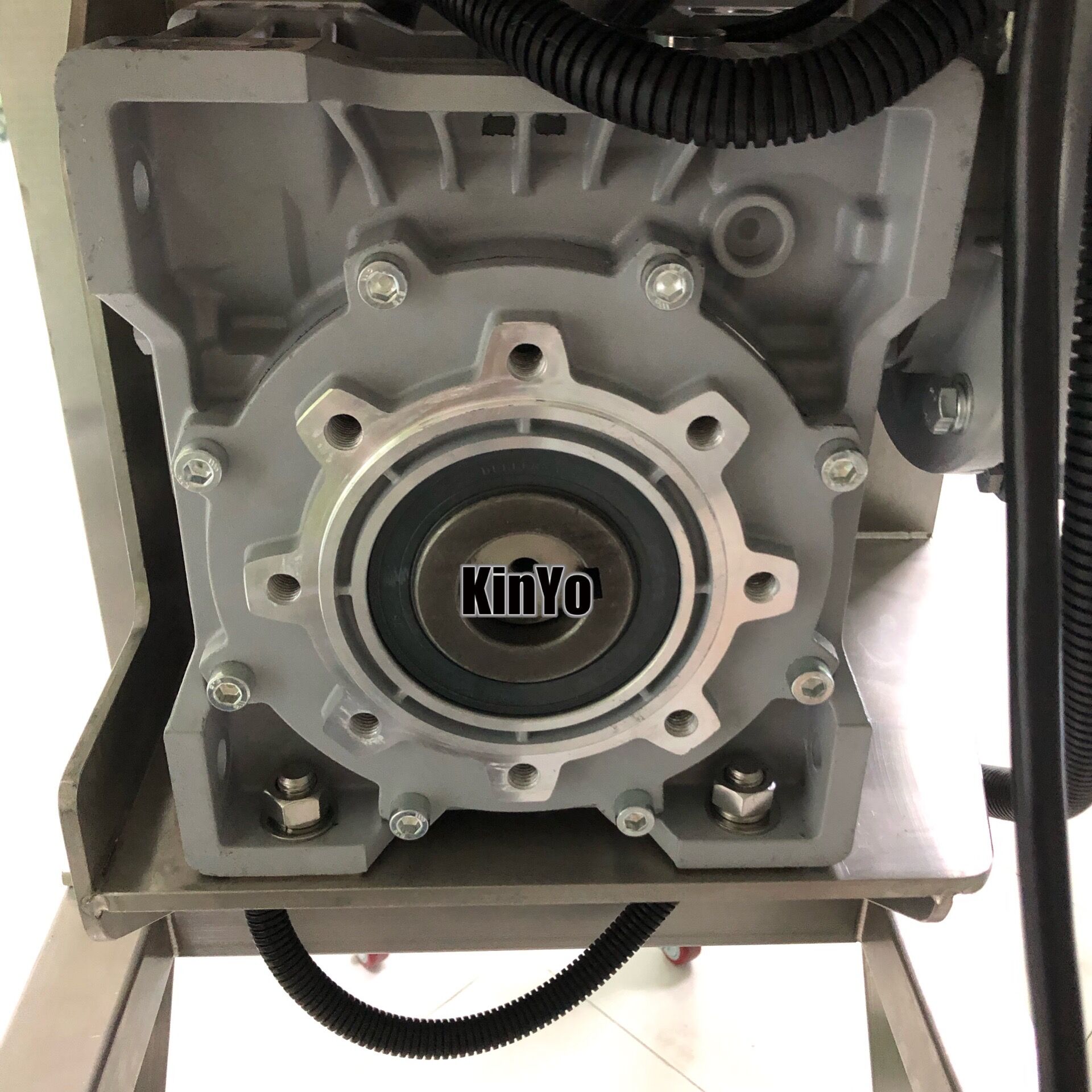

Worm reducer
Worm reducer for 100L blender

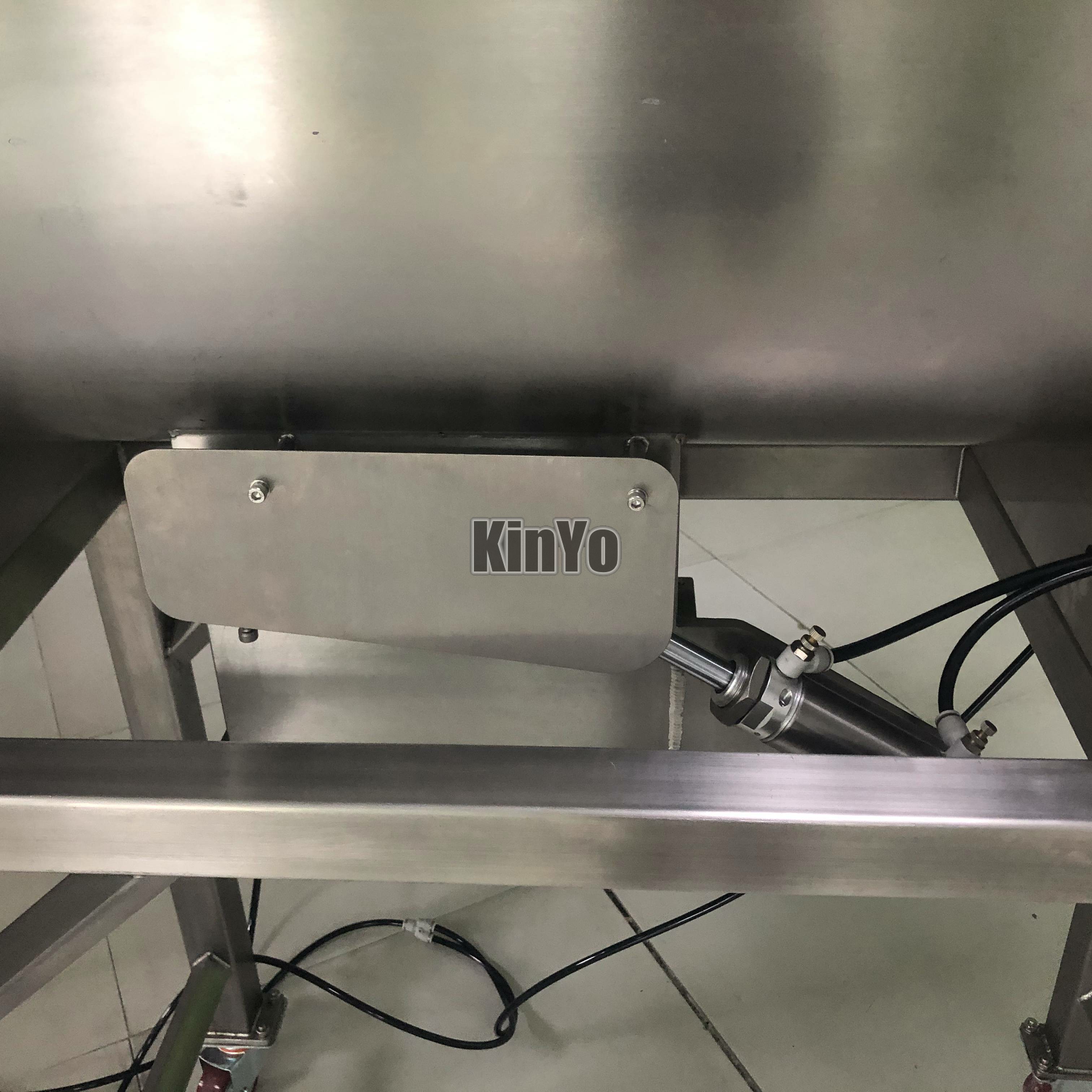

Discharging protection
Protection for pneumatic discharging

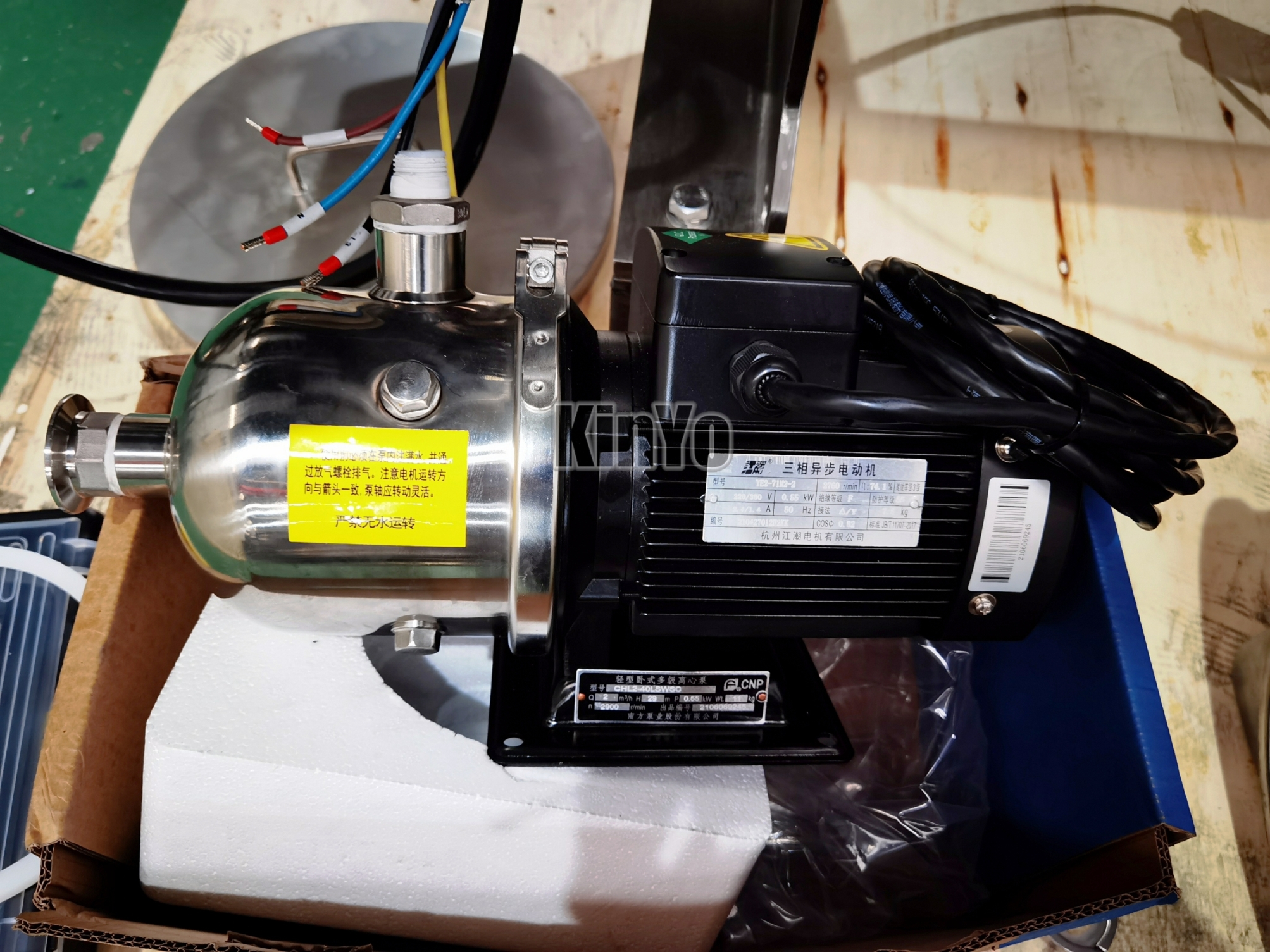

Liquid pump
Liquid pump for spraying
Custom-made volume
10cbm

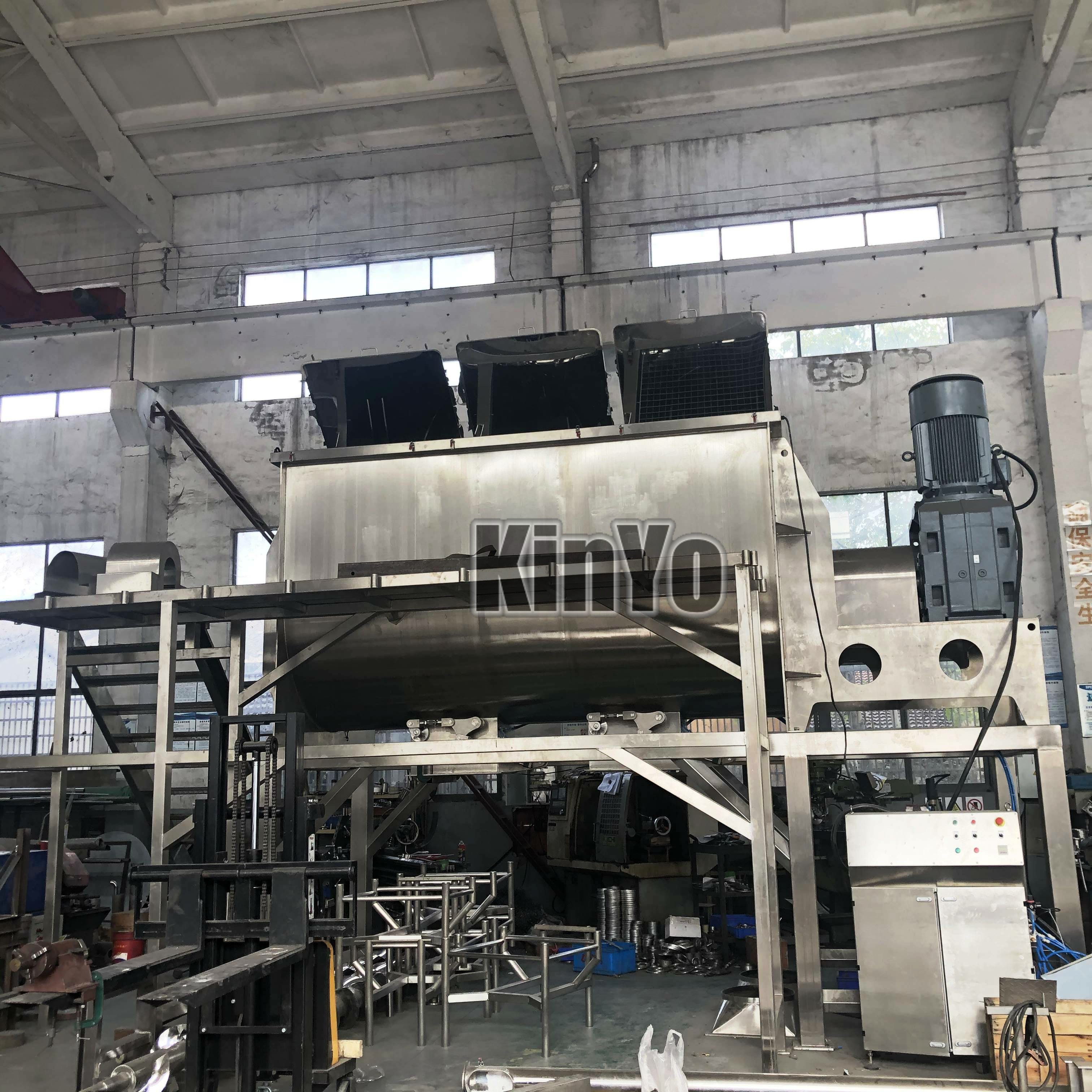

Custom-made volume
12cbm

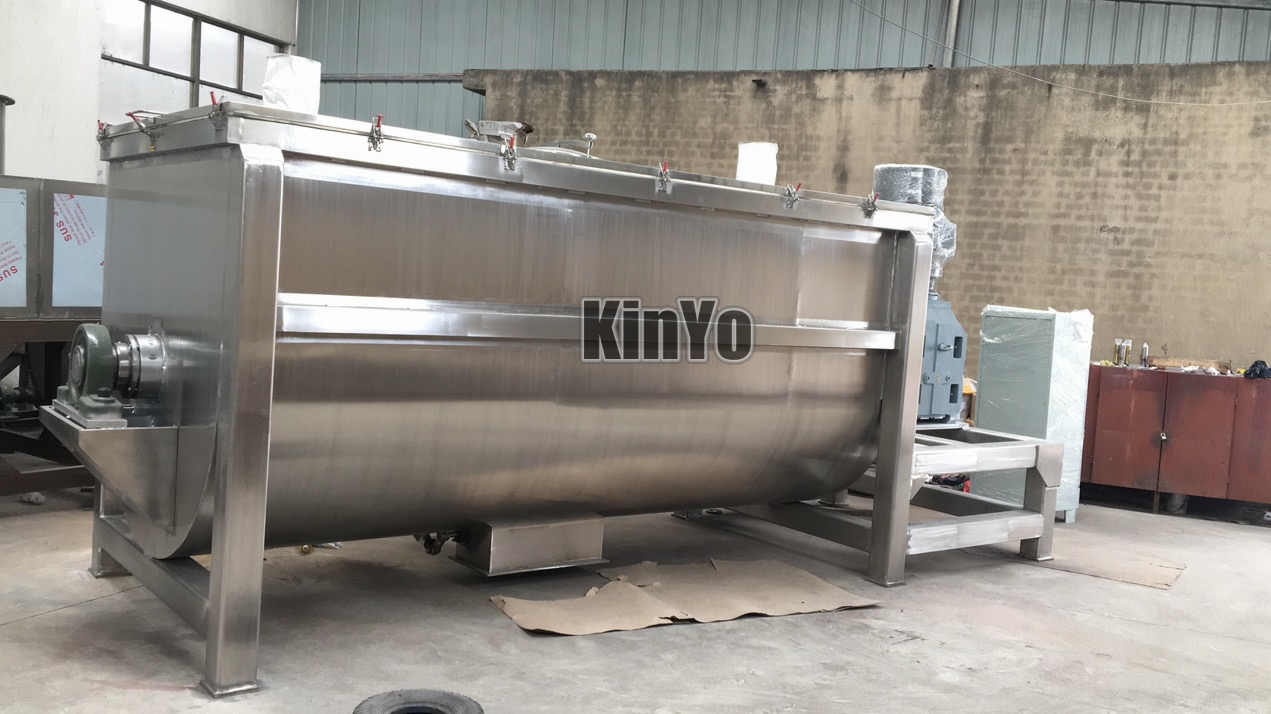

10cbm Blender view
12cbm Blender view
Large scale custom blender
Manufacturing step 1
Manufacturing step 2
Manufacturing step 3
Manufacturing step 4
Process details A
Process details B
Process details C
Blender shipping preparation

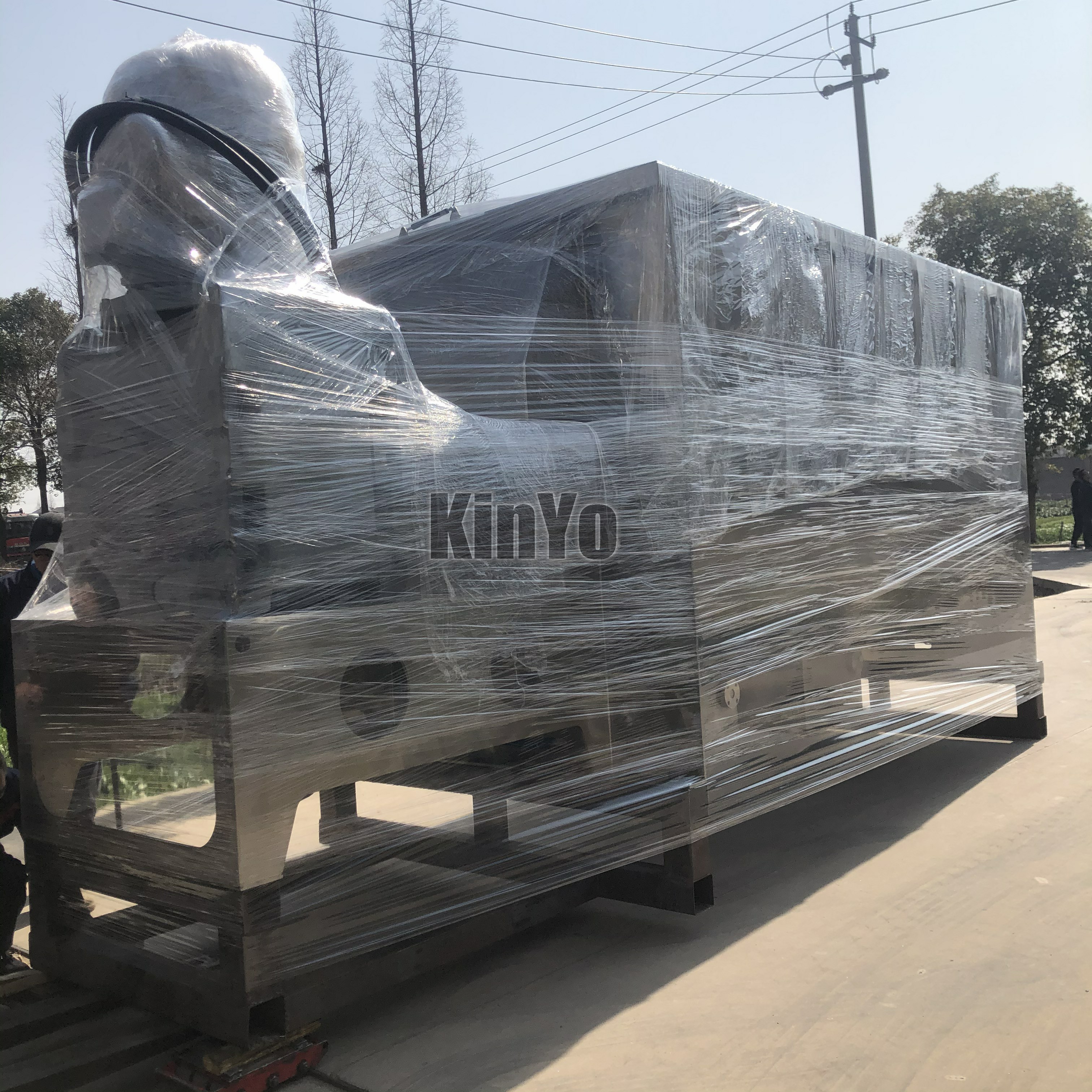

Secured shipment loading

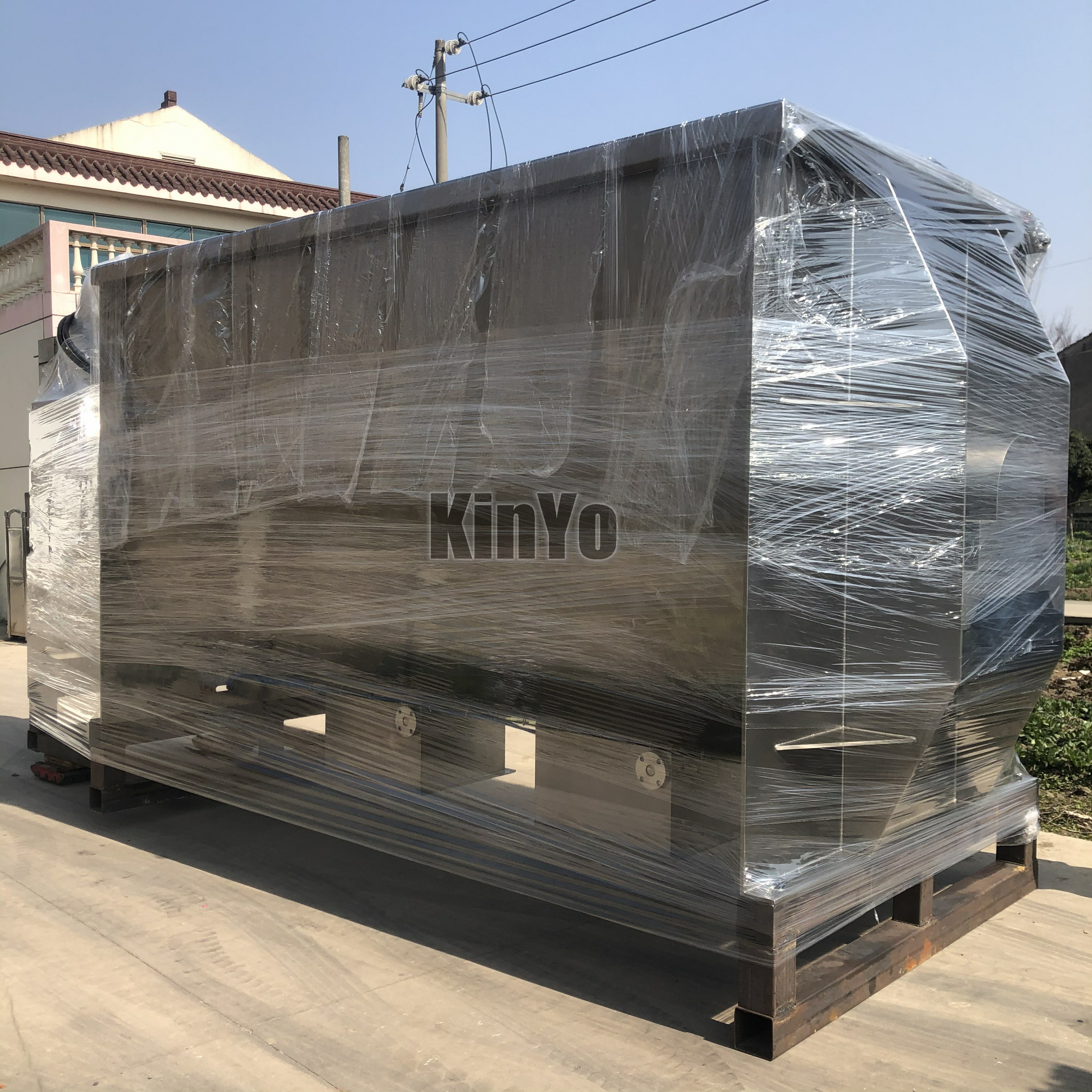

Shipment packaging view 1

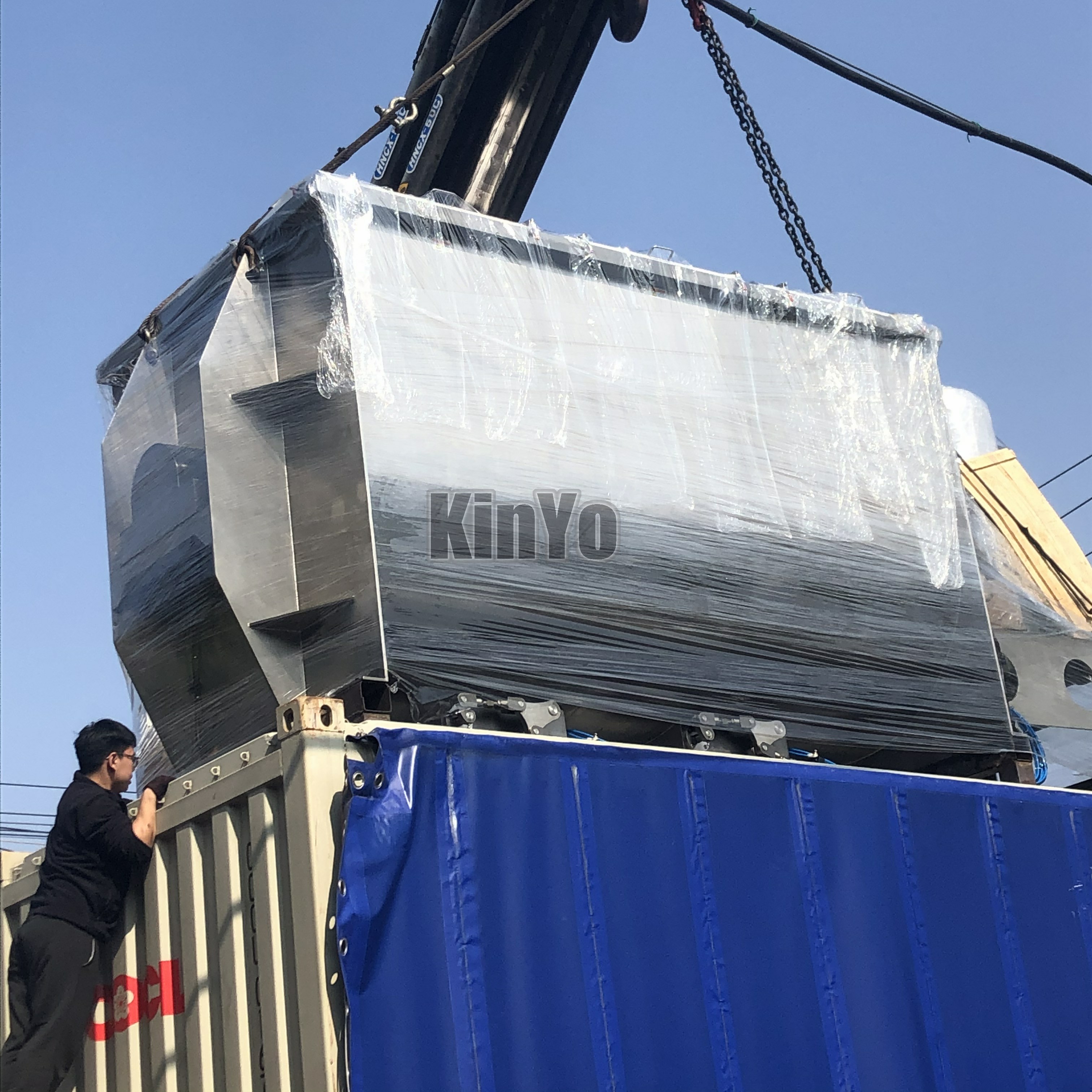

Shipment packaging view 2

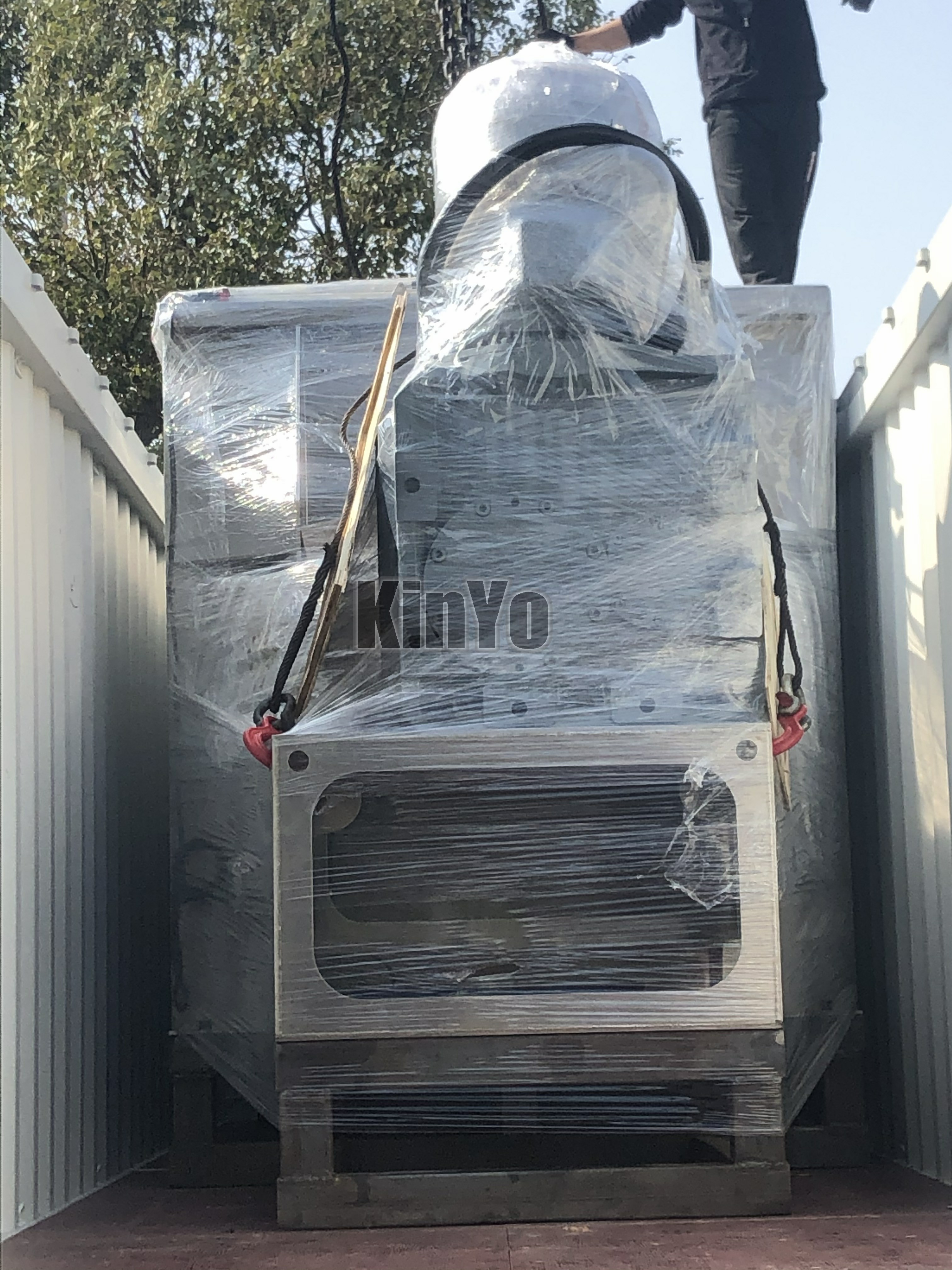

Shipment packaging view 3

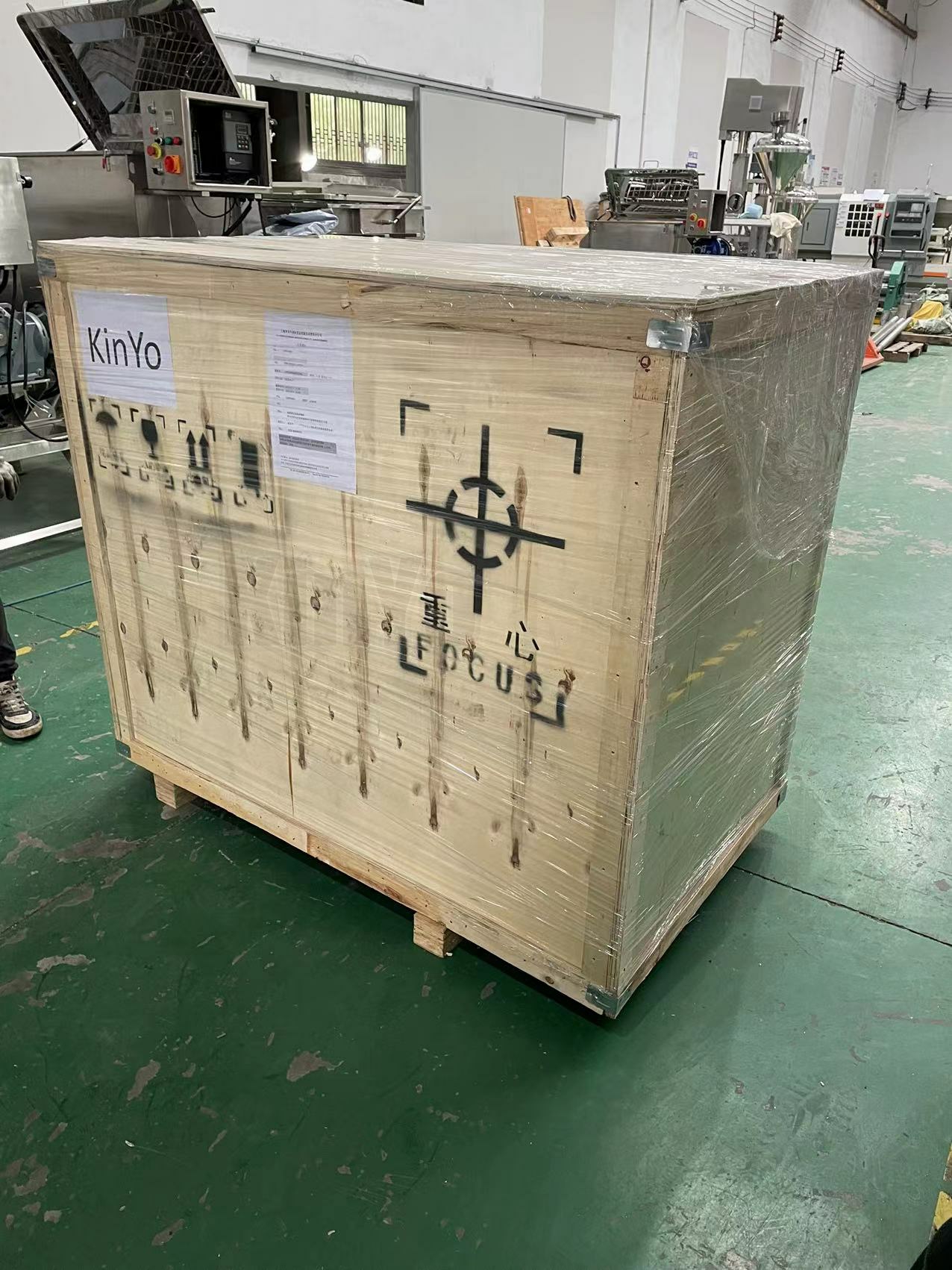

Completed batch blender ready for dispatch 1
Completed batch blender ready for dispatch 2
Frequently Asked Questions (FAQ)
Q1: What materials are these blenders designed for?
Our ribbon blenders and auger filling machines are specifically engineered for highly efficient blending and processing of various powdered materials.
Q2: Can the ribbon design be customized?
Yes, the ribbon structure and quantities are custom-made according to your layout needs to ensure maximum blending efficiency and product throughput.
Q3: What capacity ranges do you offer?
We offer a wide range of standard working volumes starting from 100L (KYRB 100) up to 3000L (KYRB 3000). For massive production needs, custom-made volumes such as 10cbm and 12cbm can also be engineered.
Q4: Are there additional customization options for speed control and safety?
Absolutely. Options include variable frequency drives (VFD) for adjustable speed control, safety limit switches, liquid spraying nozzles, and customized pneumatic discharge mechanisms.
Q5: Which international markets do you primarily serve?
With over 500 sets of ribbon blenders and auger fillers delivered globally, North America and Europe stand as our main export markets due to our exquisite engineering and compliance standards.
