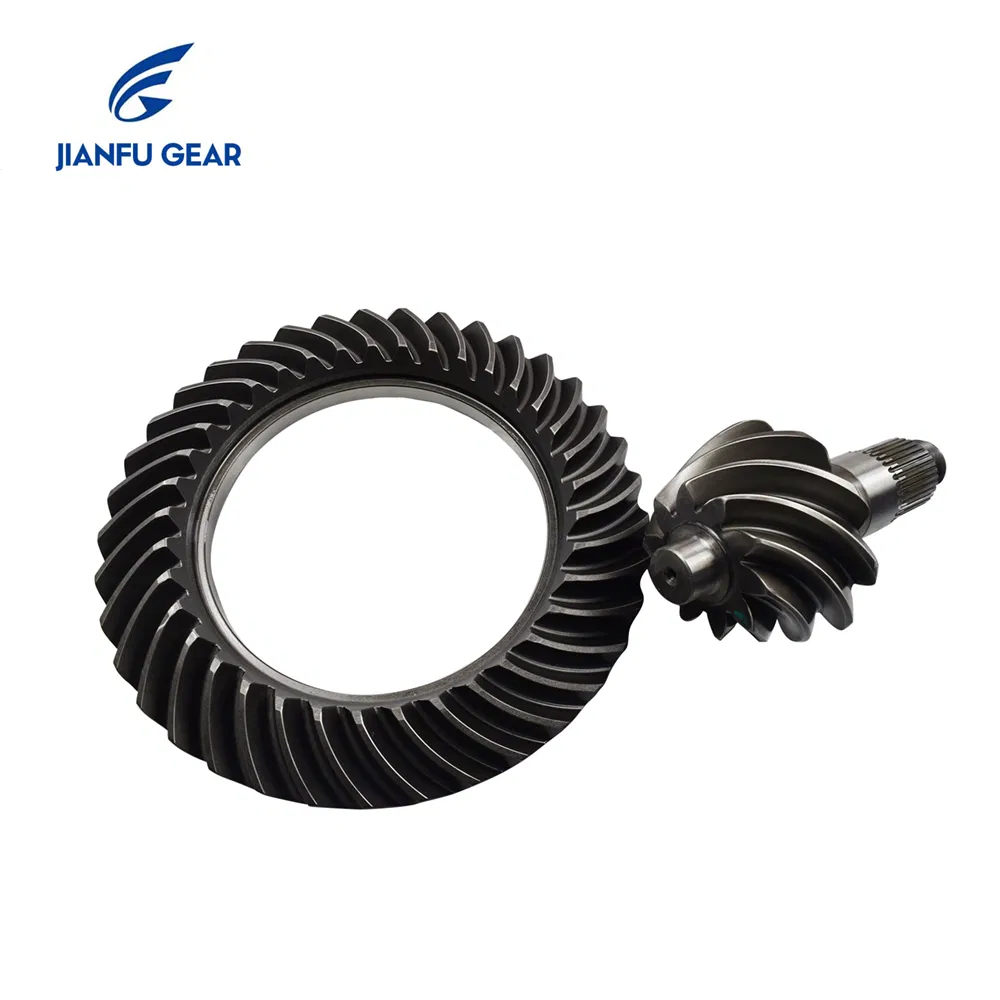

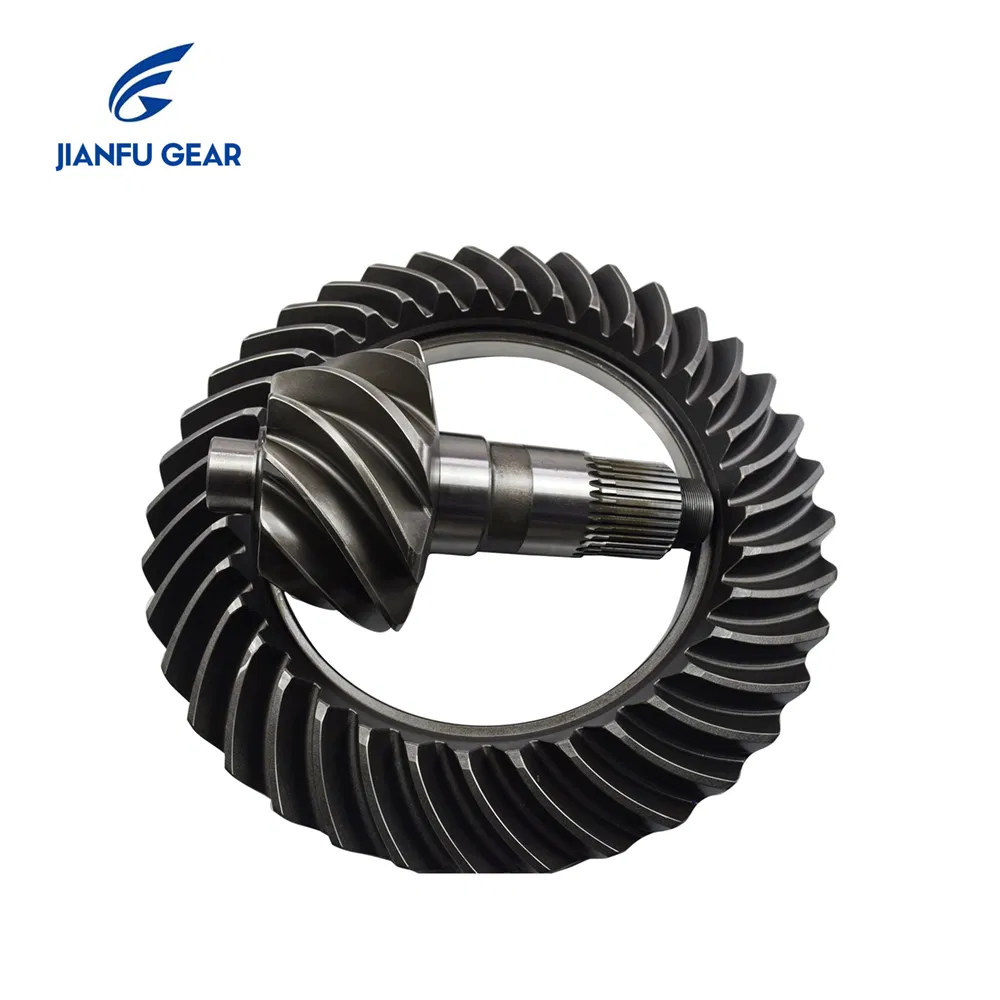

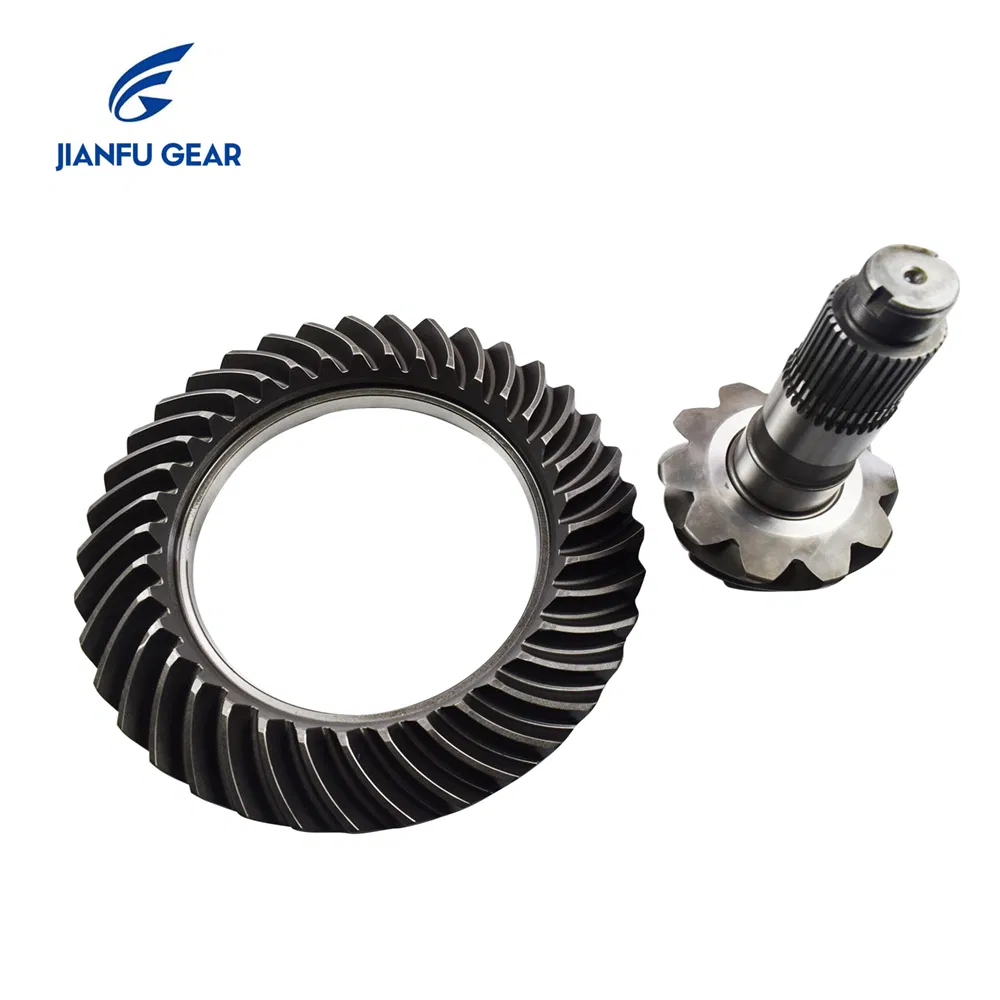

Hot Sale Professional Steel Bevel Pinion Jf T440 Intermediate Axle10: 37 Gear

📍 Basic Product Information

Model NO.:JF T440 Intermediate axle 10:37

Gear Position:External Gear

Manufacturing Method:Cast Gear

Toothed Portion:Herringbone Gear

Material:Cast Steel

Type:Bevel Gear

Color:Dark Grey

Pressure Angle:20 Degree

Outer Diameter:428

Customized:OEM Available

After Warranty:Video/Online Tech Support

Transport Package:Carton, Wooden Pallet

Specification:48.5*48.5*18.5

Production Capacity:3000 Sets/Day

⚙️ Product Description

According to different strength and performance requirements, we select steel with high compression resistance.

Utilization of professional engineering software to design products with optimized dimensions and superior performance.

Full customization services based on customer needs to ensure optimal gear performance under varying working conditions.

Rigid quality assurance at every production step to ensure all products are fully controllable and high-standard.

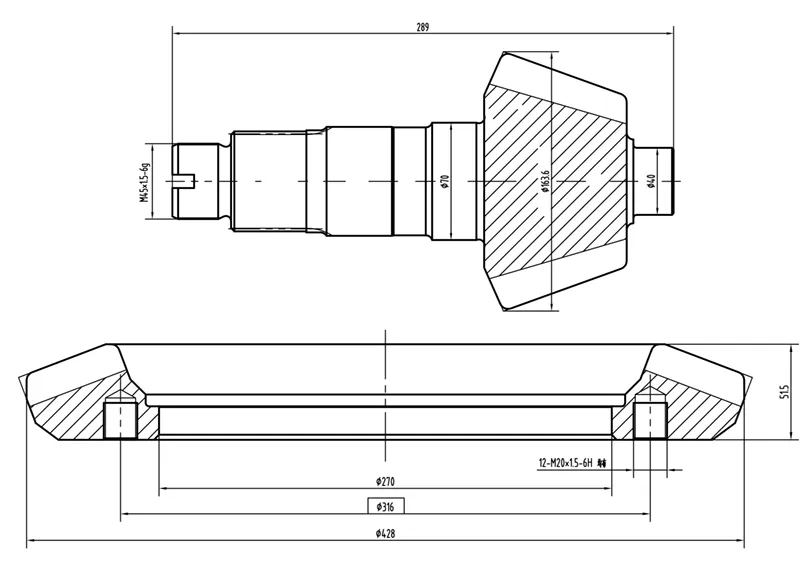

📊 Product Parameters

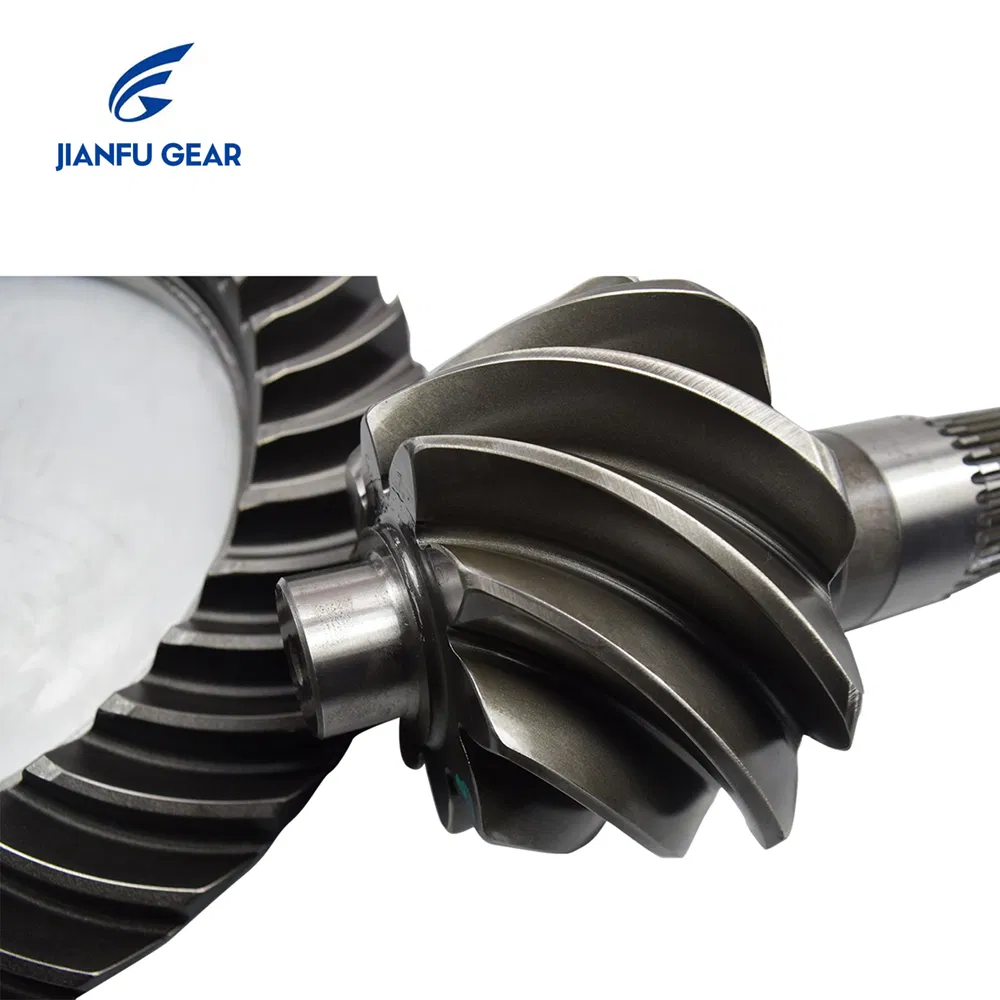

DRIVING GEAR PARAMETERS
NUMBER OF TEETH	10
MODULE	11.757
LENGTH	289
OUTER DIAMETER	ø163.6
DIRECTION OF SPIRAL	R
ACCURACY OF SPLINE	M45*1.5-6g
NUMBER OF SPLINE	34

DRIVEN GEAR PARAMETERS
NUMBER OF TEETH	37
OUTER DIAMETER	ø428
DIAMETER OF INNER HOLE	ø270
ACCURACY OF SCREW	12-M20*1.5-6H
CENTER DISTANCE OF SCREW HOLE	ø316
DIRECTION OF SPIRAL	L

🏢 Manufacturing Excellence

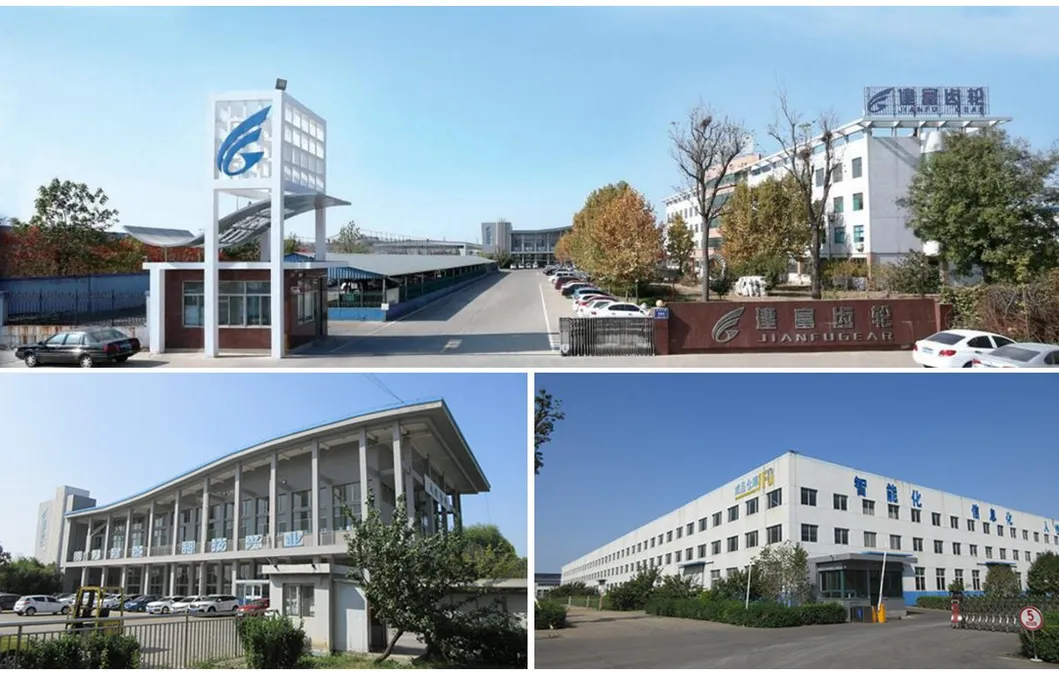

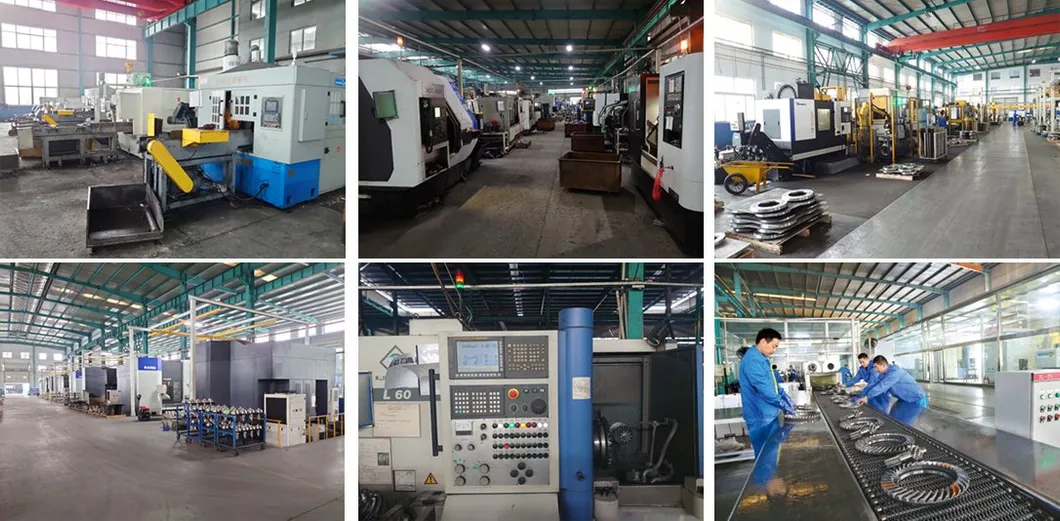

Specialized in Hypoid and spiral bevel gears used in the automotive industry since 1996, the facility maintains substantial fixed assets and covers an area of 133,200 square meters. With over 500 dedicated employees, the production lines are equipped with more than 560 high-precision machining units, including Klingelnberg Oerlikon and Gleason gear production lines.

Advanced automatic continuous heat treatment production lines and measuring centers like the Oerlikon C50 and P65 ensure that technology levels and product quality meet world-class standards. Our commitment to technology and creativity allows us to provide top-tier products to the global market.

📦 Packaging & Shipping

Package Size:80.00cm * 80.00cm * 30.00cm

Gross Weight:20.000kg

Details:Standard carton and wooden pallet

Shipping:Sea freight; FOB, EXW, FAS, DES

❓ Frequently Asked Questions

1. Do you provide samples? Yes, we can offer free samples, but the cost of freight is not included.

2. Can you handle OEM orders? Yes, we provide full OEM services customized according to your specific requirements.

3. What is your after-sales service policy? We offer excellent after-sales support. If you encounter any quality issues, you can contact us at any time.

4. What are your packaging options? We provide standard industrial packaging or customized solutions based on customer needs.

5. How is product quality ensured? We provide raw material reports, metallographic examinations, and precision testing data for all products.

6. What is the typical delivery time? Generally, it is 4-7 days for standard items. For customized products, it takes approximately 20 days depending on the quantity.
