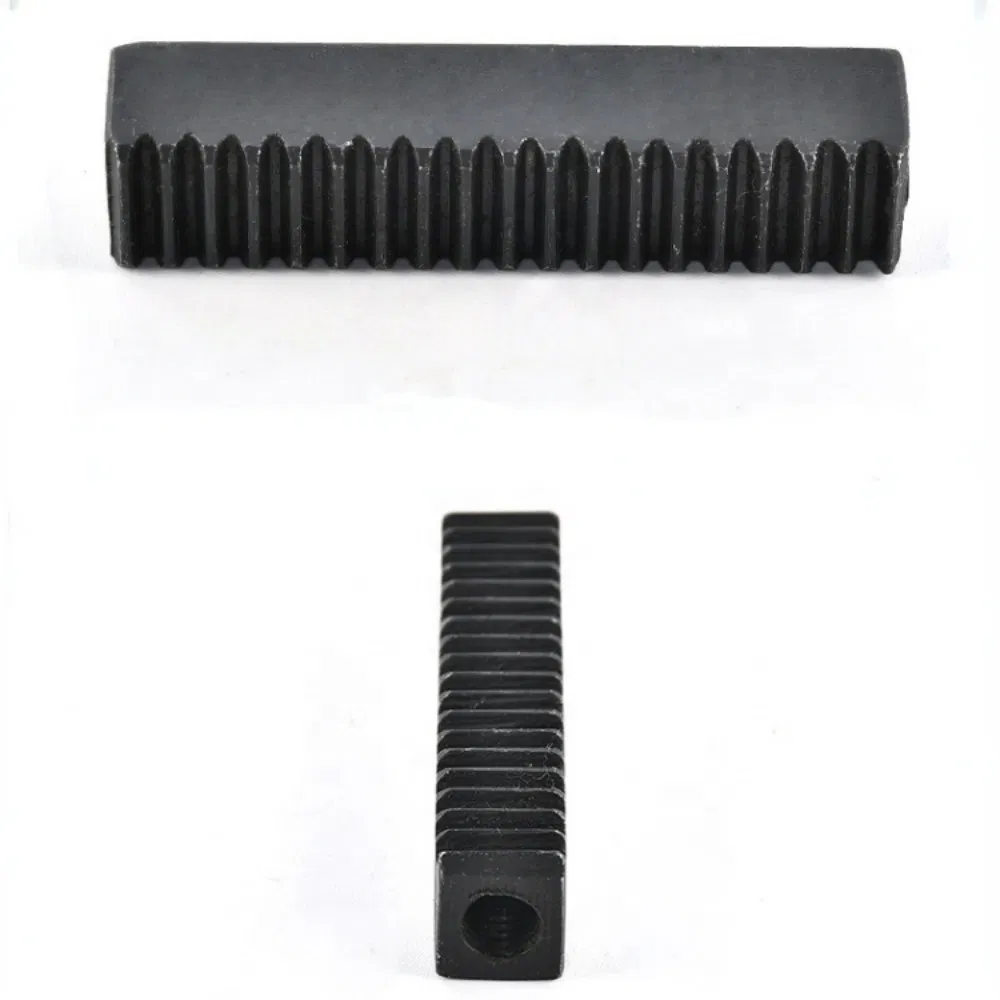

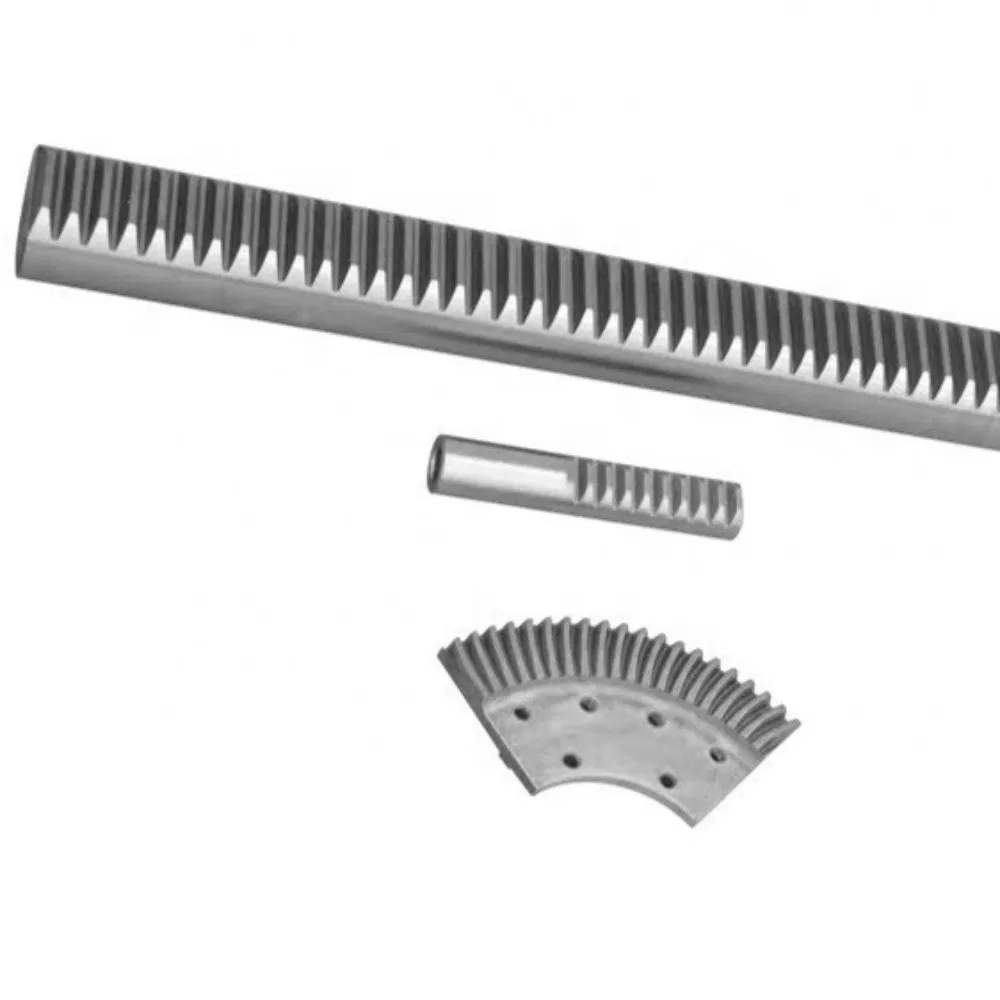

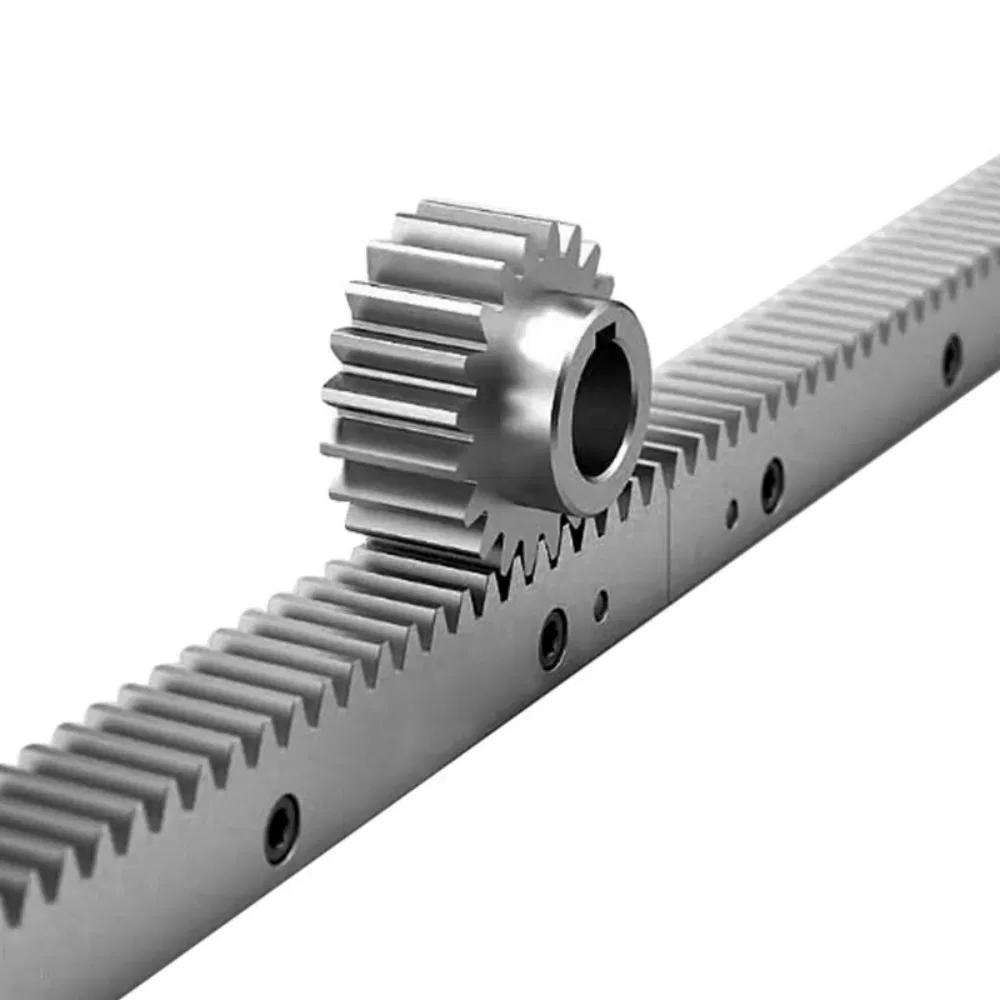

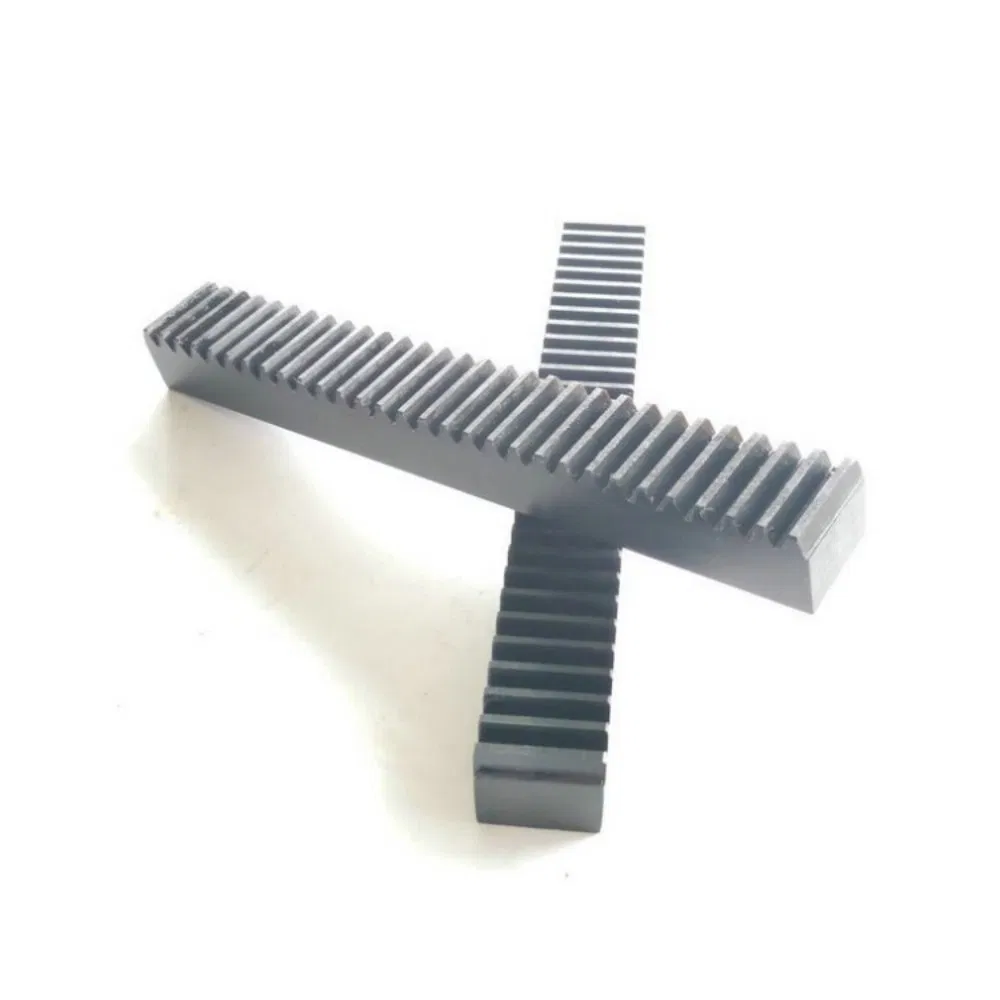

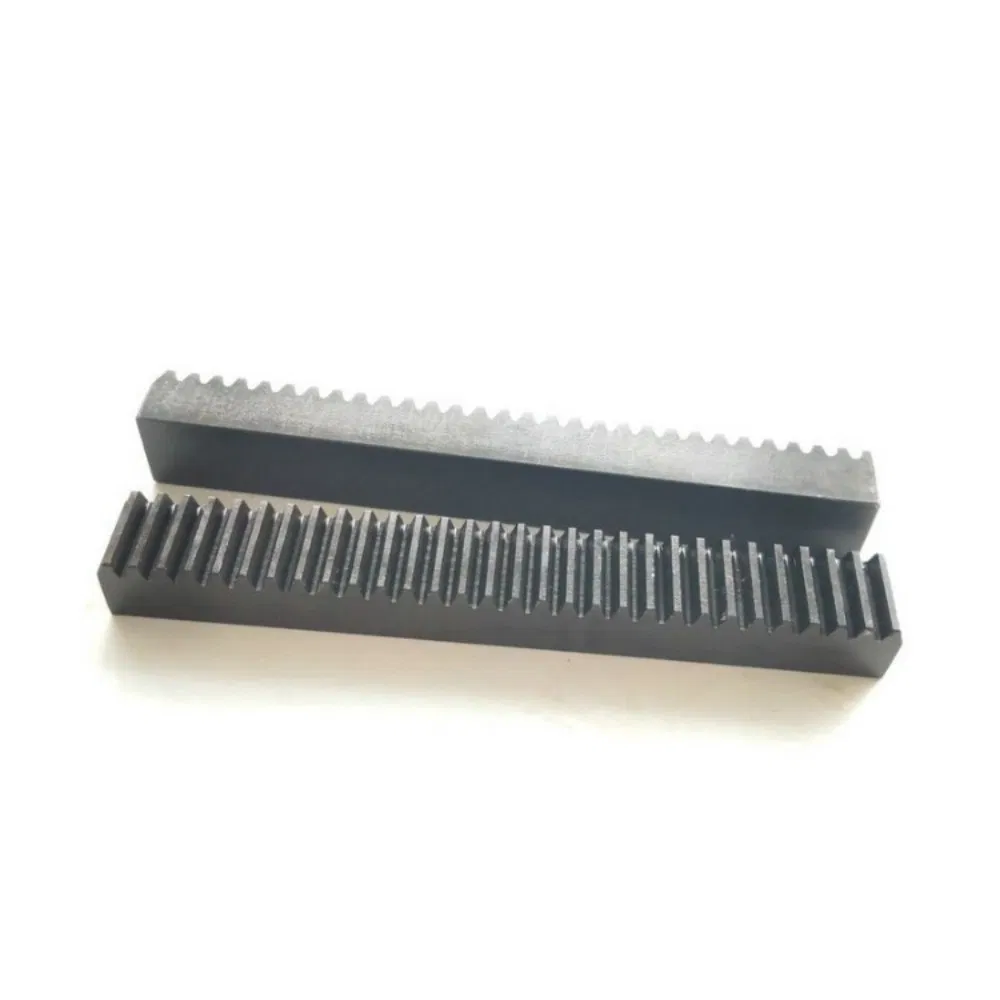

Hot Sale High Precision Custom Straight Spur Gear Rack for CNC Machine

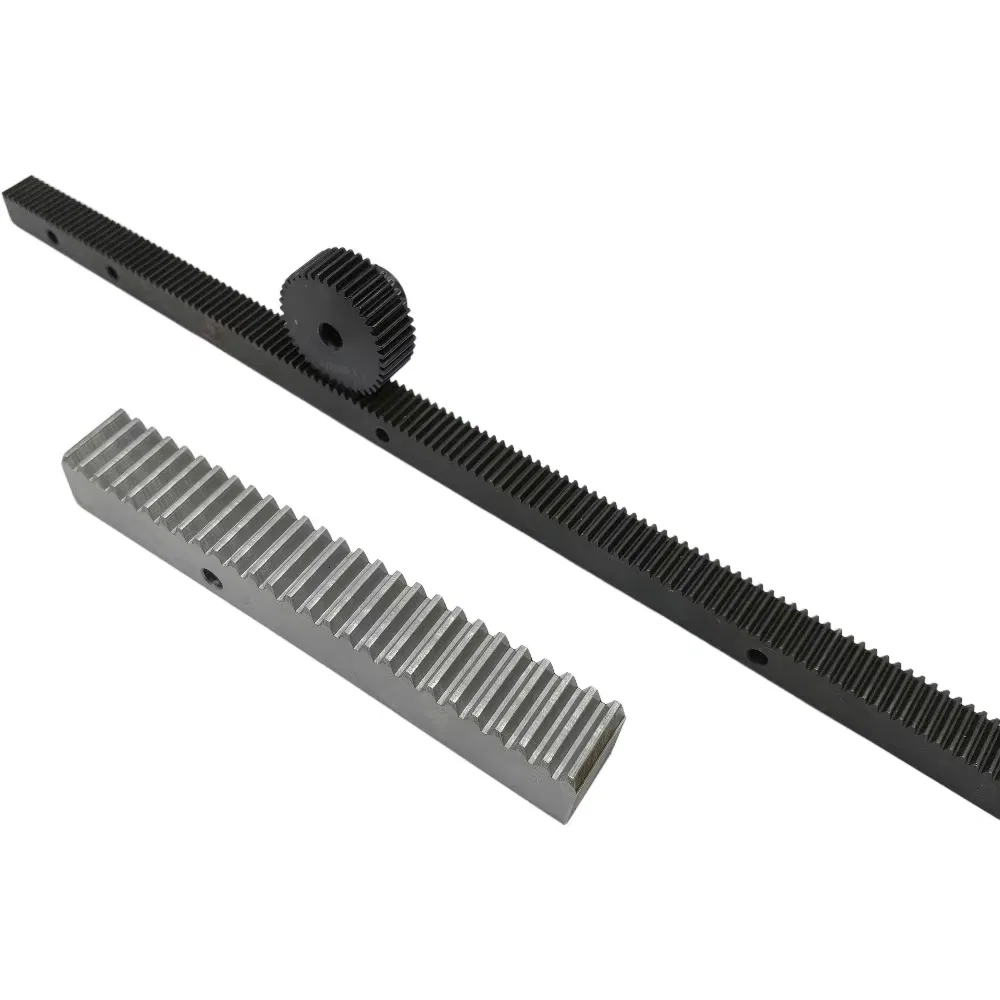

Straight Gear Rack

Pressure Angle: 20°
Precision Grade: DIN6 / DIN7
Sides Ground: Included

Product Specifications

Product Type	Straight Teeth Gear Rack
Model Number	M1 M1.25 M1.5 M2 M2.5 M3 M4 M5 M6 M8 M10 M12
Length	500mm, 1000mm, 2000mm, custom length
Material	C45, 42CrMo, SS304, SS316, nylon, POM
Helix Angle	Standard 19°31'42'' or customized angle
Precision	DIN5 DIN6 DIN7 DIN8 DIN9 DIN10
Pressure Angle	14.5 / 15 / 20 degree
Finish	Black oxide, galvanized, teeth hardened
Application	Automation Machine, CNC Machine, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
Delivery Time	Stock size 2-5 days; customized size 10-30 days

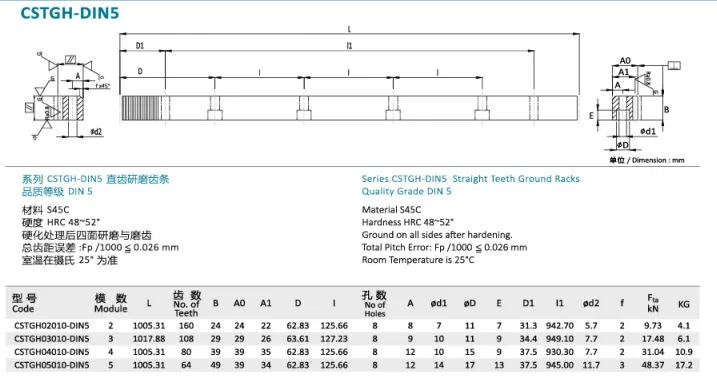

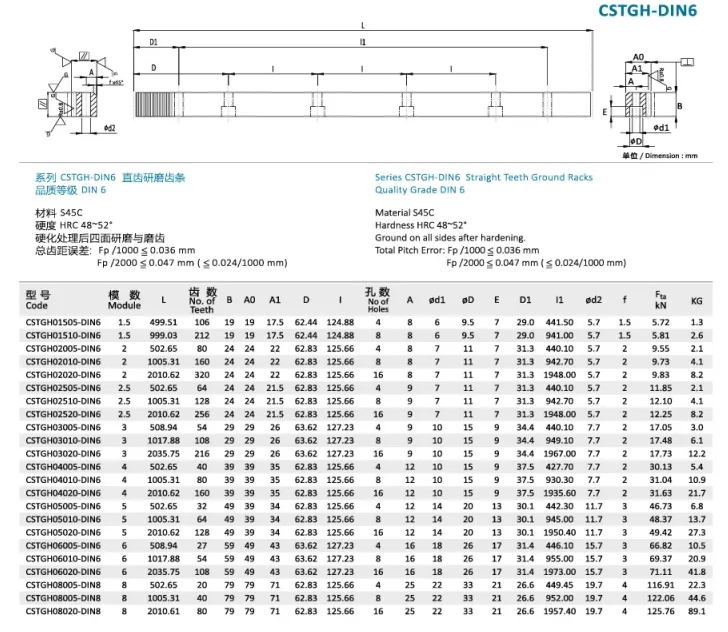

Detailed View

Applications

Recommended Products

Manufacturing & Facilities

Packaging & Shipping

Frequently Asked Questions

Q Are you a trading company or manufacturer?

We are a factory and we also sell related goods.

Q How long is your delivery time?

Generally it is 5-10 days if the goods are in stock, or 25-45 days if the goods are not in stock, depending on the quantity. Standard stock sizes can ship in 2-5 days, while customized sizes take 10-30 days.

Q Do you provide samples? Is it free or extra?

Yes, we can offer the sample for free charge, but the cost of freight is not included.

Q What materials are available for the gear racks?

Our gear racks are available in C45, 42CrMo, SS304, SS316, nylon, and POM.

Q What precision grades and pressure angles can you support?

We offer high-precision grades including DIN5, DIN6, DIN7, DIN8, DIN9, and DIN10. The available pressure angles are 14.5°, 15°, and 20°.

Q What options are available for the rack surface finish?

We provide finishes such as black oxide, galvanized coating, and induction hardened teeth to meet different working requirements.
