Overview
| Gear Position |
External Gear |
| Manufacturing Method |
Custom |
| Toothed Portion Shape |
Helical Gear |
| Material |
Custom |
| Type |
Circular Gear |
| Transport Package |
Wooden Case |
| Specification |
Custom |
| Origin |
Henan, China |

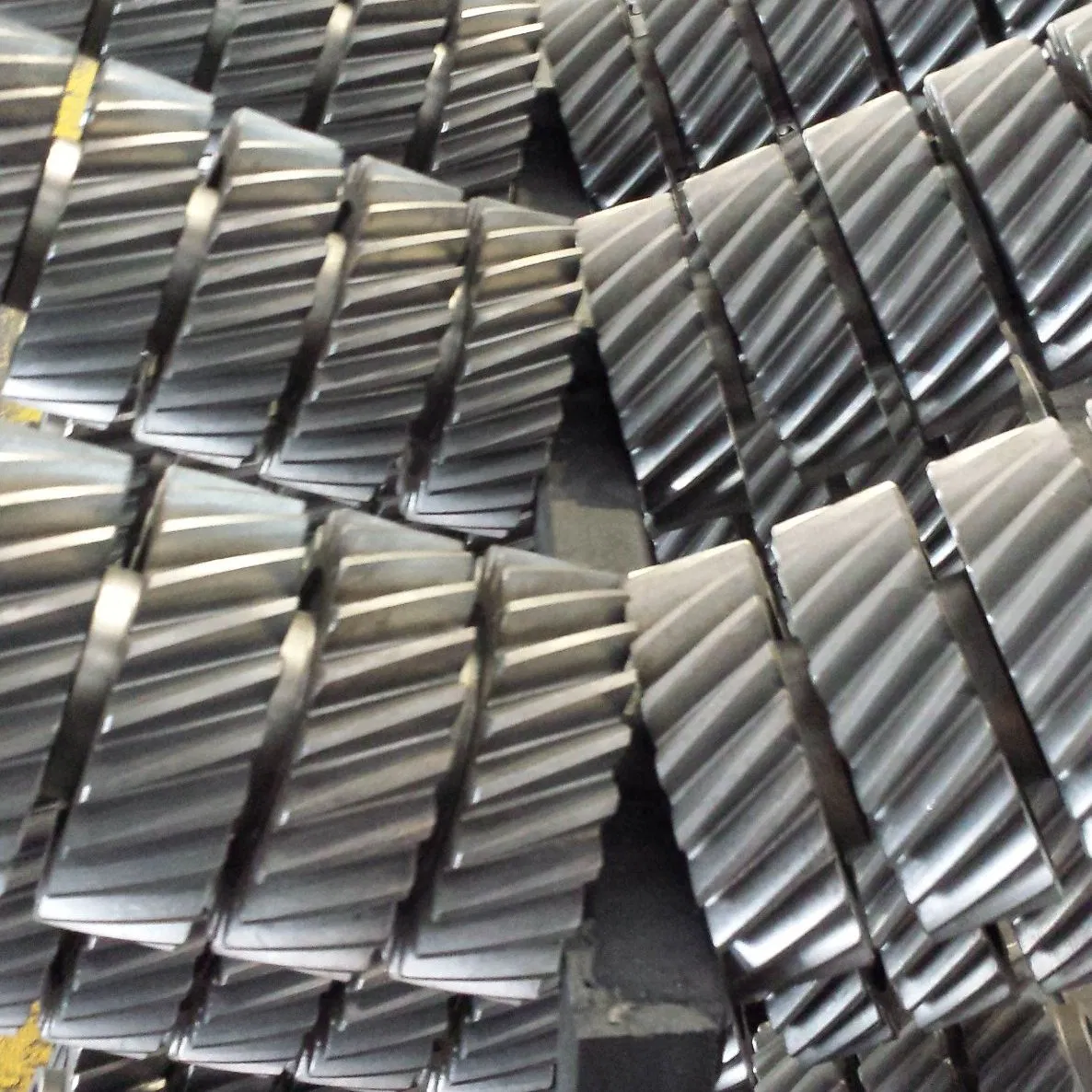

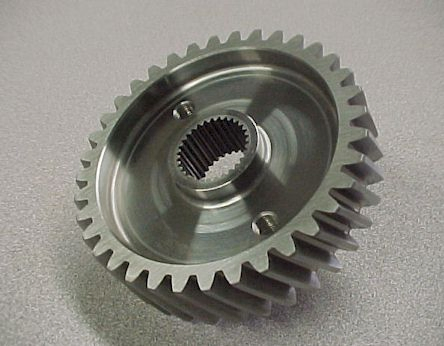

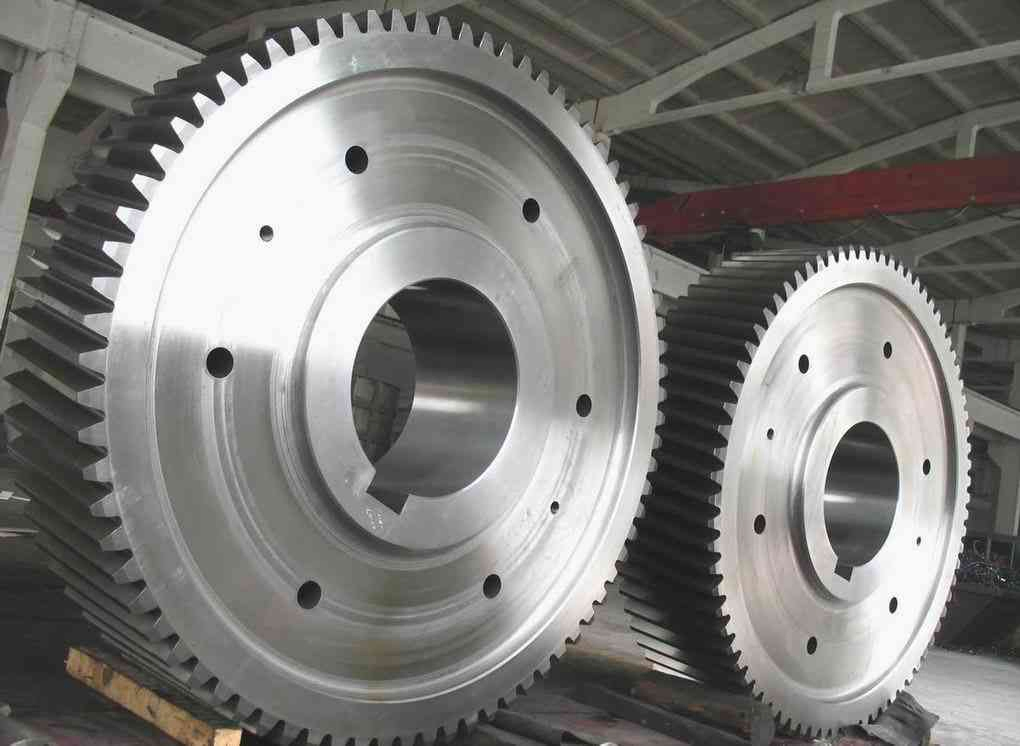

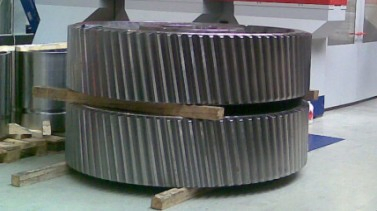

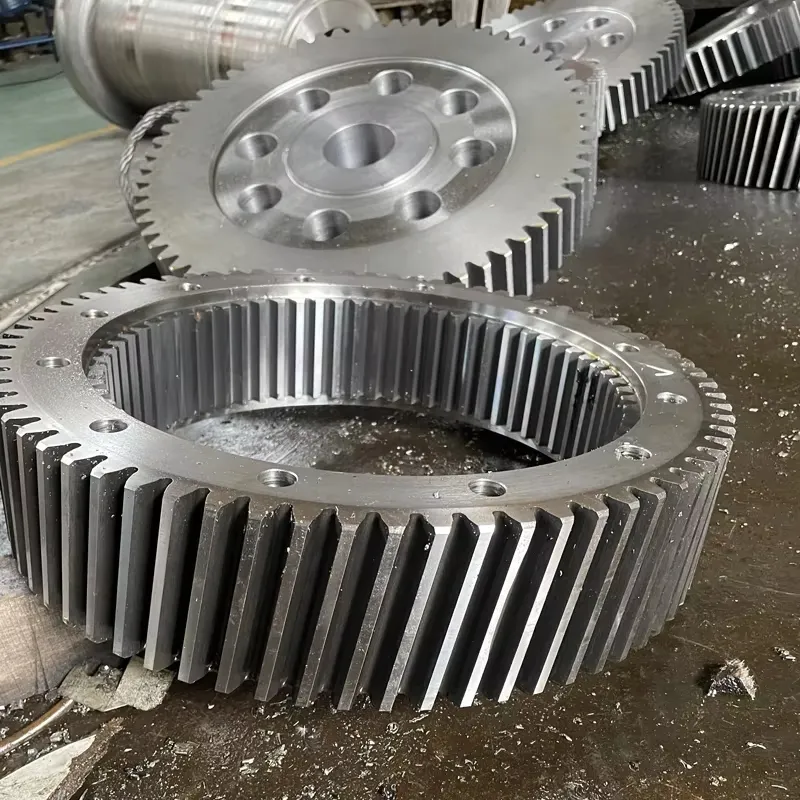

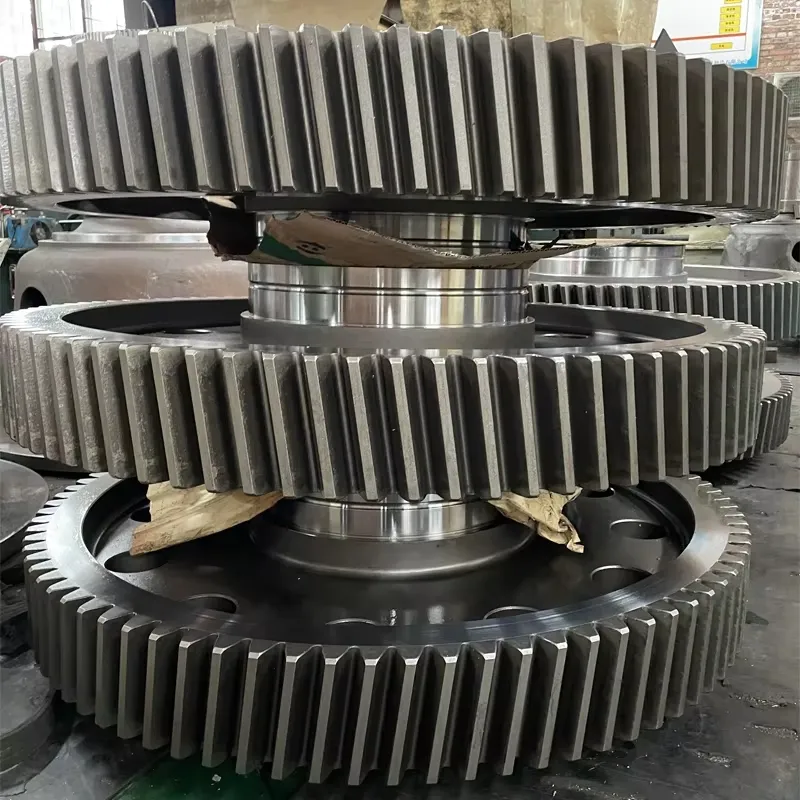

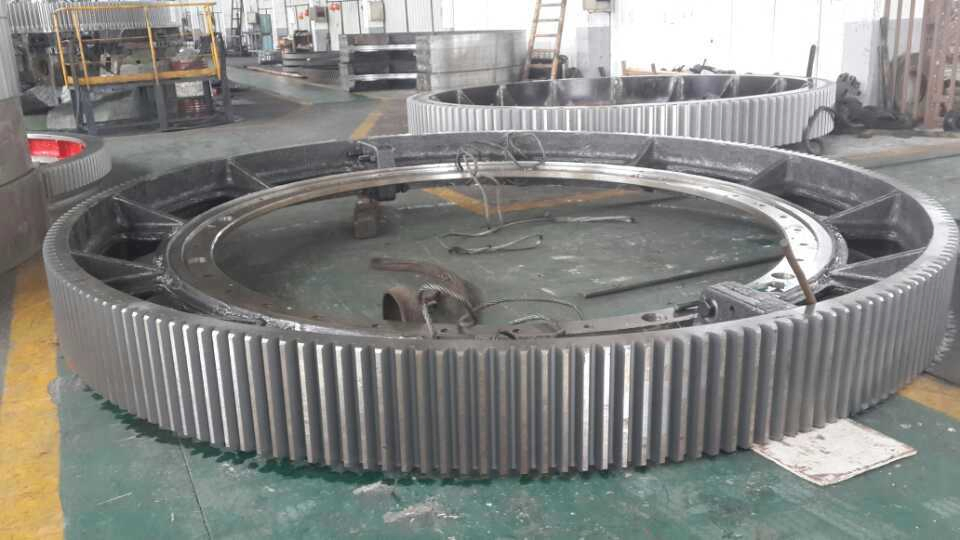

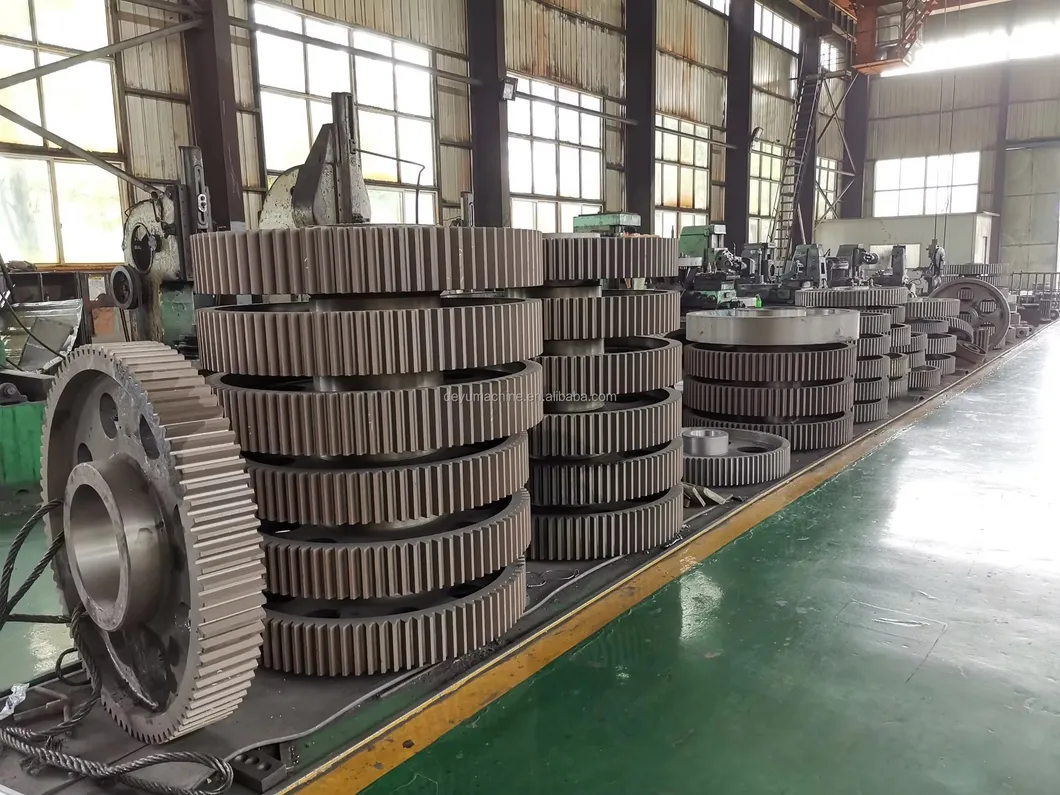

Product Description
There are many kinds of gear transmission, among which the efficiency of helical cylindrical gear is very high, such as the transmission efficiency of straight cylindrical gear is lower than that of helical cylindrical gear. Helical gear like spur gear mechanism, helical gear can be used to reduce the center distance a in order to improve the bearing capacity of the transmission can be used for high-speed operation.
Mainly produces helical gears made of steel and brass, with modules from 1 to 50 and accuracy classes 6 to 9.
| Product Name |
Helical gear |
| Material |
17CrNiMo6 ,AIS4140, 40CrNiMo, Bronze or other customized Material |
| Gear type |
Spur Gear, Helical gear, Bevel gear, and worm gear |
| Heat treatment |
Carburizing, Nitriding |
| Weight |
1-10tons |
| Application |
Cement, electric power, metallurgy, chemical, non-metallic mining and other industries |
Advantages
01
Good Mechanical Properties
Advanced Quenching and tempering (QT) treatment makes the gears a good Mechanical properties so that it can adapt to various bad working environments.
02
High strength and good wear resistance
Gear surfaces can be carburized or nitrided to increase the hardness of the gears, increase wear resistance and extend service life.
03
Technical Support
Support customized drawing, sample processing, and can provide technical support and drawing design for installation guide and routine maintenance.
04
Quality control
Control of internal and surface defects in gears by UT, PT, and MT inspection.

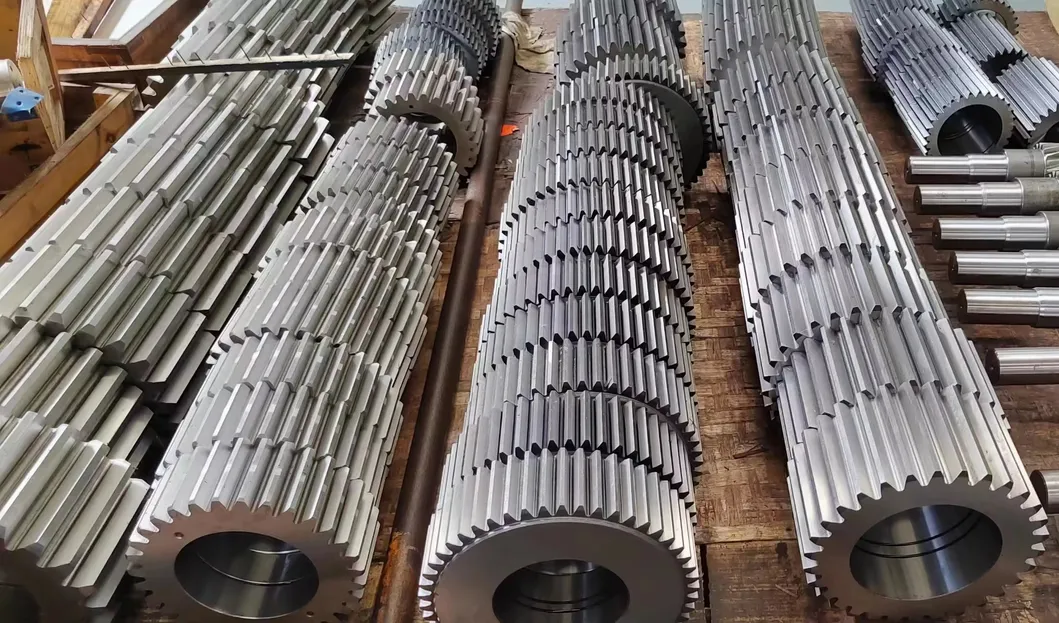

Checking report
- Mechanical Properties Report
- Hardness Test Report
- Material Test Report
- Heat Treatment Record
- Magnetic Particle Examination Report
- Ultrasonic Inspection Report
- Dimensions Checking report
Machining Flow

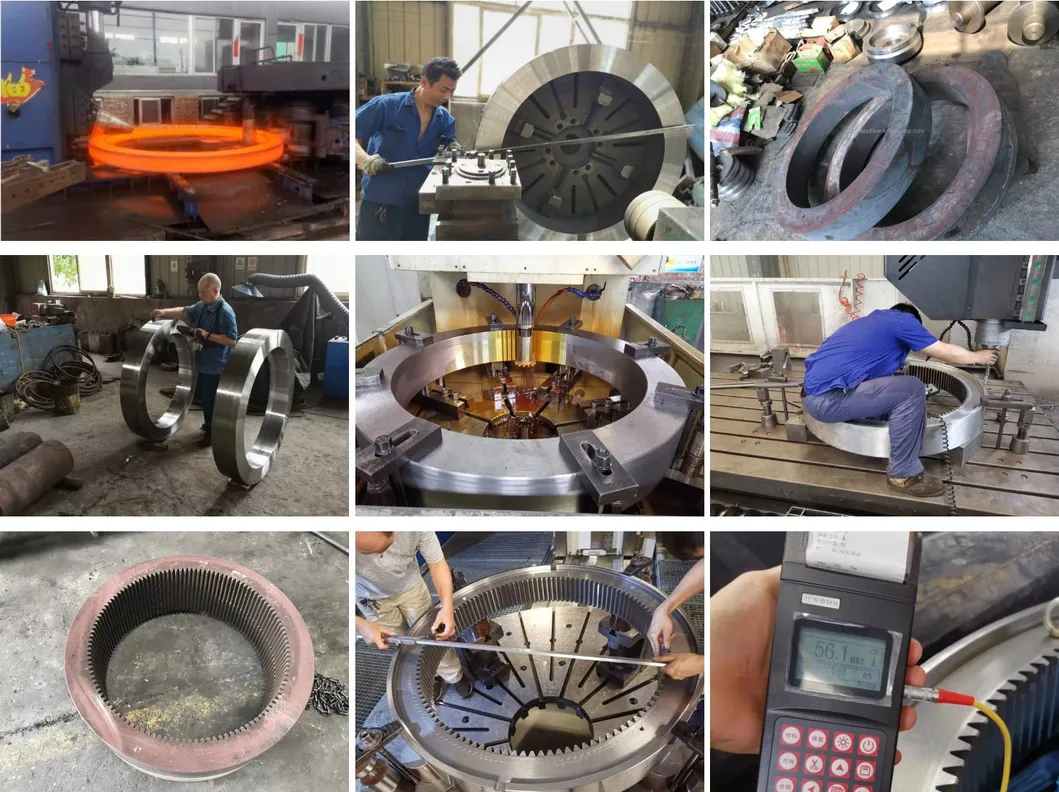

Forging / Ring Gear
Rolling Forging -- Rough machining - UT test - Heat treatment - Finished machining - Checking - Packing

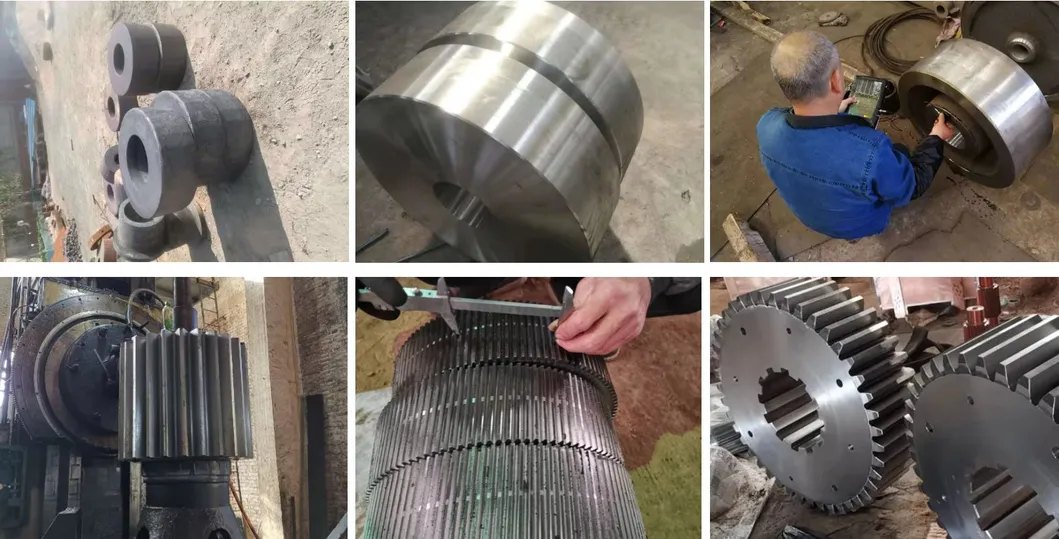

Forging / Spur Gear / Helical Gear
Forging -- Rough machining - UT test - Heat treatment - Finished machining - Checking - Packing

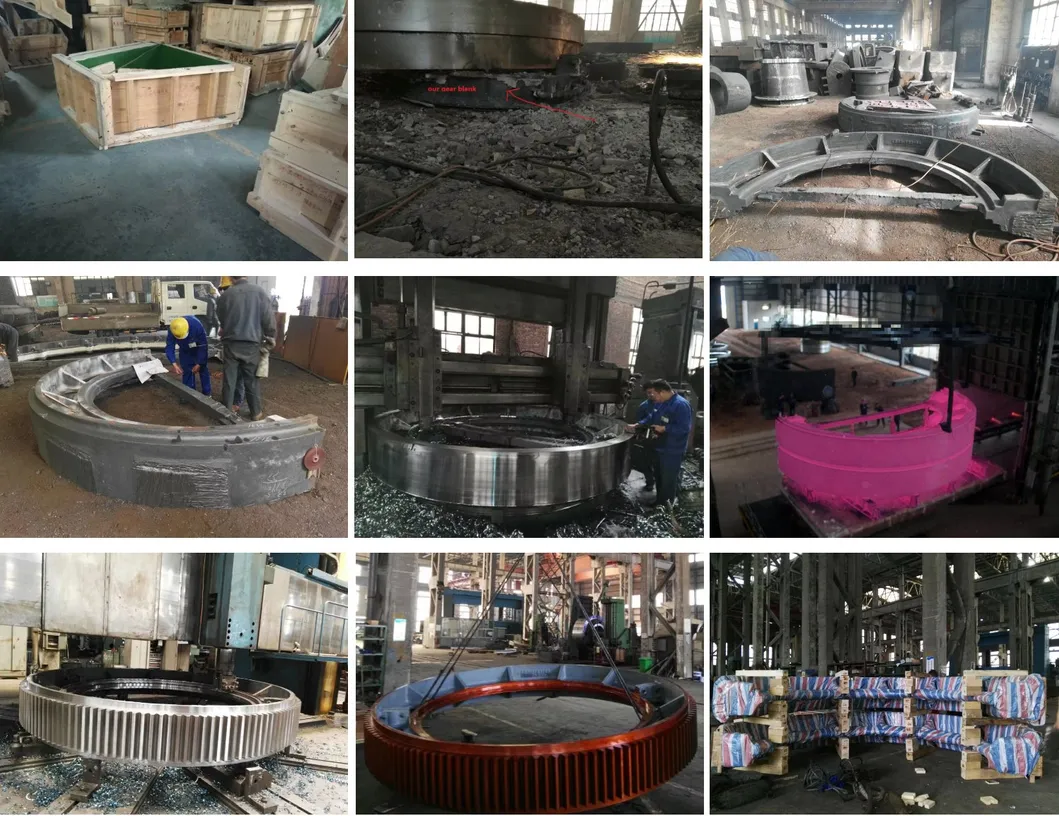

Casting / Girth Gear
Wooden Mold - Work Blank -- Annealing -- Rough Turning -- UT test - Hardening and Tempering -- Finish Turning -- Remove Blurs - Painting Anti-rust Oil
Our Company

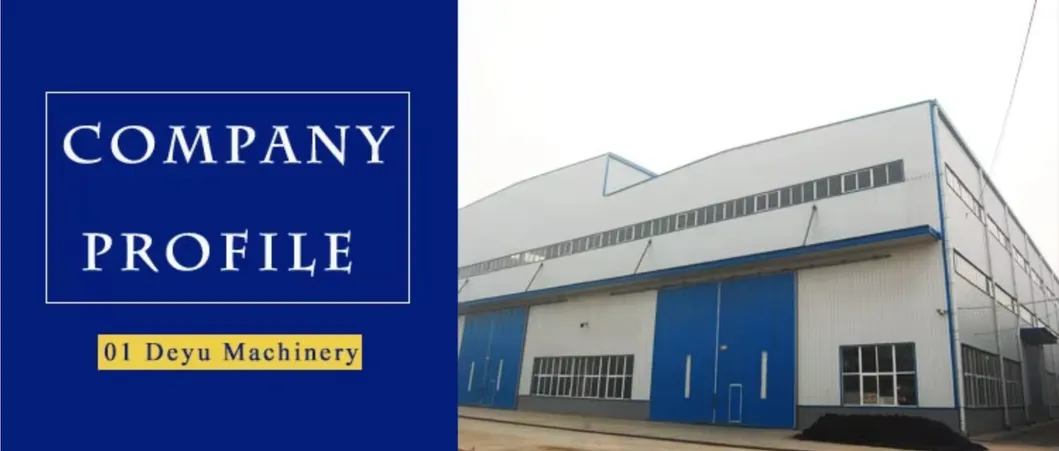

1. Profile
Specializing in CUSTOM heavy mining machine spare parts manufacturing for more than 23 years experience. We have three plants: a cold processing plant mainly engaged in shaft processing; a large-scale heat treatment equipment factory mainly engaged in heat treatment processing; and a gear factory mainly engaged in big modulus gear processing. All of them have the ISO9001 certificates.
2. Main Equipment
We have many kinds of heavy duty equipment, such as C61250×20000mm CNC Heavy duty Horizontal Lathe, 1m-14m Gear Hobbing Machine; Vertical lathe(1000mm-16000mm); 80-200 CNC Boring-milling Machine, treatment equipment, like, Gas Box Car-bottom Furnace, Heating Equipment, 105kw Carburizing Furnace etc.
3. Technical advantage
We have a professional technical team and advanced testing equipment and laboratory, so we can make sure the quality of our product and services is always consistent and reliable.

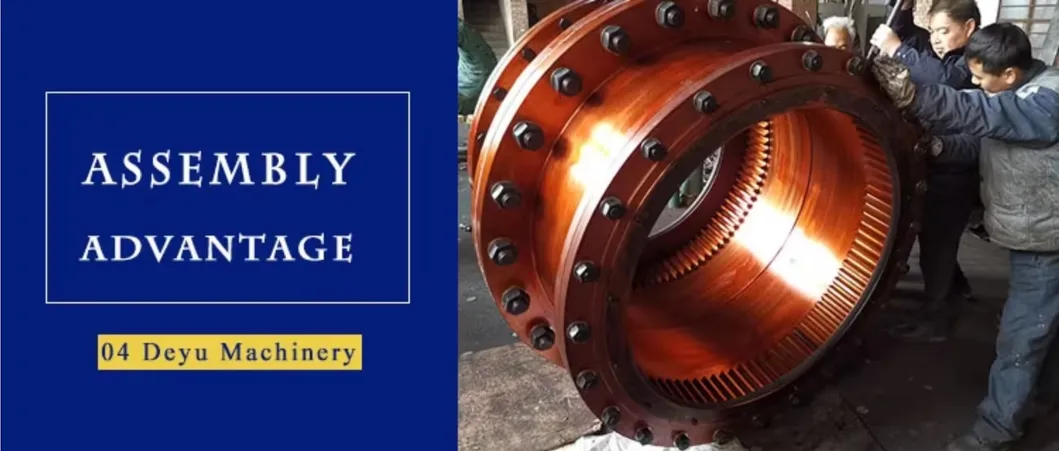

4. Assembly advantage
We can provide customers the whole set equipment with one-stop service from raw materials, processing to final assembly.
5. Third Party Inspection
We accept third-party Inspection for our factory and goods.
Customer & Exhibition
FAQ
What is the warranty period for the products?
Our warranty time is one year under the normal use condition.
Do you provide after-sales service and support?
Yes, we can supply technical support for installation guides and routine maintenance.
How long does the delivery take?
Generally it is 45-60 days, or it is determined according to the quantity and specific technical requirements.
What are your terms of payment?
We accept payment types: T/T, L/C, Western Union, and Cash. A 30% deposit is required when the contract is signed, with full payment paid before shipping.
What materials can you customize the gears with?
Available materials include 17CrNiMo6, AIS4140, 40CrNiMo, Bronze, steel, brass, or other customized materials according to technical needs.
What quality reports and tests can be provided?
We can provide Mechanical Properties Reports, Hardness Test Reports, Material Test Reports, Heat Treatment Records, Magnetic Particle Examination Reports, Ultrasonic Inspection Reports, and Dimensions Checking reports.
