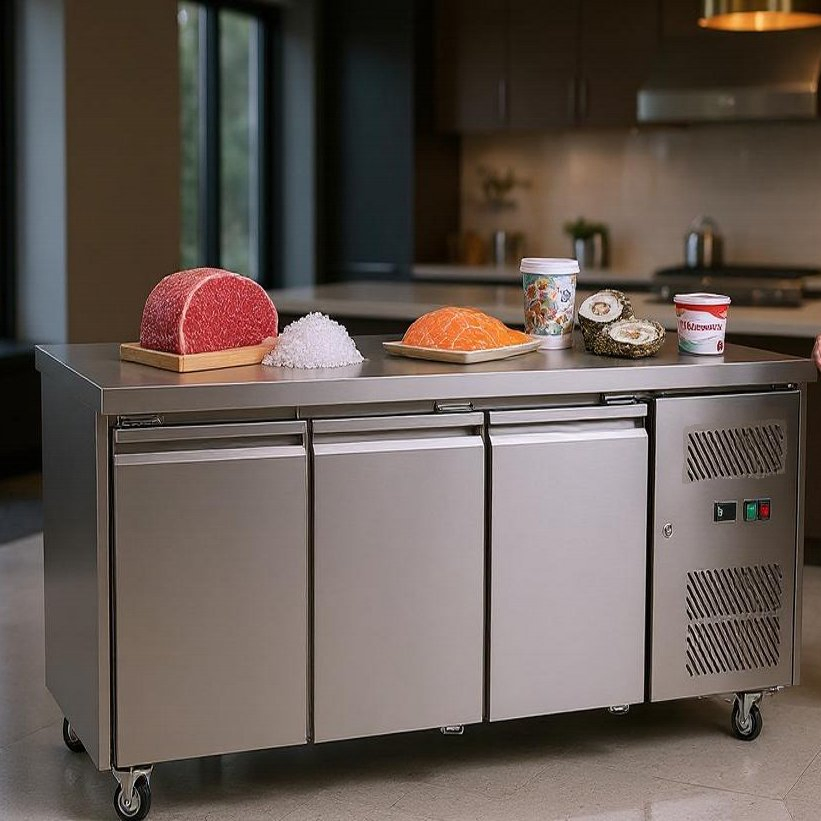

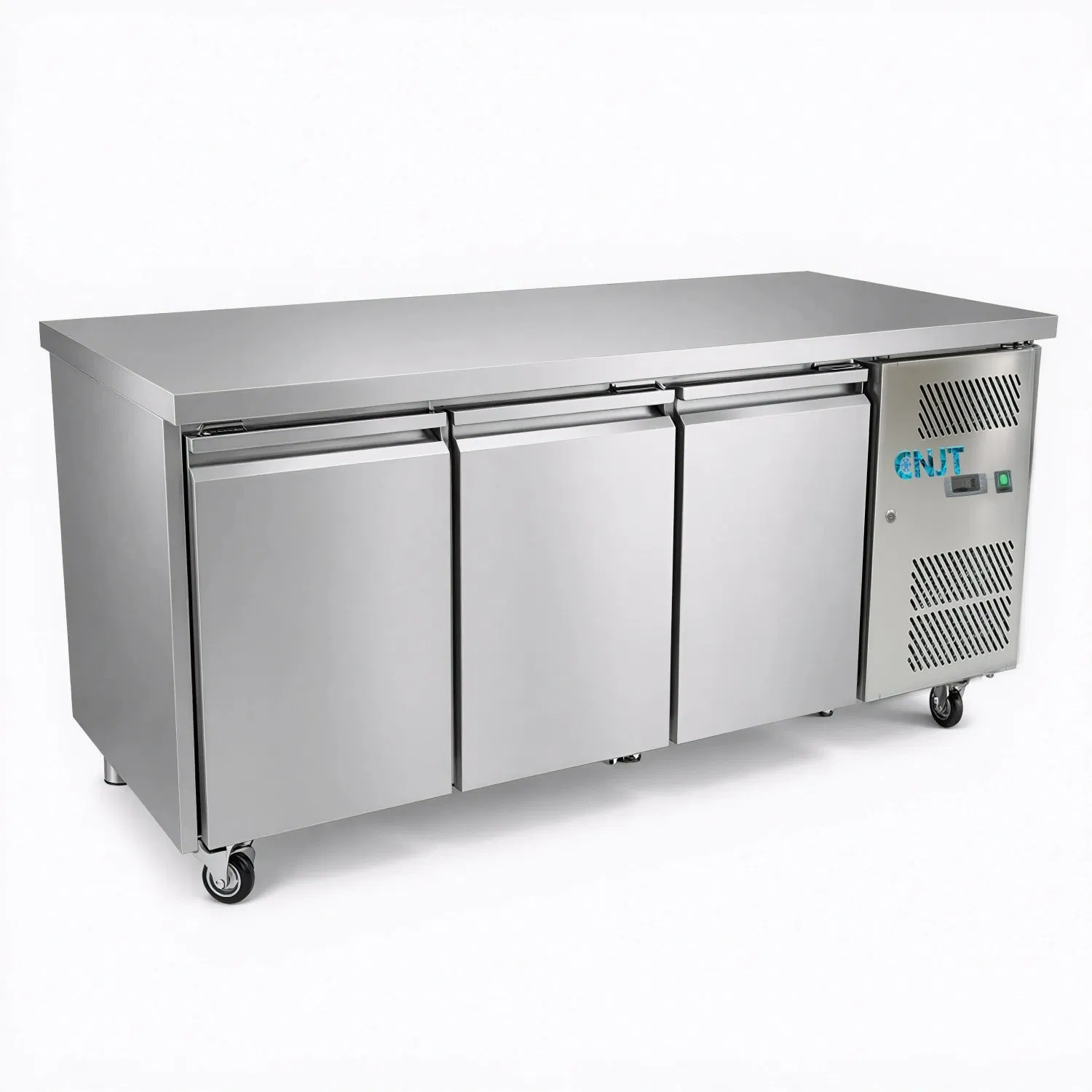

Gn3100 Series Commercial Stainless Steel Refrigerated Counter Chiller Freezer with Ventilated Cooling

Product Description

Gn3100 Series Commercial Stainless Steel Refrigerated Counter Chiller Freezer with Ventilated Cooling Gn3100 Series Commercial Stainless Steel Refrigerated Counter Chiller Freezer with Ventilated Cooling

Product Description

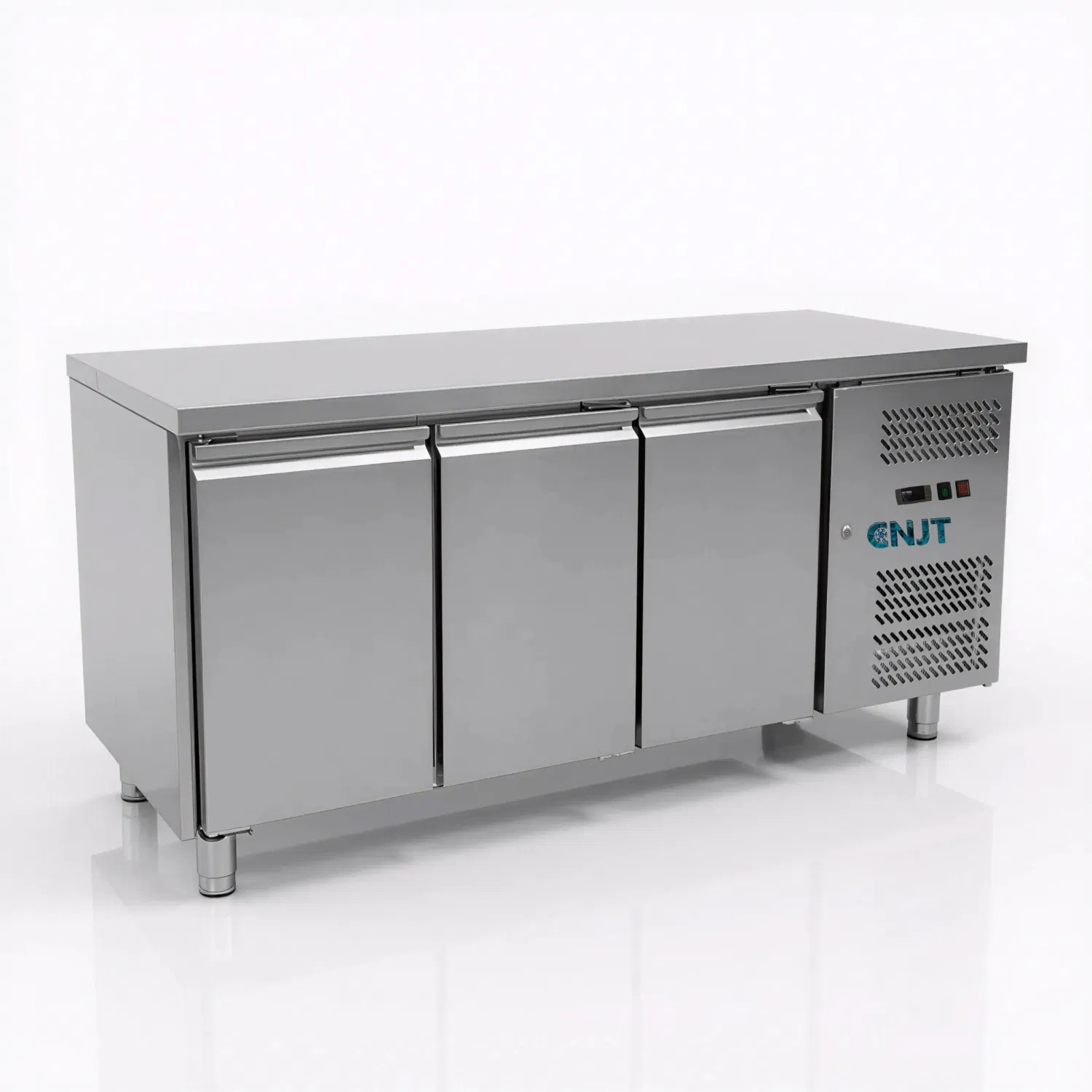

Commercial GN3100 Refrigerated Counter Three Door Stainless Steel Chiller Freezer for Kitchen Restaurant Hotel Use

The GN3100 series refrigerated counter is a high performance commercial cold storage solution designed for professional kitchens in restaurants hotels cafes and catering businesses. Made from full stainless steel inside and outside this unit offers excellent durability hygiene and easy cleaning.

The ventilated cooling system ensures even temperature distribution throughout the cabinet while the reversible self closing doors improve convenience and reduce energy loss. The digital thermostat allows precise temperature control and automatic defrost function keeps the unit running efficiently with minimal maintenance.

Available Models:

  • GN3100TN Chiller: 2 to 8°C
  • GN3100BT Freezer: minus 18 to minus 22°C

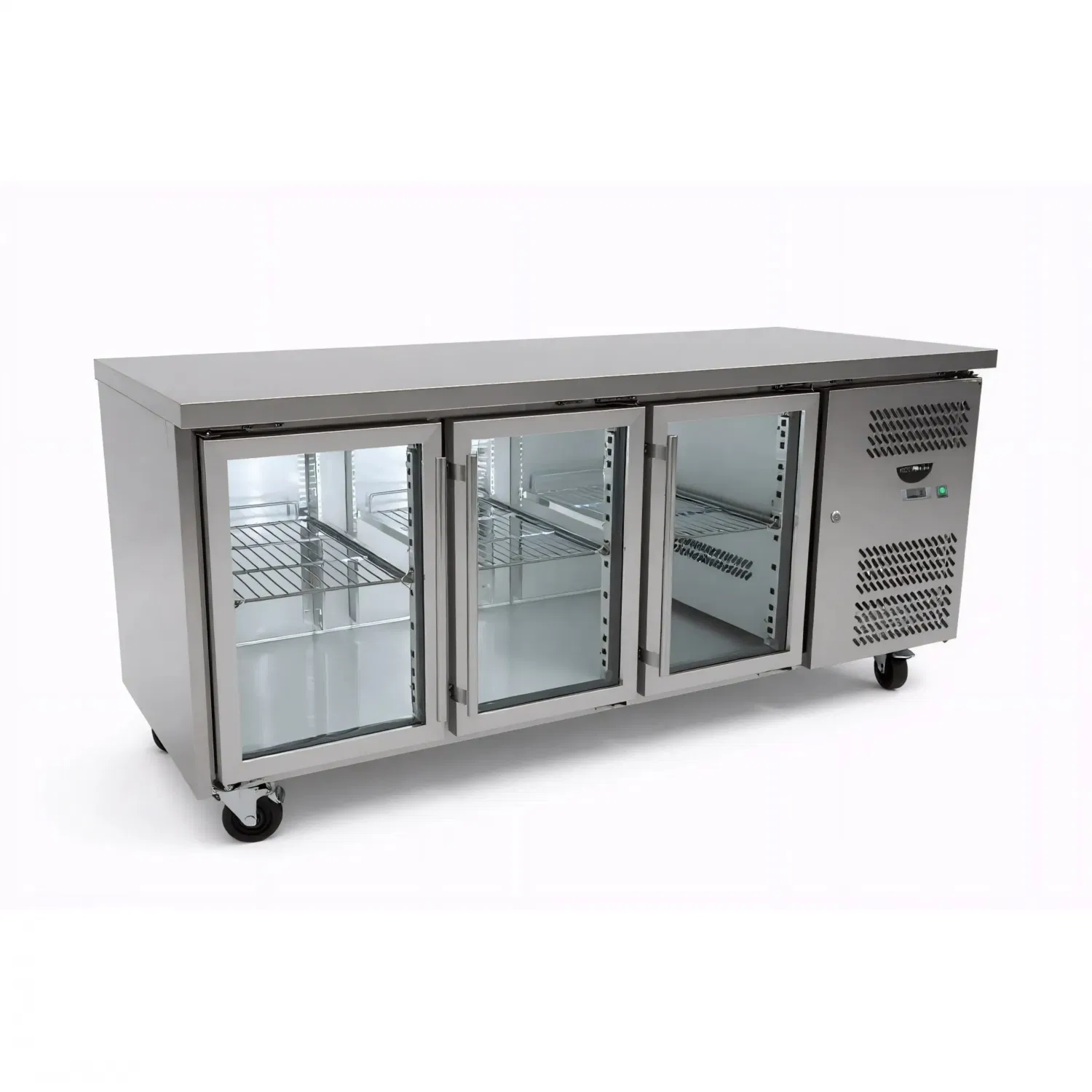

  • GN3100TNG Chiller: with glass doors and LED light

Each unit features a 417 liter capacity three adjustable shelves and optional caster wheels or adjustable feet. LED lighting and lock key are also available on request. Perfect for commercial food preparation and storage the GN3100 refrigerated counter provides a reliable and cost effective refrigeration solution for your business.

Specification

Model GN3100TN GN3100BT GN3100TNG
Unit dim. (WxDxH mm) 1795x700x850 1795x700x850 1795x700x850
Capacity (L) 417 417 417
Cooling system Ventilated Ventilated Ventilated
Temp. (℃) +2~+8 -18~-22 +2~+8
Shelves No. 3 3 3
Interior light / / LED light
Digital thermostat Dixell Dixell Dixell
Coolant R134a/R600a R404A/R290 R134a/R600a
40' container loading 57 57 57
Gn3100 Series Commercial Stainless Steel Refrigerated Counter Chiller Freezer with Ventilated Cooling Gn3100 Series Commercial Stainless Steel Refrigerated Counter Chiller Freezer with Ventilated Cooling Gn3100 Series Commercial Stainless Steel Refrigerated Counter Chiller Freezer with Ventilated Cooling

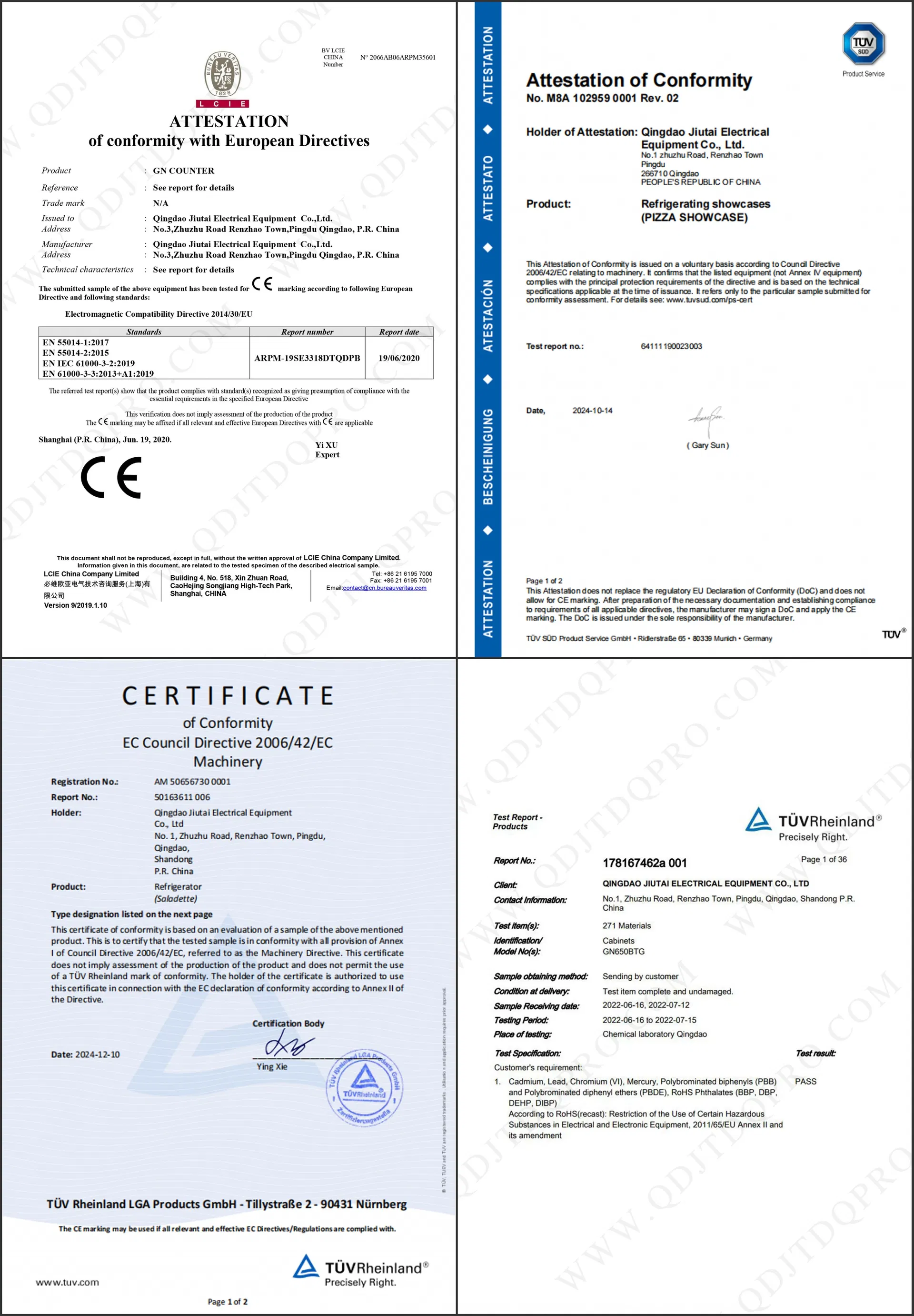

Certified Quality You Can Trust – CE & TUV Compliant

We are proud to offer commercial refrigeration products that meet stringent European standards. Our equipment has successfully passed TÜV Attestation of Conformity for Pizza Showcases and has received CE certification under European Directives for Commercial Refrigerators.

These certifications confirm compliance with:

  • EN IEC 55014-1/2:2021 (Electromagnetic Compatibility)
  • EN IEC 61000 series (Electrical Safety)
  • Certified by internationally recognized bodies: TÜV SÜD and Bureau Veritas

We ensure safe, reliable, and export-ready products that meet the regulatory requirements for the EU and other global markets. Whether you're a distributor or end user, you can count on professional-grade, certified refrigeration equipment.

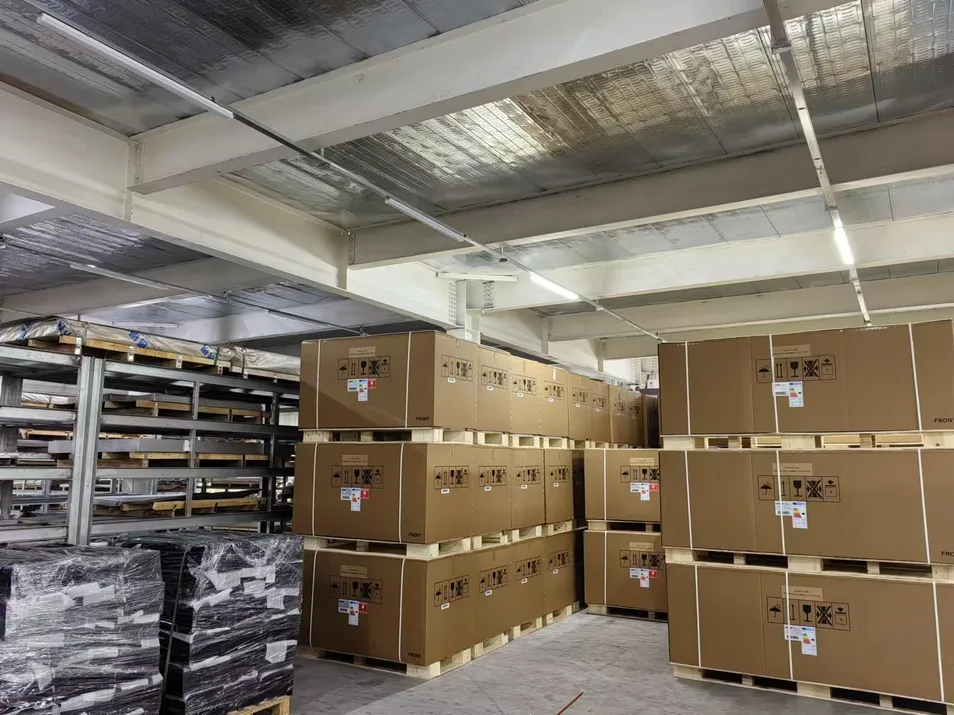

Packing & Delivery

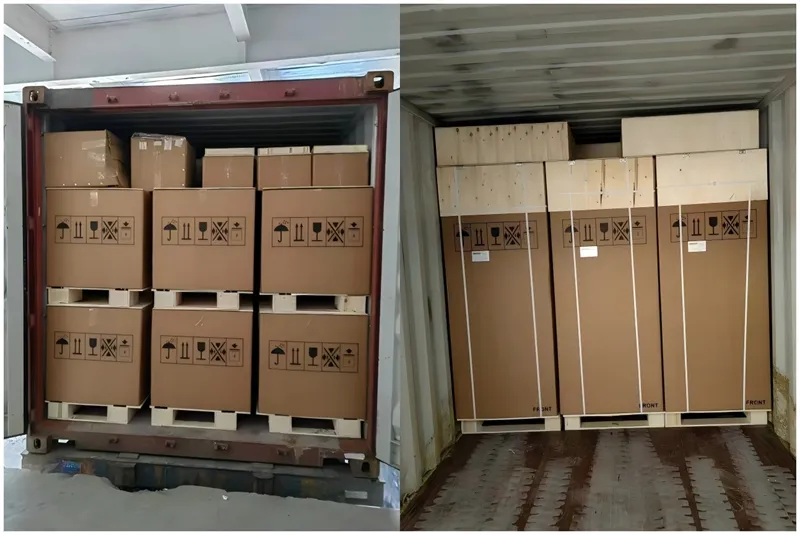

Packing details Packing details loading

Packing Details

  • Packing Type: Export Standard Wooden Case or Carton with Protective Foam
  • Loading Quantity (40'HQ): 57 units/40HQ
  • Gross Weight: Depending on model, from 130kg to 150kg
  • HS Code: 8418500000
  • Logo / OEM: Acceptable
  • Certification: CE, RoHS
Detailed Dimensions

Company Profile

We are a professional manufacturer of commercial refrigeration equipment established in 2014. We specialize in designing and producing high-quality refrigerators, freezers, prep counters, and beverage coolers. Our products are widely used in hotels, restaurants, supermarkets, and catering businesses worldwide.

With a strong focus on energy efficiency, durability, and international standards, we offer OEM & ODM services and support global distributors with timely delivery and reliable after-sales support.

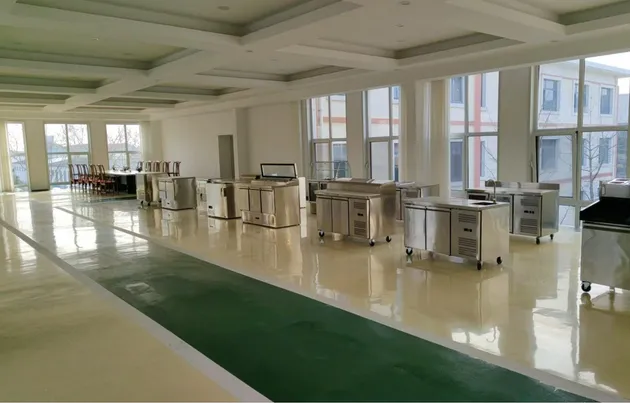

Factory Workshop Factory Warehouse Quality Control

Frequently Asked Questions

Q What is the temperature range of the GN3100TN chiller?
The GN3100TN operates between plus 2 to plus 8 degrees Celsius, which is highly suitable for fresh food storage.
Q Is the cooling system ventilated or static?
All GN3100 models use a ventilated cooling system to ensure consistent air circulation and uniform temperature distribution throughout the cabinet.
Q Can I choose caster wheels or adjustable feet?
Yes, both caster wheels and adjustable feet options are available to fit your specific installation and mobility needs.
Q Does the unit come with LED lights?
LED lights are optional for GN3100TN and GN3100BT models, and come as a standard feature for the GN3100TNG model which has glass doors.
Q What kind of refrigerant does the unit use?
The GN3100TN and GN3100TNG models use R134a or R600a refrigerants, while the GN3100BT freezer model uses R404A or R290.
Q Is the door self-closing?
Yes, all models in this series come equipped with reversible, self-closing doors to improve convenience and reduce cold energy loss.
