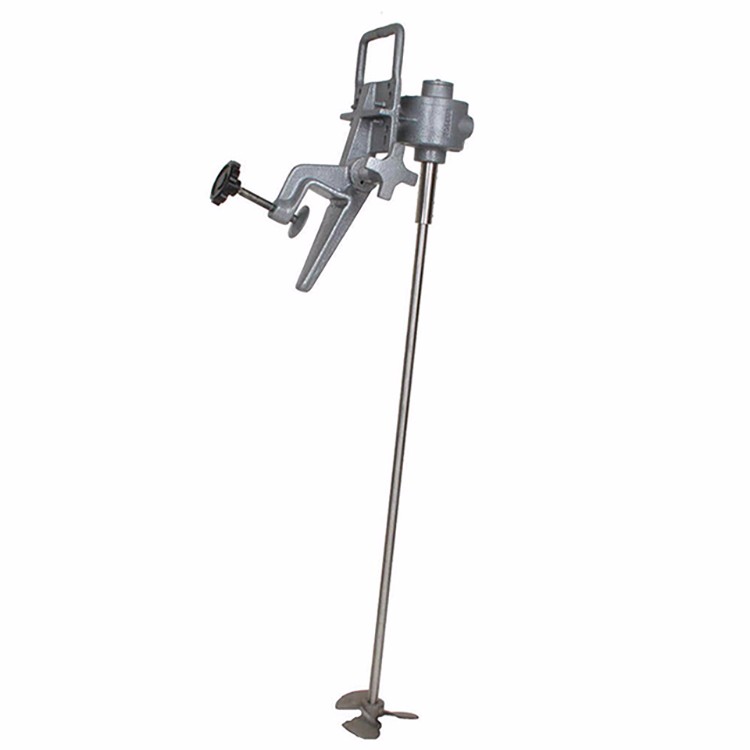

ADM127 Pneumatic Agitator, Stirrer Air Mixer for Liquid Mixing for Food, Chemical Industry

Product Description

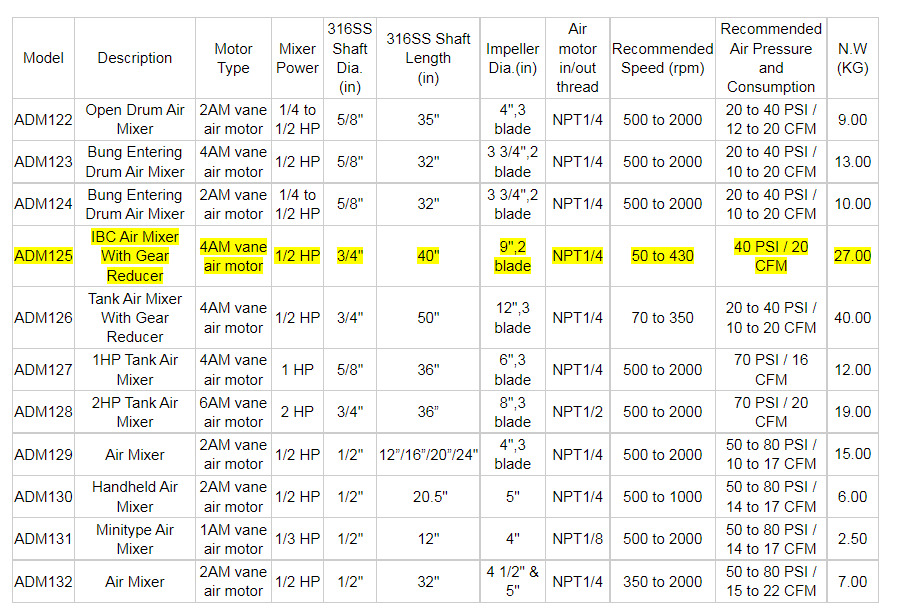

ADM127 Technical Parameters
Description	Tank Mixer
Motor Type	4AM
Power	1hp
Shaft Dia.	5/8''
Shaft Length	36''
Impeller Dia.	6'', 3 blade
Air Motor in/out Thread	NPT 1/4
Speed	500-2000 rpm
Air Pressure and Consumption	70PSI / 16CFM
N.W.	12 kg

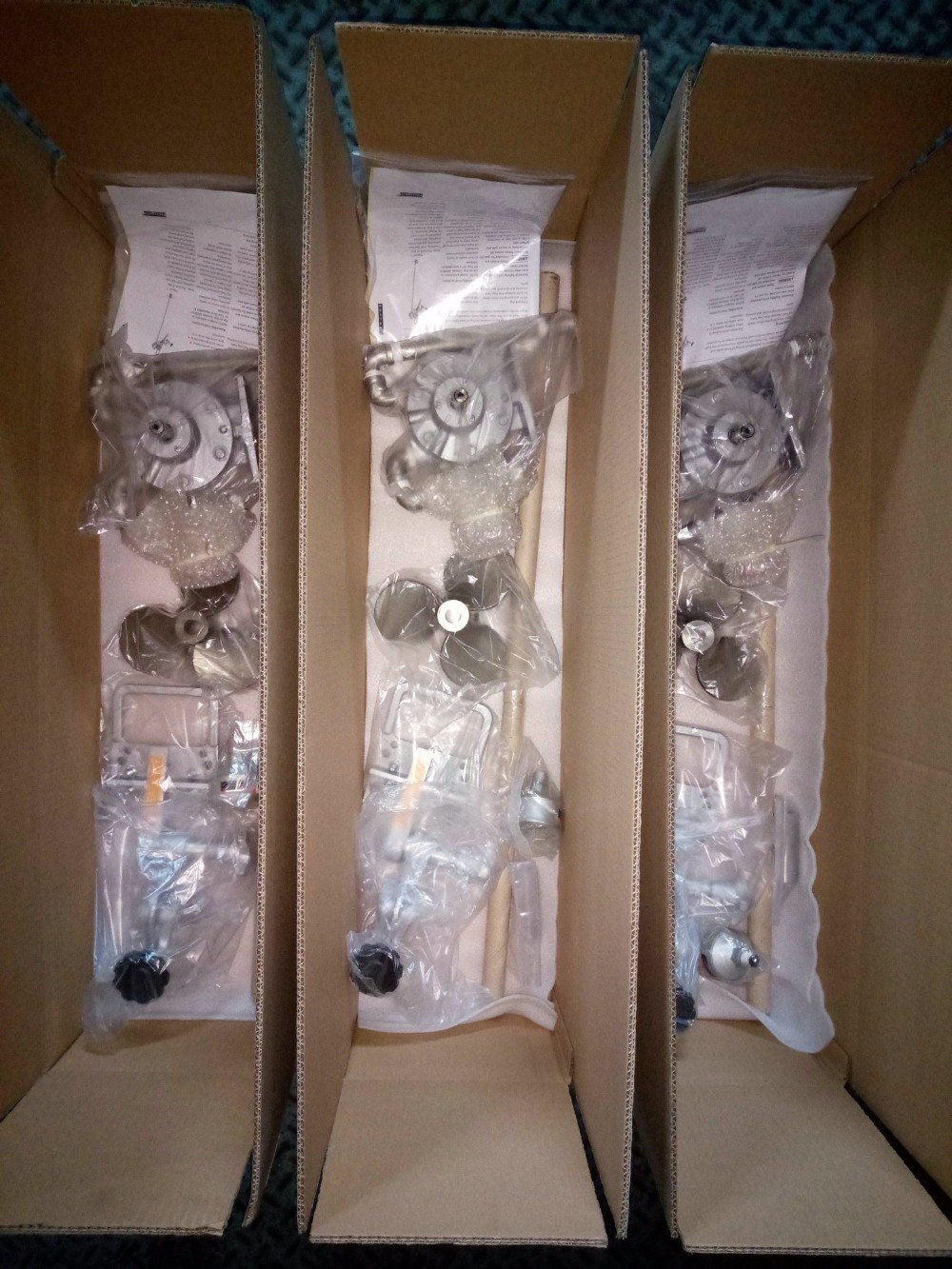

Packing & Delivery

Packaging Specs
Size	1000 (L) * 300 (W) * 370 (H) mm
Weight	13kg
Details	Plywood case Plywood is a material manufactured from thin layers or plies of wood veneer that are glued together with adjacent layers. It is an engineered wood from the family of manufactured boards which includes medium-density fibreboard (MDF) and particle board (chipboard).

Cooperation Partner

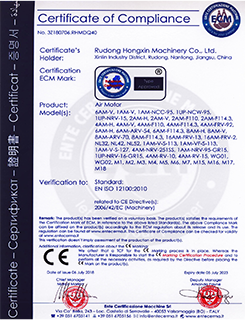

Certifications

Related Products

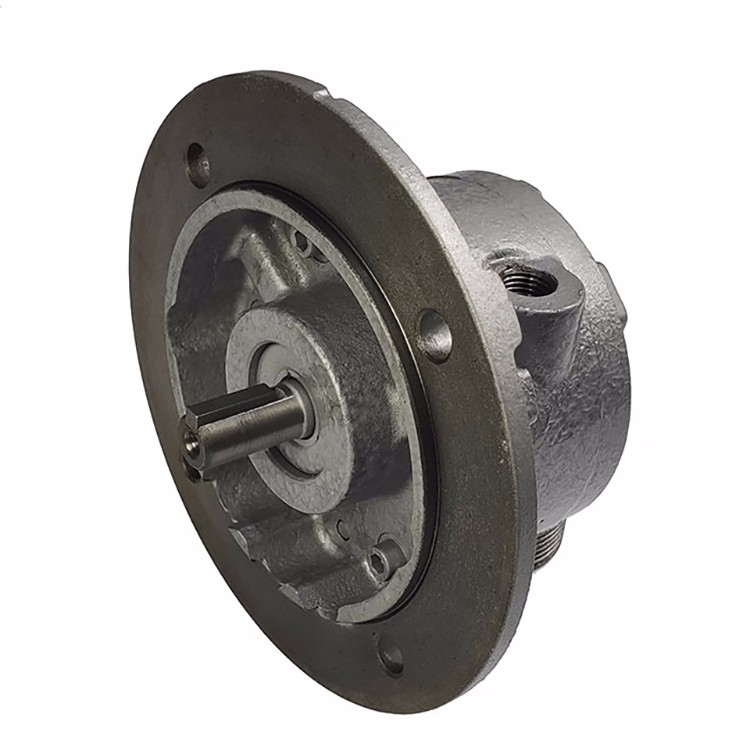

2AM-F110 Vane Air Motor

100% Response Rate

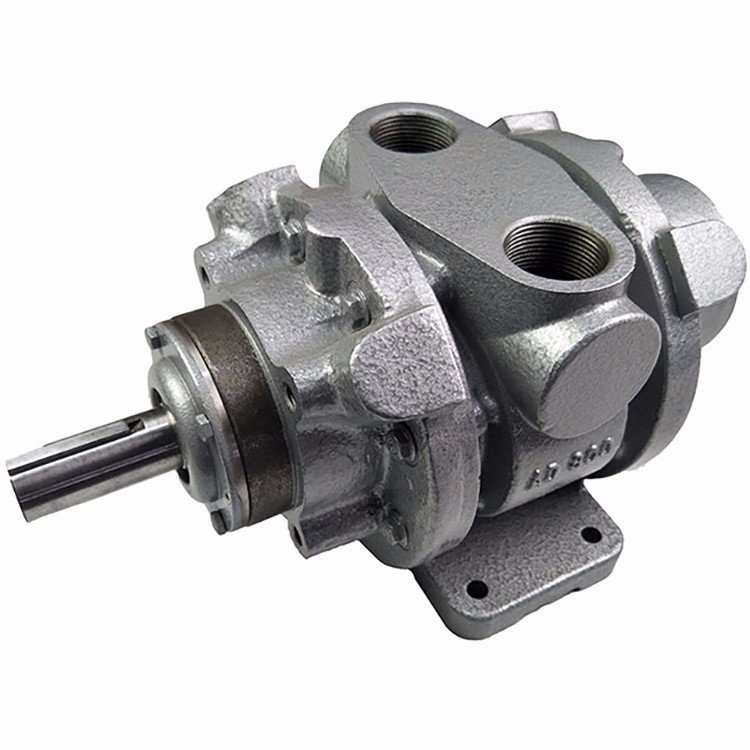

16AM-ARV-2 Vane Air Motor

100% Response Rate

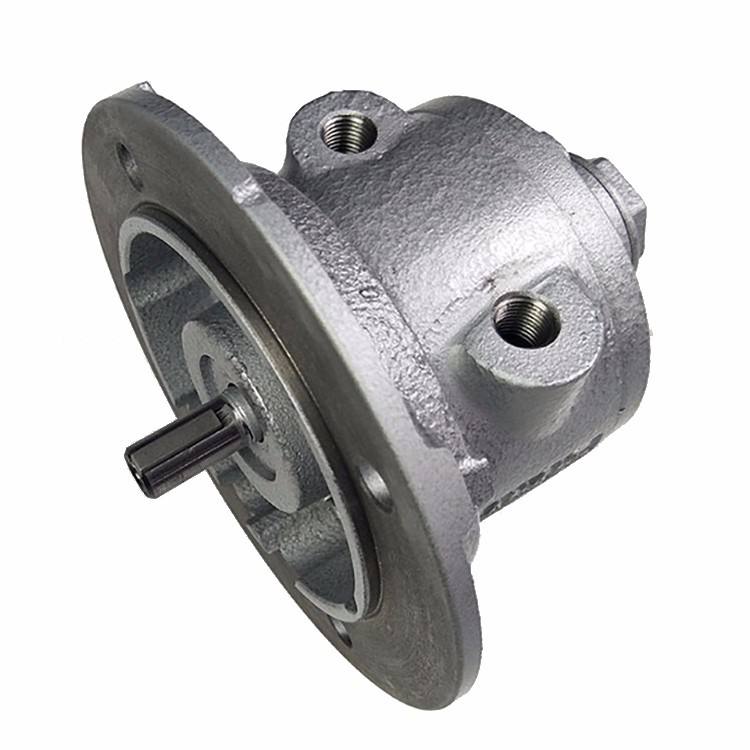

4AM-F110 Vane Air Motor

100% Response Rate

Frequently Asked Questions

Q1: What is the primary function of the ADM127 Tank Mixer?

A1: The ADM127 is designed as a dynamic tank mixer powered by a 4AM vane air motor, suitable for safe and uniform mixing of fluids in industrial and hazard-prone settings.

Q2: What air pressure and flow rate does the air motor require?

A2: The device operates optimally at an air pressure of 70 PSI and requires an air consumption of 16 CFM.

Q3: How variable is the speed of this mixer?

A3: The speed can be regulated continuously within a range of 500 to 2000 RPM, allowing fine control based on the fluid viscosity.

Q4: What are the main specifications of the shaft and impeller?

A4: The mixer is equipped with a 36-inch length shaft with a 5/8-inch diameter and a 6-inch, 3-blade impeller for optimal blending capability.

Q5: How is this product packaged for overseas shipping?

A5: It is packed securely in strong plywood cases measuring 1000 x 300 x 370 mm with an overall gross weight of approximately 13kg to protect it from shipping damage.

Q6: What connection size is used for the air inlet and outlet?

A6: The air motor features standard NPT 1/4 inch threads for its air inlet and outlet connections.
