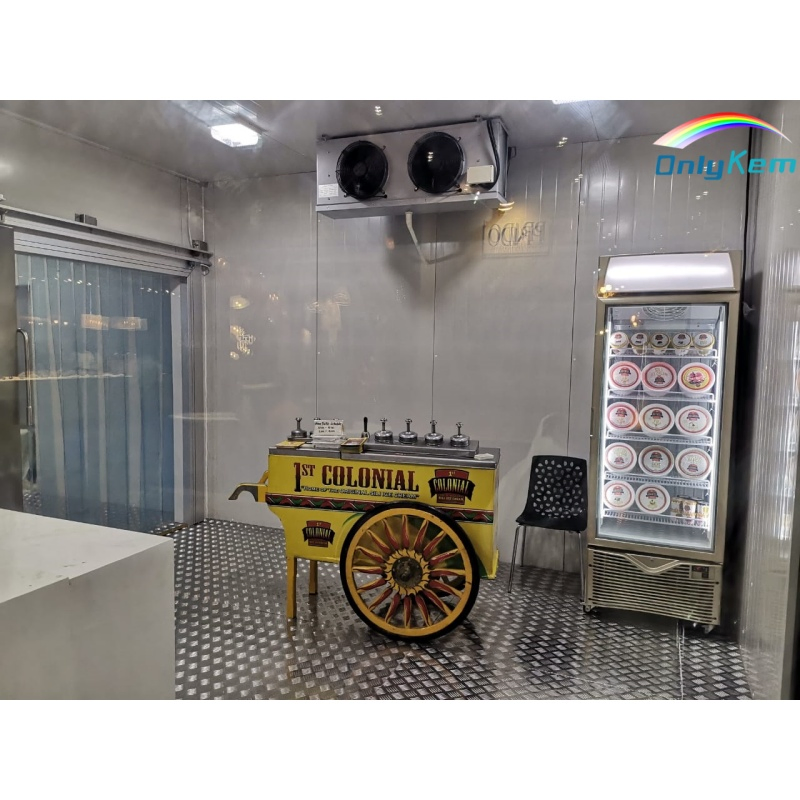

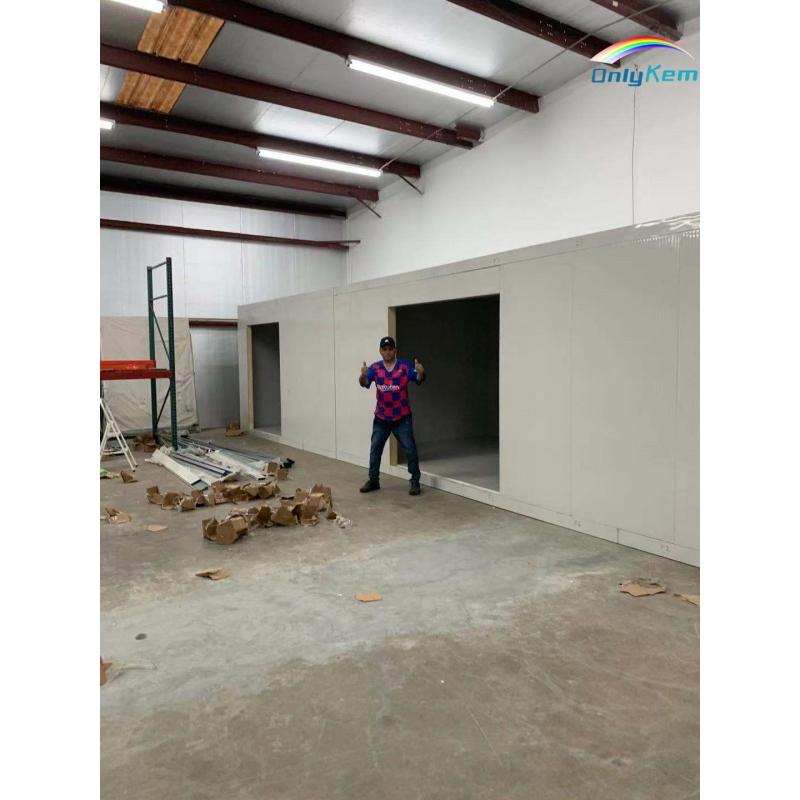

Restaurant Modular Cold Freezer Room Walk in Cold Room with Monoblock Unit

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info

Model NO. Walk in Cold Room
Voltage 110V, 220V, 380V, 420V, 440V
Type Screw Refrigeration Machinery
Total Input 3.6kw
Size Customizable
Sealing Method Totally Enclosed
Cooling Mode Air-Cooled
Capacity 1~15tons
After-Sales Service Engineers Available to Service Machinery Overseas
Service Door 36 X 81" Metal Plugin Service Door
Surface Material Galvanized Steel/Stainless Steel
Steel Thickness 0.426mm, 0.5mm, 0.6mm
Walk-in Freezer Sandwich Panel 75mm, 100mm, 120mm, 150mm, 200mm
Walk-in Freezer Doors Hinged / Sliding / Swing / Lifting Doors
Refrigeration System New Generation of Smart Cooling System
Condenser Type Fnv / Fnh (Air Cooled, Water Cooled, Evaporative)
Evaporator Air Cooled(Ceiling Mounted, Floor Mounted)
Condensing Unit Open / Box Type
Defrosting Way Hot Gas / Electric
PU Core Density 40+-/2kg/M3
Evaporator Case PPGI/Stainless Steel/ Aluminum
Insulation Panel PIR Panel/PUR Panel
Energy Efficiency Grade I
Origin Shandong
HS Code 8418991000
Production Capacity 800sets/Month

Packaging & Delivery

Package Size 227.00cm * 206.00cm * 237.00cm
Package Gross Weight 1150.000kg

Product Description

Restaurant Modular Cold Freezer Room Walk in Cold Room With Monoblock Unit

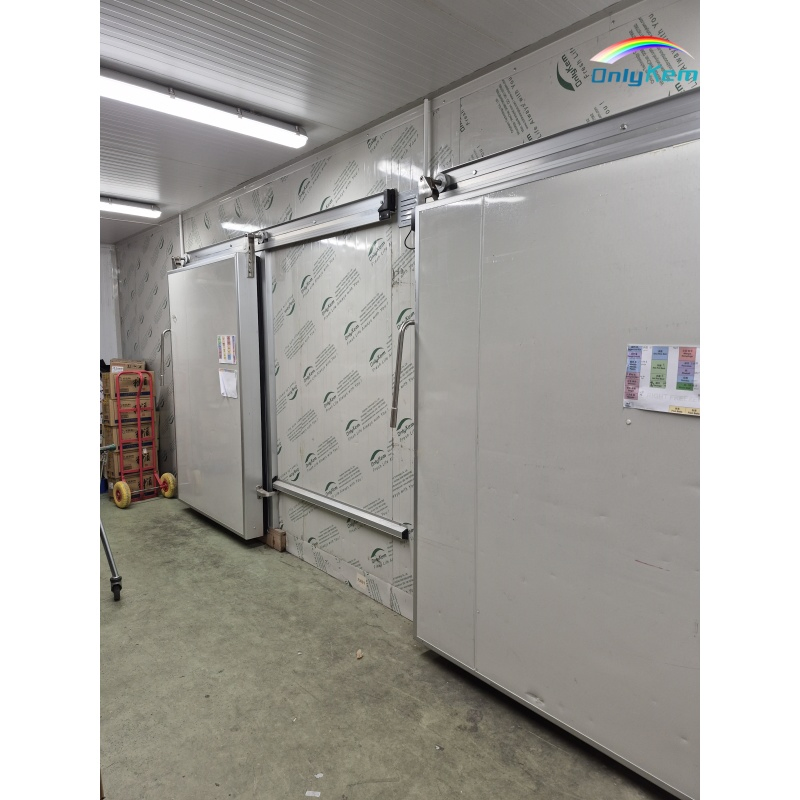

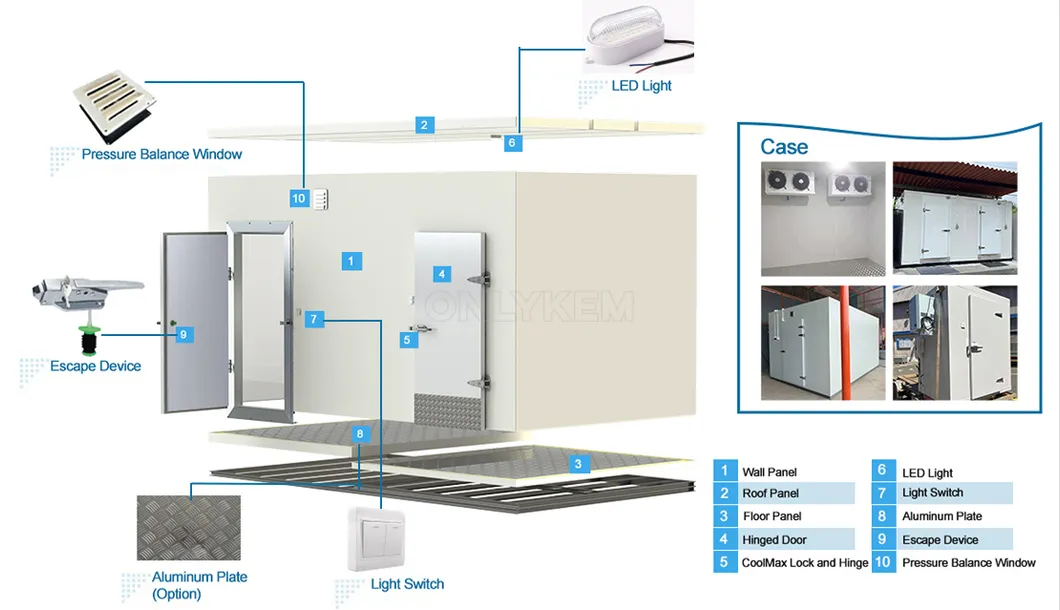

Restaurant Modular Cold Freezer Room Walk in Cold Room with Monoblock Unit

Introduction of Walk in Cold Room

A Walk in Cold Room is a warehouse that artificially generates a specific temperature. It is usually designed to store products in an environment below the outside temperature. Walk in Cold Rooms are assembled using polyurethane (PU) panels, delivering excellent air tightness and heat insulation performance.

Walk in Cold Room Features

  • Temperature range: -5°C to +5°C for Vegetables and Fruits; -18°C for Meat and Seafood.
  • Size: Fully Customizable.
  • Function: Preservation, freezing, and quick freezing.
  • Performance: Low noise, high reliability, and high efficiency.

PUR Panels

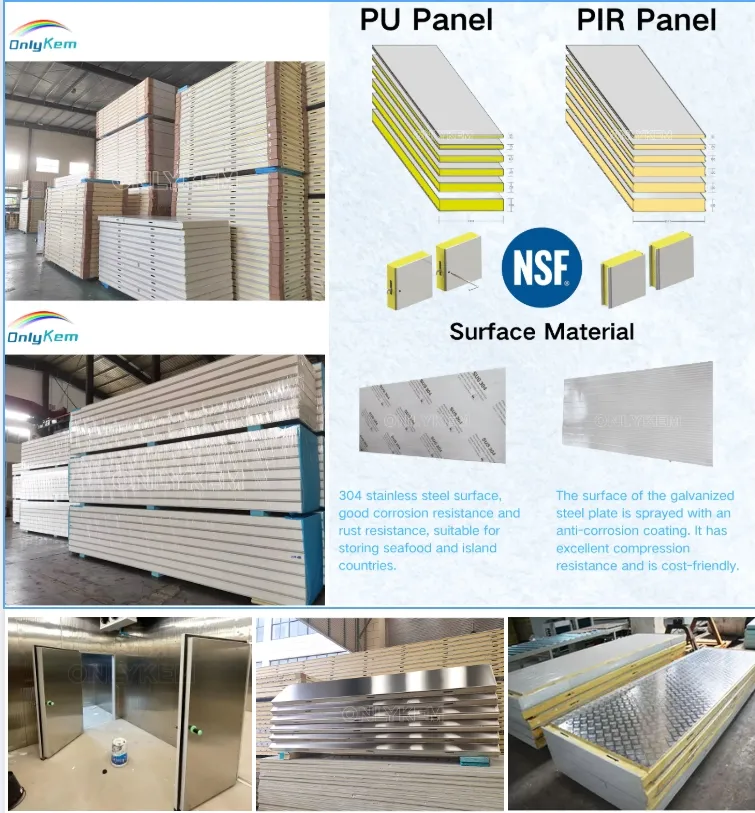

PUR Panels for Walk in Cold Room
Thickness 75mm, 100mm, 120mm, 150mm, 200mm
Width Standard: 960mm (Customization Available)
Length Maximum 11.8m without connection
PU Parameters Density ≥ 42kg/m³, Flame Retardant Time ≤ 5s, Hook Distance = 900mm
Plate Options Color Steel: 0.326mm, 0.376mm, 0.426mm, 0.5mm
Stainless Steel: 0.6mm, 0.8mm
Embossed Metal Sheet: 0.535mm

Cold Room Storage Door

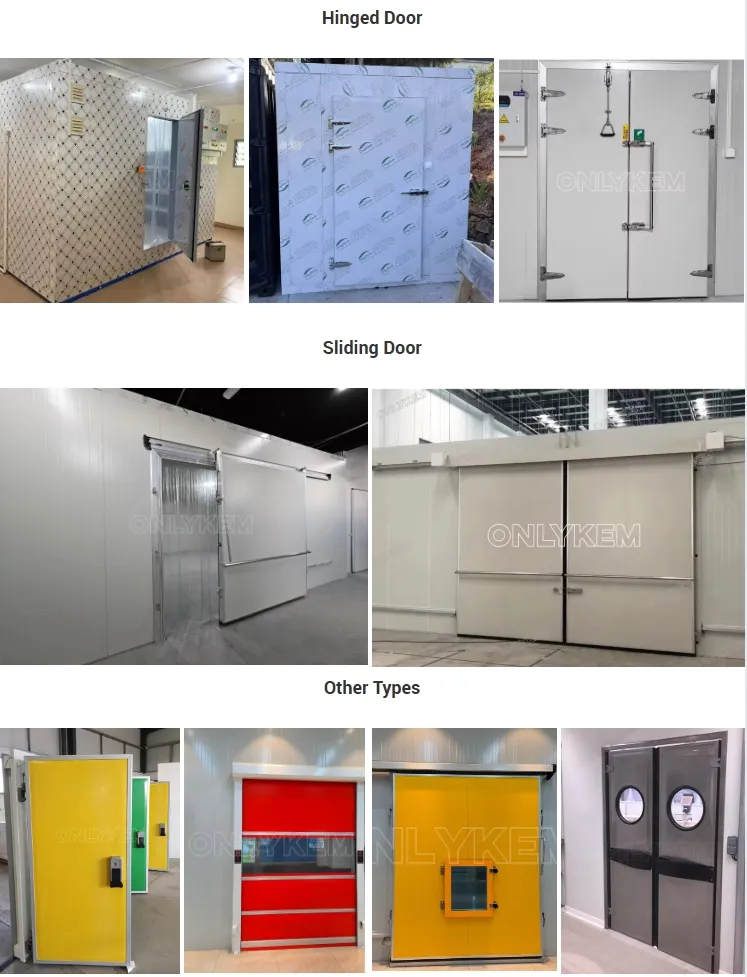

Cold Room Storage Door

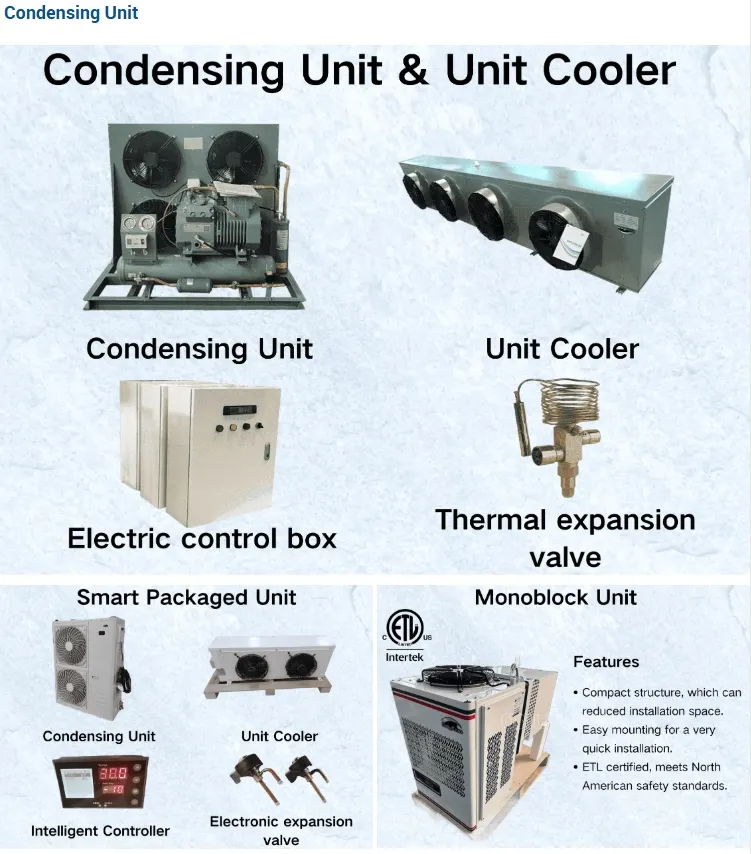

Refrigeration Condensing Unit

Refrigeration Monoblock Unit
  • Compressor brands: Copeland, etc.
  • Refrigeration type: Monoblock unit / split units.
  • Refrigerant: R404A / R410A, etc.
  • Defrost Type: Electric defrosting.
  • Power: 220V/50Hz, 220V/60Hz, 380V/50Hz, 380V/60Hz (3-Phase), etc.

Unit Cooler / Evaporator

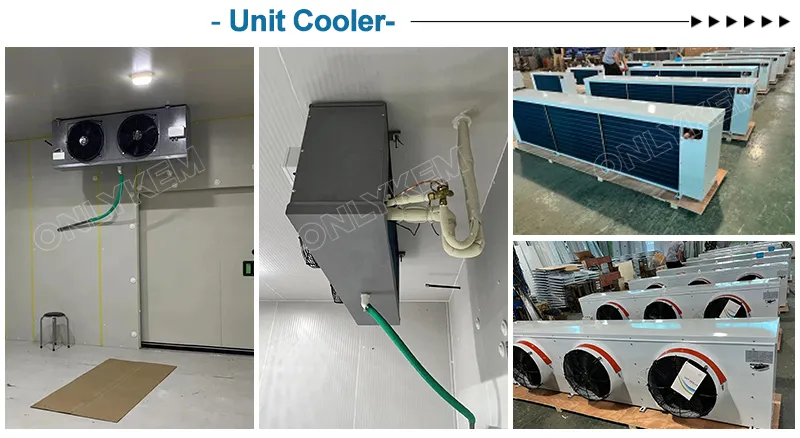

Unit Cooler Evaporator
  • Axial Fan: Reputable brand axial fan, stable quality, lower noise, and higher efficiency.
  • Design with waterproof protection, ensuring high safety.
  • Whole temperature series: DL, DD, DJ series for high, middle, and low temperature ranges.
  • Water Receiver: Double receiver design.

Why Choose Our Cold Rooms

More than 17 years of refrigeration experience

Our team has extensive experience in the cold storage industry. We provide high-quality cold room products and tailored system solutions globally. We can produce and supply Grade A spec cold storage units for hygienic food processing environments, large industrial cold stores, and walk-in cold rooms. Whatever your requirements, we can provide you with a cold storage solution that meets your exact needs.

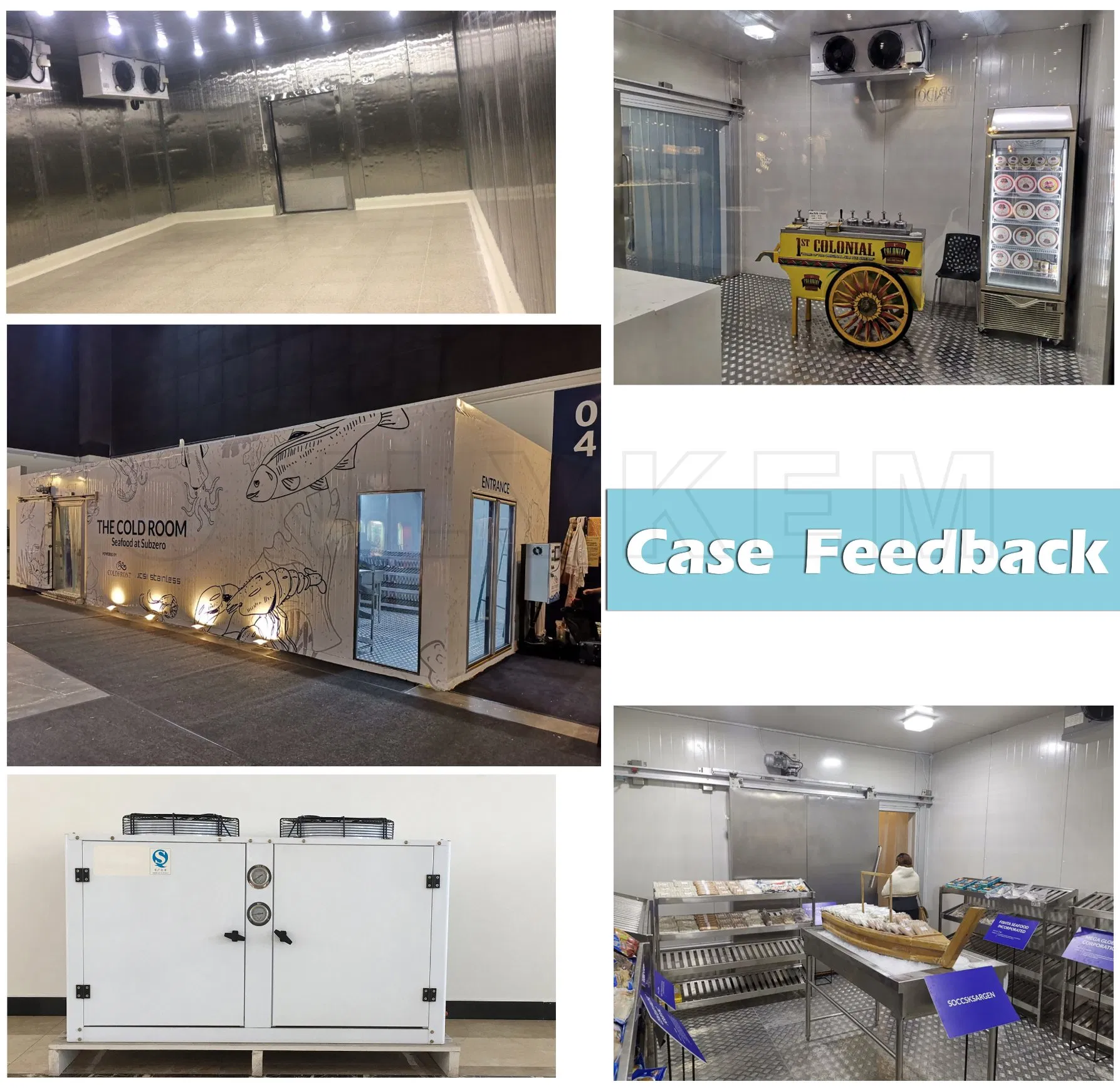

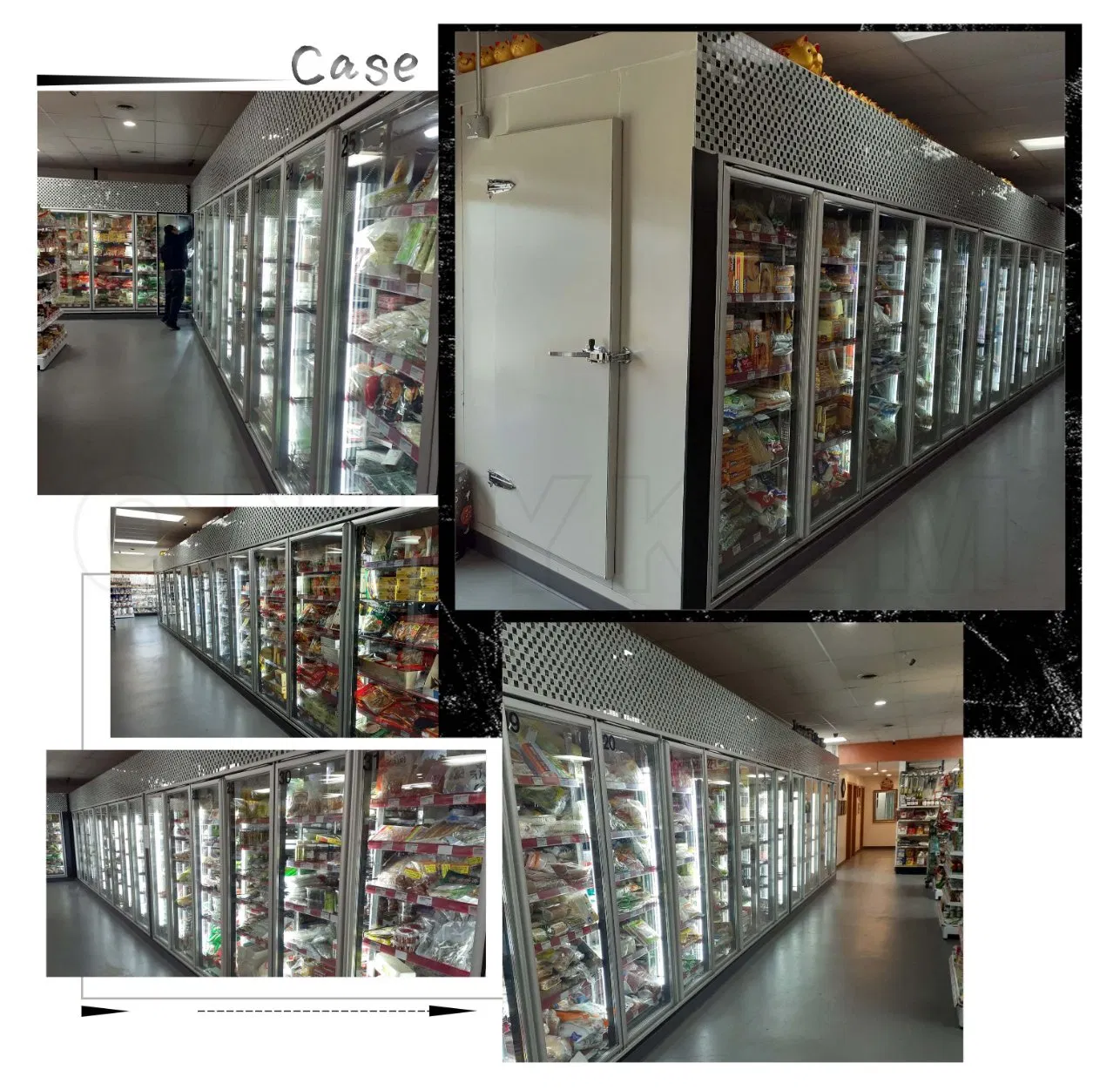

Refrigeration experience and global cases

Unparalleled Customer Support

Our highly experienced sales staff and support team are here for you before, during, and after the sale.

One Stop Service Solution

One Stop Solution

Turnkey Solution: Integrated product and system design, manufacturing, quality control, site installation, and support are fully available.

Strong Packaging
Fast Shipping

Strong Packaging and Fast Shipping

The insulation panels are packed with protective corner guards, and the machinery units are packed securely in wooden cases. Our loading teams make full use of container space to accommodate as much cargo as possible, effectively reducing transport costs.

Frequently Asked Questions (FAQ)

What is the temperature range for the walk-in cold rooms?
The temperature ranges from -5°C to +5°C for preserving fruits and vegetables, and down to -18°C or lower for storing meat and seafood. Quick-freezing features are also available.
What thicknesses of insulation panels are available?
We offer PUR (polyurethane) sandwich panels in standard thicknesses of 75mm, 100mm, 120mm, 150mm, and 200mm to match various temperature and energy-efficiency demands.
Are the cold room sizes and voltages customizable?
Yes, all layouts and dimensions are fully customizable. We support multiple voltage configurations including 110V, 220V, 380V, 420V, and 440V to meet different global electrical standards.
What compressor brands and refrigeration systems do you use?
We configure reliable compressor brands such as Copeland. The system setups include space-saving Monoblock units as well as split refrigeration systems.
What door options can I choose for the modular cold room?
We supply a complete line of modular doors, including hinged, sliding, swing, and vertical lifting options, designed with heavy-duty seals for maximum temperature containment.
How are the components packaged for international shipping?
Insulation panels are wrapped with structural corner protection, while the condensing and evaporator units are secured in sturdy wooden crates. Containers are packed optimally to minimize freight expenses.
