| Size | 110*80*90cm |
| Sealing Method | Totally Enclosed |
| Cooling Mode | Evaporative |
| Capacity | Medium/Low Temp (-25~10) |
| After-Sales Service | 24hr Services |
| Fan | Axial&Centrifugal |
| Coil | Copper |
| Fin | Aluminium Alloy |
| System | Monoblock |
| System Type | Combined |
| Fans Species | Single-Speed Fan |
| Noise Level | Low |
| Certification | ISO, CCC |
| Condition | New |
| Cooling Water | City Water |
| Application Fields | Cold Room, Freezer |

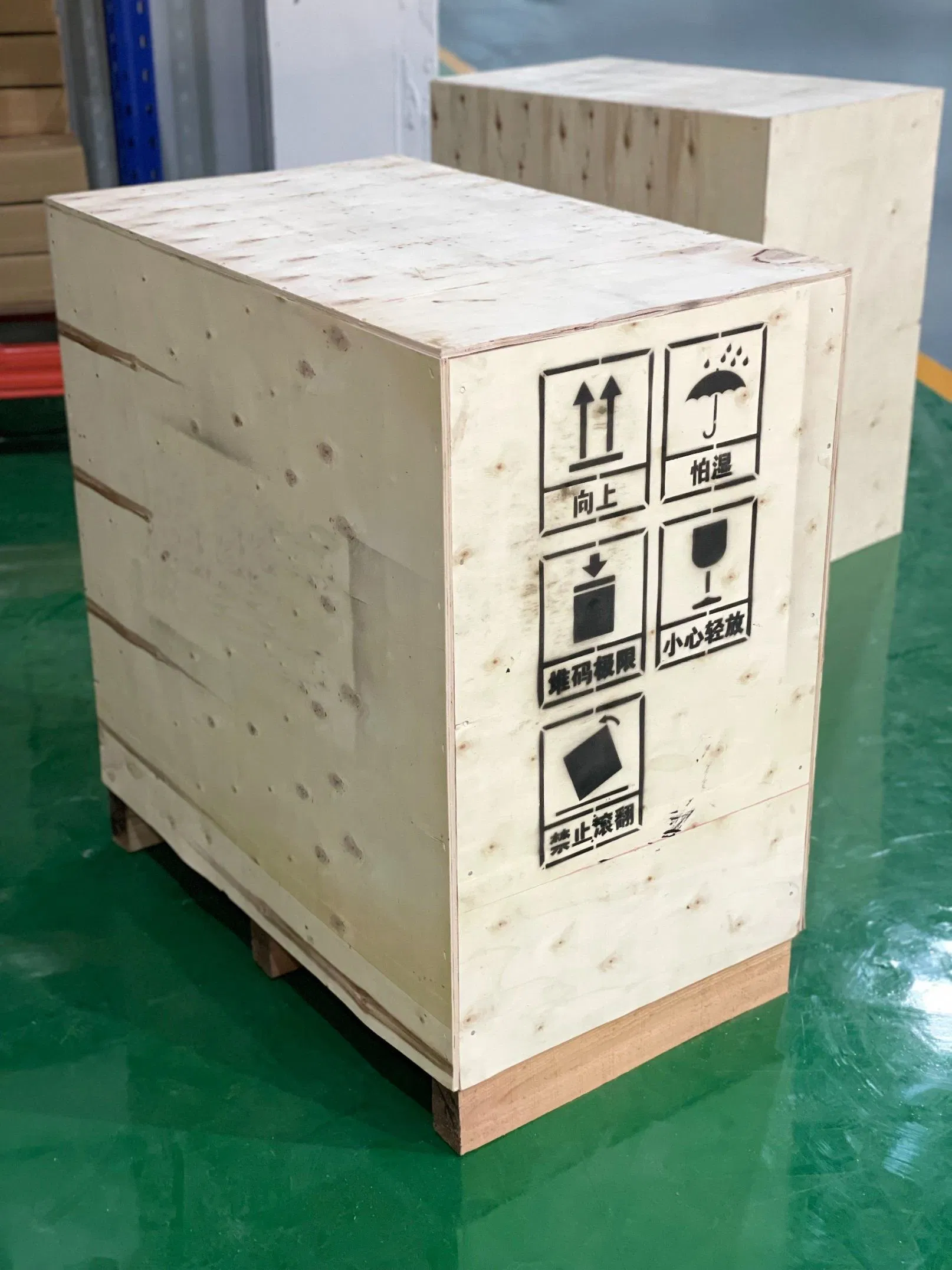

| Transport Package | Wooden Frame |
| Specification | 450x940x975 |
| Origin | China |
| Production Capacity | 10000 |
| Package Size | 100.00cm * 70.00cm * 80.00cm |
| Package Gross Weight | 550.000kg |
| Model | WMA010C2 | WMA015C2 | WMA018C2 | WMA025C2 |
|---|---|---|---|---|
| Compressor (HP) | 1HP | 1.5HP | 1.8HP | 2.5HP |
| Power supply | 220V/1P/50Hz | 220V/1P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz |
| Condenser Air flow rate (m³/h) | 630m³/h | 1260m³/h | 2670m³/h | 2670m³/h |
| Evaporator air flow rate (m³/h) | 745m³/h | 1490m³/h | 2670m³/h | 2670m³/h |
| Installation power (kw) | 0.995kw | 1.477kw | 1.662kw | 2.135kw |
| Model | WLA010C2 | WLA015C2 | WLA020C2 | WLA030C2 | WLA040C2 |
|---|---|---|---|---|---|
| Compressor (HP) | 1HP | 1.5HP | 2HP | 3HP | 4HP |
| Power supply | 220V/1P/50Hz | 220V/1P/50Hz | 380v/3P/50hz | 380v/3P/50hz | 380v/3P/50hz |
| Condenser Air flow rate (m³/h) | 630m³/h | 1260m³/h | 1260m³/h | 2670m³/h | 2670m³/h |
| Evaporator air flow rate (m³/h) | 745m³/h | 1490m³/h | 1490m³/h | 2670m³/h | 2670m³/h |
| Installation power (kw) | 0.86kw | 1.243kw | 1.538kw | 1.992kw | 2.539kw |
| Model | TMA035C2 | TMA045C2 | TMA055C2 | TMA065C2 |
|---|---|---|---|---|
| Compressor (HP) | 3.5HP | 4.5HP | 5.5HP | 5HP |
| Power supply | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz | 380v/3p/50hz |
| Condenser Air flow rate (m³/h) | 3600m³/h | 5400m³/h | 5400m³/h | 7200m³/h |
| Evaporator air flow rate (m³/h) | 6000m³/h | 9000m³/h | 9000m³/h | 11181m³/h |
| Installation power (kw) | 3.5kw | 4.8kw | 5.4kw | 6.9kw |
| Model | TLA065C2 | TLA085C2 | TLA105C2 | TLA135C2 |
|---|---|---|---|---|
| Compressor (HP) | 6.5HP | 1.5HP | 1.8HP | 2.5HP |
| Power supply | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz |
| Condenser Air flow rate (m³/h) | 3600m³/h | 5400m³/h | 5400m³/h | 7200m³/h |
| Evaporator air flow rate (m³/h) | 6000m³/h | 9000m³/h | 9000m³/h | 11181m³/h |
| Installation power (kw) | 6.4kw | 7.6kw | 9.3kw | 12.1kw |
It takes within 1 month from receipt of the deposit to preparation of the goods.
The warranty period is 1 year, and the after-sales service is available 24 hours.
Our FOB price is based on quantity, material and size you required. The more machines you order, the lower price we will give! Also CIF and CNF prices are the same.
All materials and sizes are available, and we can customize products according to your specific requirements.
They are widely applied in various cold storage environments, specifically suited for cold rooms and freezers requiring medium to low temperatures (-25°C to 10°C).

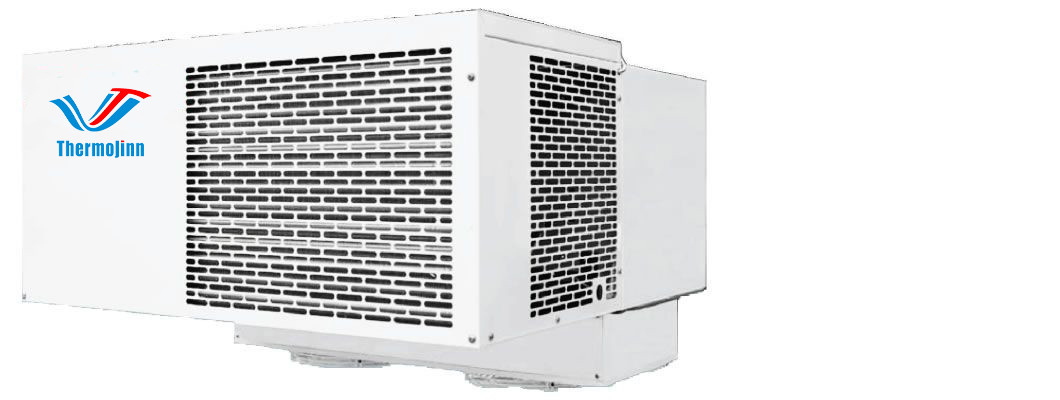

The units utilize low noise hermetic piston compressors with R404A refrigerant. The evaporator casing features a durable one-time formulation design, and the monoblock cases are made of epoxy sprayed steel plates.
