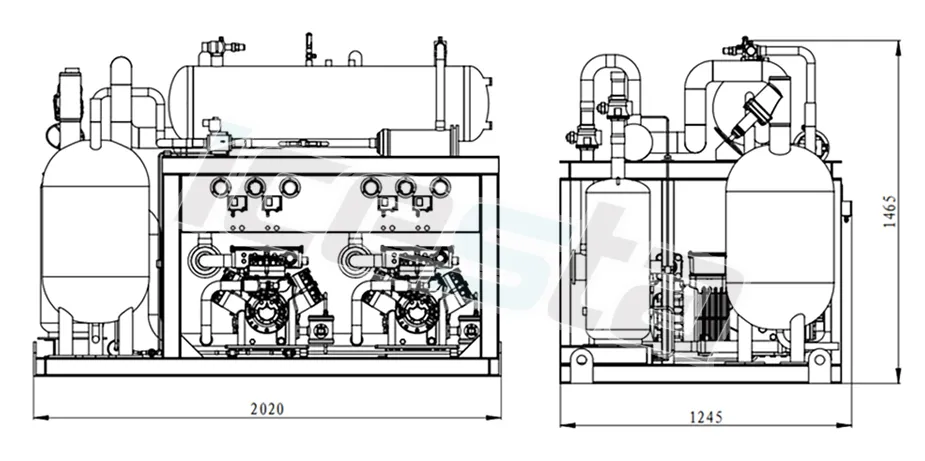

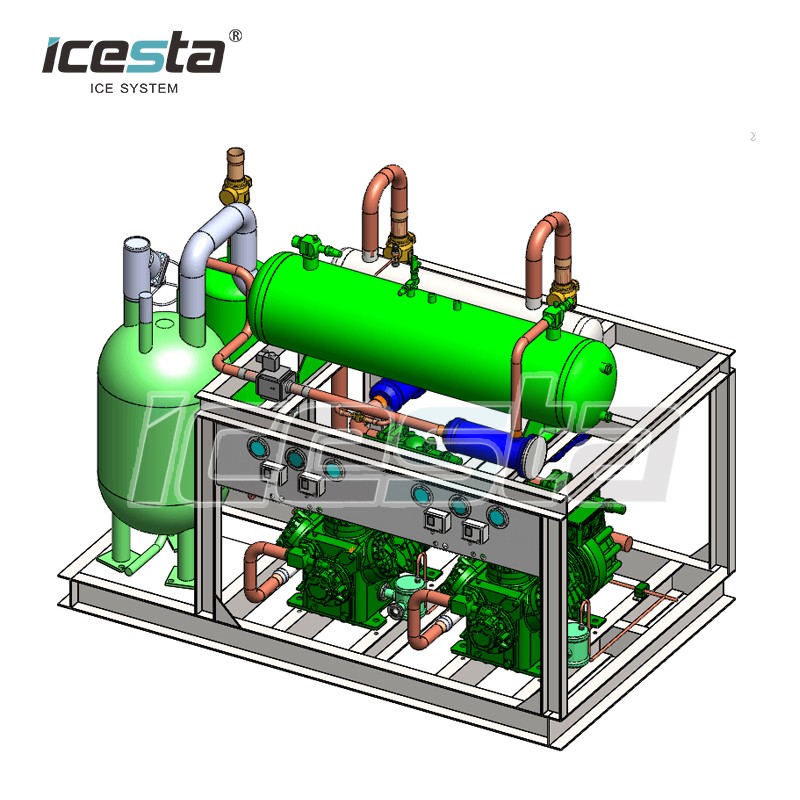

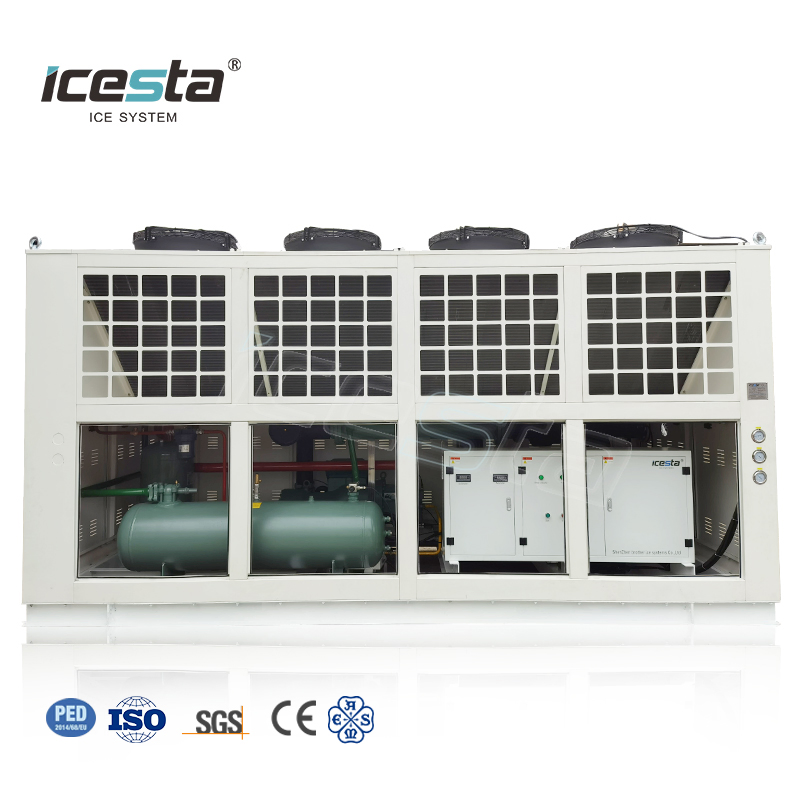

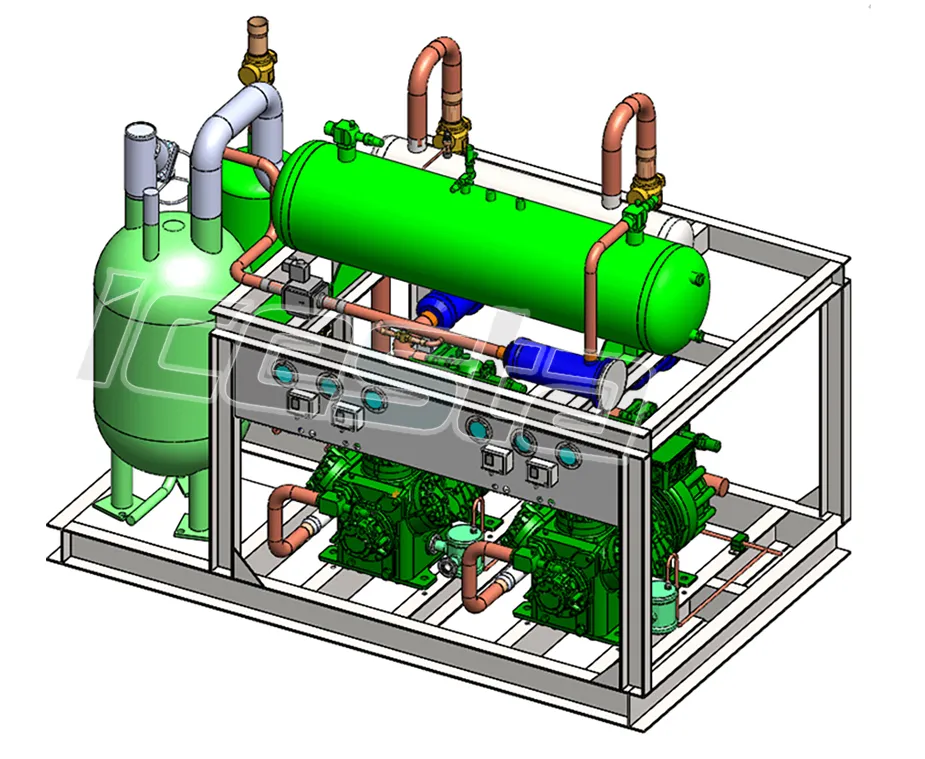

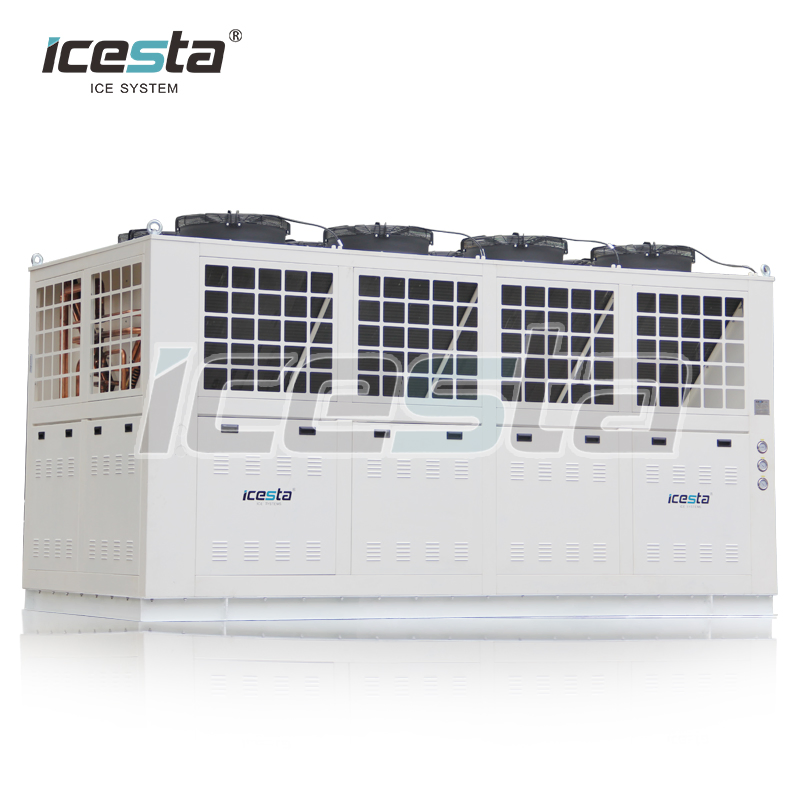

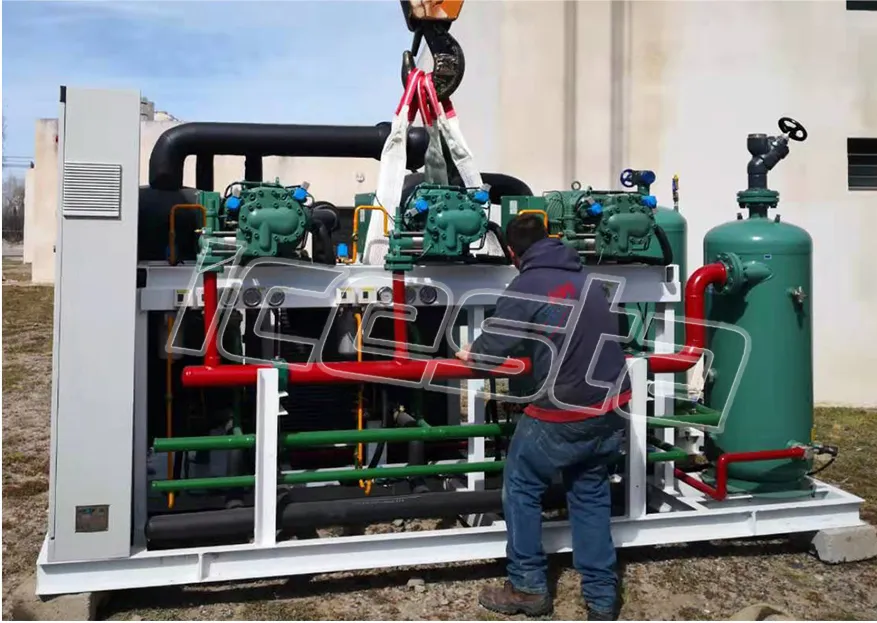

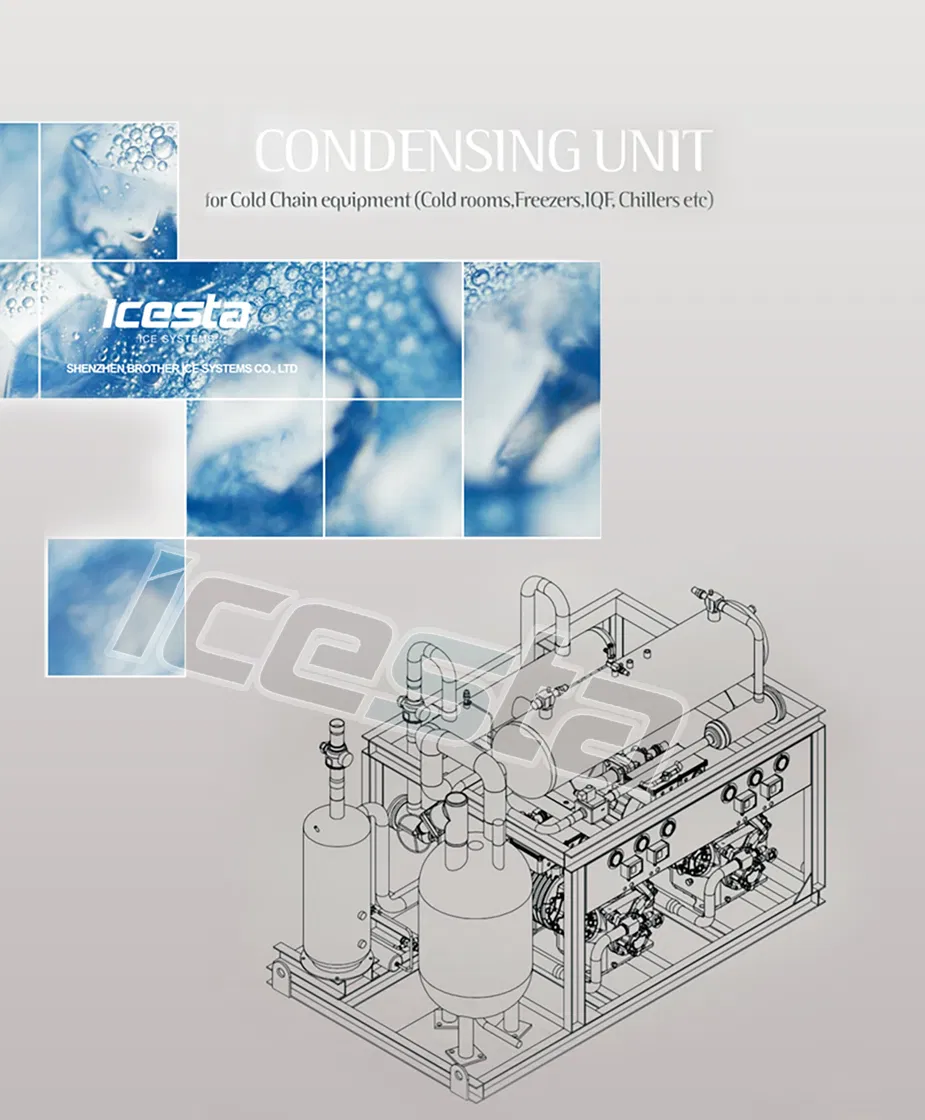

The Parallel compressor type condensing unit has the following characteristics:
The unit has been connected to all piping and electrical lines by the factory, ready to be installed and used. When installing, only need to connect the liquid pipe and gas pipe, control circuit and main power line that connect the air cooler and the compression condensing unit.
Industrial condensing units are available for all kinds of low temperature, mid, and high temperature cold rooms, and quick freezer rooms. These mainly apply to the food industry (like cheese, seafood, meat, fruit jams, vegetables, etc.) and cold chains.
| Model | LCUSA-50 | LCUSA-60 | LCUSA-80 | LCUSA-100 | LCUSA-120 | ||
|---|---|---|---|---|---|---|---|
| Cooling Capacity (W) | Evaporating Temp (°C) | 5 | 17000 | 21050 | 25150 | 32769 | 38111 |
| 0 | 14300 | 16950 | 21168 | 27581 | 26963 | ||
| -10 | 12070 | 14220 | 14818 | 19307 | 22454 | ||
| -15 | 8300 | 11850 | 12198 | 15893 | 18483 | ||
| -20 | 6700 | 8000 | 9978 | 13000 | 15119 | ||
| -25 | 5500 | 6470 | 8063 | 10506 | 12218 | ||
| Nominal Power Consumption (W) | 4510 | 6470 | 6190 | 7770 | 8910 | ||
| Applicable Room Temp (°C) | -20 to 10 | ||||||
| Refrigerant | R404A | ||||||
| Defrost | Electric | ||||||
| Throttling Mode | Thermal Expansion Valve | ||||||
| Compressor | Semi-Hermetic Reciprocating, Hermetic Scroll | ||||||
| Pipe Spec | Liquid Supply (mm) | 12.7 | 12.7 | 12.7 | 15.88 | 15.88 | |
| Suction Pipe (mm) | 19.05 | 19.05 | 28.86 | 28.86 | 35 | ||
| Weight of the Unit (kg) | 65 | 70 | 110 | 120 | 130 | ||
Fresh Keeping, Food Processing, Chemistry and Pharma, Refrigeration and Ice Making, Cold Store, Cold Storing Facilities, Agriculture
| Model | 10HP Water Cooled Condensing Unit (LCUSW-10) | 20HP Water Cooled Condensing Unit (LCUSW-20) | |||||
|---|---|---|---|---|---|---|---|
| Compressor Brand | Copeland | GEA | - | Copeland | GEA | - | |
| Model Details | ZB76KQE | HG(X)44e/565-4 | 4PES-12 (Y) | ZB76KQE*2 | HG(X)56e/995-4 | 4GE-23 (Y) | |
| Target Room Temp (°C) | -18 | ||||||
| Refrigerant | R22/R404A | ||||||
| Power Supply | 380V, 3P, 50Hz | ||||||
| Air Cooler Qty | 1-3 units (optional) | ||||||
| Nominal Capacity/Power (kW) | 11.7/6.77 | 11.25/6.5 | 13.4/6.5 | 23.4/13.7 | 11.25*2/6.5*2 | 23.3/11.3 | |
| Liquid Supply Pipe | 1-3/8" | 2-1/8" | |||||
| Suction Pipe | 1/2" | 5/8" | |||||
| Condenser Water In/Out | 30°C / 35°C | ||||||
| Evaporating Temp (°C) | -25 | ||||||
| Model | 30HP Water Cooled Condensing Unit (LCUSW-30) | 40HP Water Cooled Condensing Unit (LCUSW-40) | |||||
|---|---|---|---|---|---|---|---|
| Compressor Brand | Copeland | GEA | - | Copeland | GEA | - | |
| Model Details | ZB114KQE*2 | HG(X)44e/565-4 | 6GE-34 (Y) | ZB76KQE*4 | HG(X)56e/995-4 | 4GE-23 (Y) | |
| Target Room Temp (°C) | -18 | ||||||
| Refrigerant | R22/R404A | ||||||
| Power Supply | 380V, 3P, 50Hz | ||||||
| Air Cooler Qty | 1-3 units (optional) | ||||||
| Nominal Capacity/Power (kW) | 35.2/20.7 | 16.5*2/10.5*2 | 38.2/17.7 | 41.5/25.3 | 11.25*4/6.5*4 | 43.8/20.4 | |
| Liquid Supply Pipe | 5/8" | 7/8" | |||||
| Suction Pipe | 2-5/8" | 2-5/8" | |||||
| Condenser Water In/Out | 30°C / 35°C | ||||||
| Evaporating Temp (°C) | -25 | ||||||
| Model | 50HP Water Cooled Condensing Unit (LCUSW-50) | 60HP Water Cooled Condensing Unit (LCUSW-60) | |||||
|---|---|---|---|---|---|---|---|
| Compressor Brand | Copeland | GEA | - | Copeland | GEA | - | |
| Model Details | N/G | HG(X)88e/2735-4 | HSN6461-500(Y) | ZB114KQE*4 | HG(X)66e/1750-4*2 | HSN7475-60(Y) | |
| Target Room Temp (°C) | -18 | ||||||
| Refrigerant | R22/R404A | ||||||
| Power Supply | 380V, 3P, 50Hz | ||||||
| Air Cooler Qty | 1-3 units (optional) | ||||||
| Nominal Capacity/Power (kW) | 70.3/40.9 | N/G | 66.5/37.3 | 85.8/48.9 | 16.5*4/10.5*4 | 84.2/46.4 | |
| Liquid Supply Pipe | 7/8" | 1-1/8" | |||||
| Suction Pipe | 2.5" | 3" | |||||
| Condenser Water In/Out | 30°C / 35°C | ||||||
| Evaporating Temp (°C) | -25 | ||||||
| Model | 75HP Water Cooled Condensing Unit | 100HP Water Cooled Condensing Unit | |||||
|---|---|---|---|---|---|---|---|
| Compressor Brand | Copeland | GEA | - | Copeland | GEA | - | |
| Model Details | N/G | HG(X)66e/2070-4*2 | HSN7471-75(Y) | N/G | HG(X)66e/1750-4*3 | HSN8571-125(Y) | |
| Target Room Temp (°C) | -18 | ||||||
| Refrigerant | R22/R404A | ||||||
| Power Supply | 380V, 3P, 50Hz | ||||||
| Air Cooler Qty | 1-3 units (optional) | ||||||
| Nominal Capacity/Power (kW) | 102.3/58.3 | N/G | 99/54.8 | 168.9/92.7 | N/G | 158.5/54.8 | |
| Liquid Supply Pipe | 1-1/8" | 1-5/8" | |||||
| Suction Pipe | 3" | 3.5" | |||||
| Condenser Water In/Out | 30°C / 35°C | ||||||
| Evaporating Temp (°C) | -25 | ||||||
Fresh Keeping, Food Processing, Chemistry and Pharma, Refrigeration and Ice Making, Cold Store, Cold Storing Facilities, Agriculture
