Overview
| Basic Info |
| Model NO. |
FSCR35 |
| Refrigerant |
Freon |
| Size |
Customized |
| Structure |
Civil Construction |
| Use Nature |
Commercial / Industrial |
| Suitable for |
Logistics, Warehousing, Restaurants etc. |
| Usage |
Food, Medicine, Meat/Seafood/Fruits/Drinks/Vegetables |
| Warranty |
1-2 Years |
| Certification |
ISO, CE |
| Condition |
New |
| Product |
Cold Room |
| Keyword |
Cold Room Storage |
| After Sale Service |
1 Year |
| Compressor |
Bitzer / Copeland |
| Transport Package |
Exportation Package |
| Specification |
Customized |
| Origin |
China |
| Production Capacity |
50000 Sets |
Product Description

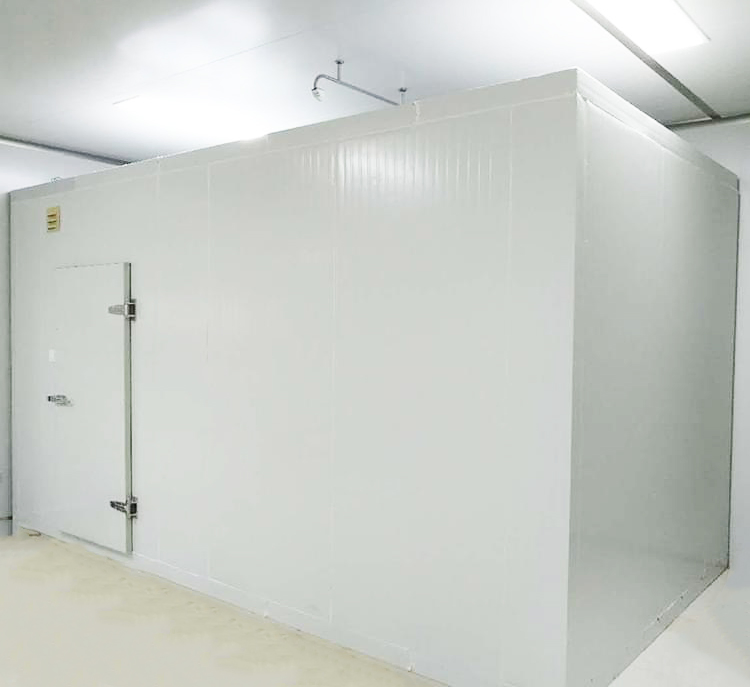

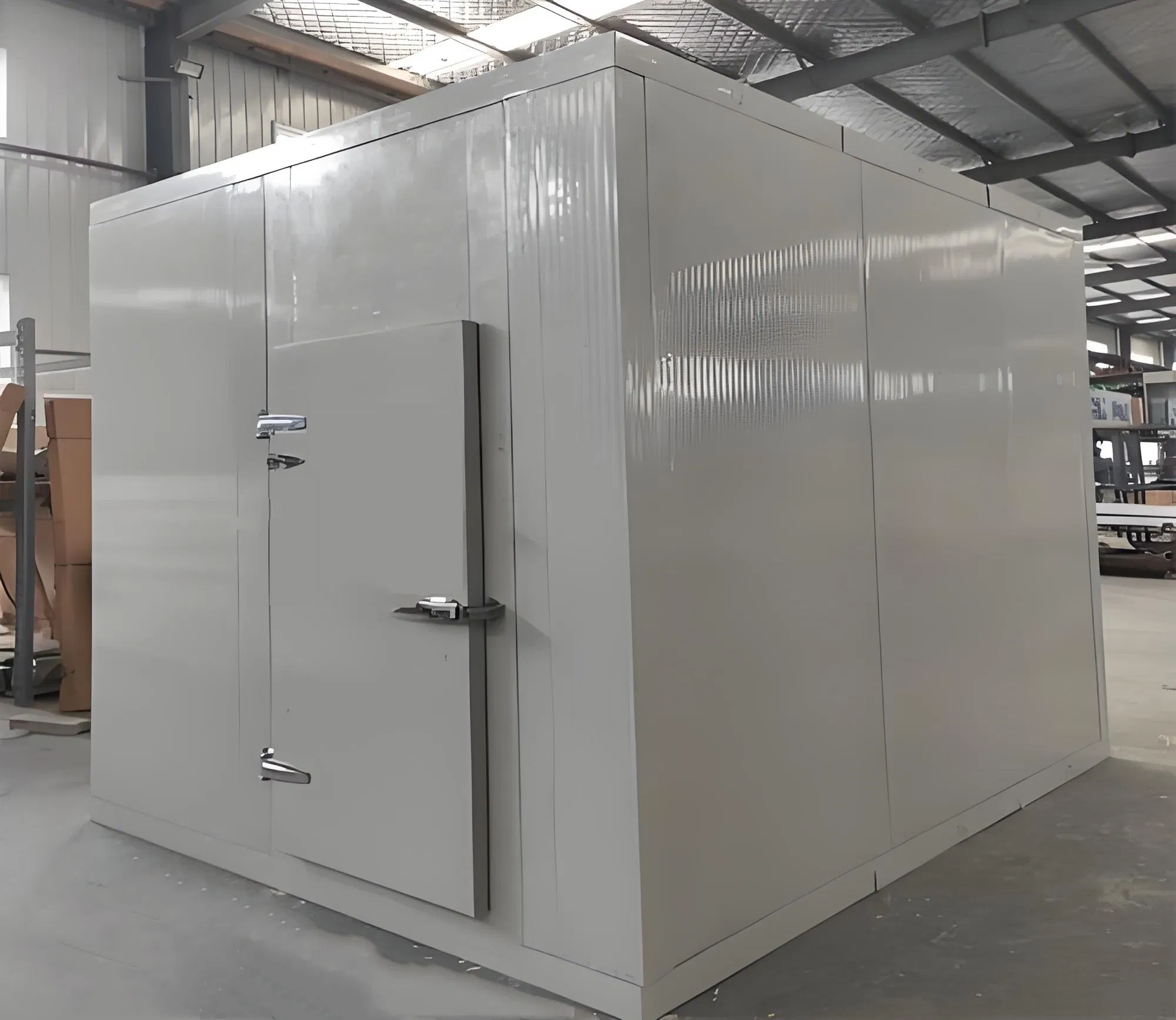

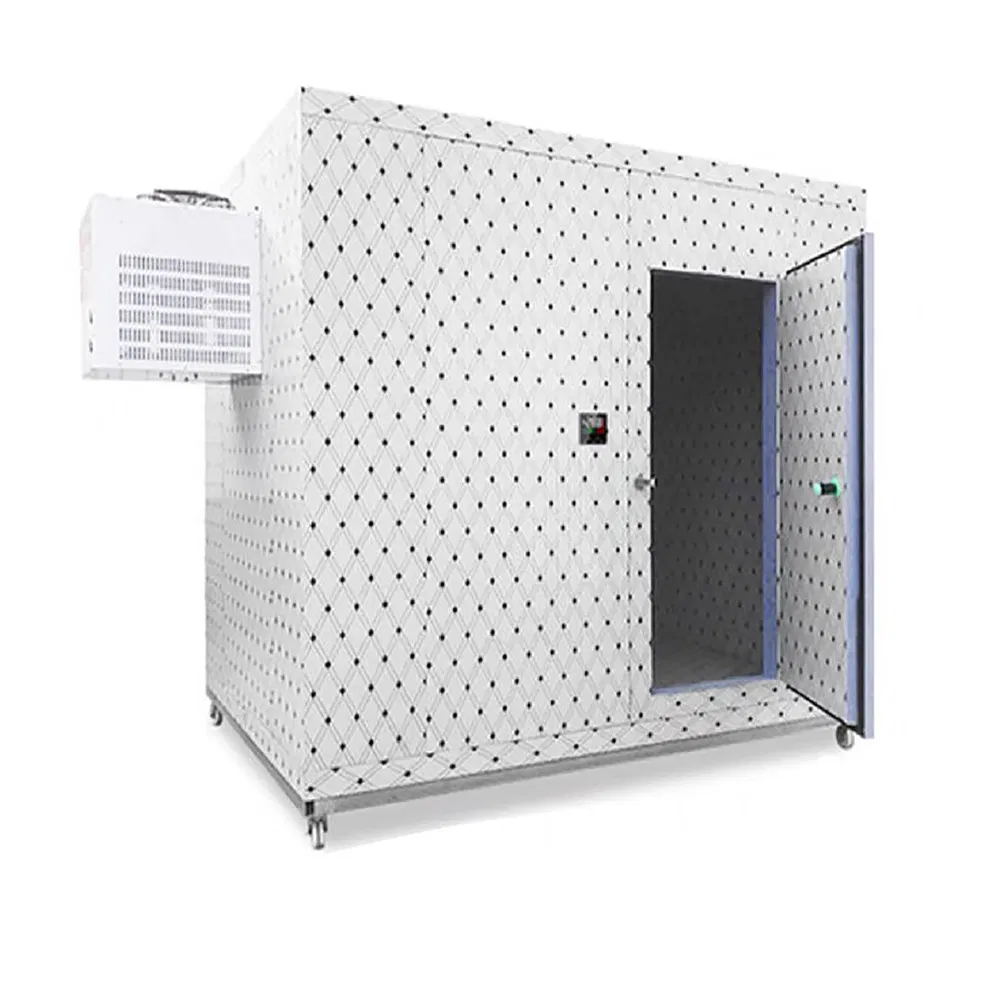

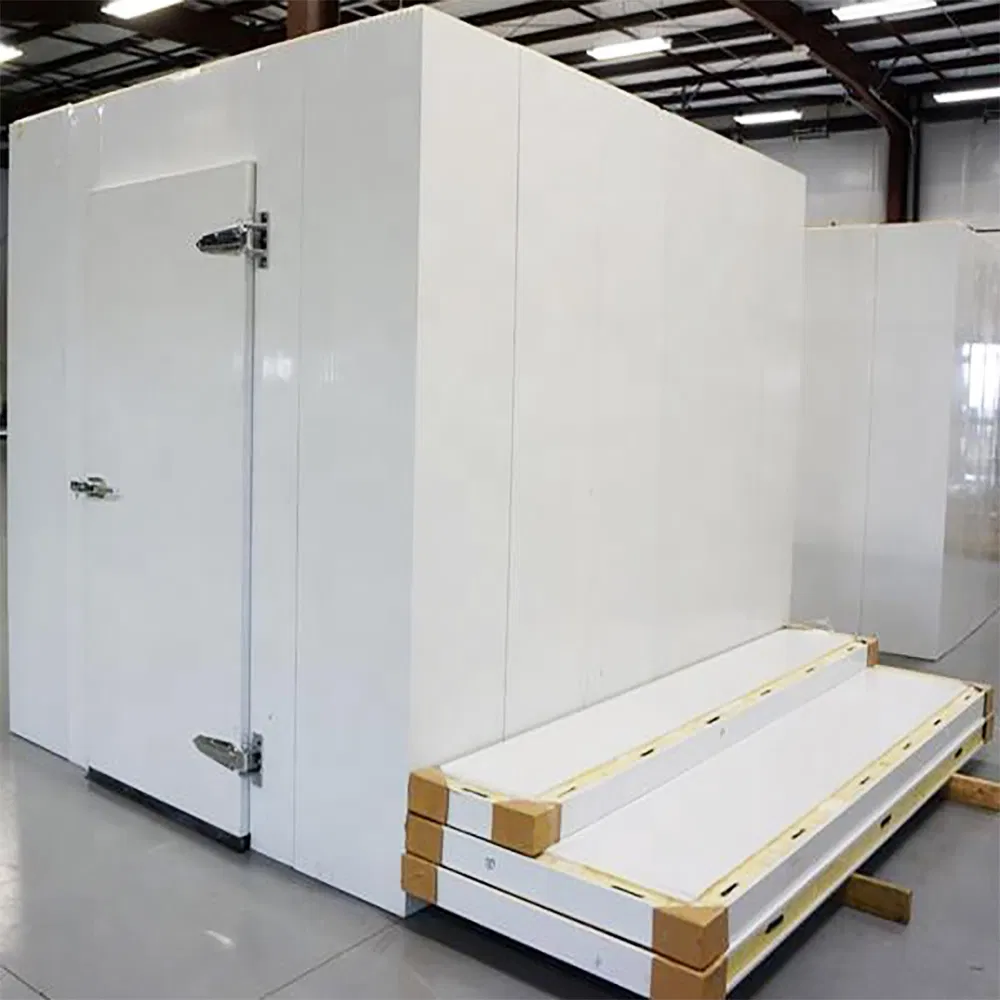

WALK IN COLD ROOM STORAGE / FREEZER ROOM
| Product Parameter |
Details |
| Product name |
Cold room storage / Freezer room |
| Keywords |
Walk in chiller/storage freezer/large cold room/freezer cold room/cold room supplier/meat cold room/blast freezer room/freezer room |
| Dimension(L*W*H) |
Customized size |
| Cooling model |
Air cooled / water cooled / evaporation cooled |
| Compressor |
Original new American Copeland, Germany Bitzer etc. |
| Refrigerant |
R404A, R507A, R22, R717 |
| Panel Thickness |
75mm, 100mm, 120mm, 150mm, 200mm etc. |
| Steel Plate Thickness |
0.326mm / 0.5mm / 0.6mm |
| Service temperature |
From -40°C To +20°C |
| Cold Room Doors |
Hinged door, Sliding door, double swing door etc. |
| Cold Room Door size |
0.8*1.8 meters, door size can be customized |
| Storage Capacity |
3 CBM ~ 50000 CBM (from 3 ton to more than 10,000 tons) |
| Applications |
Storage meat, vegetable, food, seafood, fish, fruits etc. |
| Certificate |
CE / ISO9001 |
| Export countries |
Over 80 countries including the United States, Canada, Australia, Mexico, Philippines, Angola, etc. |
Specification

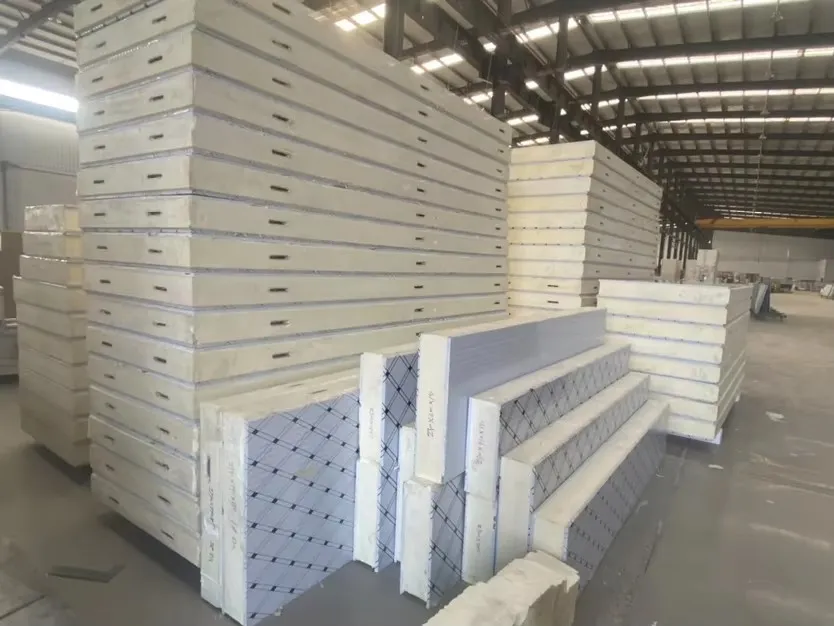

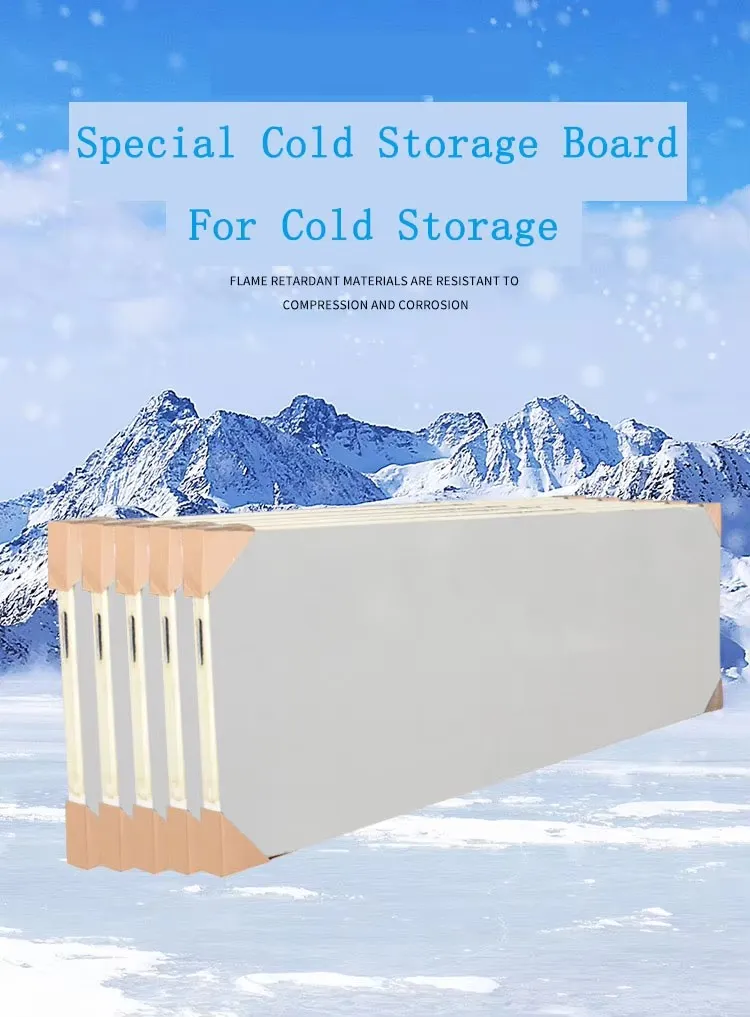

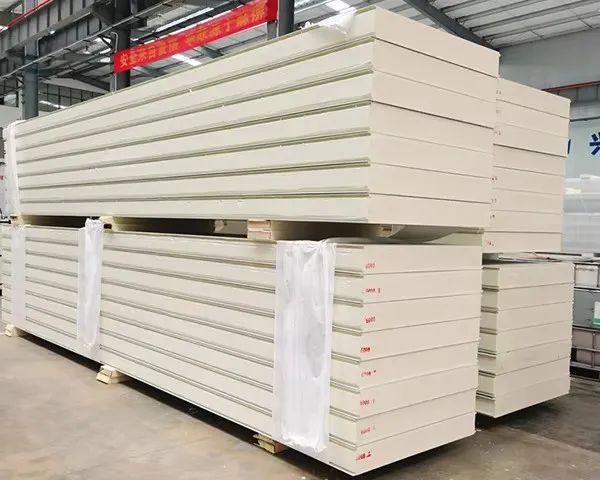

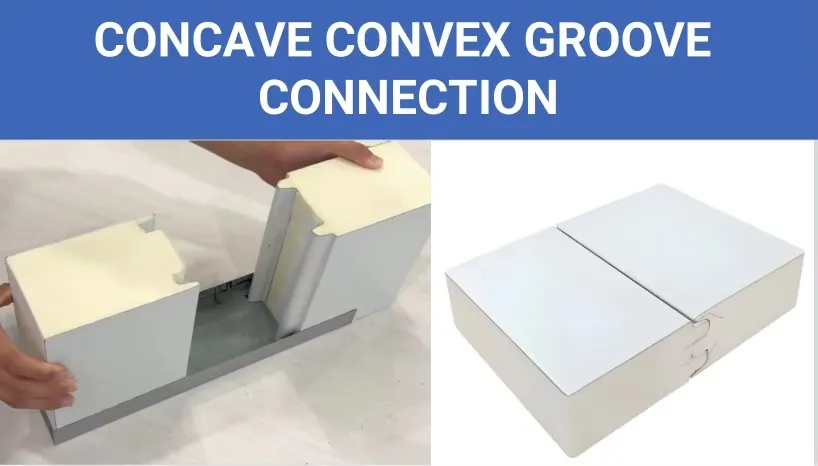

PU/PUR/PIR PANEL
- Panel Material: PUR panel with color steel sheet, Galvanized steel, Stainless steel sheet.
- Thickness: 50mm / 75mm / 100mm / 120mm / 150mm / 175mm / 200mm / 250mm
- Density: 42kg/m³
- Certificates: SGS, ISO14001, ISO9001
- Color: White, Gray, Silver, White gray etc., as required
- Lifetime: 10-30 years
- Fireproof rate: B1, B2

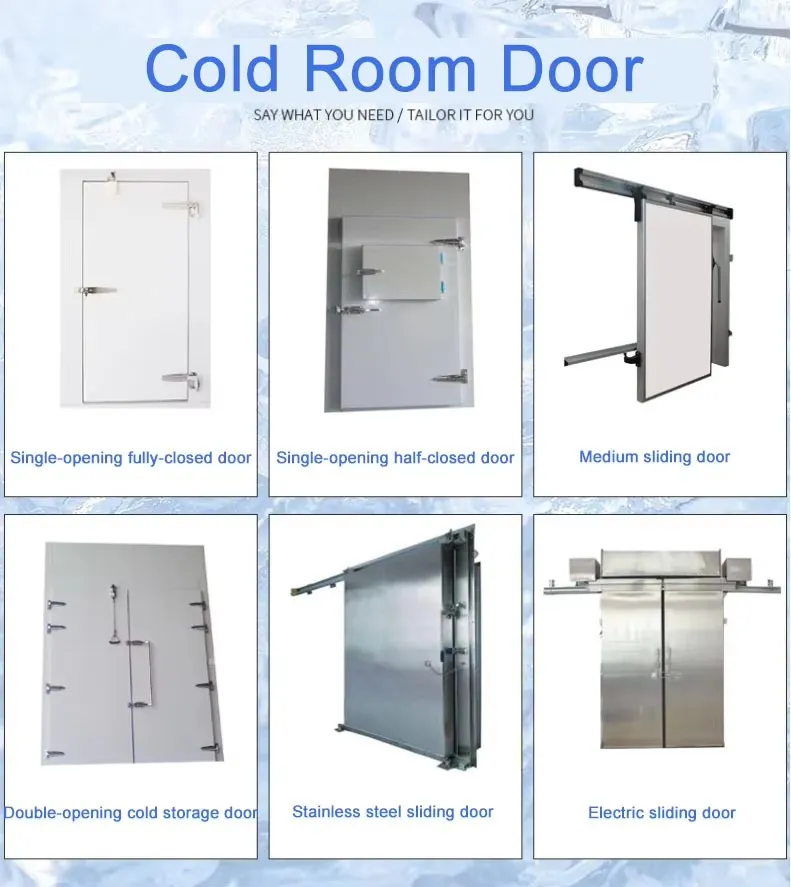

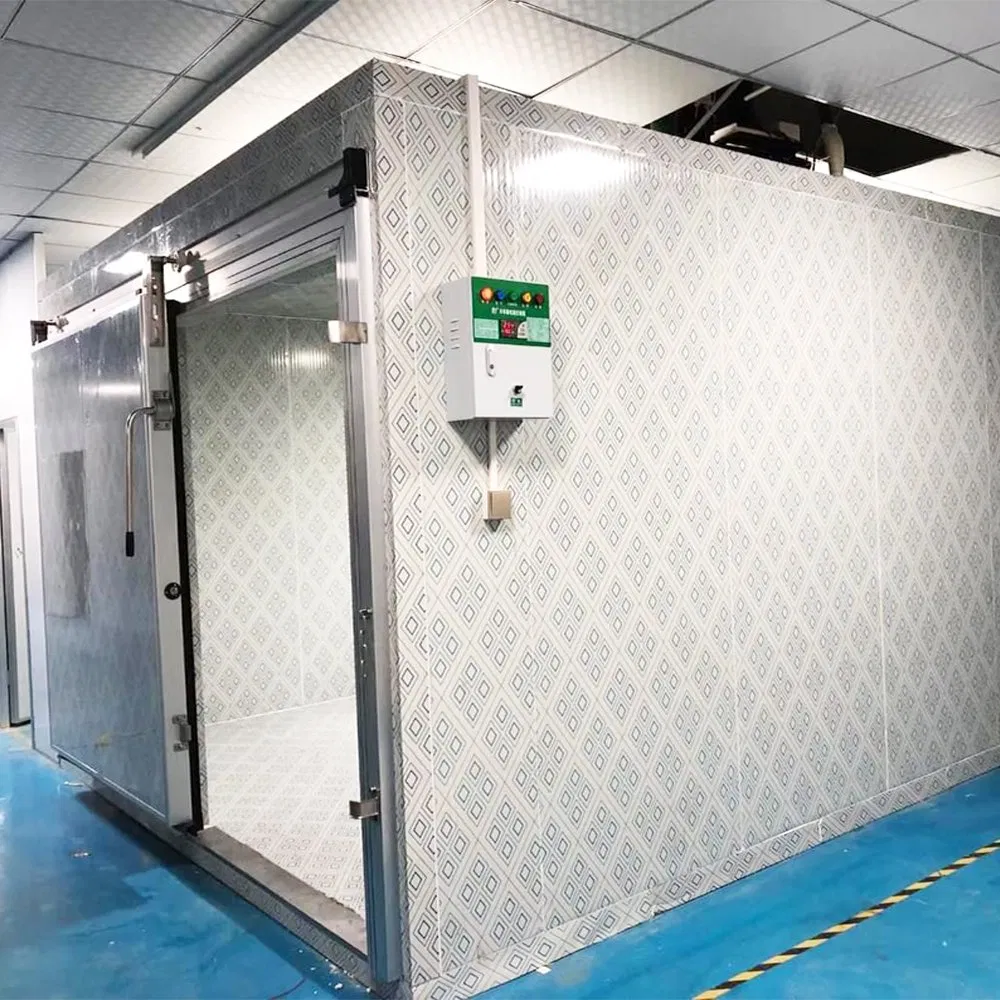

COLD ROOM DOOR
- Temperature range: -45°C ~ +50°C
- Material: PPGI / Color steel, Stainless steel, etc.
- Inside material: High density PU
- Thickness of door panel: 100mm, 120mm, 150mm, 200mm, 250mm
- Size of door opening: Customized
- Way of control: Manual or electric
- Left-open, right-open, double-open configurations
- Safety lock & escape system integrated
- Electric heating wire for preventing frosting

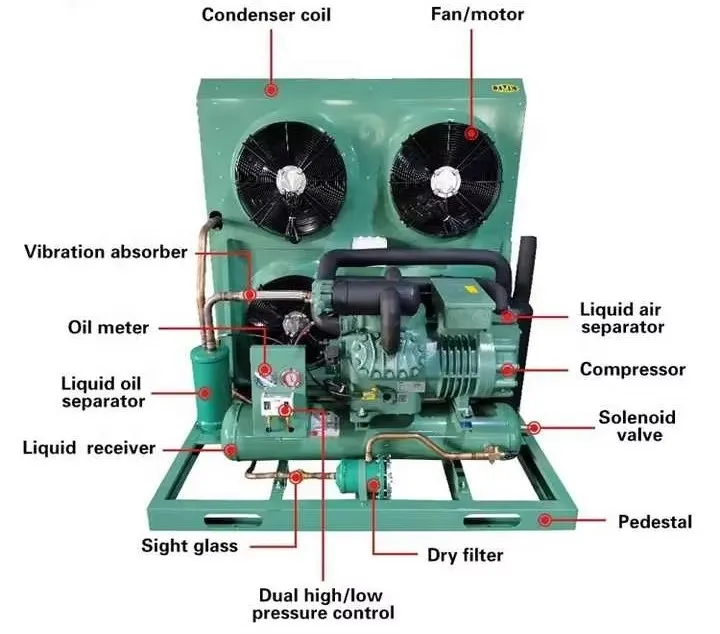

CONDENSING UNIT
- Features world-famous compressors: Bitzer, Copeland, RefComp, FUSHENG, INVOTECH, HANBELL, Frascold, etc. (ranging from 3HP to over 50HP)
- Automatic high-precision digital controller with high efficiency, simple operation.
- Power supply options: 220V / 380V / 440V / 460V

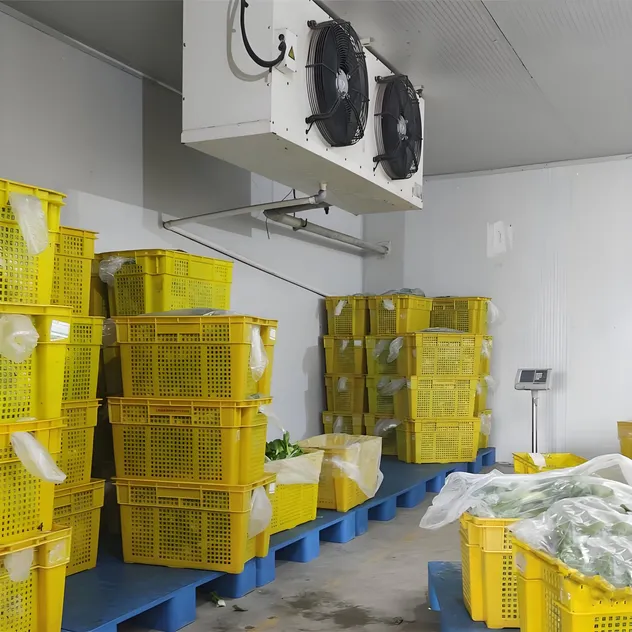

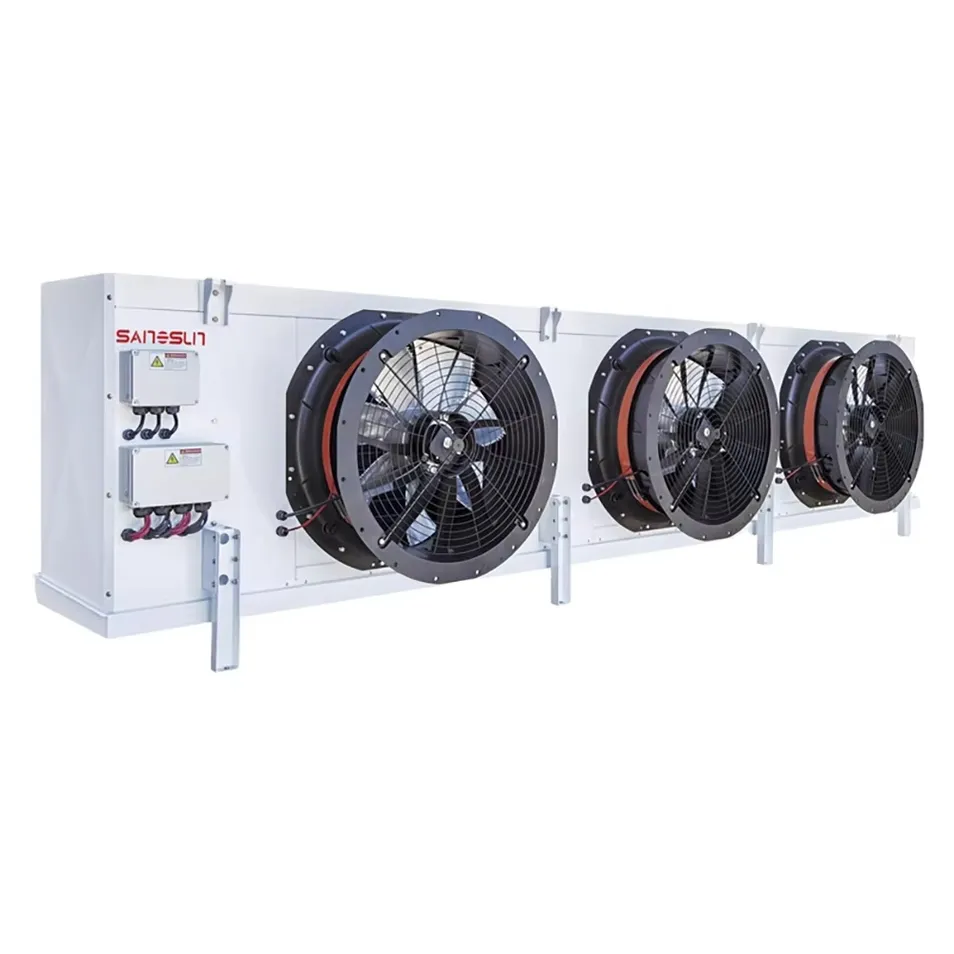

EVAPORATOR
- External rotor axial fans from top brands: EBM / ZIEHL-ABEGG / WEIGUANG / MAER etc.
- φ12.7 copper pipe with inner thread (thickness: 0.35 + 0.2mm)
- Spring Field Wire (USA) brand electric heating tube
- Hydrophilic aluminum foil louvered fins (thickness: 0.3mm)
- Power supply options: 220V / 380V / 440V / 460V

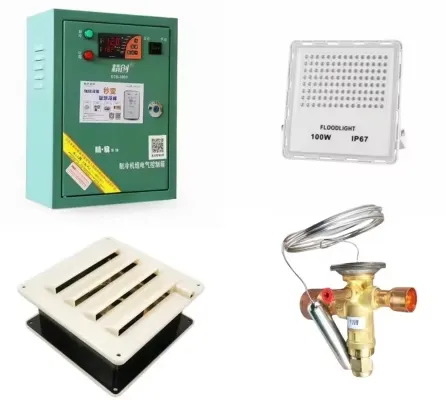

COLD ROOM STORAGE ACCESSORIES
- Temperature controller: Famous brands like CAREL, Danfoss, or Elitech.
- Valve Parts: High quality Denmark Danfoss components.
- Premium copper pipe and connection elements.
- Thermal insulation pipe, wire, PVC pipe, PVC door curtain for sliding doors, LED light, switch, electrode, insulating tape, belting, etc.

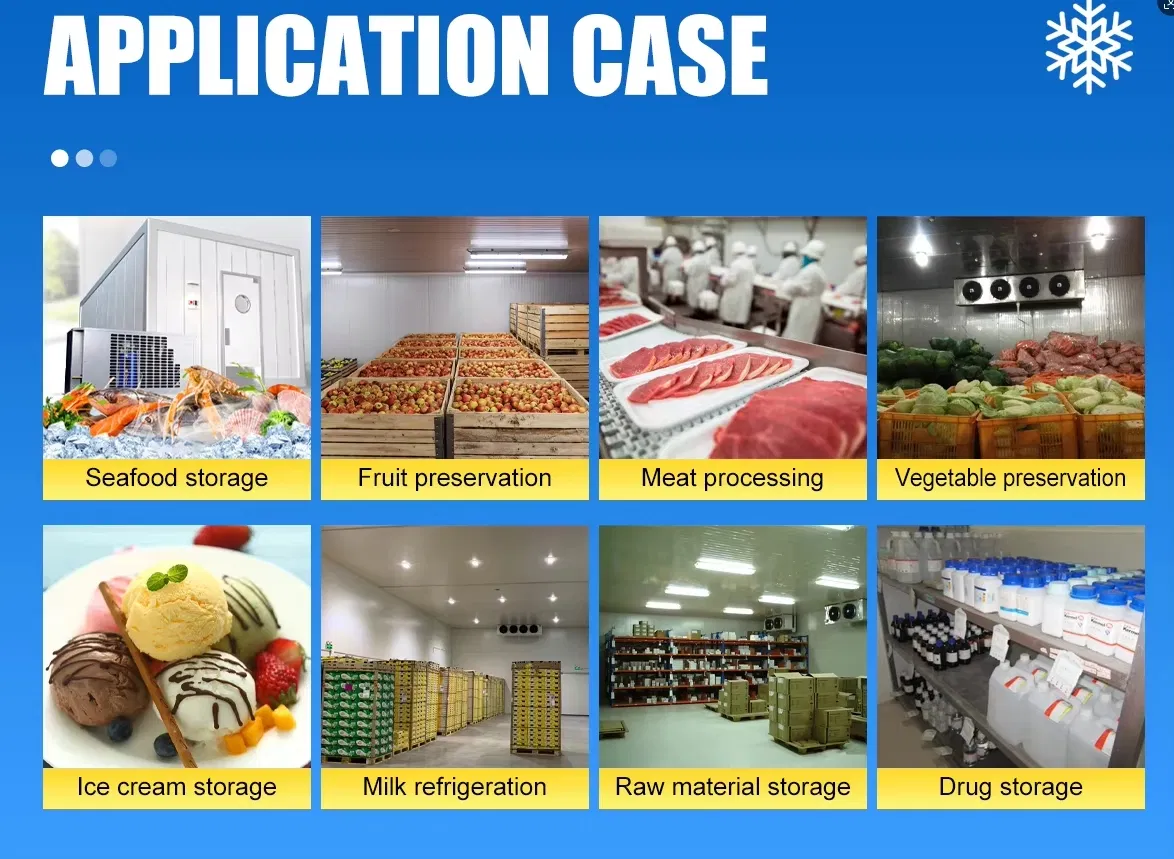

Application

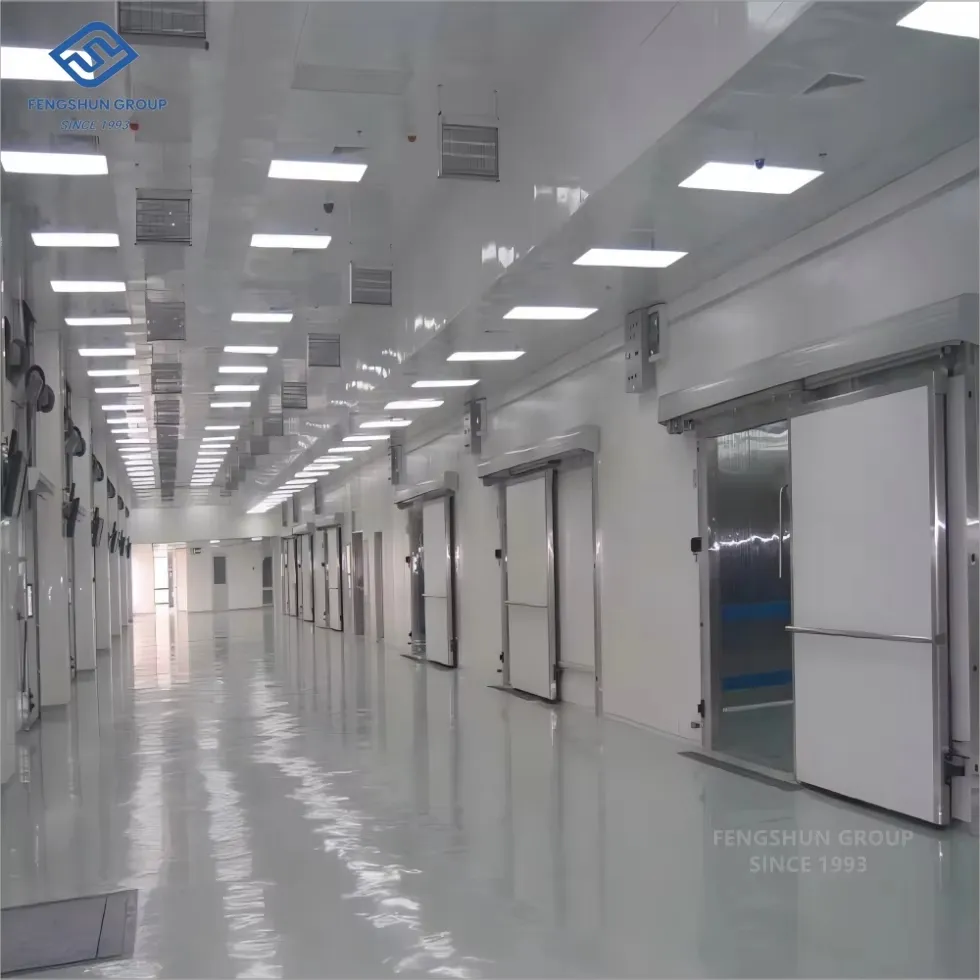

Cold Room Storage and Freezer Room Applications
- 10°C ~ 15°C Processing workshops, temperature control halls, receiving and delivery areas, function rooms, etc.
- 0°C ~ 10°C Meat pre-cooling, meat deacidification, fruit and vegetable preservation, low-temperature corridors, medicine storage, etc.
- -15°C ~ -30°C Low-temperature storage, cold chain logistics, etc.
- -30°C ~ -40°C Blast freezer room: food quick-freezing, tunnel freezer configurations, etc.
- -50°C ~ -80°C Ultra-low temperature blast freezer: tuna storage, vaccine storage, etc.

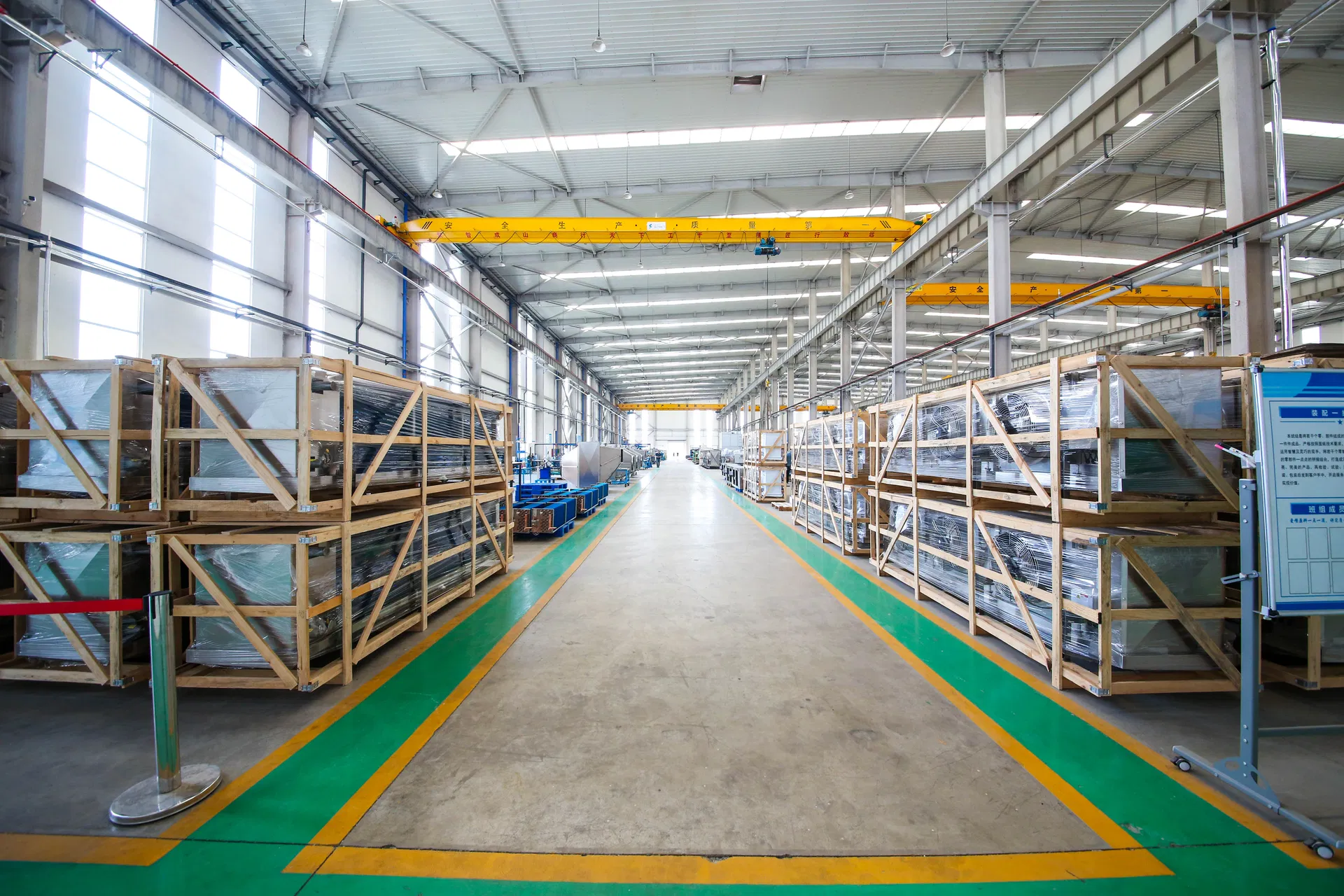

Company Profile
Established since 1993, we are a comprehensive high-tech enterprise integrating the design, development, manufacturing, sales, construction, operation, and maintenance services of cooling and heating equipment.
The manufacturing branches focus on producing Walk-in cold room storage/freezer rooms, PUR/PIR panels, condensing units, evaporators, air condensers, compressor units, and fluorine barrel type pump systems, etc. All products carry CE and ISO certificates, and we can supply SASO, COC, and other standard export documentation.
As a one-stop refrigeration cold room storage supplier, our professional engineers design customized solutions based on specific project needs, providing whole system designs and OEM support. We have successfully supplied equipment for logistics storage, food factories, supermarkets, packaged equipment systems, automotive components production, food processing, bakeries, etc.
We export to the USA, Canada, Australia, England, Ecuador, Sudan, Russia, South Africa, UAE, Lebanon, India, the Philippines, Singapore, Vietnam, Thailand, Korea, Japan, Peru, Chile, Mexico, and more than 100 countries.
Certificate

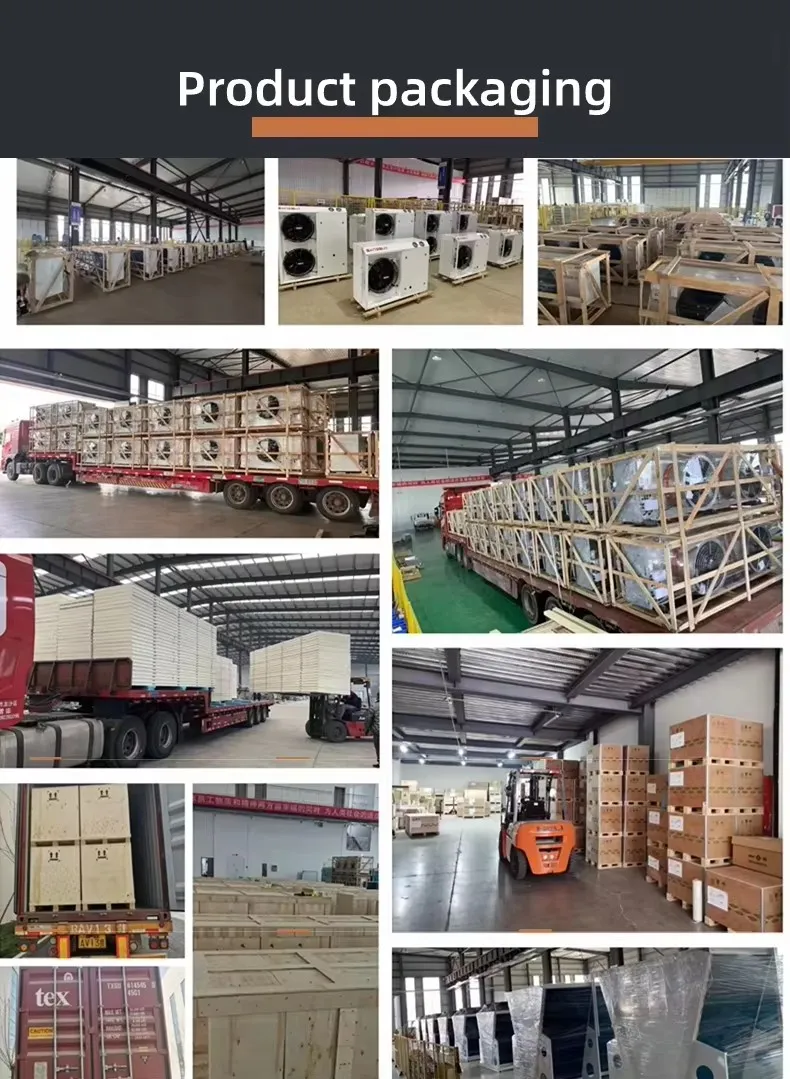

Packing & Delivery
FAQ
Can we customize the product based on requirements?
Sure, of course. For cold room storage, we accept both OEM and ODM requests to match your specific dimensions and specifications.
What is your Minimum Order Quantity (MOQ)?
Our MOQ is 1 piece, meaning we can supply systems starting from single installations up to large-scale industrial projects.
What compressor brands do you use?
We typically utilize world-renowned brands such as Bitzer, Copeland, RefComp, FUSHENG, and HANBELL to ensure maximum system reliability and performance.
What is your standard delivery time?
We usually prepare goods ready to ship within 15-25 days after order confirmation, depending on the scale of customization required.
Can I apply my own brand logo on the equipment?
Yes, we provide full support for OEM and ODM projects, allowing you to use your customized branding and logo designs.
What is the warranty period for the equipment?
We provide a 1-year (365 days) warranty covering the entire equipment, including all structural accessories and the compressor.
