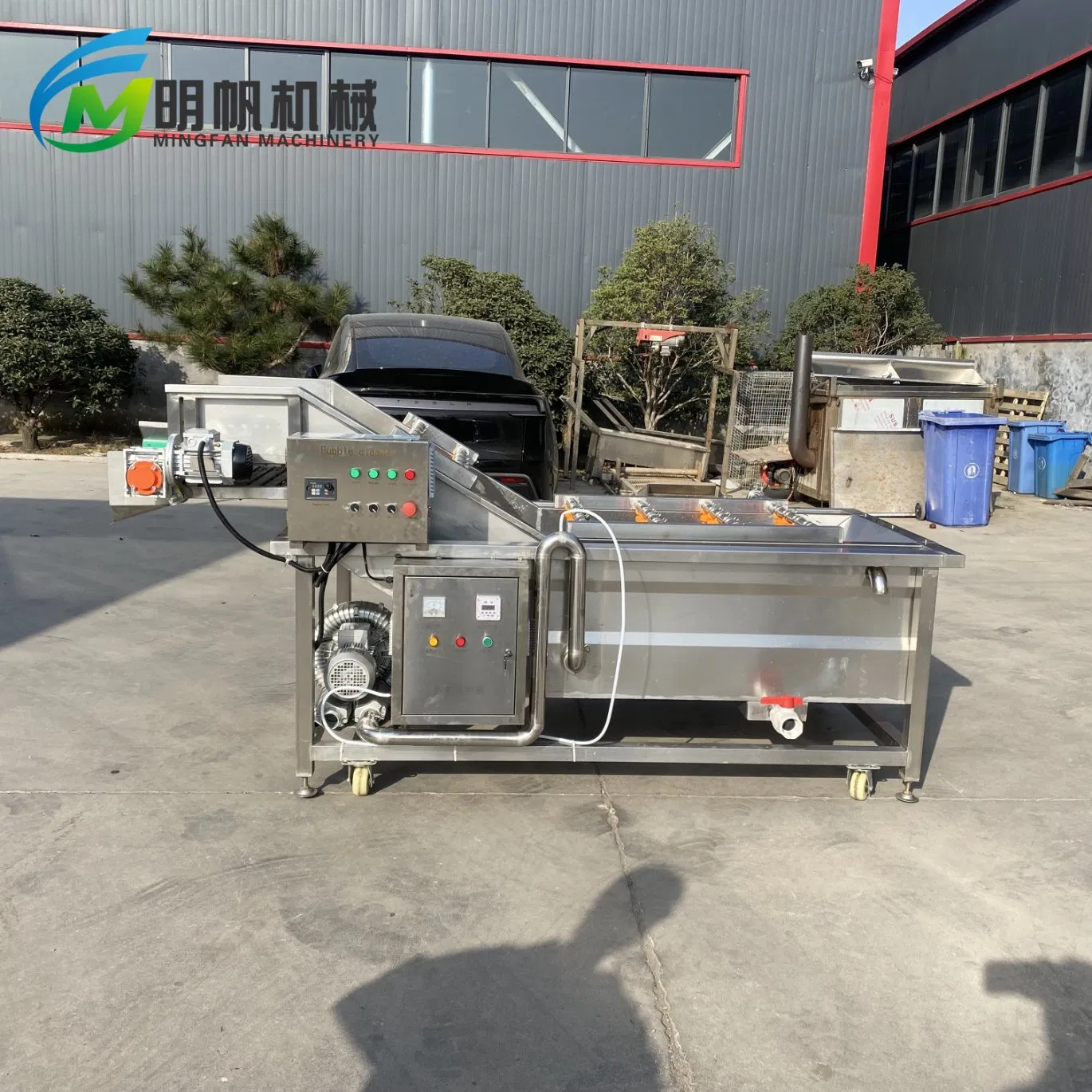

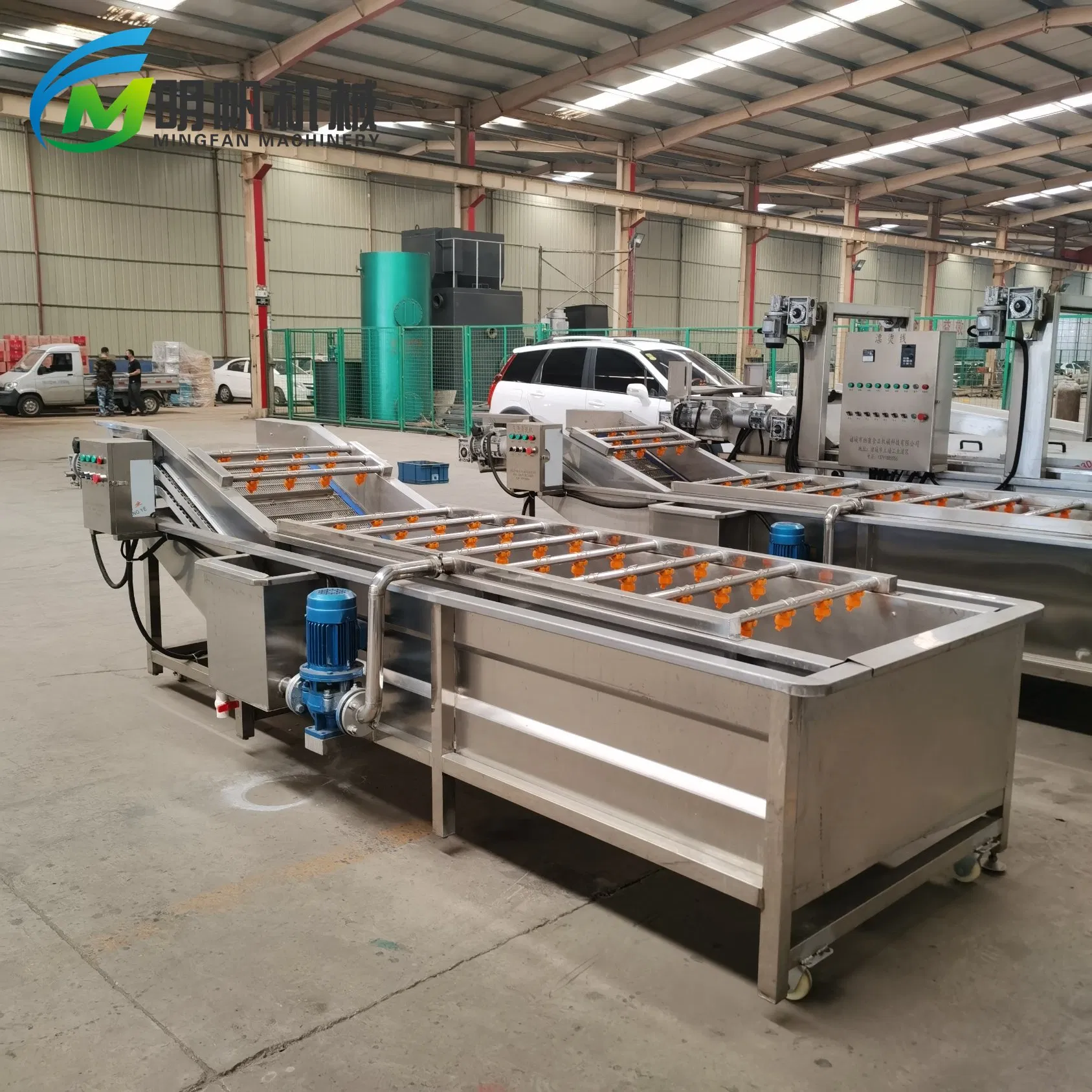

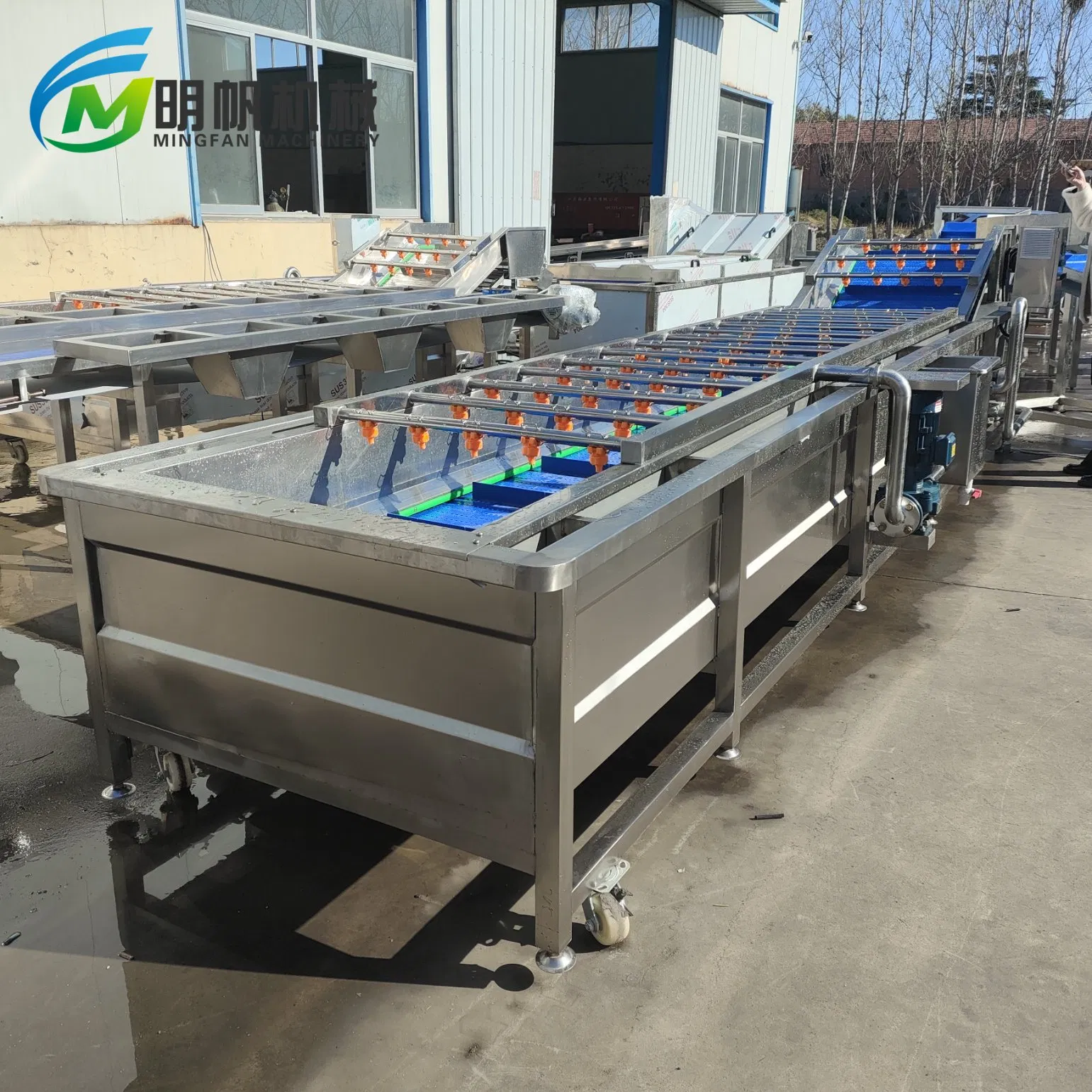

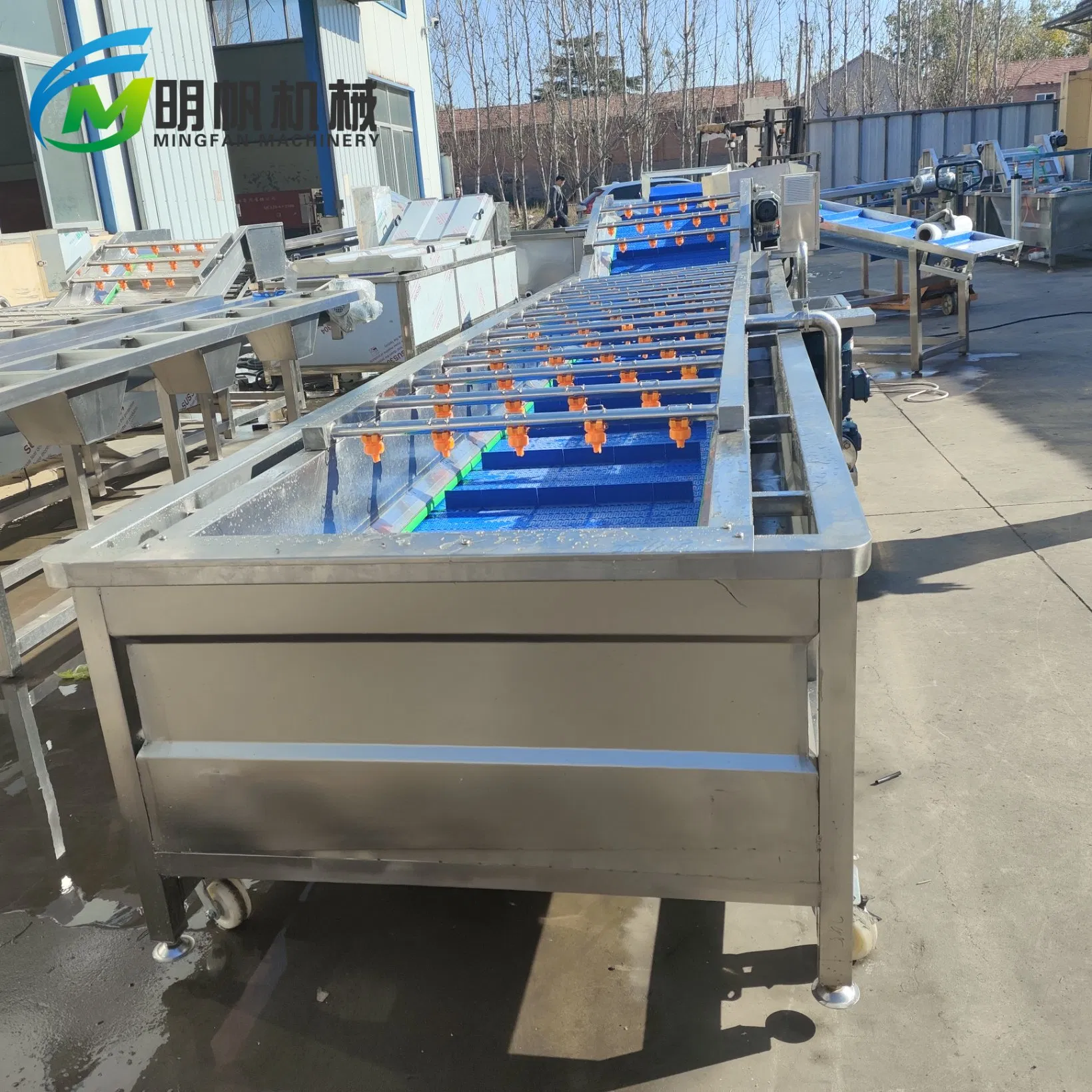

Bubble Washing Equipment for Sushi-Grade Fish and Raw Fish Preparation

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

Overview
Bubble Washing Equipment for Sushi-Grade Fish and Raw Fish Preparation
Basic Info.
Type
Bubble Cleaning Machine
Voltage
380V
Power
1.5KW
Customized
Customized
Product Name
Fruit and Vegetable Bubble Cleaning Machine
Suitable for
Snack Food Factory, Fruit Processing Factory and V
Keywords
Vegetable Bubble Wave Cleaning Machine
Material
304 Stainless Steel
Function
Multifunctional Cleaning, High Efficiency and Easy
Weight
400kg
Transport Package
Standard Export Wooden Case
Specification
Customized
Origin
China
HS Code
84351000
Packaging & Delivery
Package Size
900.00cm * 135.00cm * 145.00cm
Package Gross Weight
950.000kg
Product Description

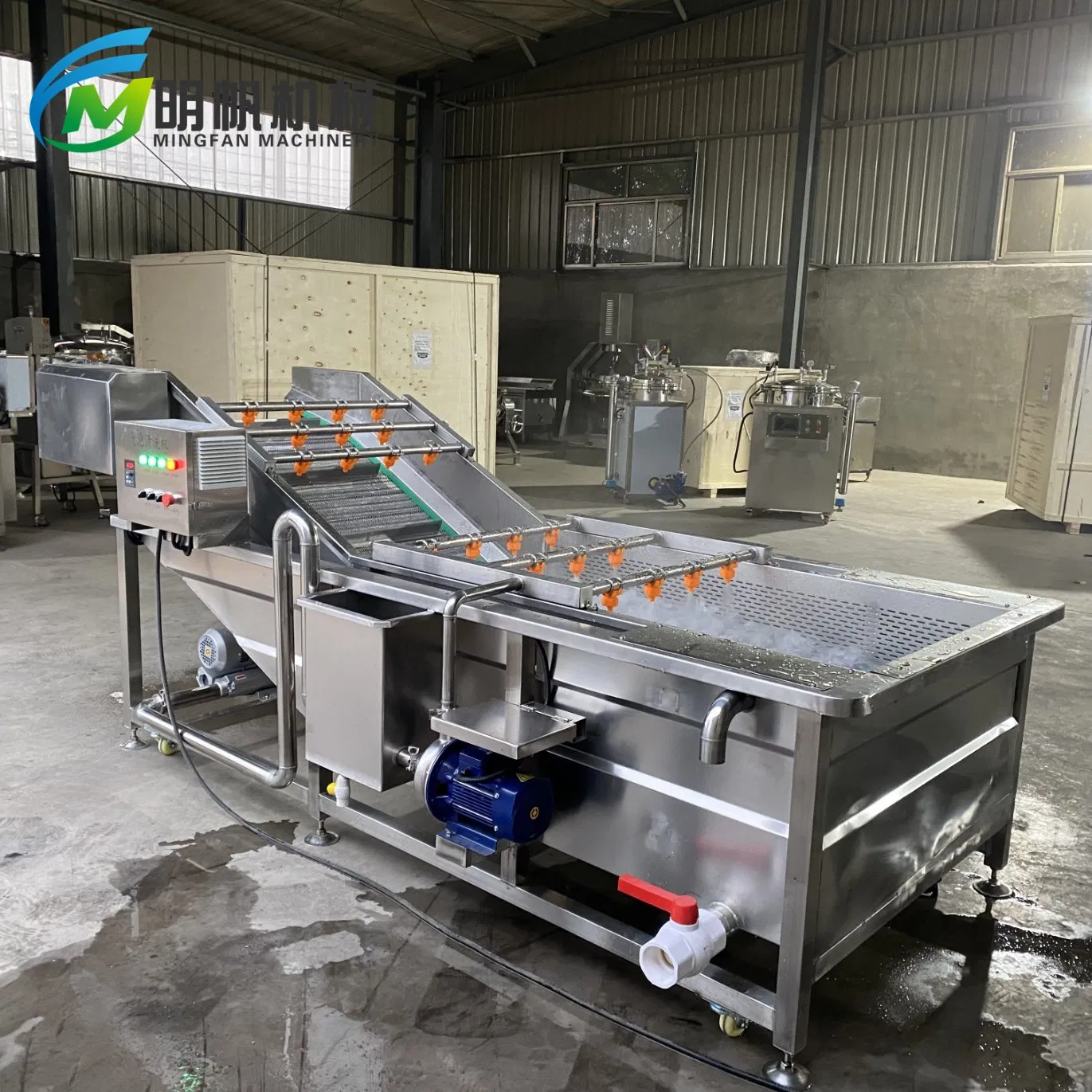

Bubble Washing Equipment for Sushi-Grade Fish and Raw Fish Preparation

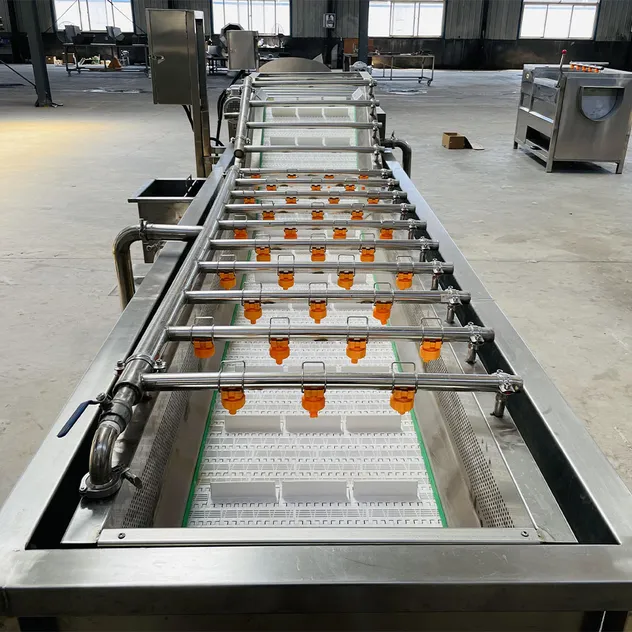

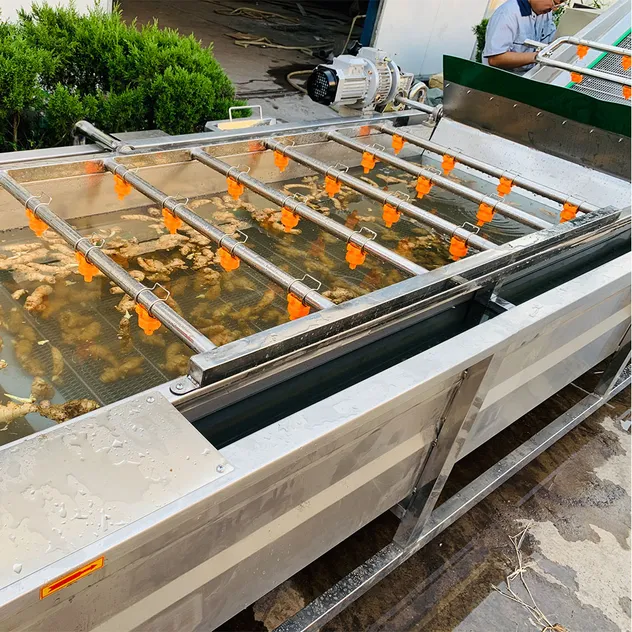

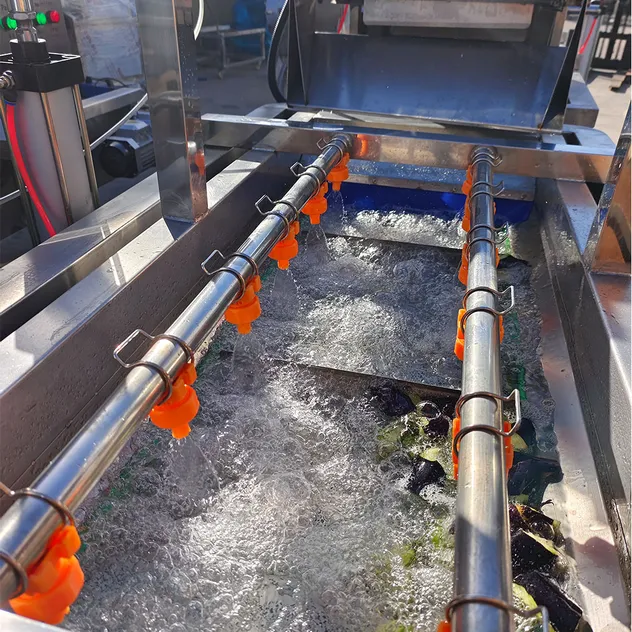

Bubble Washing Equipment Detail 1 Bubble Washing Equipment Detail 2 Bubble Washing Equipment Detail 3
The automated cleaning equipment specially designed for the food processing industry is mainly used for the batch cleaning of various materials such as fruits and vegetables (leafy greens, root vegetables, berries), livestock and poultry meat, seafood products, and Chinese medicinal materials. It works through the combined principle of bubble bubbling + high-pressure spraying + mesh belt transportation, simulating the water flow effect of manual scrubbing, and can efficiently remove mud, pesticide residues, impurities, and blood from the surface of the materials. At the same time, it is equipped with a water circulation filtration system to achieve water resource recycling, suitable for large-scale production scenarios such as central kitchens, fresh vegetable processing plants, pre-prepared food enterprises, and food processing factories.

The main body of the equipment is made of food-grade 304 stainless steel and has a modular structure. It includes a bubble generation device, high-pressure spraying pipeline, variable-frequency speed-adjustable conveyor mesh belt, water circulation filtration system, and intelligent electrical control cabinet. It supports adjusting cleaning parameters according to material characteristics and production needs, and combines cleaning efficiency with operational flexibility.
Advantages:
  • High cleaning efficiency, stable cleanliness
    The combination of bubble impact and high-pressure spraying forms multi-dimensional water flow, which can penetrate into the gaps of materials to remove impurities. The cleaning efficiency is 8-10 times that of manual cleaning, and the cleanliness is uniform and consistent during batch cleaning, avoiding the randomness and instability of manual cleaning.
  • Food-grade material, safe and durable
    The entire machine is made of 304 stainless steel, which complies with food hygiene safety standards. It is resistant to acid and alkali and anti-corrosion. It is not prone to rust or aging even when in contact with water and food materials for a long time, and the equipment can last for 8-10 years.
  • Low damage design, ensuring material quality
    The flexible bubble group combined with soft anti-slip mesh belt causes a damage rate of less than 3% to delicate materials such as leafy vegetables and berries during cleaning. It can effectively maintain the integrity and freshness of the materials, enhancing the value of the finished products.
  • Water-saving and environmentally friendly, low operating cost
    An internal water circulation filtration system is installed. The cleaning water can be filtered and reused. Compared with traditional direct discharge equipment, it saves more than 60% of water, significantly reducing water resource consumption and sewage costs during the production process.

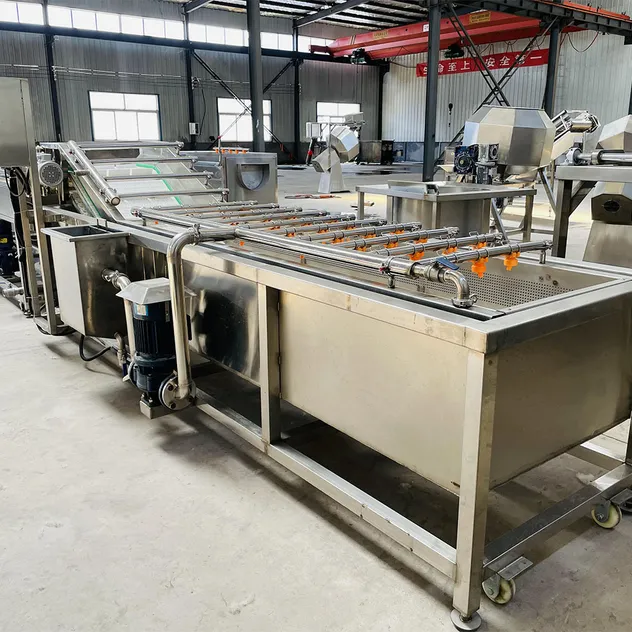

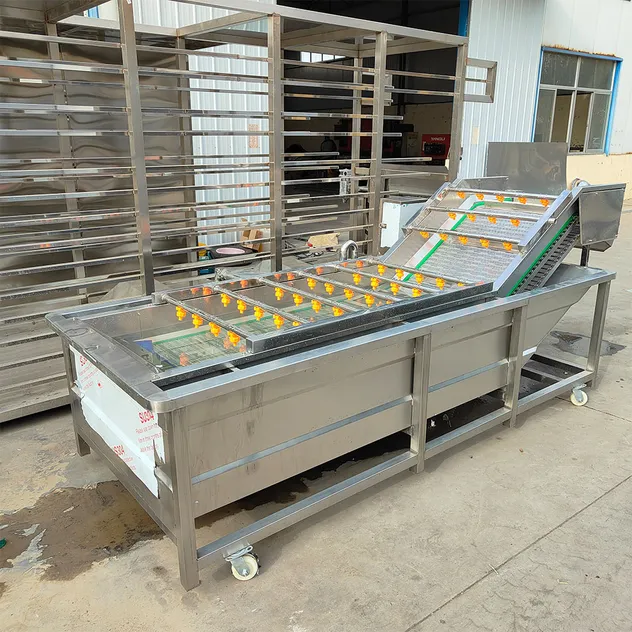

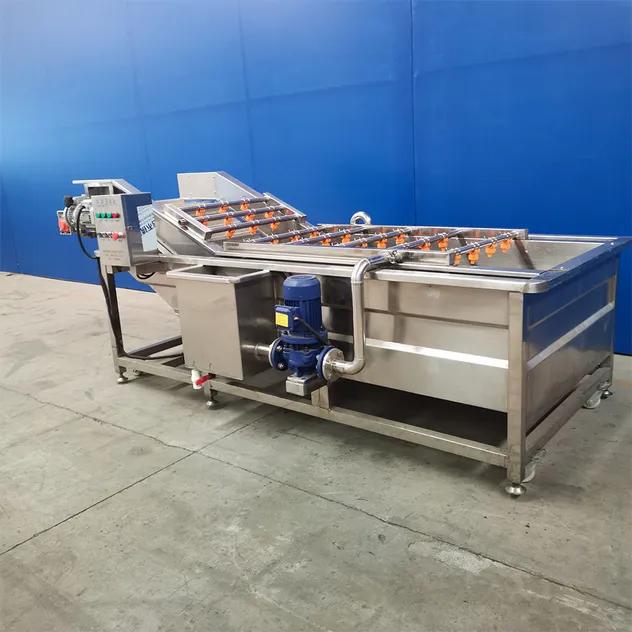

Application 1 Application 2 Application 3
Model Outline Dimension Production Capacity Gross Power Belt Width
MF-QX2500 2500*1350*1450mm 400kg/h 4.3kw 800mm
MF-QX3000 2500*1350*1450mm 600kg/h 5.3kw 800mm
MF-QX4000 2500*1350*1450mm 800kg/h 6.3kw 800mm
MF-QX5000 2500*1350*1450mm 1000kg/h 7.3kw 800mm
MF-QX6000 2500*1350*1450mm 1200kg/h 8kw 800mm
MF-QX8000 2500*1350*1450mm 1500kg/h 9.7kw 800mm
MF-QX10000 2500*1350*1450mm 1800kg/h 11.2kw 800mm

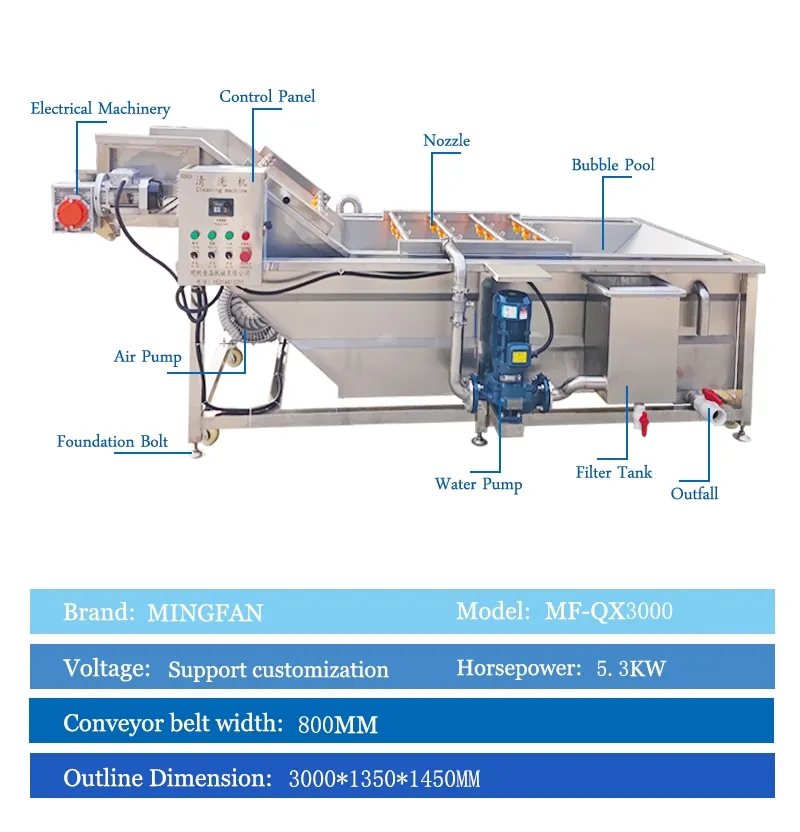

Structure Banner
High Quality Materials

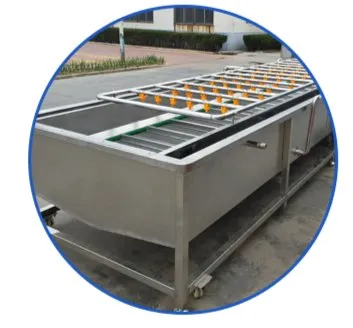

1. High Quality Materials
The equipment is made of SUS304 stainless steel, which is beautiful, durable, easy to clean, and meets the food quality requirements.

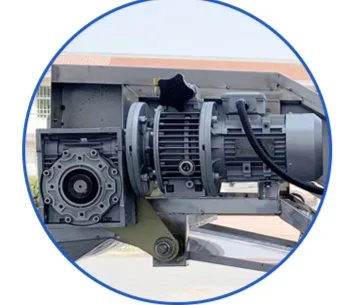

Pure Copper Motor
2. Pure Copper Motor
Fully automatic, low noise, great efficiency, wear resistance, and long service life. Strong power and smooth current.

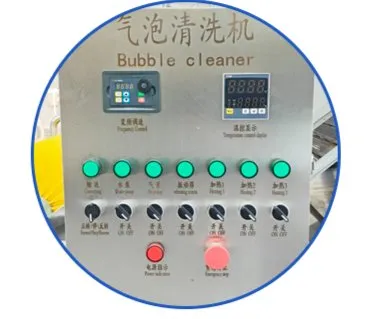

Push-button Control
3. Push-button Control
The control panel is simple in design, and the button control operation is more convenient and quick. The ozone system can be selected to effectively degrade the residual pesticides on the surfaces of fruits and vegetables, and each function can be customized as required.
Circulating Water Tank

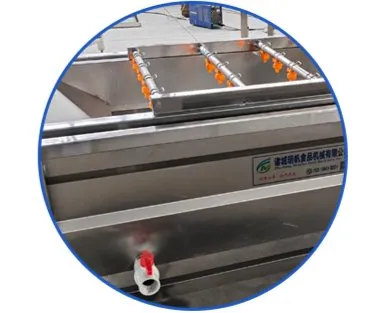

4. Circulating Water Tank
An independent water tank is designed to filter stains and residues in water, effectively separating and filtering floating objects and residues. Recycling, saving water.

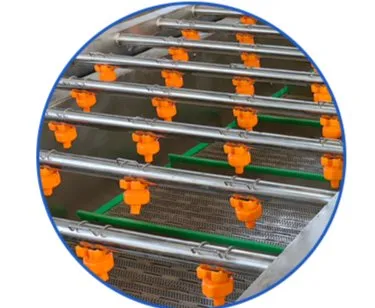

Bubble Cleaning
5. Bubble Cleaning
When the material falls into the water, it will be stirred and cleaned by the tumbling water in the tank, and the heavy dirt such as sediment on the material will fall into the precipitation area below the mesh belt after being separated, so as to remove most impurities and improve the cleaning effect.
Main Product

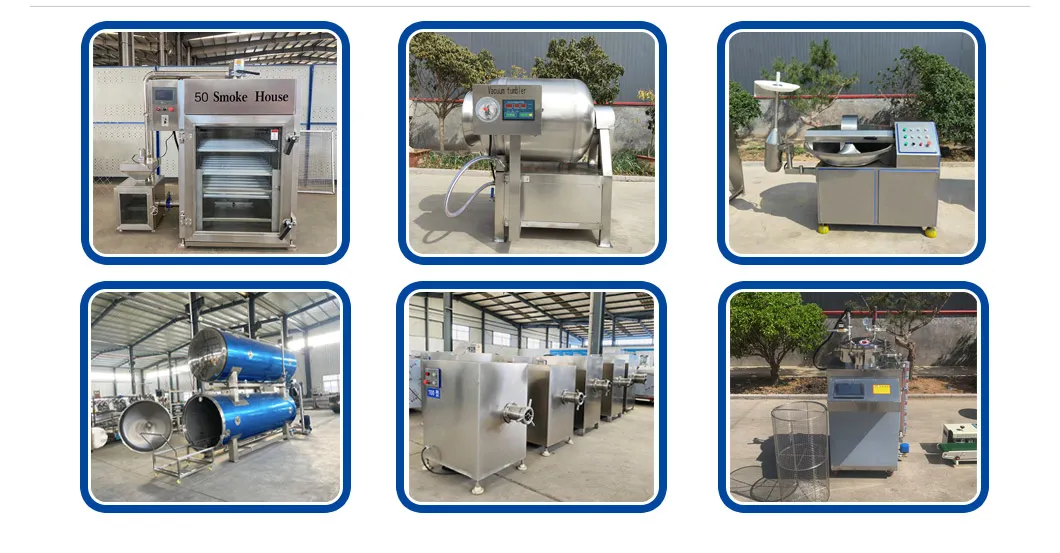

Main Product Lineup
Company Profile
Modern Standard Factory
Our manufacturing facility covers an area of 10,000 square meters and has a brand-new modern standard factory building. We are committed to food machinery and equipment research and development, manufacturing, and trade as one of the integrated machinery manufacturing enterprises.

As a food-processing equipment manufacturer with 20 years of experience, our main products include: sterilizers, double-layer pans, planetary frying pans, fried potato chips equipment, meat products processing production lines, clean vegetable processing production lines, potato chips processing production lines, fruit and vegetable cleaning and deep-processing production lines, etc. We have a comprehensive service system and are dedicated to providing customers with comprehensive and suitable production design schemes to offer customers a satisfactory experience.

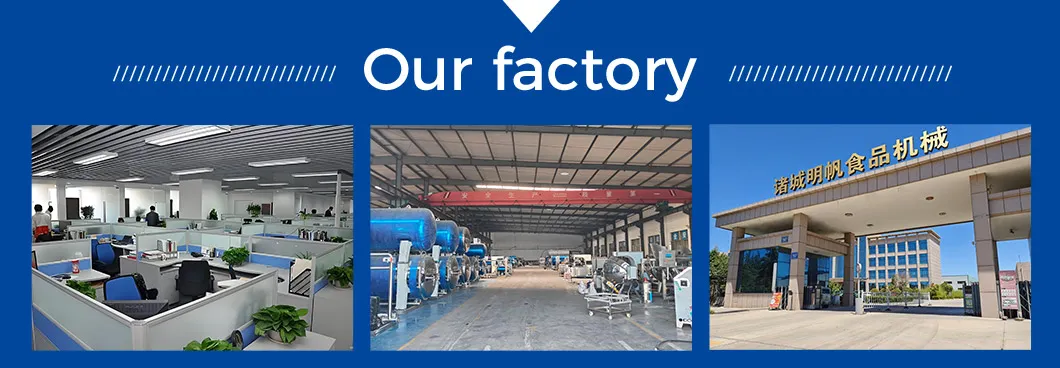

Workshop Environment
Production Flow

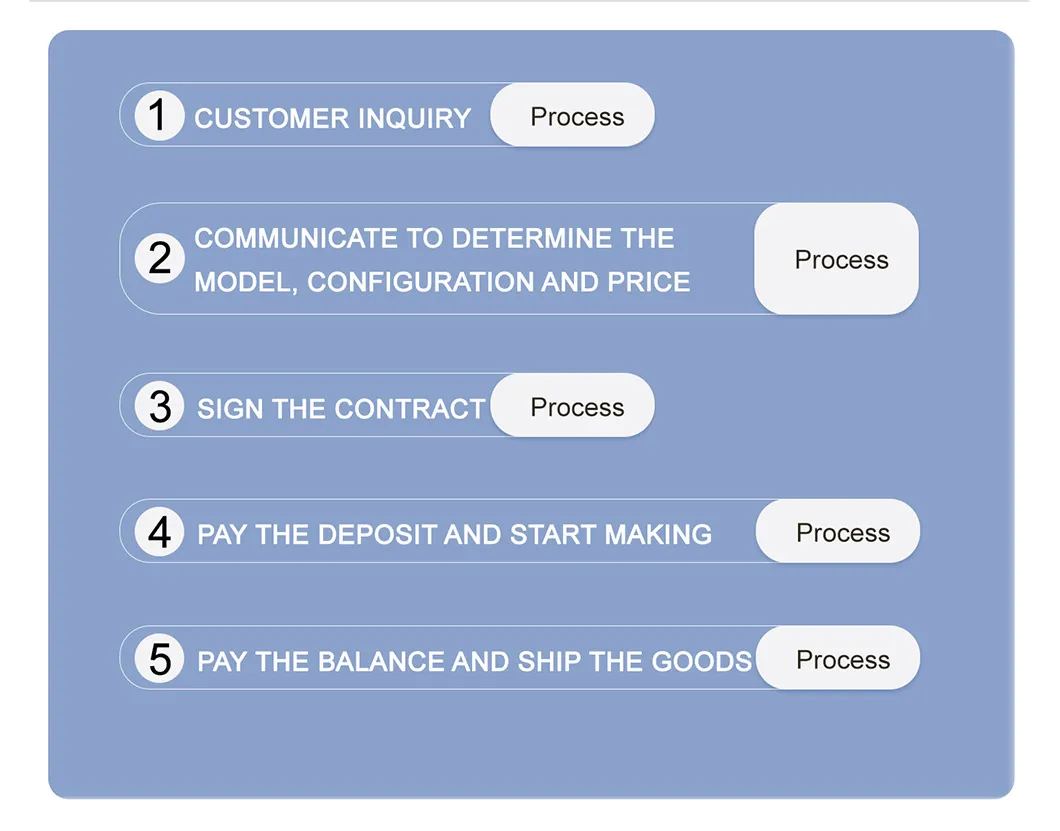

Production Flow Process
Certifications
Factory Certifications
Exhibition
Exhibition Booth

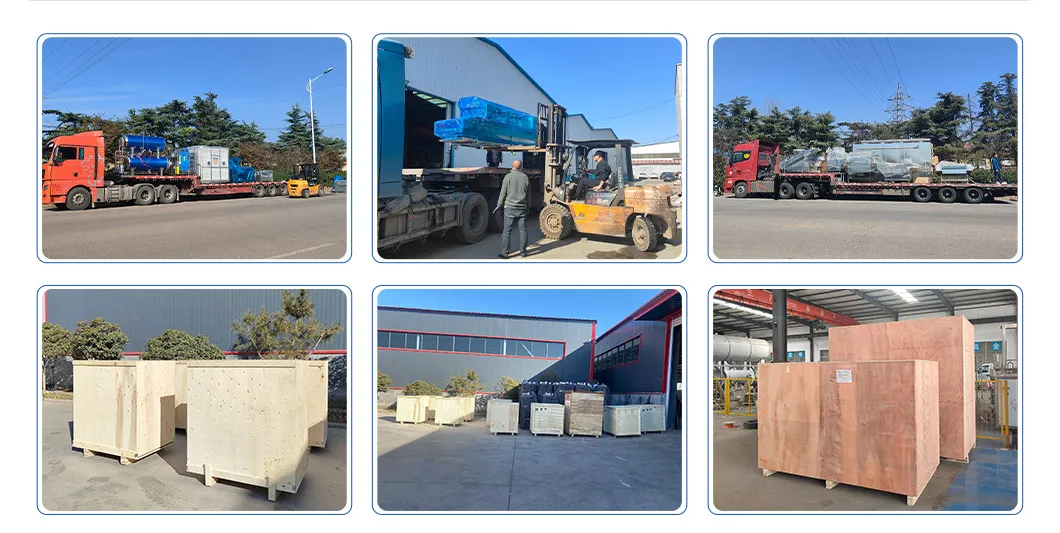

Packaging & Shipping
Packaging & Loading Details
FAQ
Q Are you a factory or a trading company?
We are a professional food machinery manufacturer with 20 years of production experience.
Q How to order?
Inquire from us → Customize the drawings and samples → Inform the usage scenarios → Receive our product design recommendation → Discuss the details → Confirm the details → Sign the contract/deposit → Mass production → Ready the goods → Balance/delivery → Further cooperation.
Q What mode of transportation is available?
We support sea transportation and land transportation. Other modes of transportation are also acceptable. Other shipping routes are also acceptable upon request.
Q How long will it take to deliver [produce] and ship?
The delivery time depends on the quantity you ordered. It usually takes 55-60 working days.
Q There are some products missing from my package. What can I do?
Please contact our support team. We will confirm the contents of your order with packaging and compensate for the delivery according to the real situation. We are sorry for the inconvenience.
Q How to confirm the payment?
We accept telegraphic transfer and PayPal payment, and other payment methods are also acceptable. Other payment methods are also acceptable upon prior confirmation. Another 40-60% deposit is feasible, and the balance should be paid before shipment.

Related Products
