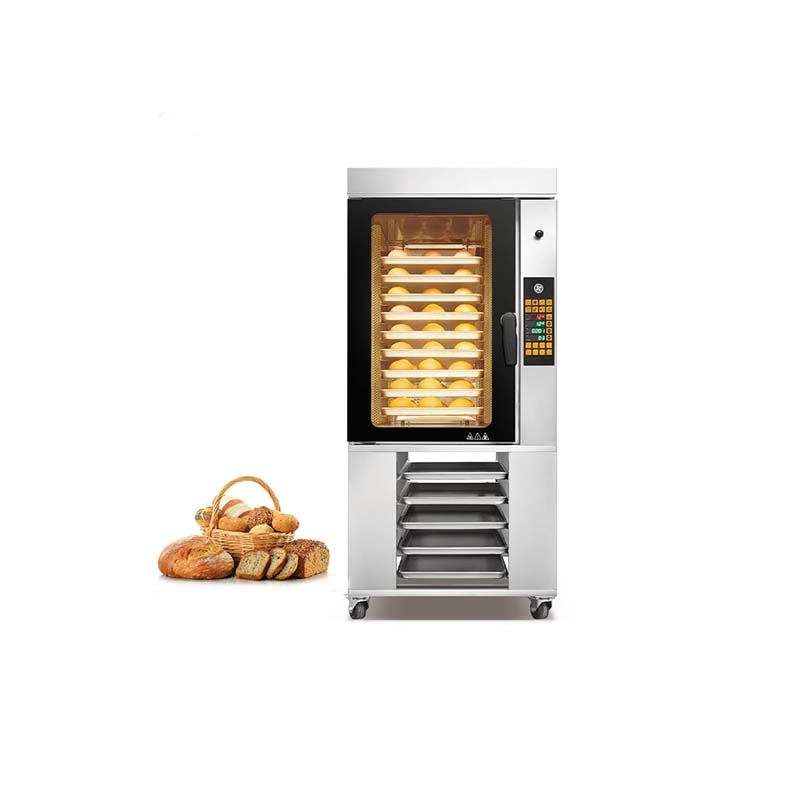

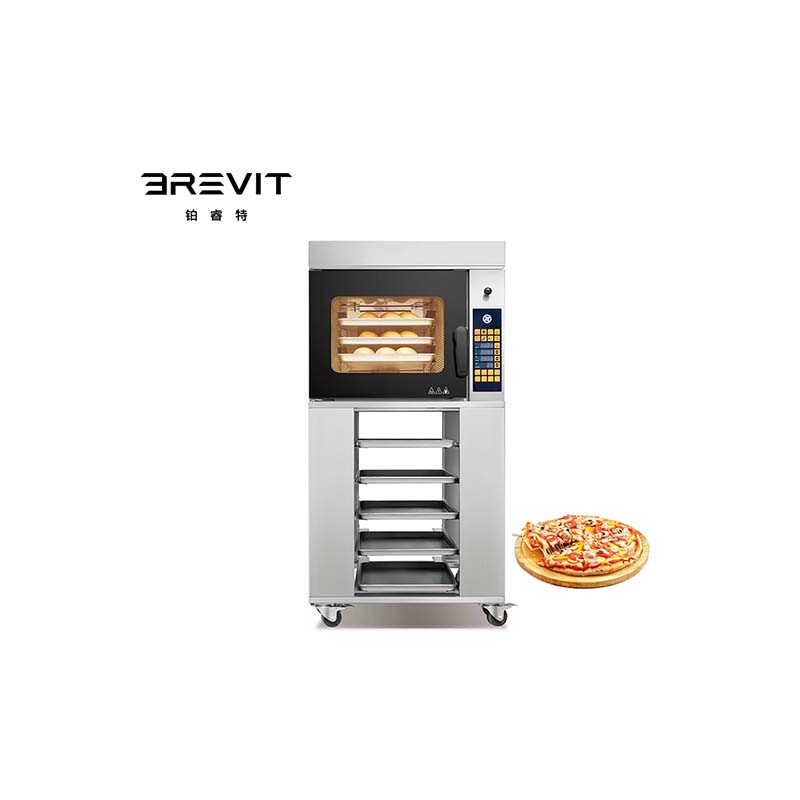

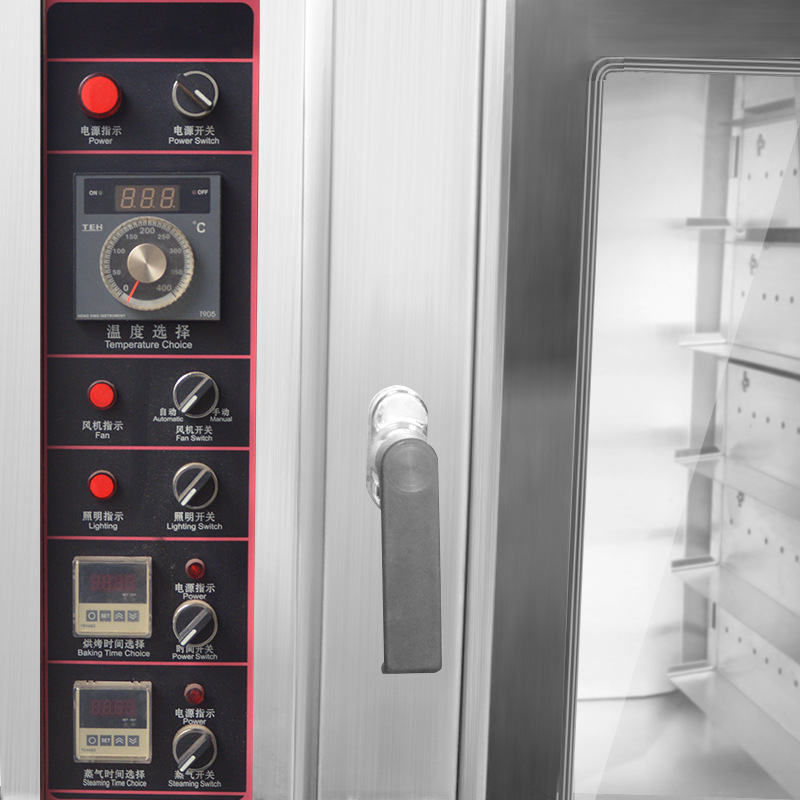

Bakery Baking Equipment Commercial Baking Oven Industrial Electric 5 Trays Oven for Cake Bread Baking Convection Oven

1 / 5

Bakery Baking Equipment Commercial Baking Oven Industrial Electric 5 Trays Oven for Cake Bread Baking Convection Oven

Send Inquiry

Product Description

Products Description

Model	BHS/BHSPI/BMF/BDF/BDQF/BF
Standard Dimension (mm)	Please watch below
Material	High Quality Stainless Steel + Automatic Control Panel + Famous Brand Compressor
Customizable Options	Color / Logo / others please contact us

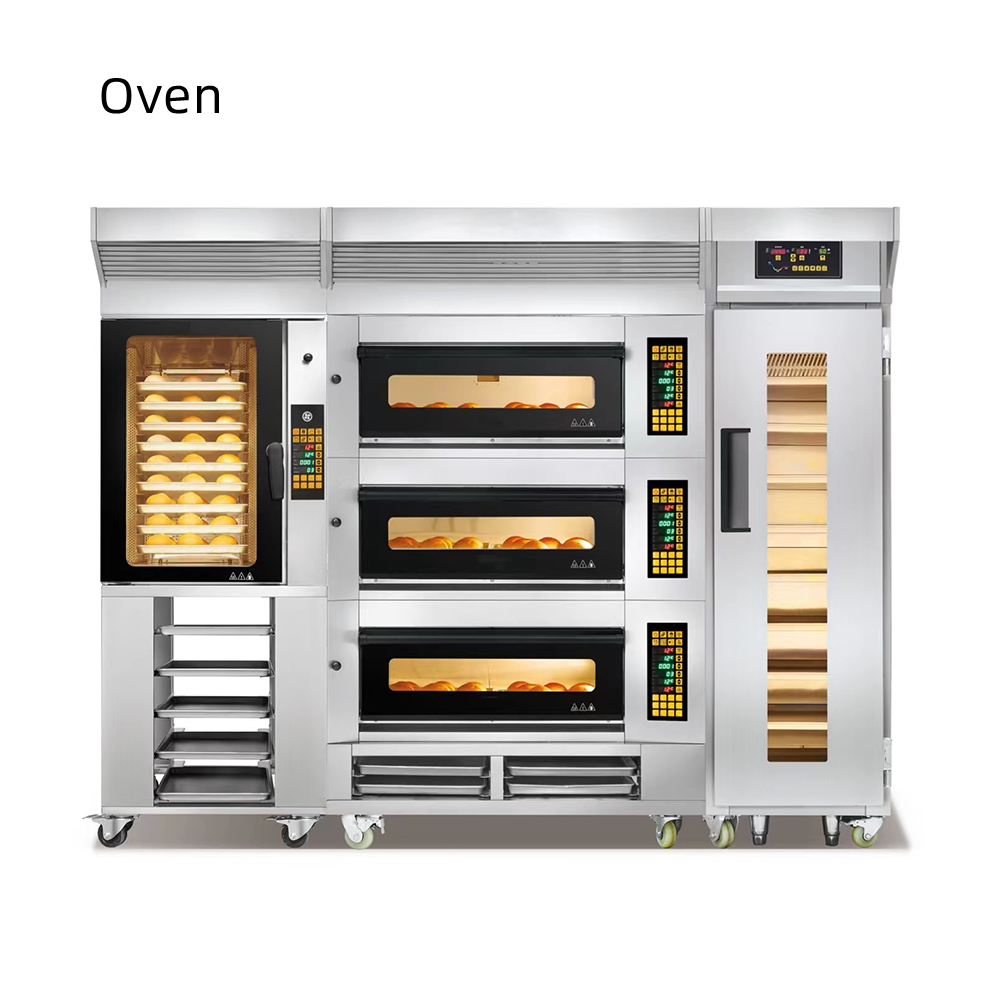

Product Display

The box body is made of stainless steel plate, which has good heat resistance, good heat reflectivity, mechanical properties and physical properties are better than cold-rolled plate, hot-rolled plate, aluminized plate, and has anti-oxidation performance and anti-corrosion ability.
High-efficiency reflection efficiency stainless steel plate 1.5 thick is used to make the inner wall of the entire furnace, modular design! Layering is convenient! Clean and hygienic! Ensure that the heat loss during the baking process of the furnace body is minimized.
Built-in steam and system, no need for heating rods, making the equipment narrower in size, full of steam, stable and uniform in furnace temperature, no need to adjust the baking pan, and better baking effect.

Model	Layers	Pans	Physical Dimension	Rated Voltage	Input Power	Weight
BHS-901	1	1	1000x740x480mm	220v	2.8kW	108kg
BHS-621	1	2	1270x970x480mm	380v	6.1kW	150kg
BHS-622	2	4	1270x1050x1260mm		12.2kW	300kg
BHS-623	3	6	1270x1230x2150mm		18.3kW	450kg
BHS-631	1	3	1740x970x480mm		6.5kW	180kg
BHS-632	2	6	1740x1050x1260mm		12.5kW	420kg
BHS-633	3	9	1740x1230x2150mm		19kW	630kg
BHS-641	1	4	1740x1135x480mm		9kW	230kg
BHS-642	2	8	1740x1215x1260mm		18kW	460kg
BHS-643	3	12	1740x1395x2150mm		27kW	690kg
BHS-644	4	16	1740x1395x2225mm		36kW	920kg

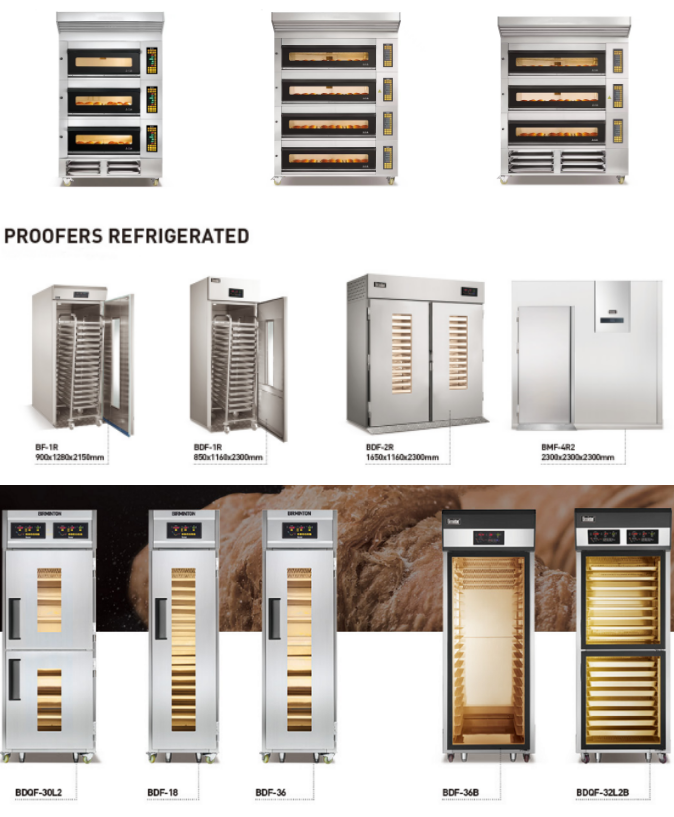

The box is made of internal and external stainless steel and environmentally friendly foaming technology.
Fully automatic microcomputer touch control panel advanced automatic fermentation system to control temperature and humidity respectively.
Adopt imported compressor and high-quality fan circulation design, so that the internal temperature and humidity of the box are uniform.
The door frame glass window makes the proofing process clear at a glance, it has a drainage device which is convenient for cleaning, meets the needs of customers and improves production efficiency.

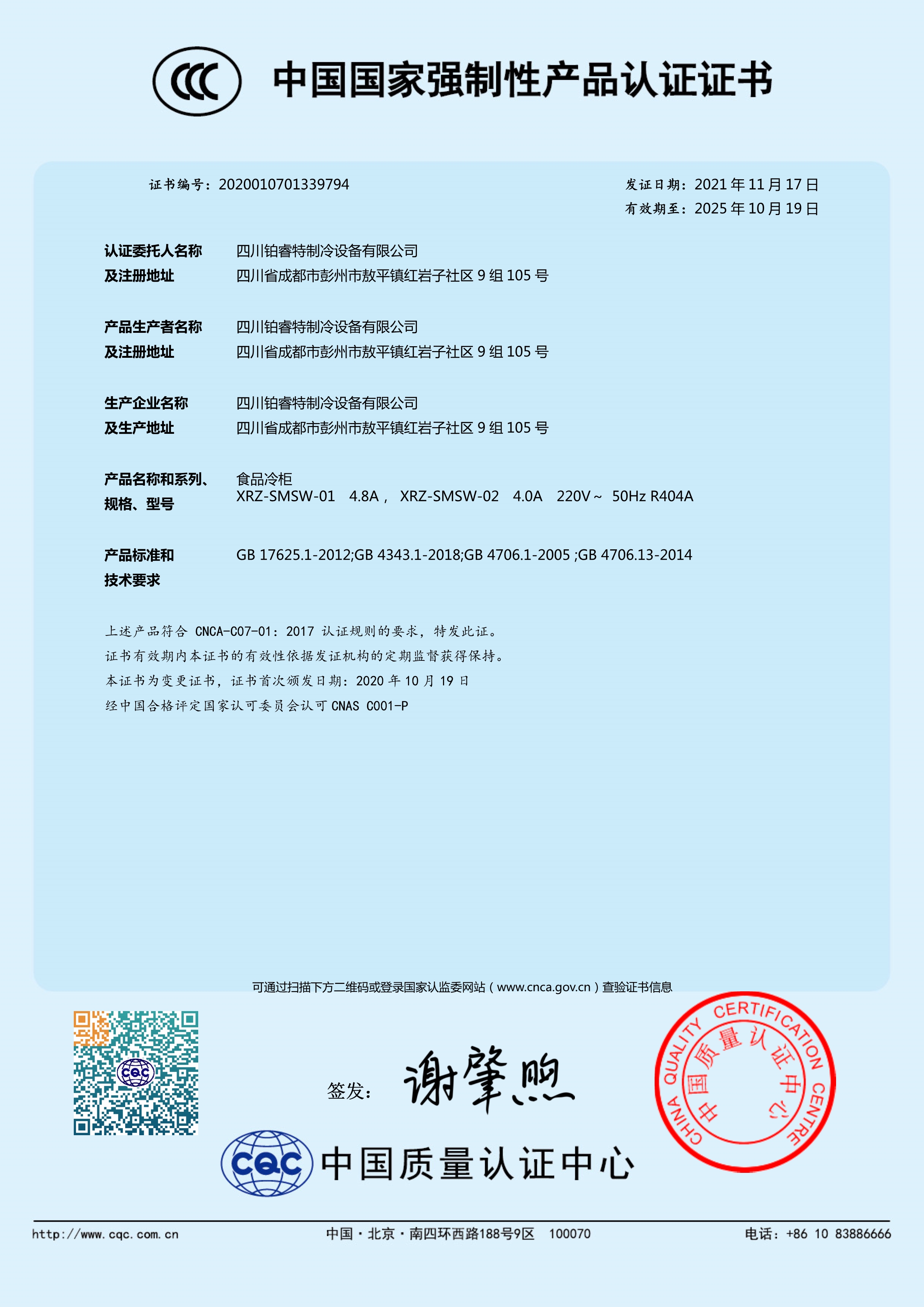

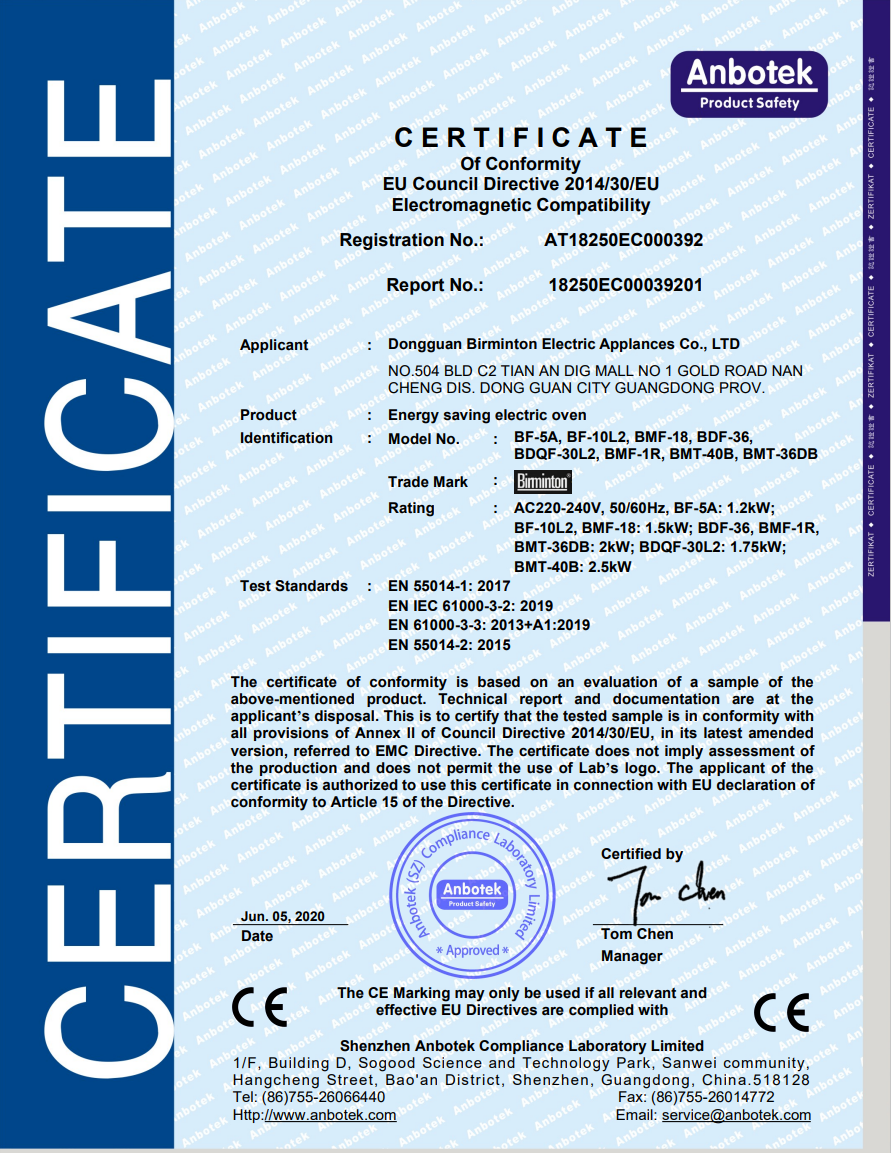

There is food contact test report certification (in line with GB4806.9-2016 GB4806.10-2006 national food safety standards) CE certification.

Proofer		Refrigeration		Freezing
Temperature	Humidity	Temperature	Humidity	Temperature	Humidity
38~50°C	99%RH	-1~+5°C	99%RH	-10~-15°C	99%RH

Device Model	Equipment Type	Pans	Rated Power		Dimension
Device Model	Equipment Type	Pans	Refrigeration	Proofer	Dimension
BMF-18	Fully automatic refrigerated proofer	18	0.85kw	1.5kw	600x960x2150mm
BMF-36	Fully automatic refrigerated proofer	36	1.1kw	2.8kw	800x1160x2150mm
BDF-18	Fully automatic freezer proofer	18	/	/	600x960x2150mm
BDF-36	Fully automatic freezer proofer	36	/	/	800x1160x2150mm
BDQF-30L 2	Double temperature and double control upper refrigeration and lower freezing proofing box	32	0.85kw	1.5kw	800x1160x2150mm
BF-20	Automatic proofing box	20	/	1.5kw	600x960x2150mm
BF-40	Automatic proofing box	40	/	2.8kw	800x1160x2150mm
BDF-18B	Fully automatic freezer large glass door proofer	18	/	/	600x1000x2150mm
BDF-36B	Fully automatic freezer large glass door proofer	36	/	/	800x1200x2150mm
BDQF-32L2B	Double temperature and double control upper refrigeration and lower freezing large glass door proofer	32	0.85kw	1.5kw	800x1160x2150mm
BF-20B	Automatic large glass door proofer	20	/	1.5kw	600x1000x2150mm
BF-40B	Automatic large glass door proofer	40	/	2.8kw	800x1200x2150mm

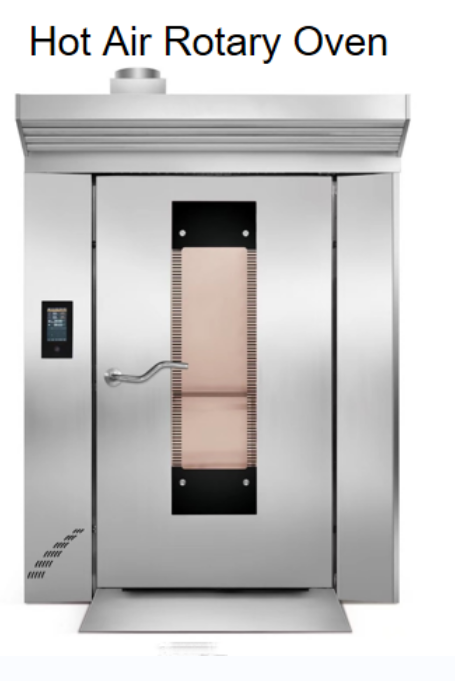

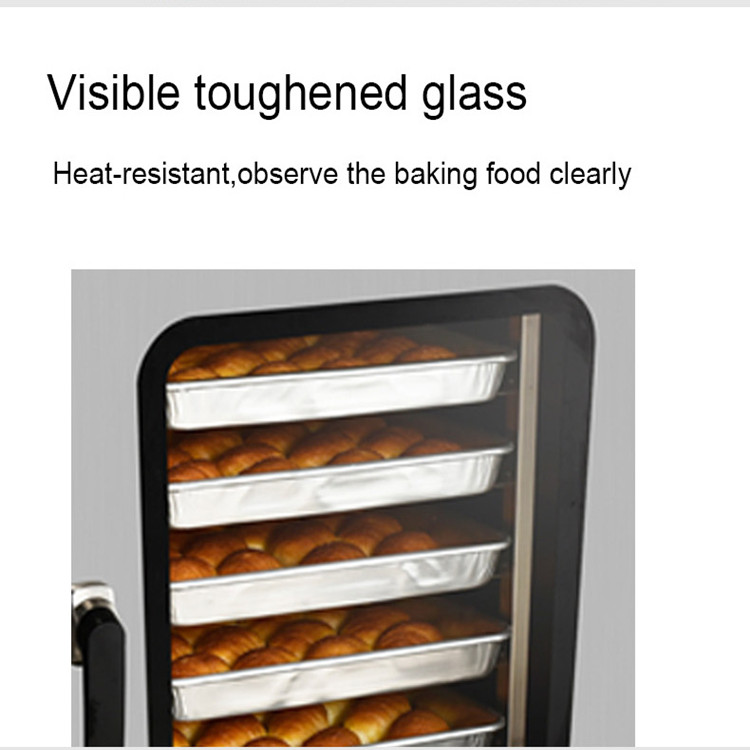

Made of stainless steel double-layer tempered glass, a large field of view to observe the baking situation more clearly.
The insulation layer of the oven is thickened, and the heat exchange system is welded with seamless stainless steel pipe rings.
The air outlet adopts a 5-stage adjustment system, and the thickened stainless steel can ensure that the air outlet is not deformed under high temperature conditions.
The amount of baking is large, and it can be divided into 64 trays, 32 trays, 16 trays and 12 trays at one time. The motor adopts 30-year brand motor quality assurance.

Device Model	Fuel Type	Pans	Power	Dimension	Pan Size	Trolley	Rated Voltage
BN-32C	diesel	32/trolley	3.5kw	1806×2609×2400mm	400×600mm	2	380v 50Hz
BN-32D	electric	32/trolley	54kw	1660×2609×2400mm
BN-32R	gas	32/trolley	3.5kw	1806×2609×2400mm
BN-16D	electric	16/trolley	30kw	1210×1800×2350mm
BHS-32D	electric	32/trolley	54kw	1660×2609×2400mm
BHS-16D	electric	16/trolley	30kw	1210×1800×2350mm

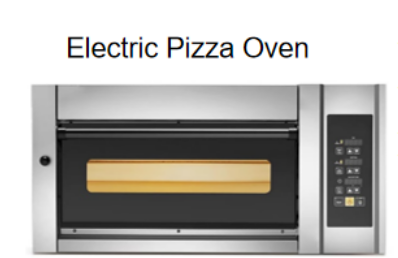

A simple operating system that even beginners can easily use.
Uniform heat dissipation and ceramic slate device make pizza bake evenly.
Equipped with timer and internal light to improve operability.

Model	Capacity	Rated Voltage	Input Power	Temperature Range	Dimension	Standard Configuration
BHSPI-2001	9~12pizza×2	220v/50Hz 1P+1N	3.6KW	normal temperature~400	1000×690×480mm	slate + built-in single layer

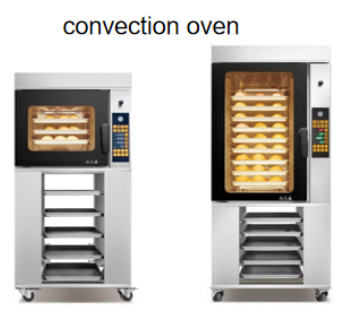

Made of stainless steel, tempered anti-scalding glass door, intelligent control panel and temperature sensor.
The hot air circulation system is designed to rotate left and right according to the time period, the heat exchange temperature is high.
Spray humidification system with built-in water tank to meet the needs of food steam.
Professional baking configuration in one step. Perfect for baking baguettes, butter breads, cookies, croissants and more.

Model	Pans	Rated Frequency Voltage	Input Power	Weight	How to place the pan	Pan Size	Dimension
BHS-705A	5	50Hz 380v	9.5kw	110kg	vertical	400*600mm	780×1040×1535mm
BHS-710A	10	50Hz 380v	19kw	150kg	vertical	400*600mm	780×1040×1845mm

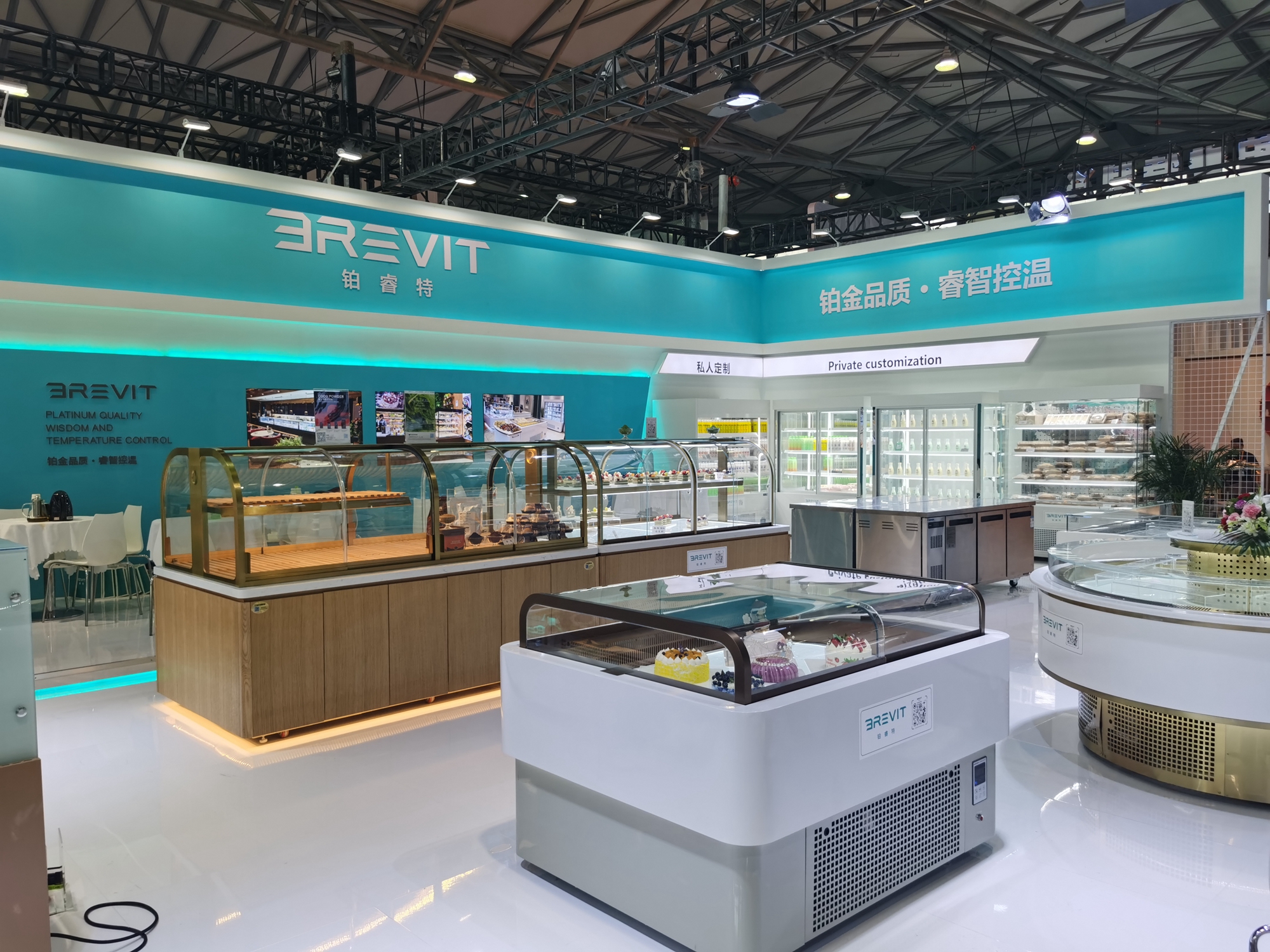

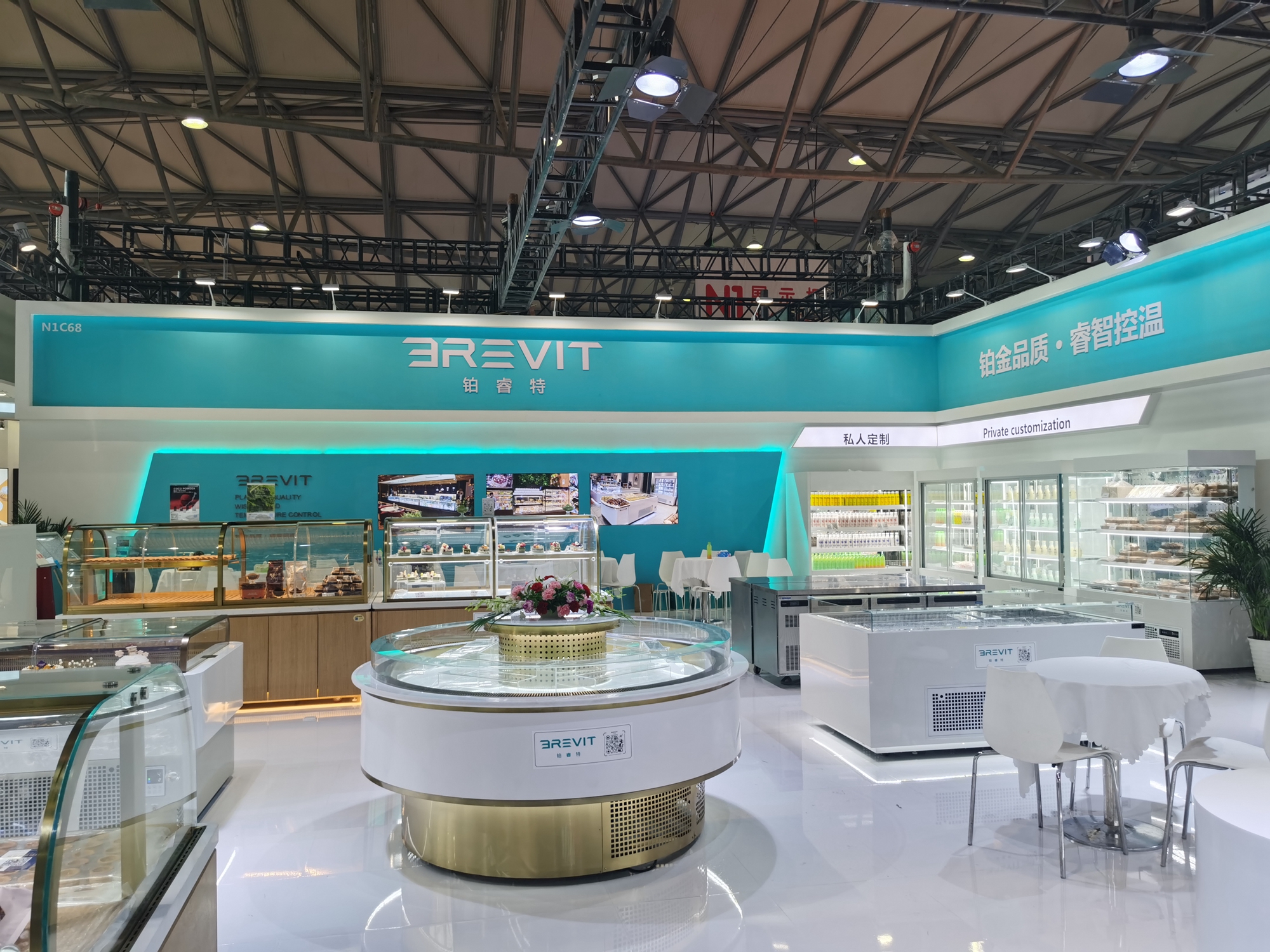

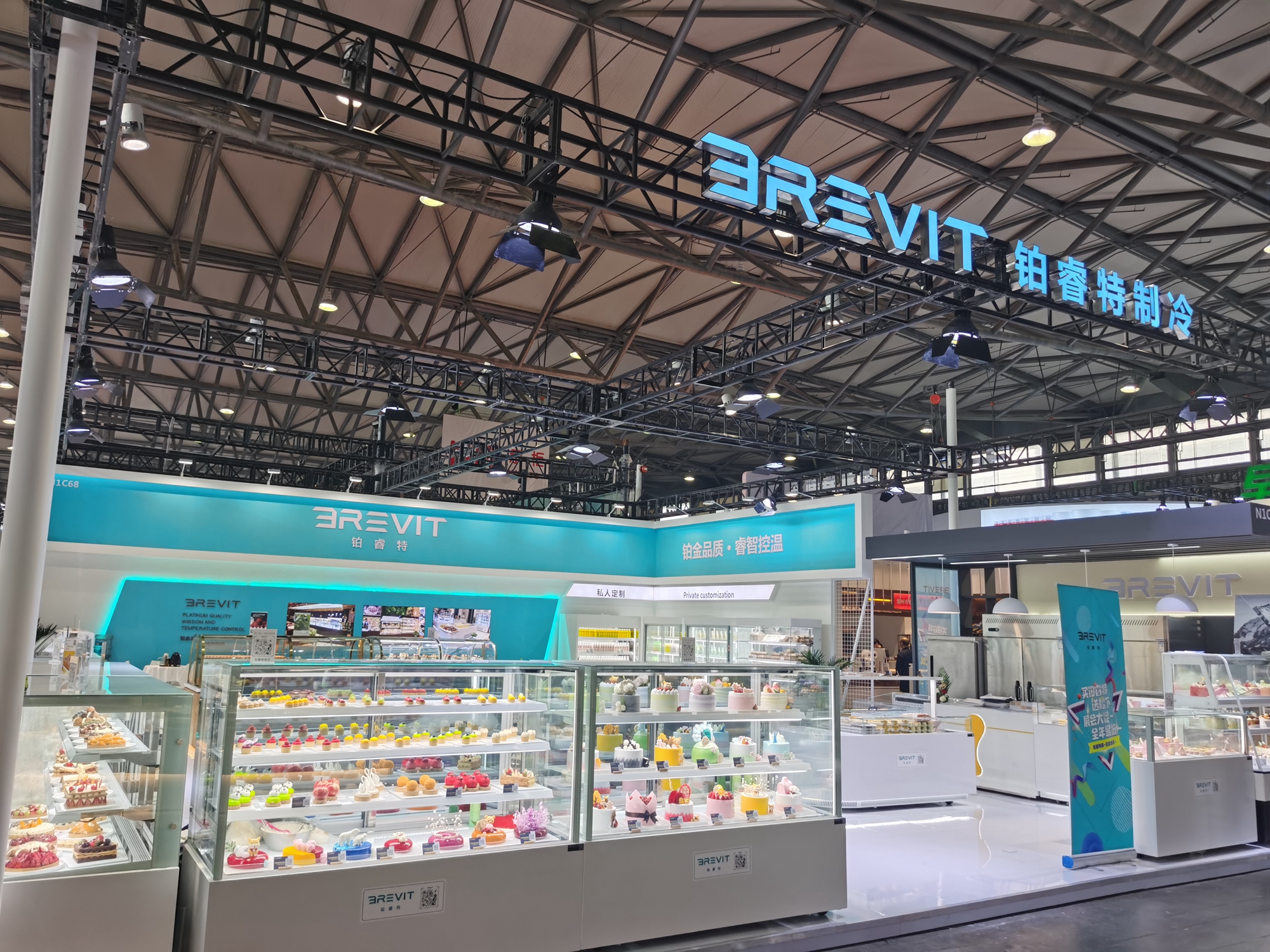

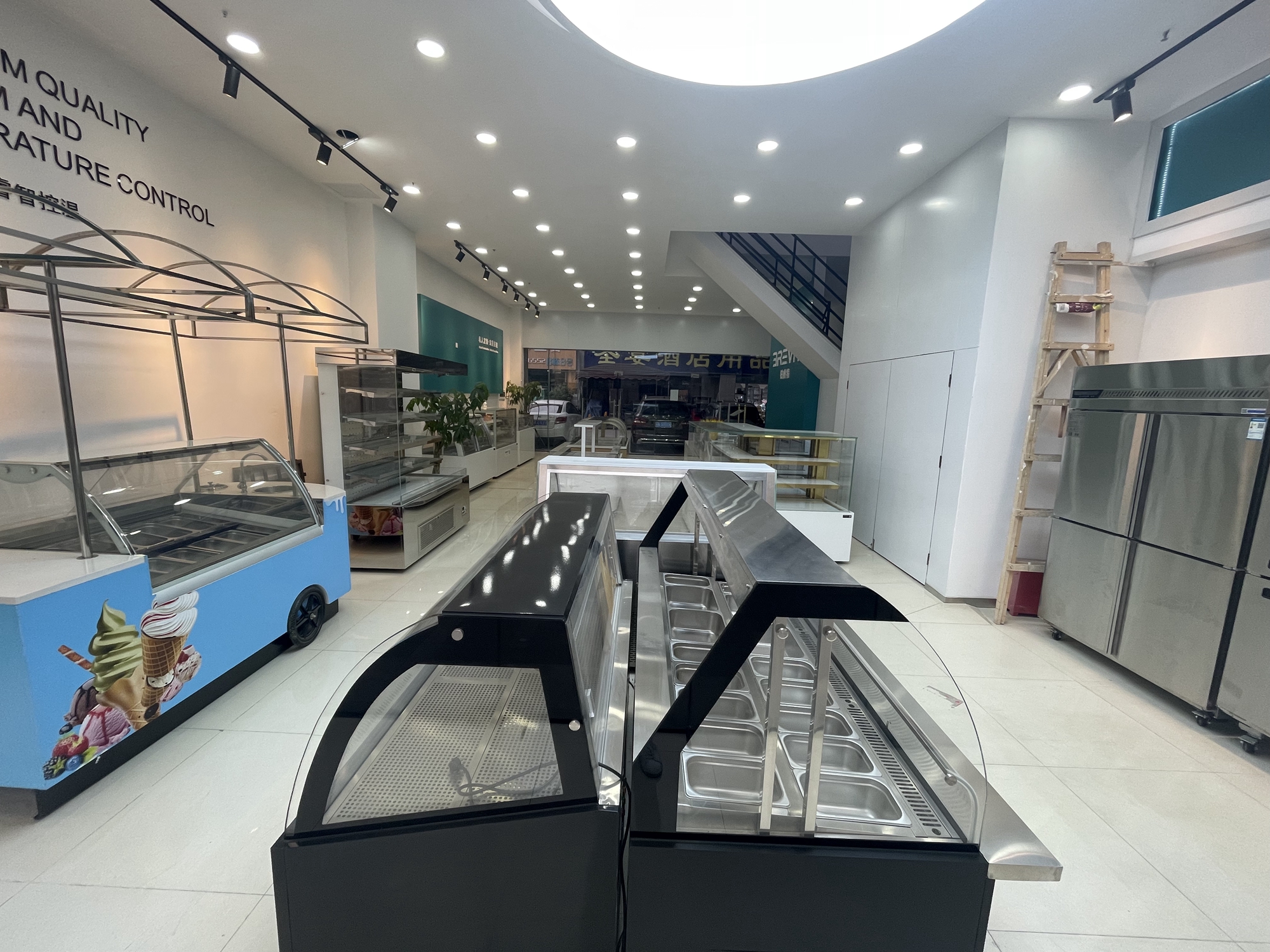

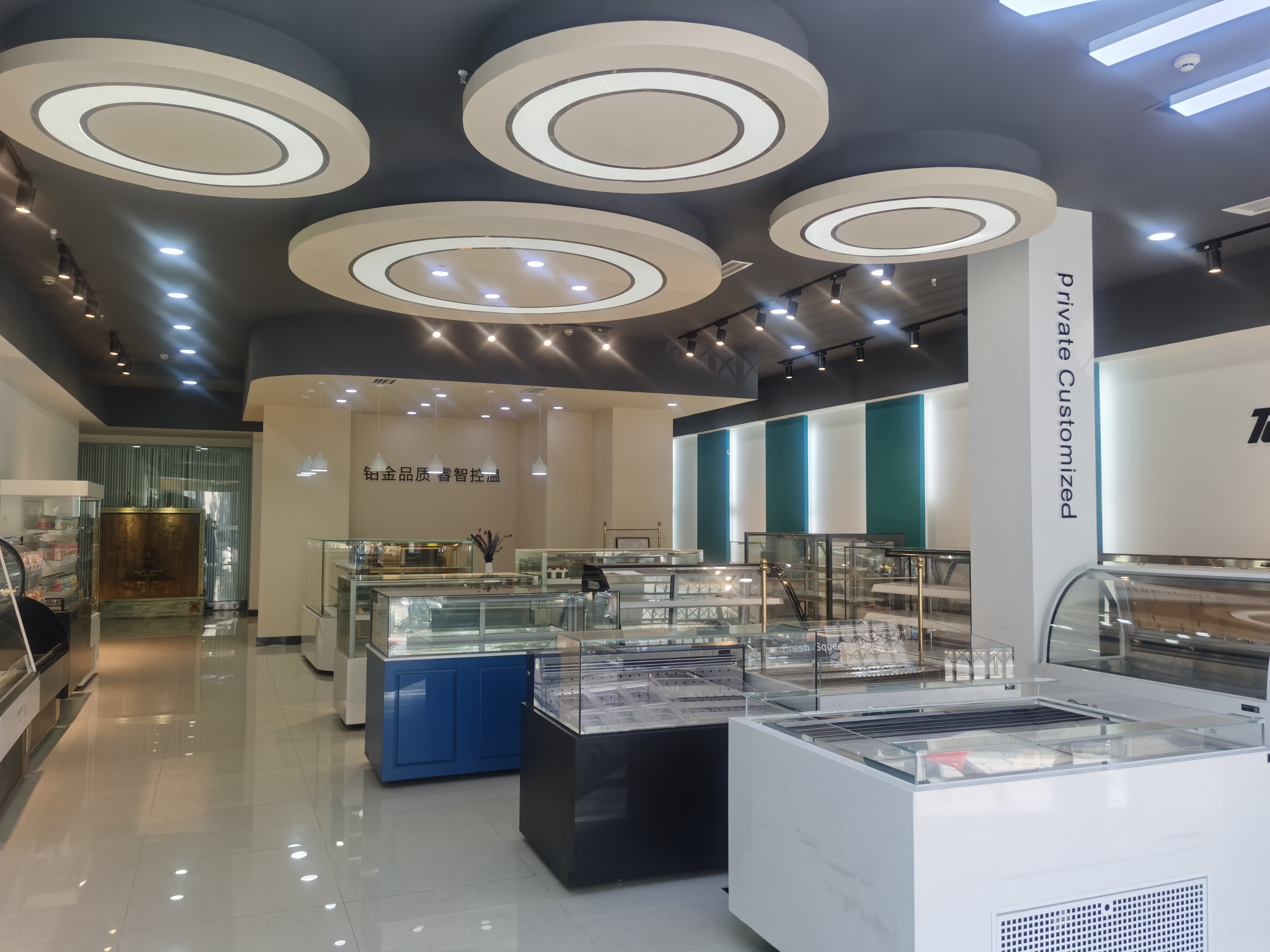

Sample

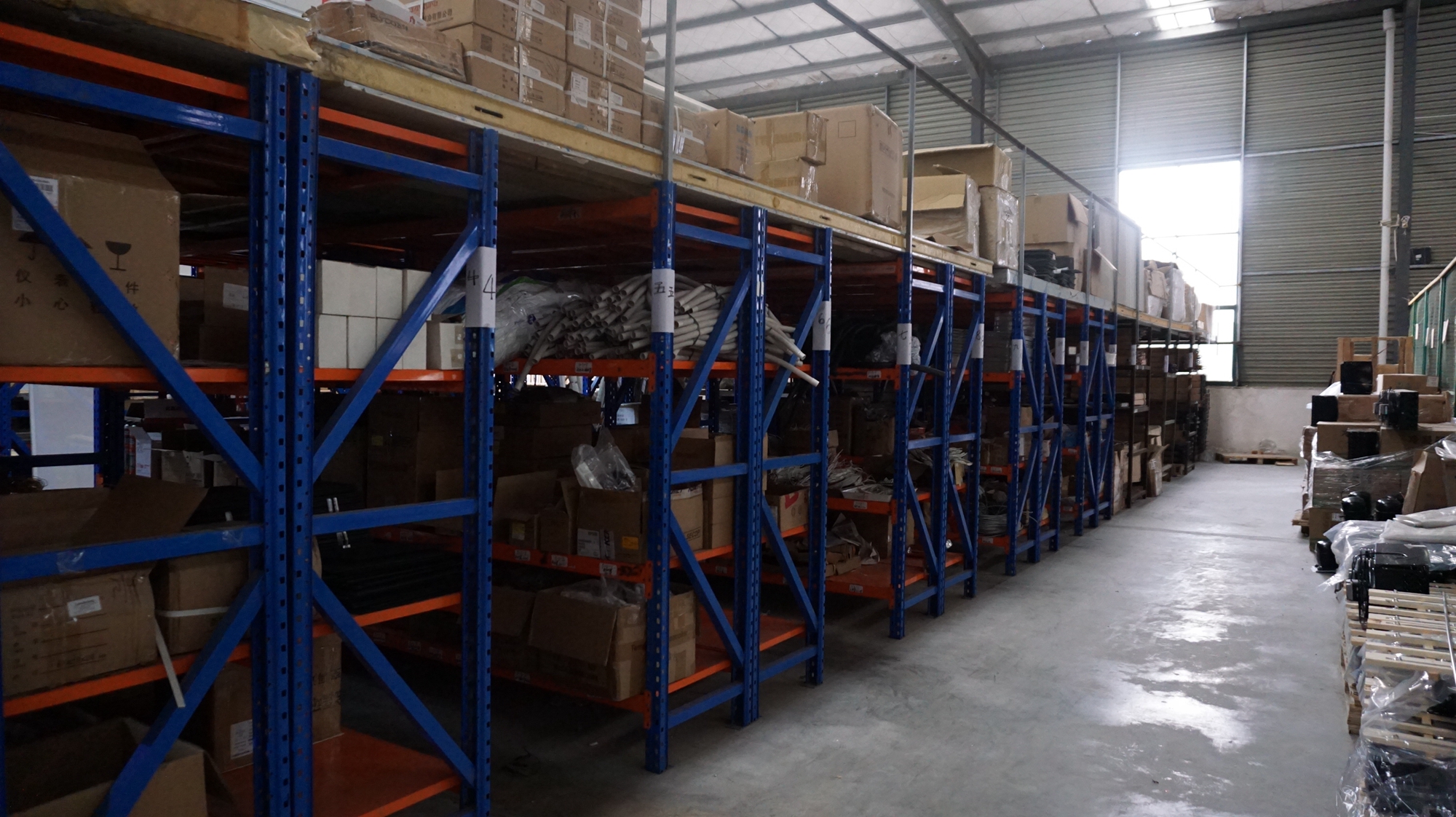

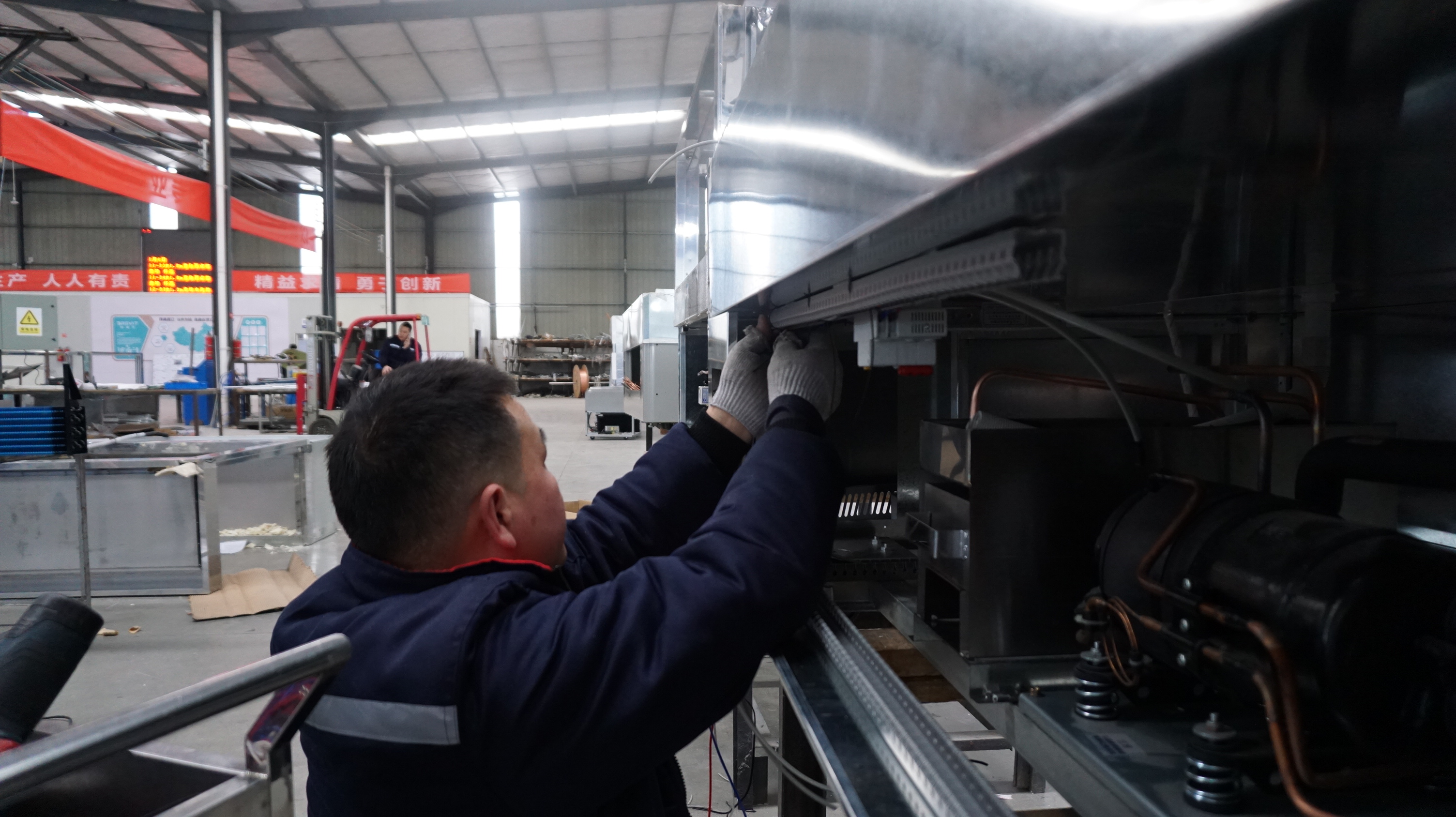

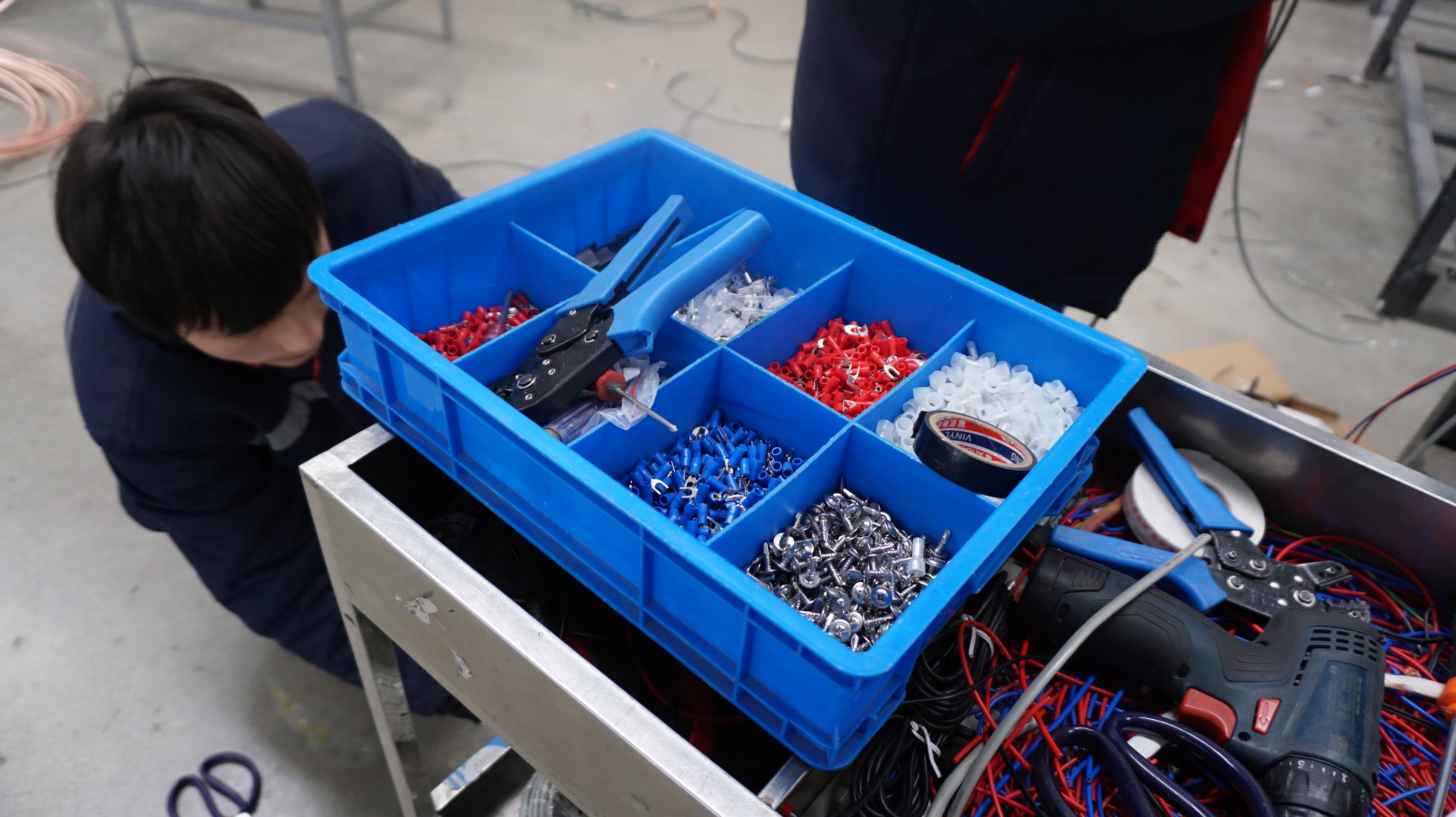

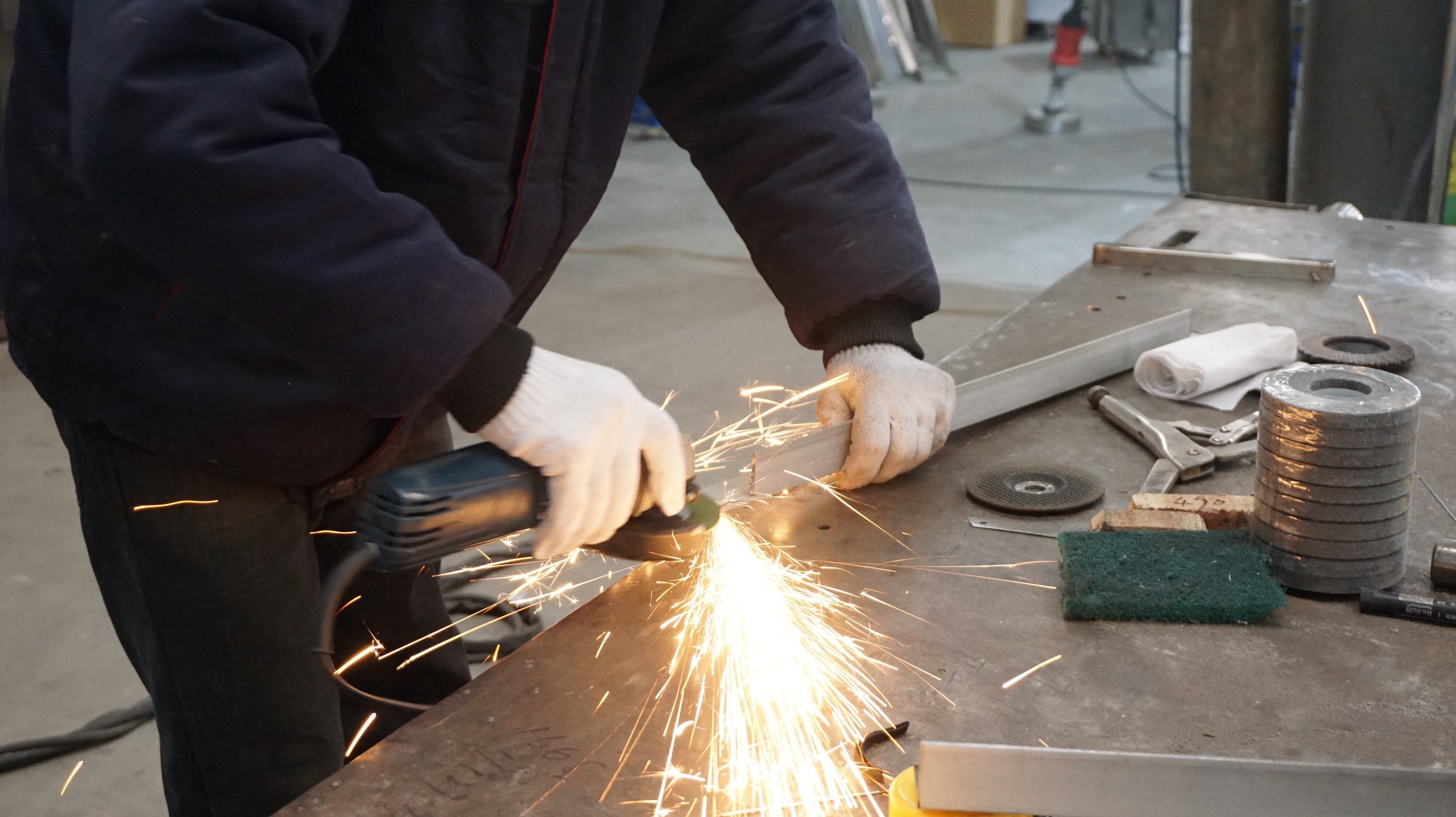

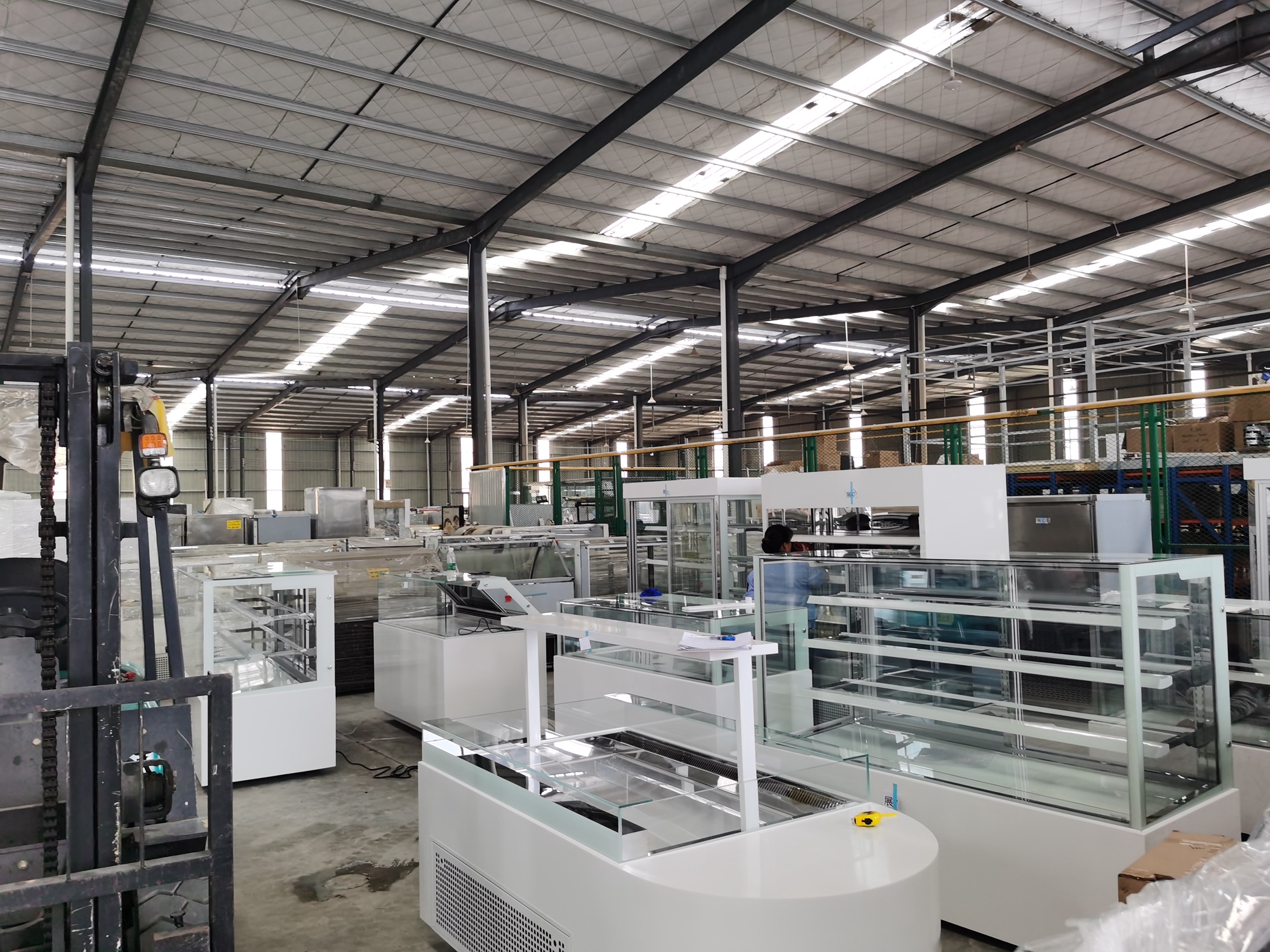

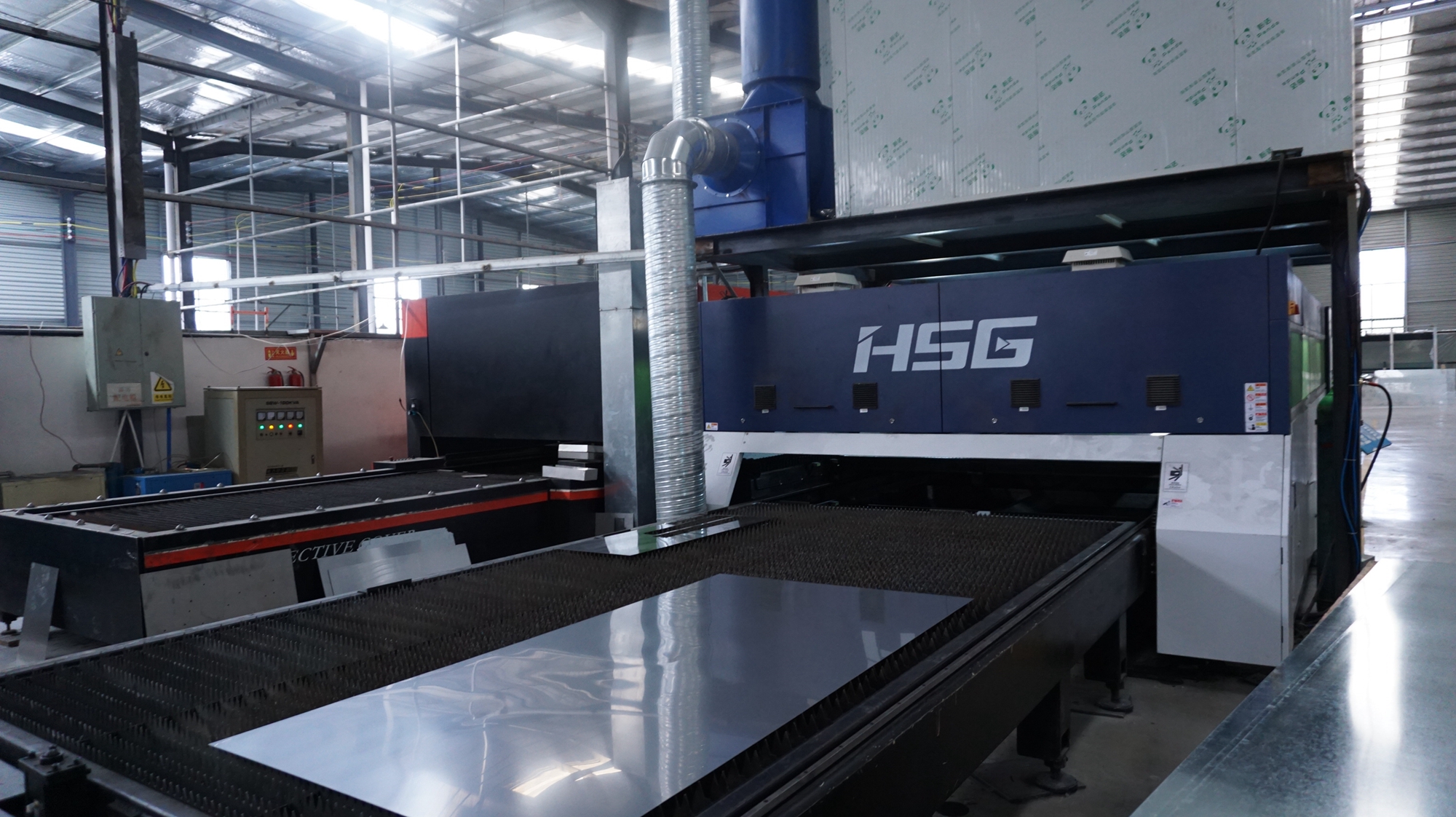

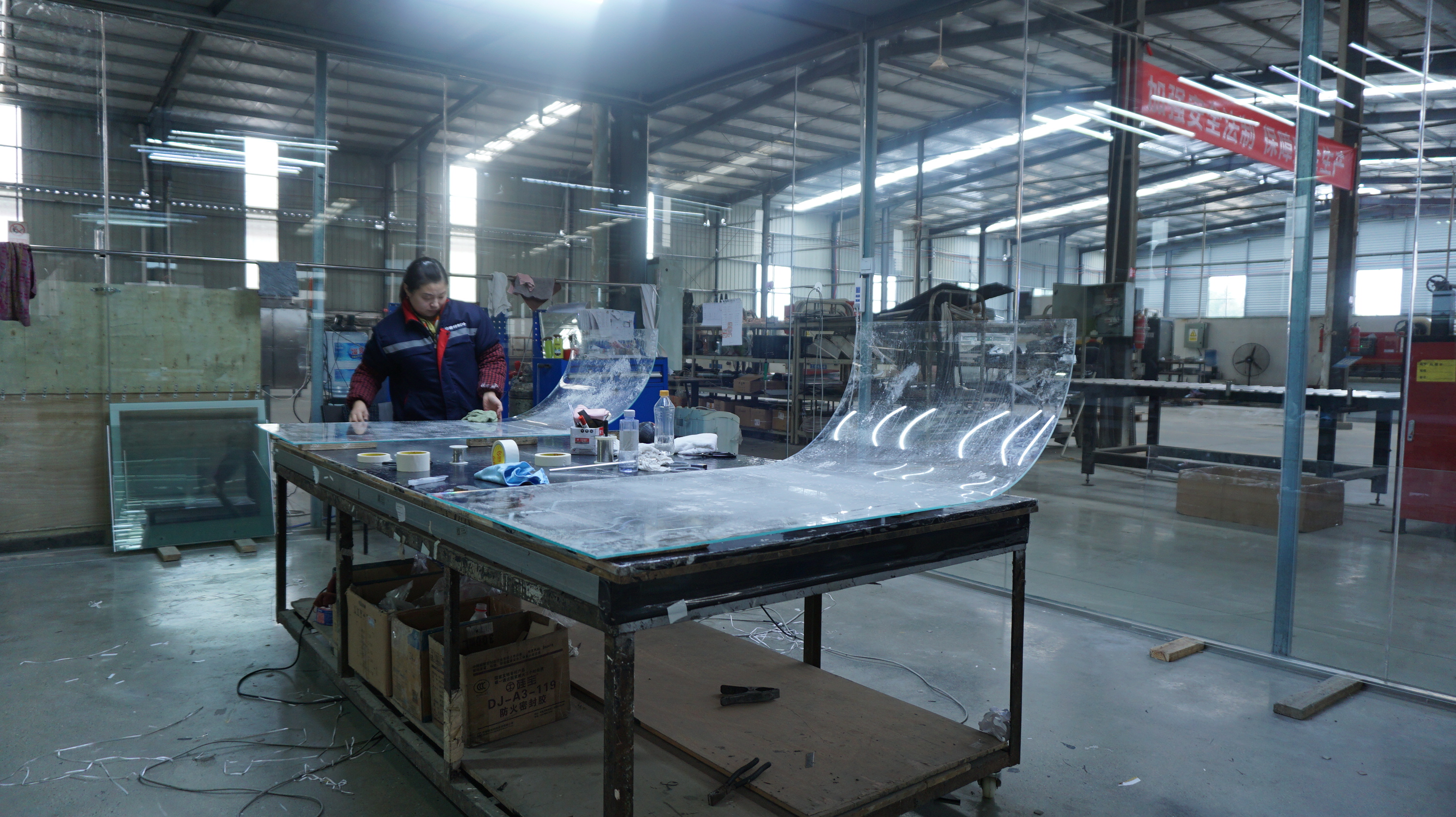

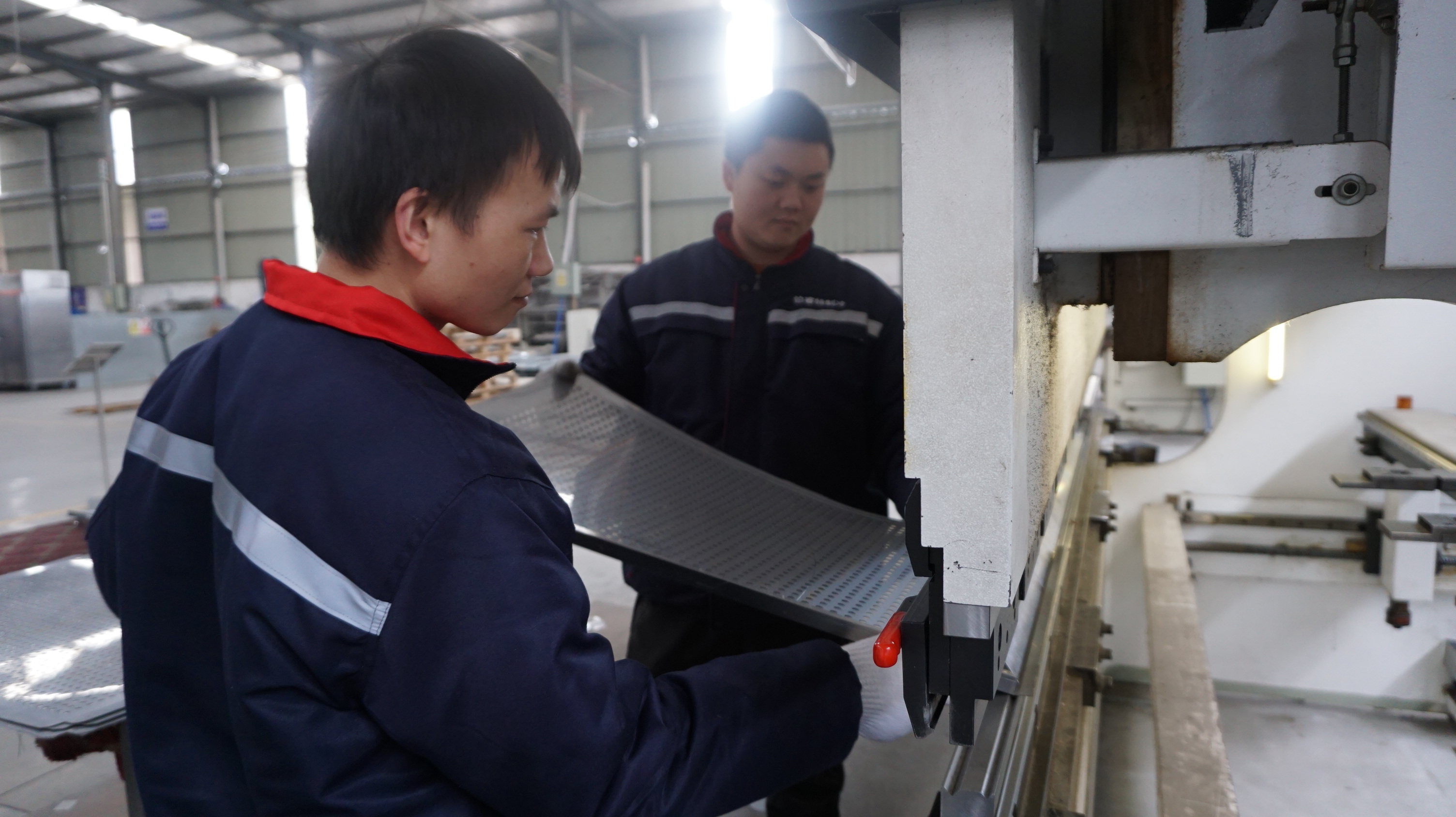

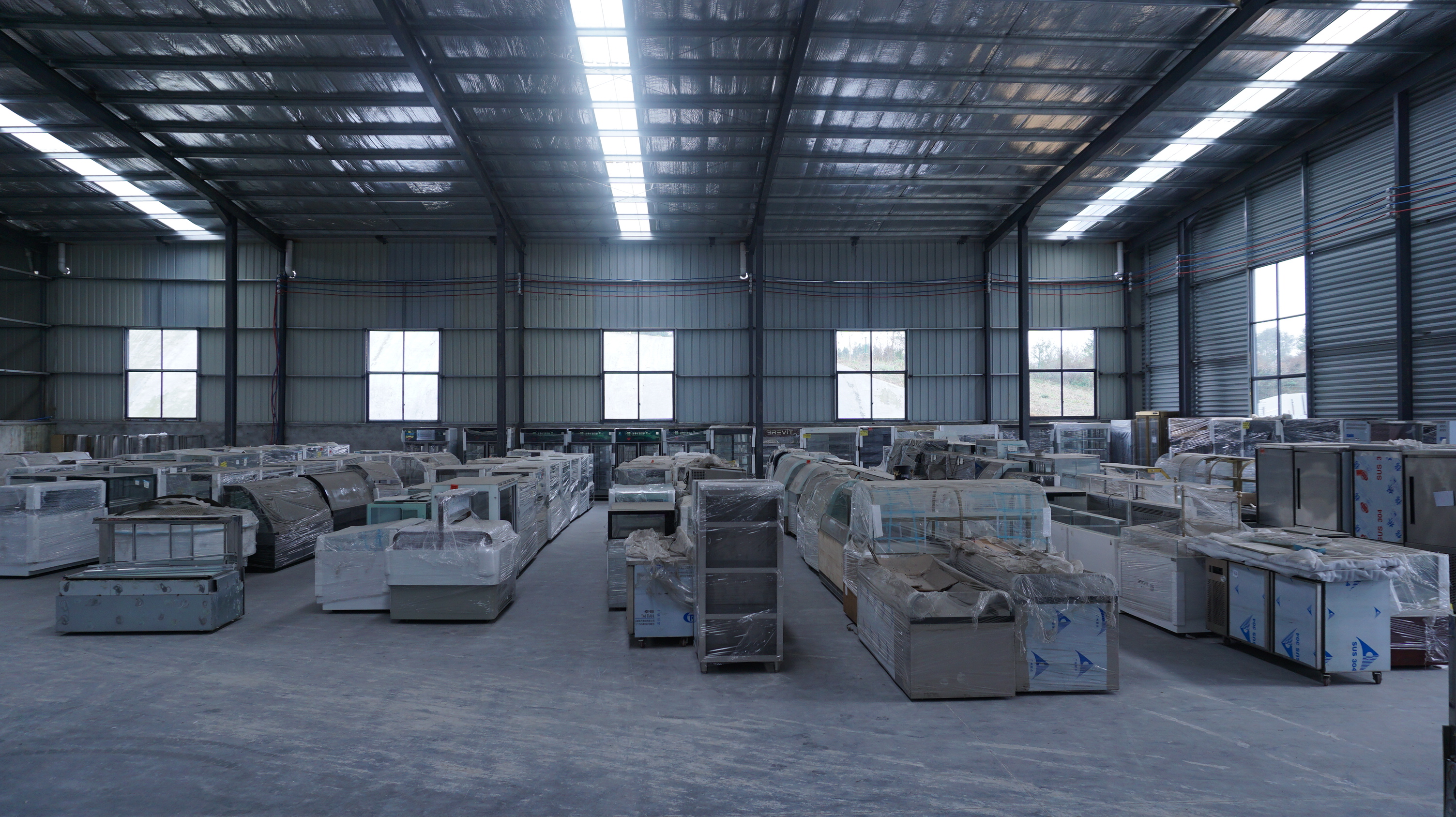

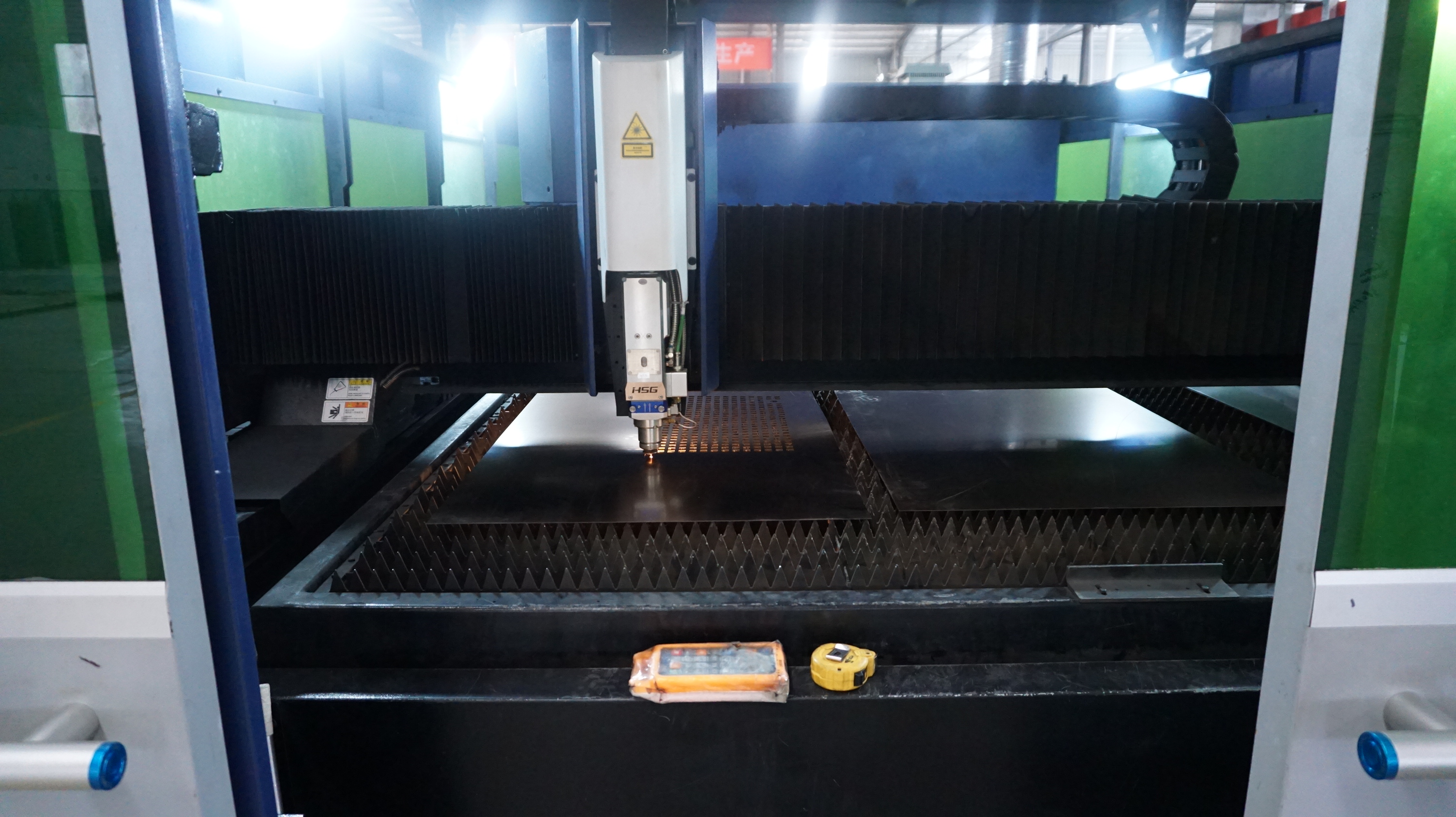

Production Process

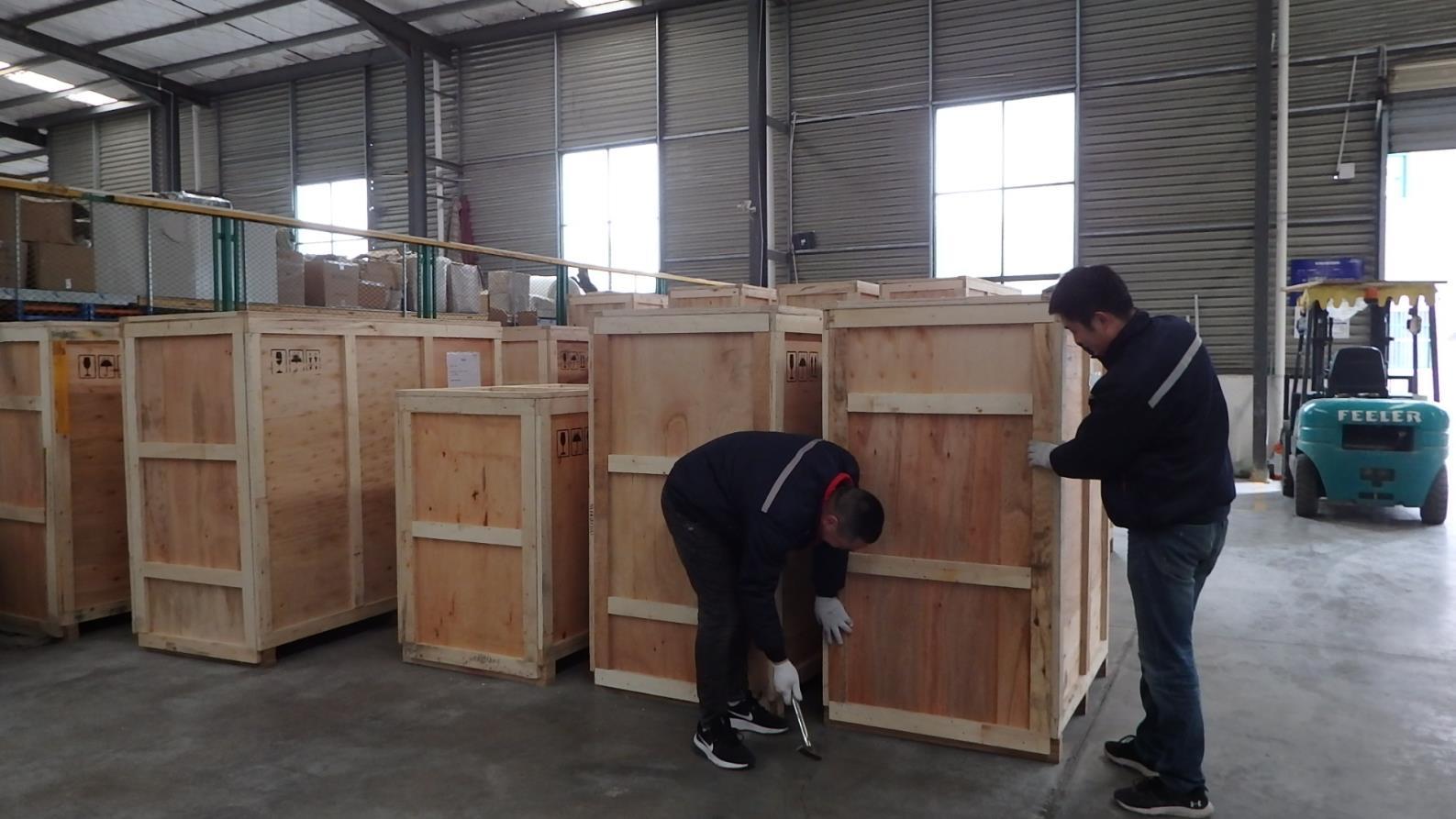

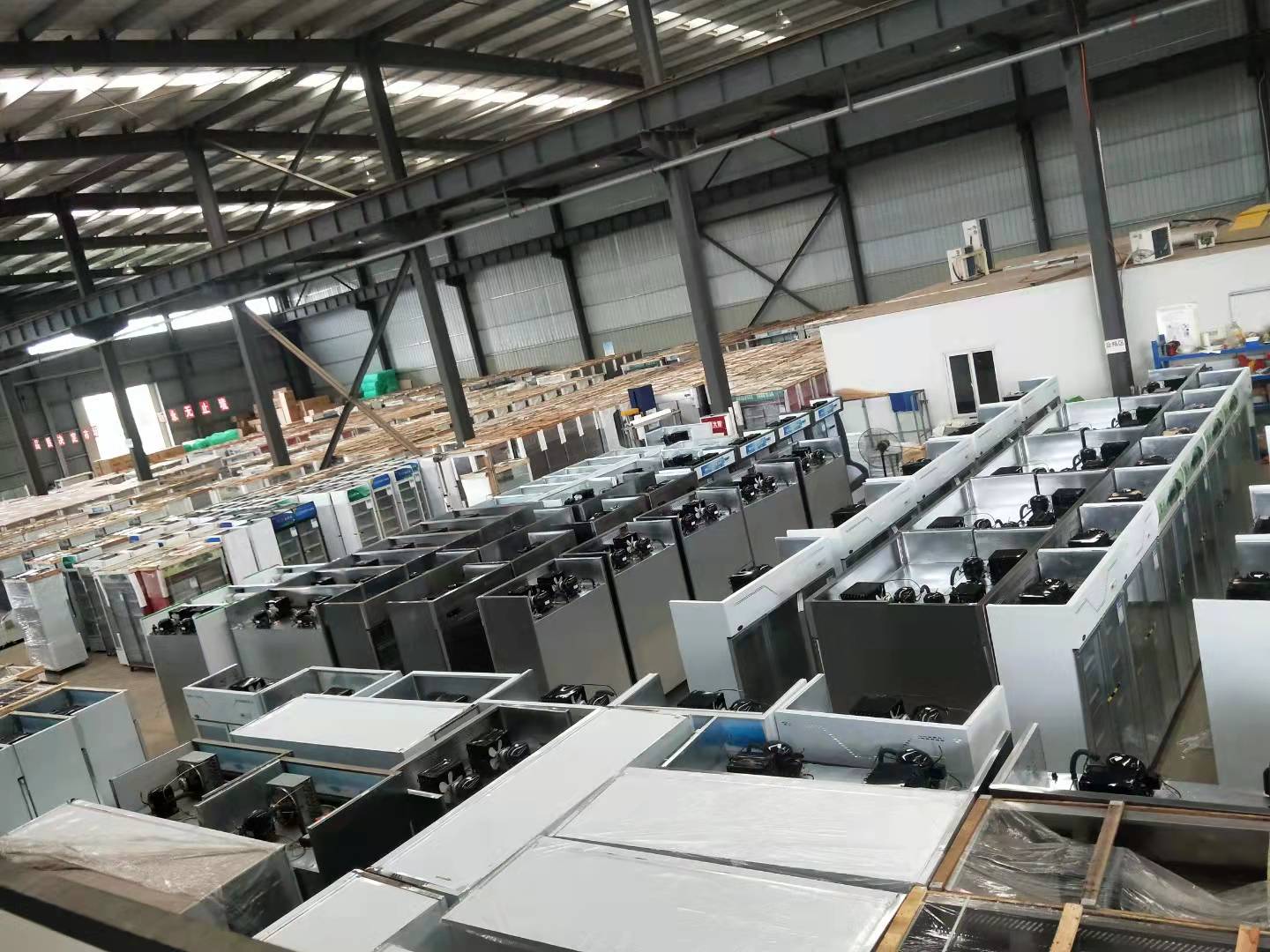

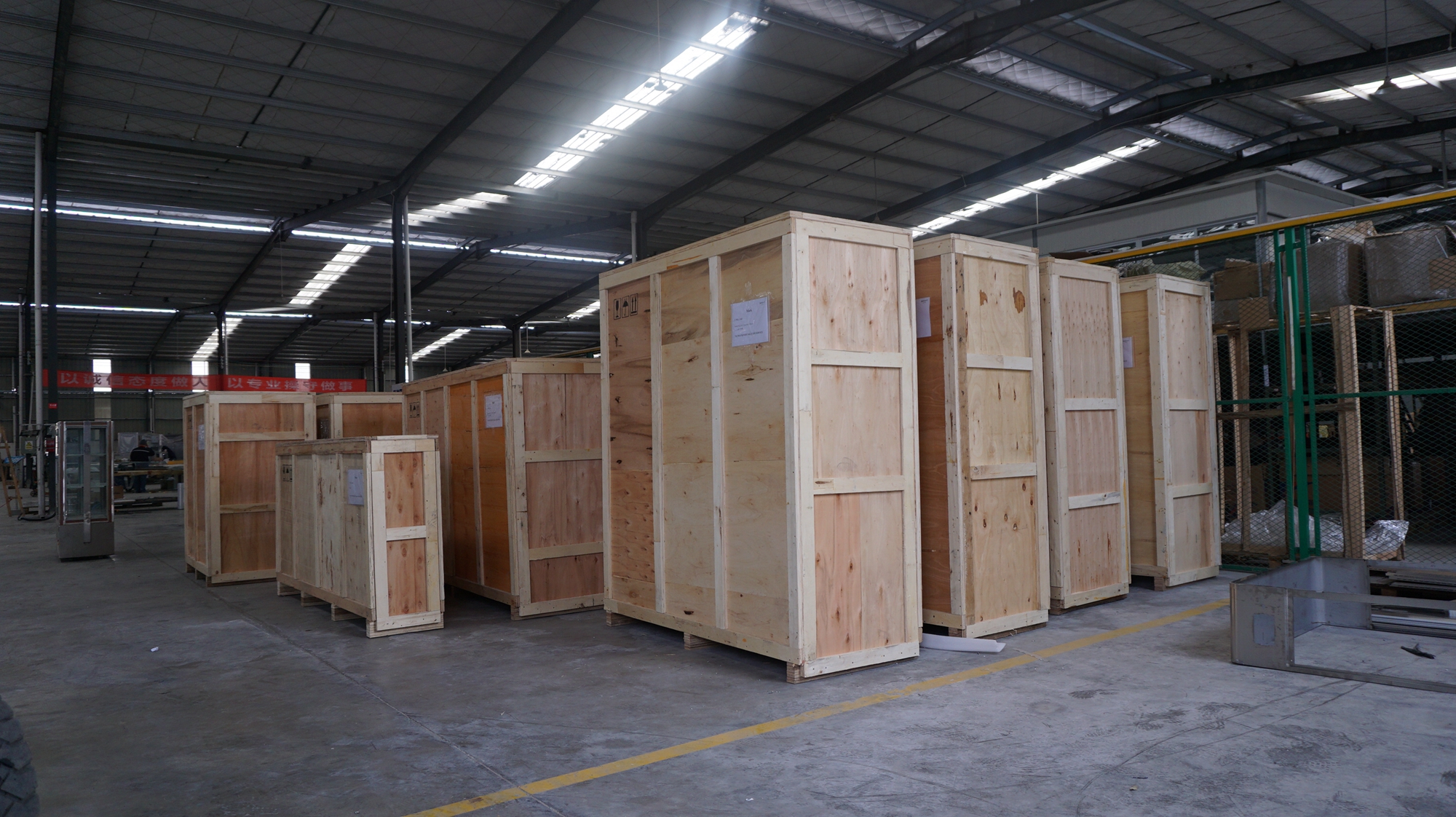

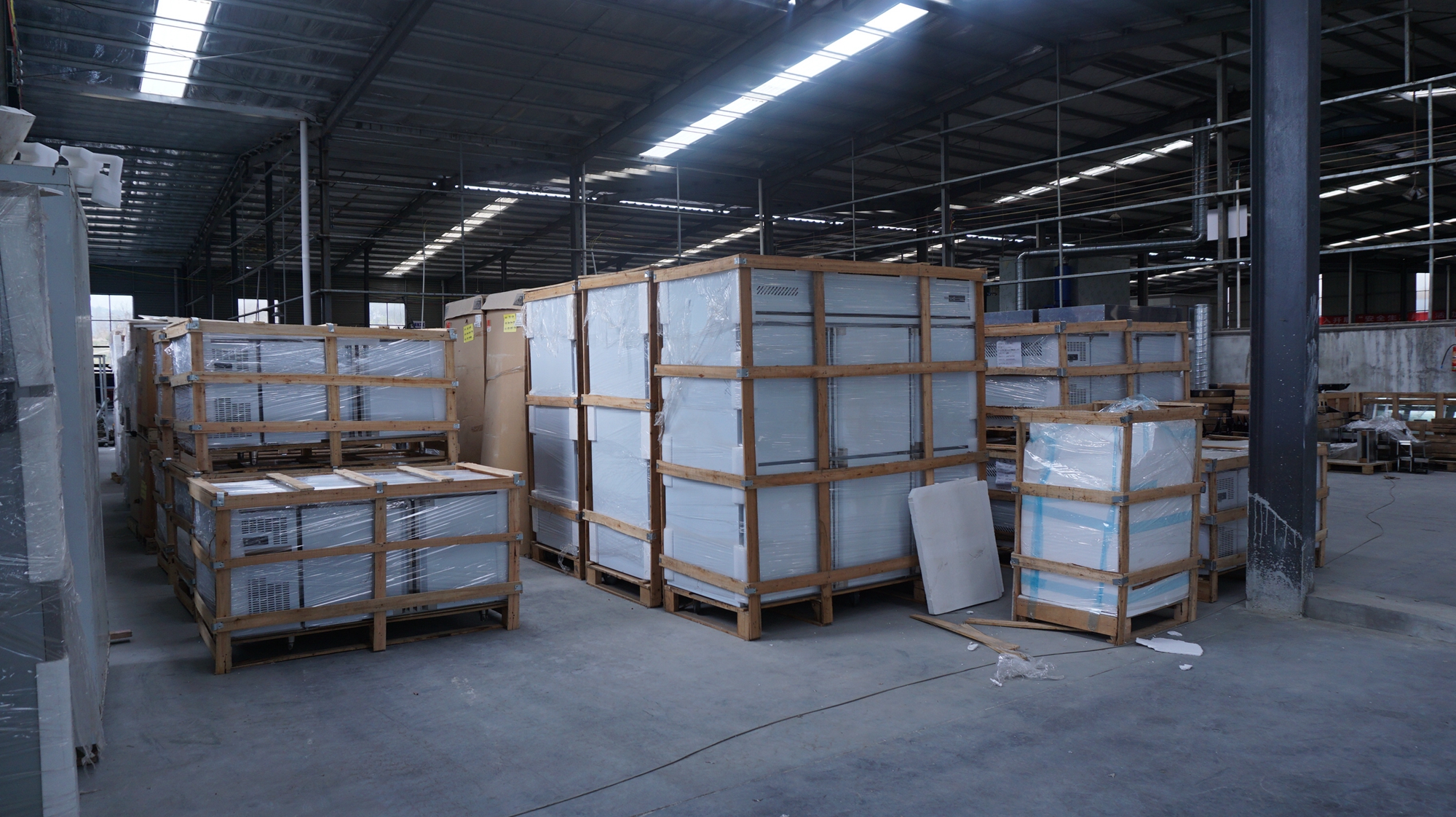

Product packaging

Frequently Asked Questions

1. What's the Best Price You Can offer?

The best price depends on the order quantity, please leave us a message with your purchase details such as Quantity, Specification etc. We will respond to you within 24 hours.

2. How Can I Get Protected If I Trade With Your Company?

We are a legal and registered manufacturer. You are welcome to use Trade Assurance Order and Secure Payment which can give you full protection.

3. Do you provide OEM Service?

Yes. We are a professional manufacturer in this industry. We are providing full solutions for OEM/ODM clients.

4. What materials are used to manufacture the ovens and proofers?

Our equipment is mainly constructed from high-quality stainless steel, ensuring excellent heat resistance, corrosion protection, structural durability, and compliance with national food safety standards.

5. What safety certifications do the products carry?

Our baking and proofing machines are built to meet strict quality guidelines, carrying CE certifications and passing food contact safety standard tests (such as GB4806) to ensure operations are safe and hygienic.

6. Are custom voltage configurations supported?

Yes. While standard models run on 220V or 380V, custom voltage and frequency requirements can be negotiated based on standard compliance and order volume specifications.
